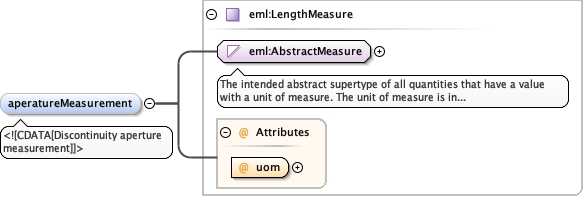

Element diggs:FractureObservationType / diggs:aperatureMeasurement
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity aperture measurement
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="aperatureMeasurement" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity aperture measurement]]>
    </documentation>
  </annotation>
</element>

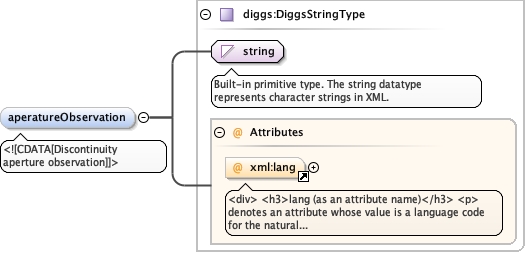

Element diggs:FractureObservationType / diggs:aperatureObservation
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity aperture observation
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="aperatureObservation" type="diggs:DiggsStringType">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity aperture observation]]>
    </documentation>
  </annotation>
</element>

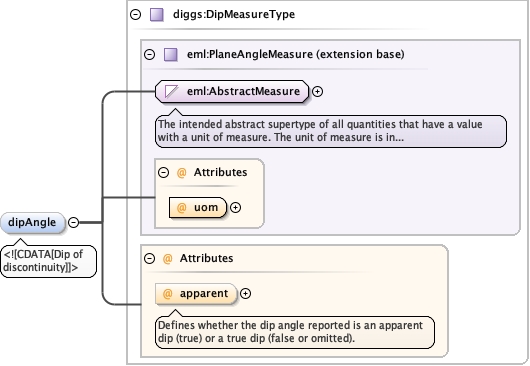

Element diggs:FractureObservationType / diggs:dipAngle
Namespace http://diggsml.org/schema-dev
Annotations

Dip of discontinuity
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparentKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType
Type diggs:DipMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip (true) or a true dip (false or omitted).
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
  <annotation>
    <documentation>
      <![CDATA[Dip of discontinuity]]>
    </documentation>
  </annotation>
</element>

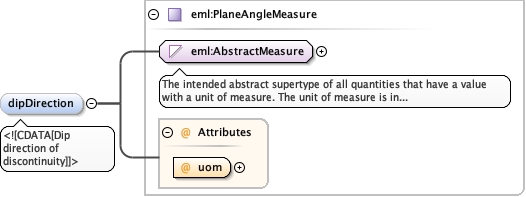

Element diggs:FractureObservationType / diggs:dipDirection
Namespace http://diggsml.org/schema-dev
Annotations

Dip direction of discontinuity
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="dipDirection" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation>
      <![CDATA[Dip direction of discontinuity]]>
    </documentation>
  </annotation>
</element>
Element diggs:FractureObservationType / diggs:discontinuityNumber
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity number
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="discontinuityNumber" type="integer">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity number]]>
    </documentation>
  </annotation>
</element>

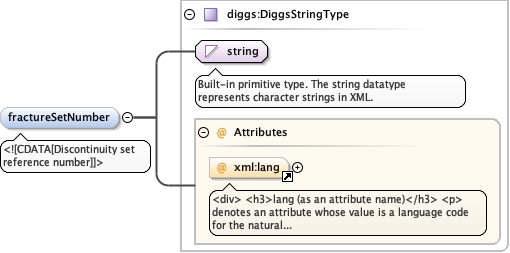

Element diggs:FractureObservationType / diggs:fractureSetNumber
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity set reference number
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="fractureSetNumber" type="diggs:DiggsStringType">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity set reference number]]>
    </documentation>
  </annotation>
</element>

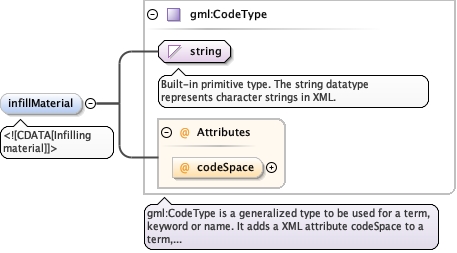

Element diggs:FractureObservationType / diggs:infillMaterial
Namespace http://diggsml.org/schema-dev
Annotations

Infilling material
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="infillMaterial" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Infilling material]]>
    </documentation>
  </annotation>
</element>

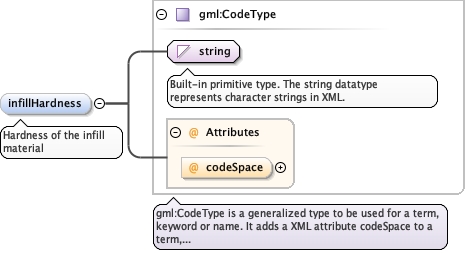

Element diggs:FractureObservationType / diggs:infillHardness
Namespace http://diggsml.org/schema-dev
Annotations

Hardness of the infill material
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="infillHardness" type="gml:CodeType">
  <annotation>
    <documentation>Hardness of the infill material</documentation>
  </annotation>
</element>
Element diggs:FractureObservationType / diggs:jointRoughnessCoefficient
Namespace http://diggsml.org/schema-dev
Annotations

Joint Roughness Coefficient
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="jointRoughnessCoefficient" type="double">
  <annotation>
    <documentation>
      <![CDATA[Joint Roughness Coefficient]]>
    </documentation>
  </annotation>
</element>
Element diggs:FractureObservationType / diggs:persistence
Namespace http://diggsml.org/schema-dev
Annotations

Persistence measurement
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="persistence" type="double">
  <annotation>
    <documentation>
      <![CDATA[Persistence measurement]]>
    </documentation>
  </annotation>
</element>

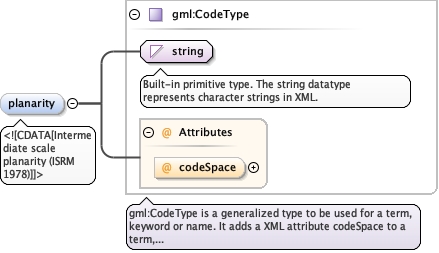

Element diggs:FractureObservationType / diggs:planarity
Namespace http://diggsml.org/schema-dev
Annotations

Intermediate scale planarity (ISRM 1978)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="planarity" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Intermediate scale planarity (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

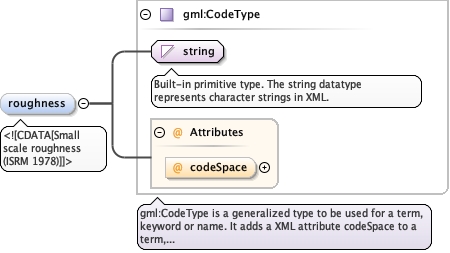

Element diggs:FractureObservationType / diggs:roughness
Namespace http://diggsml.org/schema-dev
Annotations

Small scale roughness (ISRM 1978)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="roughness" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Small scale roughness (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

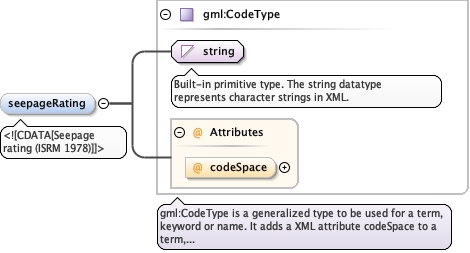

Element diggs:FractureObservationType / diggs:seepageRating
Namespace http://diggsml.org/schema-dev
Annotations

Seepage rating (ISRM 1978)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="seepageRating" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Seepage rating (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

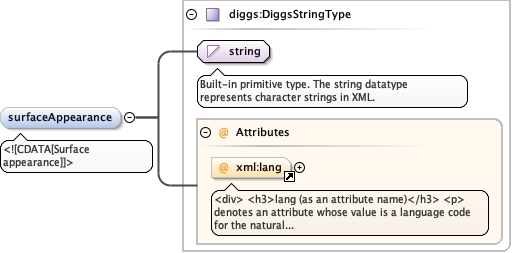

Element diggs:FractureObservationType / diggs:surfaceAppearance
Namespace http://diggsml.org/schema-dev
Annotations

Surface appearance
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="surfaceAppearance" type="diggs:DiggsStringType">
  <annotation>
    <documentation>
      <![CDATA[Surface appearance]]>
    </documentation>
  </annotation>
</element>

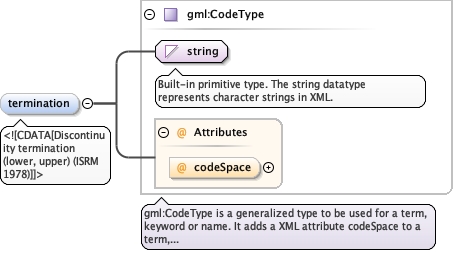

Element diggs:FractureObservationType / diggs:termination
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity termination (lower, upper) (ISRM 1978)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="termination" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity termination (lower, upper) (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

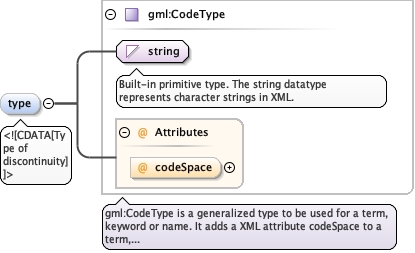

Element diggs:FractureObservationType / diggs:type
Namespace http://diggsml.org/schema-dev
Annotations

Type of discontinuity
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="type" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Type of discontinuity]]>
    </documentation>
  </annotation>
</element>

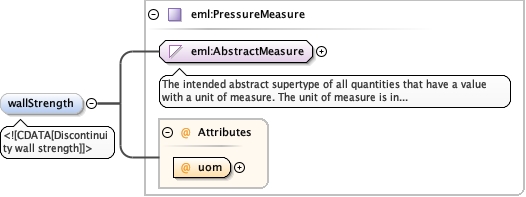

Element diggs:FractureObservationType / diggs:wallStrength
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity wall strength
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="wallStrength" type="eml:PressureMeasure">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity wall strength]]>
    </documentation>
  </annotation>
</element>

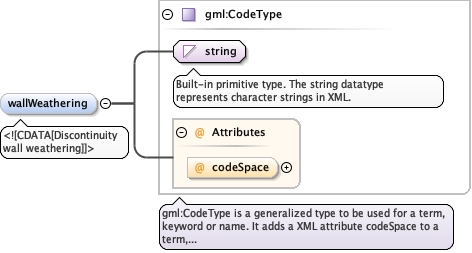

Element diggs:FractureObservationType / diggs:wallWeathering
Namespace http://diggsml.org/schema-dev
Annotations

Discontinuity wall weathering
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="wallWeathering" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[Discontinuity wall weathering]]>
    </documentation>
  </annotation>
</element>

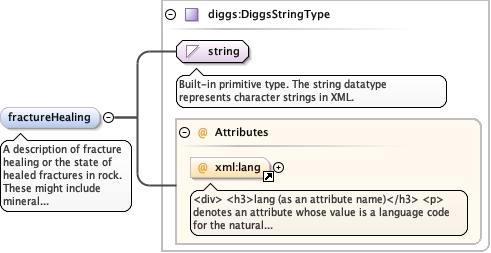

Element diggs:FractureObservationType / diggs:fractureHealing
Namespace http://diggsml.org/schema-dev
Annotations

A description of fracture healing or the state of healed fractures in rock. These might include mineral filling/mineralization (eg. crystallization, precipitation), physical charactceristics (eg. cementation, recrystallization), quality descriptors (eg. partial healing, etc.) and age/time of healing (eg. ancient, recent).
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="fractureHealing" type="diggs:DiggsStringType">
  <annotation>
    <documentation>A description of fracture healing or the state of healed fractures in rock. These might include mineral filling/mineralization (eg. crystallization, precipitation), physical charactceristics (eg. cementation, recrystallization), quality descriptors (eg. partial healing, etc.) and age/time of healing (eg. ancient, recent).</documentation>
  </annotation>
</element>

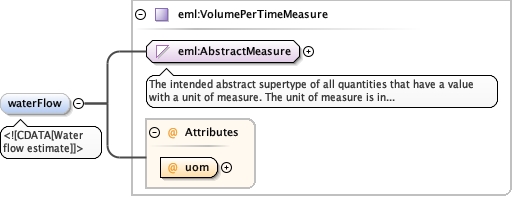

Element diggs:FractureObservationType / diggs:waterFlow
Namespace http://diggsml.org/schema-dev
Annotations

Water flow estimate
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="waterFlow" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>
      <![CDATA[Water flow estimate]]>
    </documentation>
  </annotation>
</element>

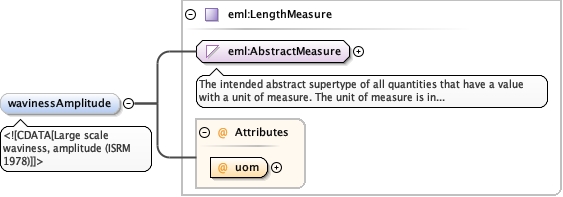

Element diggs:FractureObservationType / diggs:wavinessAmplitude
Namespace http://diggsml.org/schema-dev
Annotations

Large scale waviness, amplitude (ISRM 1978)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="wavinessAmplitude" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Large scale waviness, amplitude (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

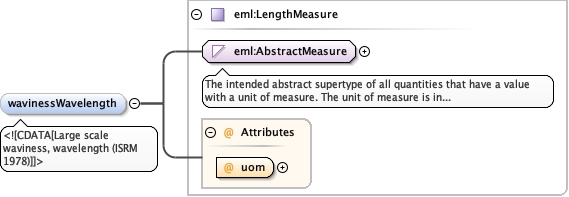

Element diggs:FractureObservationType / diggs:wavinessWavelength
Namespace http://diggsml.org/schema-dev
Annotations

Large scale waviness, wavelength (ISRM 1978)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="wavinessWavelength" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Large scale waviness, wavelength (ISRM 1978)]]>
    </documentation>
  </annotation>
</element>

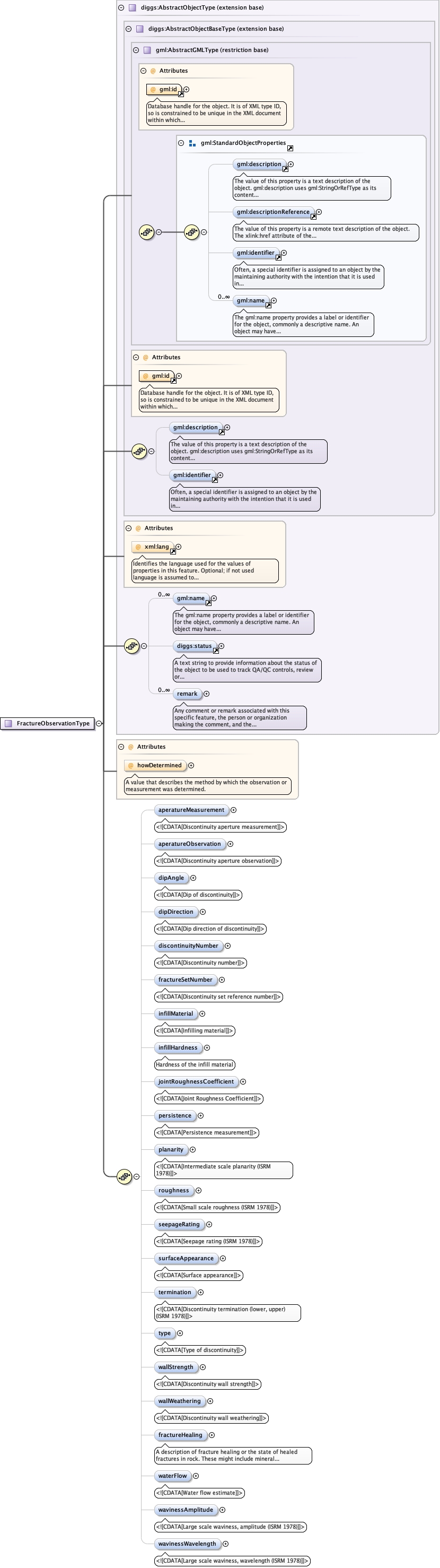

Complex Type diggs:FractureObservationType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_howDeterminedKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_aperatureMeasurementKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_aperatureObservationKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_dipAngleKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_dipDirectionKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_discontinuityNumberKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_fractureSetNumberKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_infillMaterialKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_infillHardnessKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_jointRoughnessCoefficientKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_persistenceKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_planarityKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_roughnessKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_seepageRatingKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_surfaceAppearanceKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_terminationKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_typeKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_wallStrengthKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_wallWeatheringKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_fractureHealingKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_waterFlowKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_wavinessAmplitudeKernel_xsd_Complex_Type_diggs_FractureObservationType.tmp#FractureObservationType_wavinessWavelength
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:aperatureMeasurement, diggs:aperatureObservation, diggs:dipAngle, diggs:dipDirection, diggs:discontinuityNumber, diggs:fractureHealing, diggs:fractureSetNumber, diggs:infillHardness, diggs:infillMaterial, diggs:jointRoughnessCoefficient, diggs:persistence, diggs:planarity, diggs:remark, diggs:roughness, diggs:seepageRating, diggs:status, diggs:surfaceAppearance, diggs:termination, diggs:type, diggs:wallStrength, diggs:wallWeathering, diggs:waterFlow, diggs:wavinessAmplitude, diggs:wavinessWavelength, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="FractureObservationType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="aperatureMeasurement" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity aperture measurement]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="aperatureObservation" type="diggs:DiggsStringType">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity aperture observation]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
          <annotation>
            <documentation>
              <![CDATA[Dip of discontinuity]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dipDirection" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation>
              <![CDATA[Dip direction of discontinuity]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="discontinuityNumber" type="integer">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity number]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fractureSetNumber" type="diggs:DiggsStringType">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity set reference number]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="infillMaterial" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Infilling material]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="infillHardness" type="gml:CodeType">
          <annotation>
            <documentation>Hardness of the infill material</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="jointRoughnessCoefficient" type="double">
          <annotation>
            <documentation>
              <![CDATA[Joint Roughness Coefficient]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="persistence" type="double">
          <annotation>
            <documentation>
              <![CDATA[Persistence measurement]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="planarity" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Intermediate scale planarity (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="roughness" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Small scale roughness (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="seepageRating" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Seepage rating (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="surfaceAppearance" type="diggs:DiggsStringType">
          <annotation>
            <documentation>
              <![CDATA[Surface appearance]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="termination" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity termination (lower, upper) (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="type" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Type of discontinuity]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wallStrength" type="eml:PressureMeasure">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity wall strength]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wallWeathering" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[Discontinuity wall weathering]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fractureHealing" type="diggs:DiggsStringType">
          <annotation>
            <documentation>A description of fracture healing or the state of healed fractures in rock. These might include mineral filling/mineralization (eg. crystallization, precipitation), physical charactceristics (eg. cementation, recrystallization), quality descriptors (eg. partial healing, etc.) and age/time of healing (eg. ancient, recent).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterFlow" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>
              <![CDATA[Water flow estimate]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wavinessAmplitude" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Large scale waviness, amplitude (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wavinessWavelength" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Large scale waviness, wavelength (ISRM 1978)]]>
            </documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
        <annotation>
          <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:FractureObservationType / @howDetermined
Namespace No namespace
Annotations

A value that describes the method by which the observation or measurement
was determined.
Type diggs:DescriptorMethodEnumType
Properties
content simple
Facets
enumeration assigned
Value is assigned a priori as a commonly used value or by assumption
enumeration calculated
Value is computed directly from other value(s)
enumeration extrapolated
Value is estimated by extrapolating trends in the known data
enumeration graphic
Value is manually picked from a graph or visual display
enumeration inferred
Value is estimated from some indirect measurements such as from a wireline log or transducer.
enumeration interpolated
Value is estimated betweem two known values using some presumed
function
enumeration maximum
Value is the largest value inferred for the property
enumeration measured
Value is determined directly from a laboratory or in situ test
enumeration minimum
Value is the smallest value inferred for the property
enumeration missing
Method known but not reported here
enumeration modeled
Value is estimated from a representation of the measured feature
enumeration moving average
Value is calculated as a moving average of reading
enumeration other
Method other than the choices in this list. Further information should be provided in the remarks property
enumeration reported
Value or description comes from a third party source
enumeration unknown
Method of determination unknown and can likely not be determined
enumeration visual
Value or description comes from visual or visual/manual inspection
Used by
Source

<attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
  <annotation>
    <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
