Element diggs:InsituCBRTestType / diggs:penetrationIncrement
Namespace http://diggsml.org/schema-dev
Annotations
Diagram

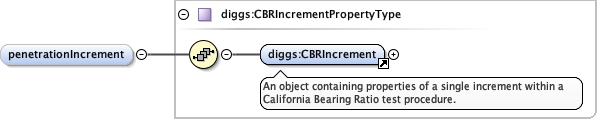

DiagramTestProcedures_xsd_Element_diggs_CBRIncrement.tmp#http___diggsml.org_schema-dev_CBRIncrementTestProcedures_xsd_Complex_Type_diggs_CBRIncrementPropertyType.tmp#http___diggsml.org_schema-dev_CBRIncrementPropertyType
Type diggs:CBRIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:CBRIncrement
Children diggs:CBRIncrement
Instance

<diggs:penetrationIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:CBRIncrement gml:id="" xml:lang="">{1,1}</diggs:CBRIncrement>
</diggs:penetrationIncrement>
Source

<element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation/>
  </annotation>
</element>
Element diggs:InsituCBRTestType / diggs:pistonDiameter
Namespace http://diggsml.org/schema-dev
Annotations

Diameter of the penetration piston
Diagram

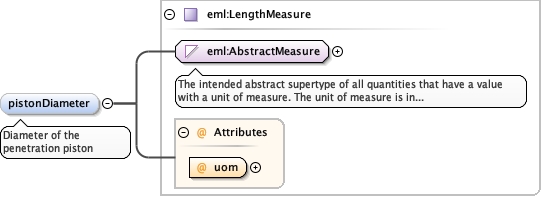

DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>Diameter of the penetration piston</documentation>
  </annotation>
</element>
Element diggs:InsituCBRTestType / diggs:reactionLoadDescription
Namespace http://diggsml.org/schema-dev
Annotations

Description of the type of weight used for the reaction
load
Diagram

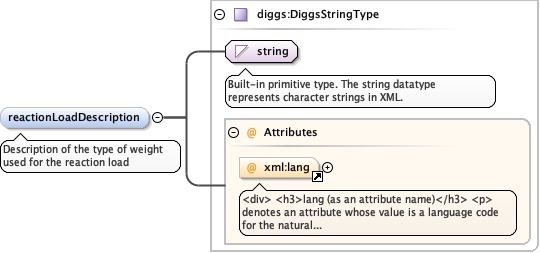

Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="reactionLoadDescription" type="diggs:DiggsStringType">
  <annotation>
    <documentation>Description of the type of weight used for the reaction load</documentation>
  </annotation>
</element>
Element diggs:InsituCBRTestType / diggs:seatingForce
Namespace http://diggsml.org/schema-dev
Annotations

Force of reaction system.
Diagram

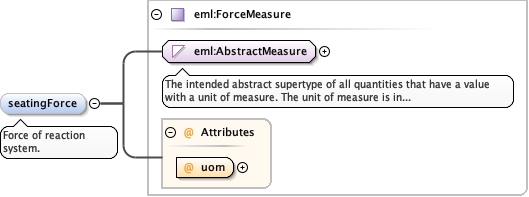

DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="seatingForce" type="eml:ForceMeasure" minOccurs="0">
  <annotation>
    <documentation>Force of reaction system.</documentation>
  </annotation>
</element>
Element diggs:InsituCBRTestType / diggs:surchargePressure
Namespace http://diggsml.org/schema-dev
Annotations

Load imposed by surchage from test
equipment.
Diagram

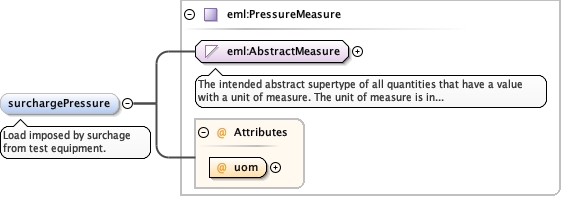

DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element name="surchargePressure" type="eml:PressureMeasure" minOccurs="0">
  <annotation>
    <documentation>Load imposed by surchage from test equipment.</documentation>
  </annotation>
</element>
Complex Type diggs:InsituCBRTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for InsituCBRTest
Diagram

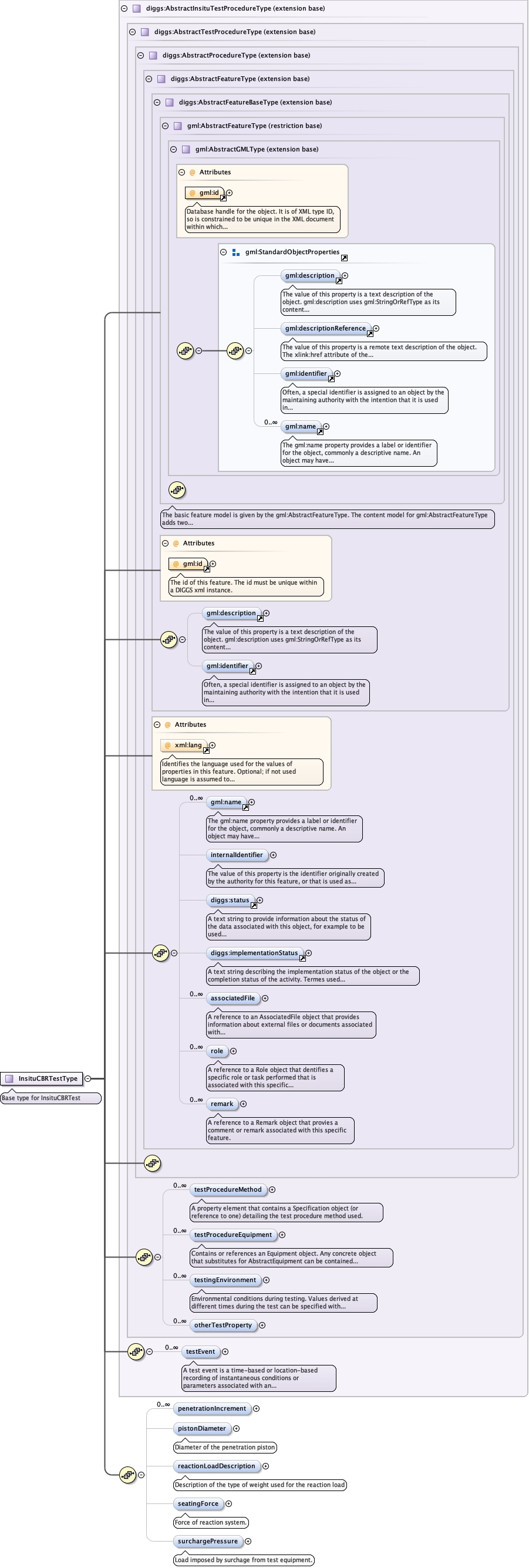

Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#http___diggsml.org_schema-dev_InsituCBRTestType_penetrationIncrementTestProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#http___diggsml.org_schema-dev_InsituCBRTestType_pistonDiameterTestProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#http___diggsml.org_schema-dev_InsituCBRTestType_reactionLoadDescriptionTestProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#http___diggsml.org_schema-dev_InsituCBRTestType_seatingForceTestProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#http___diggsml.org_schema-dev_InsituCBRTestType_surchargePressure
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Element diggs:InsituCBRTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent* , diggs:penetrationIncrement* , diggs:pistonDiameter{0,1} , diggs:reactionLoadDescription{0,1} , diggs:seatingForce{0,1} , diggs:surchargePressure{0,1}
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:penetrationIncrement, diggs:pistonDiameter, diggs:reactionLoadDescription, diggs:remark, diggs:role, diggs:seatingForce, diggs:status, diggs:surchargePressure, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="InsituCBRTestType">
  <annotation>
    <documentation>Base type for InsituCBRTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>Diameter of the penetration piston</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="reactionLoadDescription" type="diggs:DiggsStringType">
          <annotation>
            <documentation>Description of the type of weight used for the reaction load</documentation>
          </annotation>
        </element>
        <element name="seatingForce" type="eml:ForceMeasure" minOccurs="0">
          <annotation>
            <documentation>Force of reaction system.</documentation>
          </annotation>
        </element>
        <element name="surchargePressure" type="eml:PressureMeasure" minOccurs="0">
          <annotation>
            <documentation>Load imposed by surchage from test equipment.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
