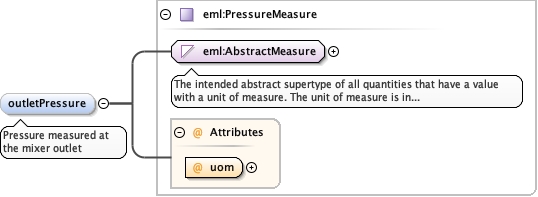

Element diggs:GroutMixerType / diggs:outletPressure
Namespace http://diggsml.org/schema-dev
Annotations

Pressure measured at the mixer outlet
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUom required
Source

<element minOccurs="0" name="outletPressure" type="eml:PressureMeasure">
  <annotation>
    <documentation>Pressure measured at the mixer outlet</documentation>
  </annotation>
</element>

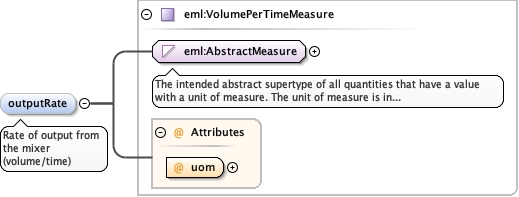

Element diggs:GroutMixerType / diggs:outputRate
Namespace http://diggsml.org/schema-dev
Annotations

Rate of output from the mixer
(volume/time)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="outputRate" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Rate of output from the mixer (volume/time)</documentation>
  </annotation>
</element>

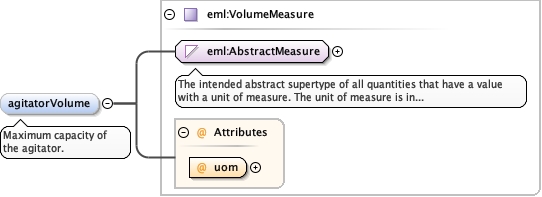

Element diggs:GroutMixerType / diggs:agitatorVolume
Namespace http://diggsml.org/schema-dev
Annotations

Maximum capacity of the agitator.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="agitatorVolume" type="eml:VolumeMeasure" maxOccurs="1">
  <annotation>
    <documentation>Maximum capacity of the agitator.</documentation>
  </annotation>
</element>

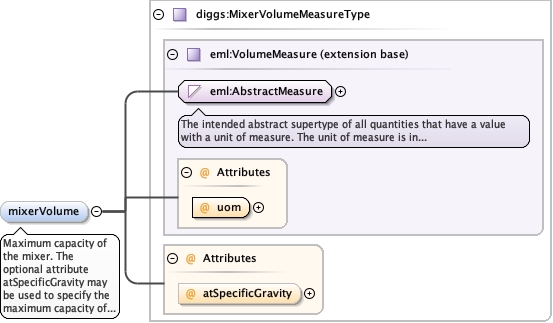

Element diggs:GroutMixerType / diggs:mixerVolume
Namespace http://diggsml.org/schema-dev
Annotations

Maximum capacity of the mixer. The optional attribute
atSpecificGravity may be used to specify the maximum capacity of the
mixer for a particular specific gravity of the grout
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasureMeasureTypes_xsd_Complex_Type_diggs_MixerVolumeMeasureType.tmp#MixerVolumeMeasureType_atSpecificGravityMeasureTypes_xsd_Complex_Type_diggs_MixerVolumeMeasureType.tmp#MixerVolumeMeasureType
Type diggs:MixerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
atSpecificGravity double optional
uom eml:VolumeUom required
Source

<element minOccurs="0" name="mixerVolume" maxOccurs="unbounded" type="diggs:MixerVolumeMeasureType">
  <annotation>
    <documentation>Maximum capacity of the mixer. The optional attribute atSpecificGravity may be used to specify the maximum capacity of the mixer for a particular specific gravity of the grout</documentation>
  </annotation>
</element>
Element diggs:GroutMixerType / diggs:agitatorSpeed
Namespace http://diggsml.org/schema-dev
Annotations

Rotational speed of the agitator
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure_uomMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure
Type eml:AngularVelocityMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AngularVelocityUom required
Source

<element minOccurs="0" name="agitatorSpeed" type="eml:AngularVelocityMeasure">
  <annotation>
    <documentation>Rotational speed of the agitator</documentation>
  </annotation>
</element>

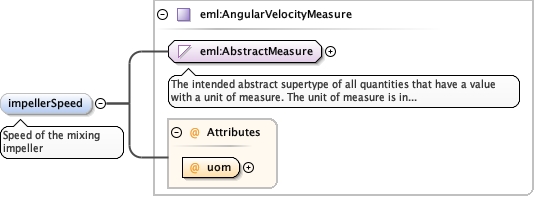

Element diggs:GroutMixerType / diggs:impellerSpeed
Namespace http://diggsml.org/schema-dev
Annotations

Speed of the mixing impeller
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure_uomMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure
Type eml:AngularVelocityMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AngularVelocityUom required
Source

<element minOccurs="0" name="impellerSpeed" type="eml:AngularVelocityMeasure">
  <annotation>
    <documentation>Speed of the mixing impeller</documentation>
  </annotation>
</element>

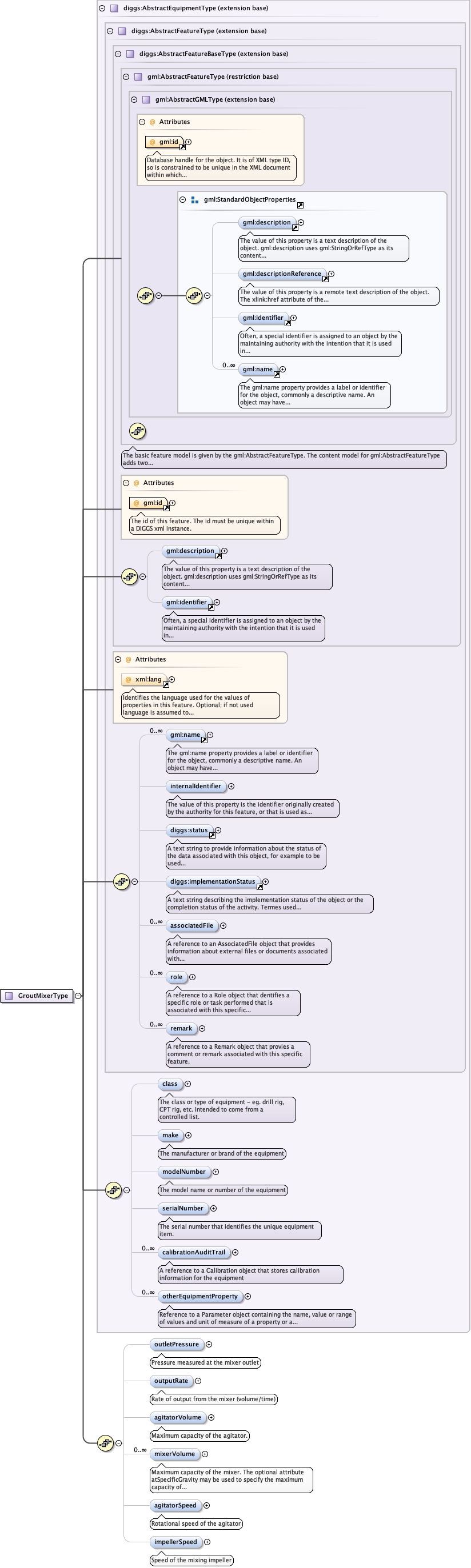

Complex Type diggs:GroutMixerType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_outletPressureConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_outputRateConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_agitatorVolumeConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_mixerVolumeConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_agitatorSpeedConstruction_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_impellerSpeed
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:agitatorSpeed, diggs:agitatorVolume, diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:impellerSpeed, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:mixerVolume, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:outletPressure, diggs:outputRate, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GroutMixerType">
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="outletPressure" type="eml:PressureMeasure">
          <annotation>
            <documentation>Pressure measured at the mixer outlet</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="outputRate" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Rate of output from the mixer (volume/time)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="agitatorVolume" type="eml:VolumeMeasure" maxOccurs="1">
          <annotation>
            <documentation>Maximum capacity of the agitator.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="mixerVolume" maxOccurs="unbounded" type="diggs:MixerVolumeMeasureType">
          <annotation>
            <documentation>Maximum capacity of the mixer. The optional attribute atSpecificGravity may be used to specify the maximum capacity of the mixer for a particular specific gravity of the grout</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="agitatorSpeed" type="eml:AngularVelocityMeasure">
          <annotation>
            <documentation>Rotational speed of the agitator</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="impellerSpeed" type="eml:AngularVelocityMeasure">
          <annotation>
            <documentation>Speed of the mixing impeller</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
