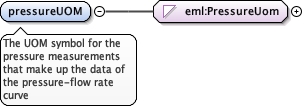

Element diggs:PressureFlowCurveDataType / diggs:pressureUOM
Namespace http://diggsml.org/schema-dev
Annotations

The UOM symbol for the pressure measurements that make up
the data of the pressure-flow rate curve
Diagram
DiagramQuantityClass_xsd_Simple_Type_eml_PressureUom.tmp#PressureUom
Type eml:PressureUom
Type hierarchy
Properties
content simple
Facets
maxLength 32
enumeration 0.01 lbf/ft2
pound-force per hundred square foot
enumeration at
technical atmosphere
enumeration atm
standard atmosphere
enumeration bar
bar
enumeration cmH2O[4degC]
centimetre of water at 4 degree Celsius
enumeration cPa
centipascal
enumeration dPa
decipascal
enumeration dyne/cm2
dyne per square centimetre
enumeration EPa
exapascal
enumeration fPa
femtopascal
enumeration GPa
gigapascal
enumeration hbar
hundred bar
enumeration inH2O[39degF]
inch of water at 39.2 degree Fahrenheit
enumeration inH2O[60degF]
inch of water at 60 degree Fahrenheit
enumeration inHg[32degF]
inch of mercury at 32 degree Fahrenheit
enumeration inHg[60degF]
inch of mercury at 60 degree Fahrenheit
enumeration kgf/cm2
thousand gram-force per square centimetre
enumeration kgf/m2
thousand gram-force per square metre
enumeration kgf/mm2
thousand gram-force per square millimetre
enumeration kN/m2
kilonewton per square metre
enumeration kPa
kilopascal
enumeration kpsi
thousand psi
enumeration lbf/ft2
pound-force per square foot
enumeration mbar
thousandth of bar
enumeration mmHg[0degC]
millimetres of Mercury at 0 deg C
enumeration mPa
millipascal
enumeration MPa
megapascal
enumeration Mpsi
million psi
enumeration N/m2
newton per square metre
enumeration N/mm2
newton per square millimetre
enumeration nPa
nanopascal
enumeration Pa
pascal
enumeration pPa
picopascal
enumeration psi
pound-force per square inch
enumeration tonf[UK]/ft2
UK ton-force per square foot
enumeration tonf[US]/ft2
US ton-force per square foot
enumeration tonf[US]/in2
US ton-force per square inch
enumeration torr
torr
enumeration TPa
terapascal
enumeration ubar
millionth of bar
enumeration umHg[0degC]
micrometre of mercury at 0 degree Celsius
enumeration uPa
micropascal
enumeration upsi
millionth of psi
Source

<element name="pressureUOM" type="eml:PressureUom">
  <annotation>
    <documentation>The UOM symbol for the pressure measurements that make up the data of the pressure-flow rate curve</documentation>
  </annotation>
</element>

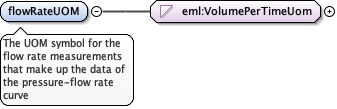

Element diggs:PressureFlowCurveDataType / diggs:flowRateUOM
Namespace http://diggsml.org/schema-dev
Annotations

The UOM symbol for the flow rate measurements that make
up the data of the pressure-flow rate curve
Diagram
DiagramQuantityClass_xsd_Simple_Type_eml_VolumePerTimeUom.tmp#VolumePerTimeUom
Type eml:VolumePerTimeUom
Type hierarchy
Properties
content simple
Facets
maxLength 32
enumeration 1/30 cm3/min
cubic centimetre per thirty minute
enumeration 1000 bbl/d
thousand barrel per day
enumeration 1000 ft3/d
thousand cubic foot per day
enumeration 1000 m3/d
thousand cubic metre per day
enumeration 1000 m3/h
thousand cubic metre per hour
enumeration 1E6 bbl/d
million barrel per day
enumeration 1E6 ft3/d
million cubic foot per day
enumeration 1E6 m3/d
million cubic metre per day
enumeration bbl/d
barrel per day
enumeration bbl/h
barrel per hour
enumeration bbl/min
barrel per minute
enumeration cm3/h
cubic centimetre per hour
enumeration cm3/min
cubic centimetre per minute
enumeration cm3/s
cubic centimetre per second
enumeration dm3/s
cubic decimetre per second
enumeration ft3/d
cubic foot per day
enumeration ft3/h
cubic foot per hour
enumeration ft3/min
cubic foot per minute
enumeration ft3/s
cubic foot per second
enumeration gal[UK]/d
UK gallon per day
enumeration gal[UK]/h
UK gallon per hour
enumeration gal[UK]/min
UK gallon per minute
enumeration gal[US]/d
US gallon per day
enumeration gal[US]/h
US gallon per hour
enumeration gal[US]/min
US gallon per minute
enumeration L/h
litre per hour
enumeration L/min
litre per minute
enumeration L/s
litre per second
enumeration m3/d
cubic metre per day
enumeration m3/h
cubic metre per hour
enumeration m3/min
cubic metre per minute
enumeration m3/s
cubic metre per second
Source

<element name="flowRateUOM" type="eml:VolumePerTimeUom">
  <annotation>
    <documentation>The UOM symbol for the flow rate measurements that make up the data of the pressure-flow rate curve</documentation>
  </annotation>
</element>
Element diggs:PressureFlowCurveDataType / diggs:index
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type positiveInteger
Properties
content simple
Source

<element name="index" type="positiveInteger"/>
Element diggs:PressureFlowCurveDataType / diggs:measuredPressure
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="measuredPressure" type="double"/>
Element diggs:PressureFlowCurveDataType / diggs:measuredFlowRate
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="measuredFlowRate" type="double"/>

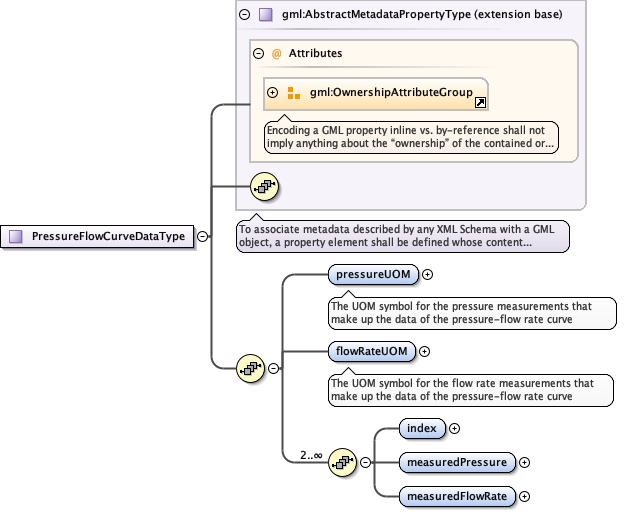

Complex Type diggs:PressureFlowCurveDataType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_pressureUOMConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_flowRateUOMConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_indexConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredPressureConstruction_xsd_Complex_Type_diggs_PressureFlowCurveDataType.tmp#PressureFlowCurveDataType_measuredFlowRate
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:flowRateUOM, diggs:index, diggs:measuredFlowRate, diggs:measuredPressure, diggs:pressureUOM
Attributes
QName Type Default Use
owns boolean false optional
Source

<complexType name="PressureFlowCurveDataType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element name="pressureUOM" type="eml:PressureUom">
          <annotation>
            <documentation>The UOM symbol for the pressure measurements that make up the data of the pressure-flow rate curve</documentation>
          </annotation>
        </element>
        <element name="flowRateUOM" type="eml:VolumePerTimeUom">
          <annotation>
            <documentation>The UOM symbol for the flow rate measurements that make up the data of the pressure-flow rate curve</documentation>
          </annotation>
        </element>
        <sequence maxOccurs="unbounded" minOccurs="2">
          <element name="index" type="positiveInteger"/>
          <element name="measuredPressure" type="double"/>
          <element name="measuredFlowRate" type="double"/>
        </sequence>
      </sequence>
    </extension>
  </complexContent>
</complexType>
