Element diggs:AbstractSpecimenType / diggs:specimenLocation
Namespace http://diggsml.org/schema-dev
Annotations

In cases where the specimen location may be different from the host sample's location (for example, a specimeen derived from a core sample at a specific location, instead of a specimen encompassing the entire extent of the sample), this property is used to indicate the specific location. When not present, the spcecimen location will be the same as the host sample's location if relevant.

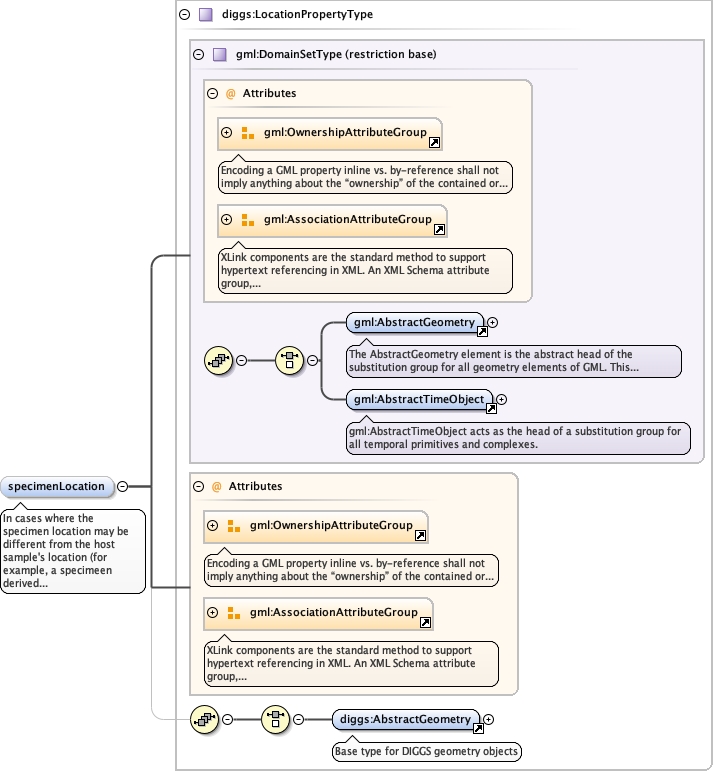

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_AbstractGeometry.tmp#http___diggsml.org_schema-dev_AbstractGeometryKernel_xsd_Complex_Type_diggs_LocationPropertyType.tmp#LocationPropertyType
Type diggs:LocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:AbstractGeometry
Instance

<diggs:specimenLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractGeometry>
</diggs:specimenLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="specimenLocation" type="diggs:LocationPropertyType">
  <annotation>
    <documentation>In cases where the specimen location may be different from the host sample's location (for example, a specimeen derived from a core sample at a specific location, instead of a specimen encompassing the entire extent of the sample), this property is used to indicate the specific location. When not present, the spcecimen location will be the same as the host sample's location if relevant.</documentation>
  </annotation>
</element>
Element diggs:AbstractSpecimenType / diggs:extractionTime
Namespace http://diggsml.org/schema-dev
Annotations

The time instant when this specimen was extracted from
the sample for testing. This is equivalent to
diggs:MaterialTest/sampleTime and diggs:Test/diggs:samplingTime
where only one specimen is used for the test and should generally
not be used in that case. Where multiple specimens are used for a
test and each was extracted from the host at different times, then
this property should be used to record the precise sampling time for
each specimen.

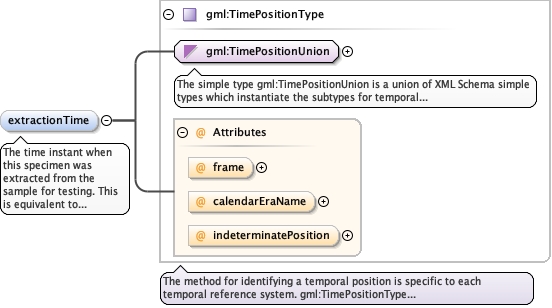

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="extractionTime" type="gml:TimePositionType">
  <annotation>
    <documentation>The time instant when this specimen was extracted from the sample for testing. This is equivalent to diggs:MaterialTest/sampleTime and diggs:Test/diggs:samplingTime where only one specimen is used for the test and should generally not be used in that case. Where multiple specimens are used for a test and each was extracted from the host at different times, then this property should be used to record the precise sampling time for each specimen.</documentation>
  </annotation>
</element>
Element diggs:AbstractSpecimenType / diggs:preparationProcedure
Namespace http://diggsml.org/schema-dev
Annotations

A property that contains a Specification object or
reference to a Specification object that describes the procedure
used to prepare the specimen from the sample. This can be a simple
description (contained in the Specification object's gml:description
property), the name of a standard specification (in the gml:name) or
a full procedural specification using appropriate properties in the
Specification object.

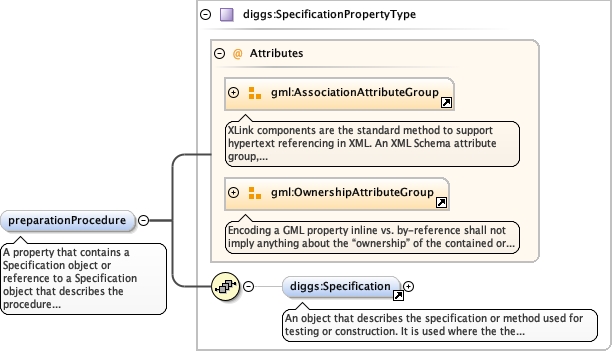

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_Specification.tmp#SpecificationKernel_xsd_Complex_Type_diggs_SpecificationPropertyType.tmp#SpecificationPropertyType
Type diggs:SpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Specification
Instance

<diggs:preparationProcedure xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Specification gml:id="" xml:lang="">{0,1}</diggs:Specification>
</diggs:preparationProcedure>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="preparationProcedure" type="diggs:SpecificationPropertyType">
  <annotation>
    <documentation>A property that contains a Specification object or reference to a Specification object that describes the procedure used to prepare the specimen from the sample. This can be a simple description (contained in the Specification object's gml:description property), the name of a standard specification (in the gml:name) or a full procedural specification using appropriate properties in the Specification object.</documentation>
  </annotation>
</element>
Element diggs:AbstractSpecimenType / diggs:otherSpecimenProperty
Namespace http://diggsml.org/schema-dev

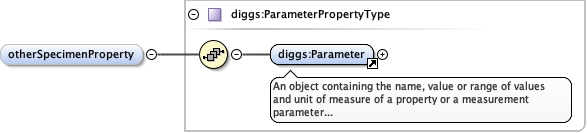

Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherSpecimenProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherSpecimenProperty>
Source

<element minOccurs="0" name="otherSpecimenProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>
Complex Type diggs:AbstractSpecimenType
Namespace http://diggsml.org/schema-dev
Annotations

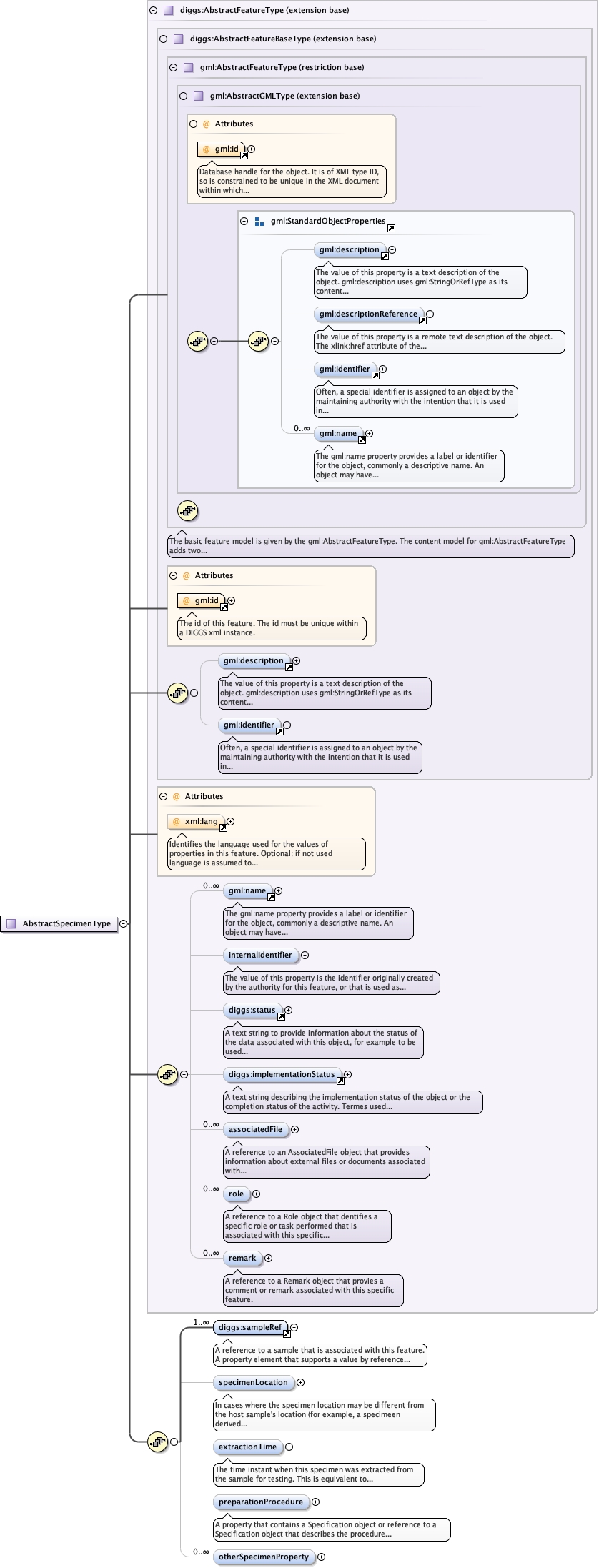

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Element_diggs_sampleRef.tmp#sampleRefKernel_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_specimenLocationKernel_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_extractionTimeKernel_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_preparationProcedureKernel_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_otherSpecimenProperty
Type extension of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:extractionTime, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecimenProperty, diggs:preparationProcedure, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimenLocation, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType abstract="true" name="AbstractSpecimenType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element maxOccurs="unbounded" ref="diggs:sampleRef"/>
        <element minOccurs="0" name="specimenLocation" type="diggs:LocationPropertyType">
          <annotation>
            <documentation>In cases where the specimen location may be different from the host sample's location (for example, a specimeen derived from a core sample at a specific location, instead of a specimen encompassing the entire extent of the sample), this property is used to indicate the specific location. When not present, the spcecimen location will be the same as the host sample's location if relevant.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="extractionTime" type="gml:TimePositionType">
          <annotation>
            <documentation>The time instant when this specimen was extracted from the sample for testing. This is equivalent to diggs:MaterialTest/sampleTime and diggs:Test/diggs:samplingTime where only one specimen is used for the test and should generally not be used in that case. Where multiple specimens are used for a test and each was extracted from the host at different times, then this property should be used to record the precise sampling time for each specimen.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preparationProcedure" type="diggs:SpecificationPropertyType">
          <annotation>
            <documentation>A property that contains a Specification object or reference to a Specification object that describes the procedure used to prepare the specimen from the sample. This can be a simple description (contained in the Specification object's gml:description property), the name of a standard specification (in the gml:name) or a full procedural specification using appropriate properties in the Specification object.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherSpecimenProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
