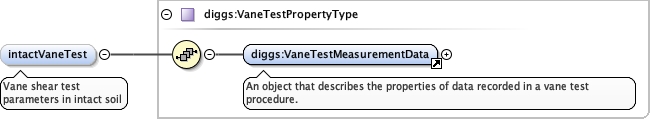

Element diggs:LabVaneTestType / diggs:intactVaneTest
Namespace http://diggsml.org/schema-dev
Annotations

Vane shear test parameters in intact soil
Diagram
DiagramTestProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataTestProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#http___diggsml.org_schema-dev_VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
Model
diggs:VaneTestMeasurementData
Children diggs:VaneTestMeasurementData
Instance

<diggs:intactVaneTest xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:VaneTestMeasurementData gml:id="" xml:lang="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:intactVaneTest>
Source

<element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
  <annotation>
    <documentation>Vane shear test parameters in intact soil</documentation>
  </annotation>
</element>

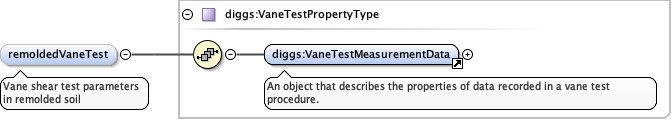

Element diggs:LabVaneTestType / diggs:remoldedVaneTest
Namespace http://diggsml.org/schema-dev
Annotations

Vane shear test parameters in remolded
soil
Diagram
DiagramTestProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataTestProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#http___diggsml.org_schema-dev_VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:VaneTestMeasurementData
Children diggs:VaneTestMeasurementData
Instance

<diggs:remoldedVaneTest xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:VaneTestMeasurementData gml:id="" xml:lang="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:remoldedVaneTest>
Source

<element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Vane shear test parameters in remolded soil</documentation>
  </annotation>
</element>

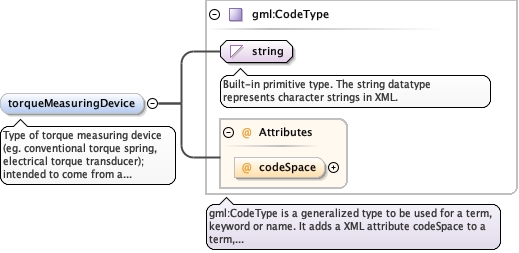

Element diggs:LabVaneTestType / diggs:torqueMeasuringDevice
Namespace http://diggsml.org/schema-dev
Annotations

Type of torque measuring device (eg. conventional torque
spring, electrical torque transducer); intended to come from a
controlled list of terms
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="torqueMeasuringDevice" type="gml:CodeType">
  <annotation>
    <documentation>Type of torque measuring device (eg. conventional torque spring, electrical torque transducer); intended to come from a controlled list of terms</documentation>
  </annotation>
</element>

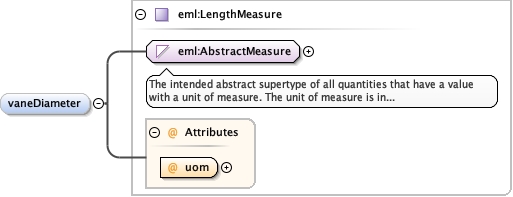

Element diggs:LabVaneTestType / diggs:vaneDiameter
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>
Element diggs:LabVaneTestType / diggs:vaneHeight
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneHeight" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>

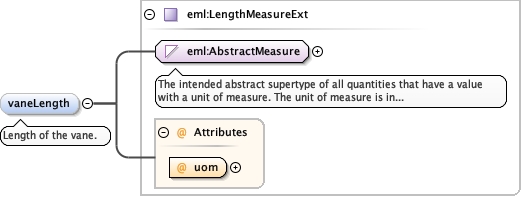

Element diggs:LabVaneTestType / diggs:vaneLength
Namespace http://diggsml.org/schema-dev
Annotations

Length of the vane.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="vaneLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of the vane.</documentation>
  </annotation>
</element>

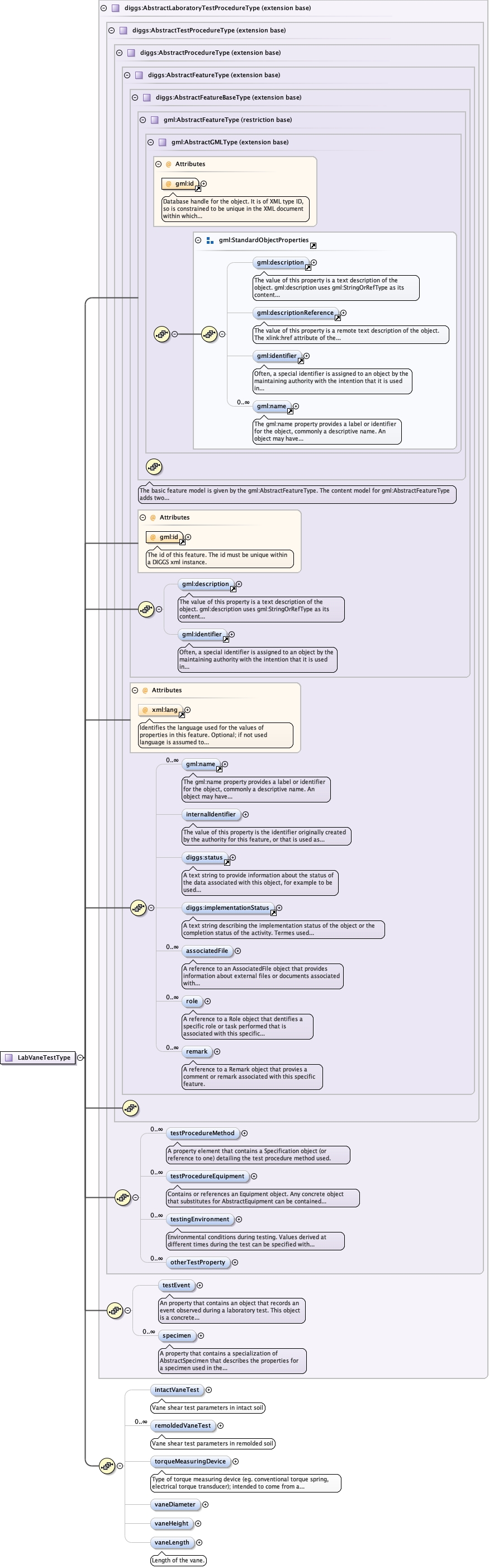

Complex Type diggs:LabVaneTestType
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_intactVaneTestTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_remoldedVaneTestTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_torqueMeasuringDeviceTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_vaneDiameterTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_vaneHeightTestProcedures_xsd_Complex_Type_diggs_LabVaneTestType.tmp#http___diggsml.org_schema-dev_LabVaneTestType_vaneLength
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Element diggs:LabVaneTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen* , diggs:intactVaneTest{0,1} , diggs:remoldedVaneTest* , diggs:torqueMeasuringDevice{0,1} , diggs:vaneDiameter{0,1} , diggs:vaneHeight{0,1} , diggs:vaneLength{0,1}
Children diggs:associatedFile, diggs:implementationStatus, diggs:intactVaneTest, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:remoldedVaneTest, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:torqueMeasuringDevice, diggs:vaneDiameter, diggs:vaneHeight, diggs:vaneLength, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LabVaneTestType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
          <annotation>
            <documentation>Vane shear test parameters in intact soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Vane shear test parameters in remolded soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueMeasuringDevice" type="gml:CodeType">
          <annotation>
            <documentation>Type of torque measuring device (eg. conventional torque spring, electrical torque transducer); intended to come from a controlled list of terms</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneHeight" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of the vane.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
