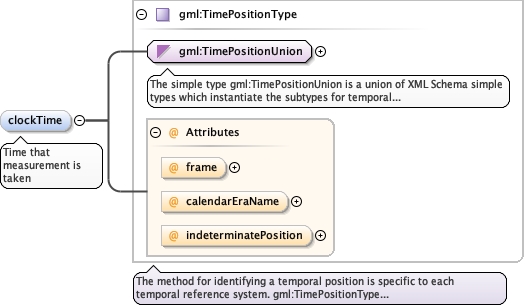

Element diggs:SedimentationType / diggs:clockTime
Namespace http://diggsml.org/schema-dev
Annotations

Time that measurement is taken
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="clockTime" type="gml:TimePositionType">
  <annotation>
    <documentation>Time that measurement is taken</documentation>
  </annotation>
</element>

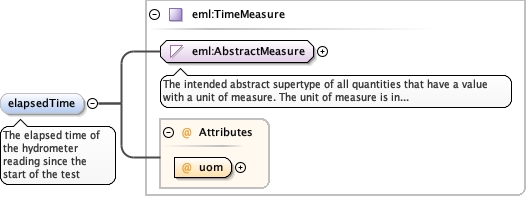

Element diggs:SedimentationType / diggs:elapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

The elapsed time of the hydrometer reading since the
start of the test
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>The elapsed time of the hydrometer reading since the start of the test</documentation>
  </annotation>
</element>

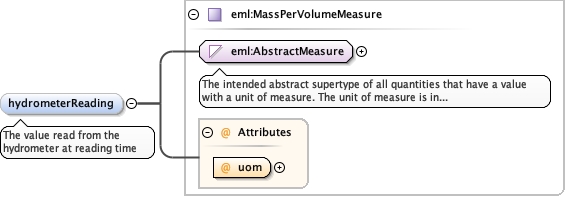

Element diggs:SedimentationType / diggs:hydrometerReading
Namespace http://diggsml.org/schema-dev
Annotations

The value read from the hydrometer at reading
time
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure
Type eml:MassPerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerVolumeUom required
Source

<element minOccurs="0" name="hydrometerReading" type="eml:MassPerVolumeMeasure">
  <annotation>
    <documentation>The value read from the hydrometer at reading time</documentation>
  </annotation>
</element>

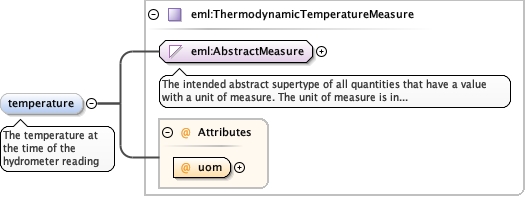

Element diggs:SedimentationType / diggs:temperature
Namespace http://diggsml.org/schema-dev
Annotations

The temperature at the time of the hydrometer
reading
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element minOccurs="0" name="temperature" type="eml:ThermodynamicTemperatureMeasure">
  <annotation>
    <documentation>The temperature at the time of the hydrometer reading</documentation>
  </annotation>
</element>

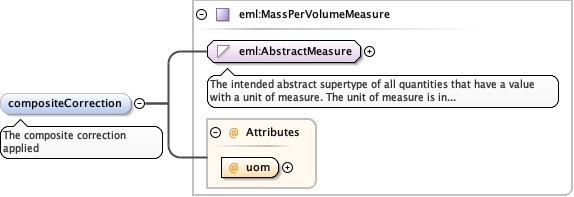

Element diggs:SedimentationType / diggs:compositeCorrection
Namespace http://diggsml.org/schema-dev
Annotations

The composite correction applied
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure
Type eml:MassPerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerVolumeUom required
Source

<element minOccurs="0" name="compositeCorrection" type="eml:MassPerVolumeMeasure">
  <annotation>
    <documentation>The composite correction applied</documentation>
  </annotation>
</element>

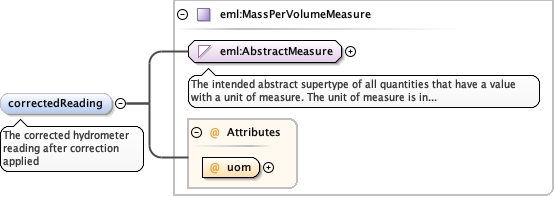

Element diggs:SedimentationType / diggs:correctedReading
Namespace http://diggsml.org/schema-dev
Annotations

The corrected hydrometer reading after correction
applied
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerVolumeMeasure.tmp#MassPerVolumeMeasure
Type eml:MassPerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerVolumeUom required
Source

<element minOccurs="0" name="correctedReading" type="eml:MassPerVolumeMeasure">
  <annotation>
    <documentation>The corrected hydrometer reading after correction applied</documentation>
  </annotation>
</element>

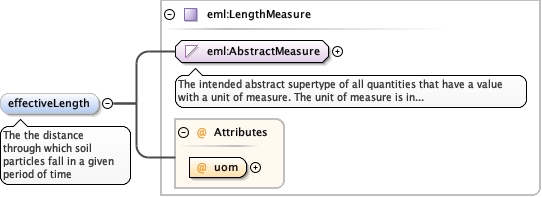

Element diggs:SedimentationType / diggs:effectiveLength
Namespace http://diggsml.org/schema-dev
Annotations

The the distance through which soil particles fall in a
given period of time
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="effectiveLength" type="eml:LengthMeasure">
  <annotation>
    <documentation>The the distance through which soil particles fall in a given period of time</documentation>
  </annotation>
</element>

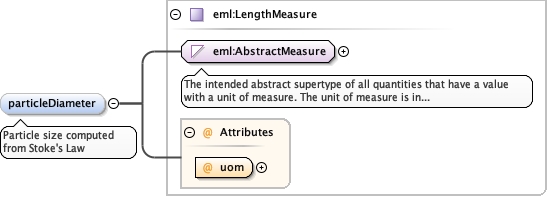

Element diggs:SedimentationType / diggs:particleDiameter
Namespace http://diggsml.org/schema-dev
Annotations

Particle size computed from Stoke's Law
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="particleDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>Particle size computed from Stoke's Law</documentation>
  </annotation>
</element>

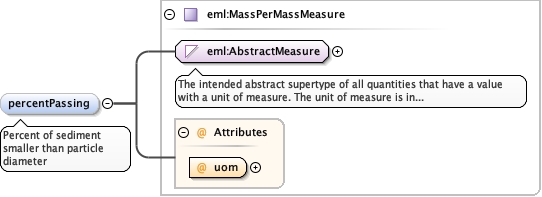

Element diggs:SedimentationType / diggs:percentPassing
Namespace http://diggsml.org/schema-dev
Annotations

Percent of sediment smaller than particle
diameter
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure
Type eml:MassPerMassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerMassUom required
Source

<element minOccurs="0" name="percentPassing" type="eml:MassPerMassMeasure">
  <annotation>
    <documentation>Percent of sediment smaller than particle diameter</documentation>
  </annotation>
</element>

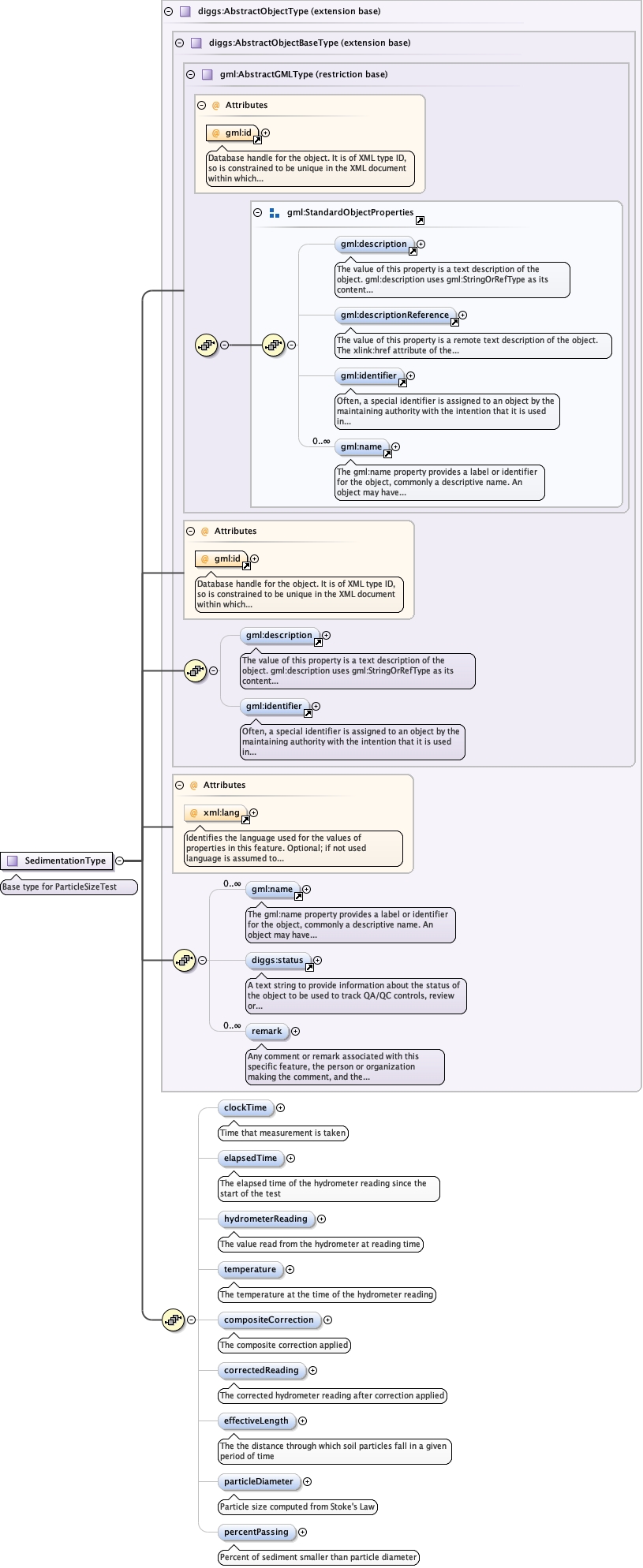

Complex Type diggs:SedimentationType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for ParticleSizeTest
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_clockTimeTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_elapsedTimeTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_hydrometerReadingTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_temperatureTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_compositeCorrectionTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_correctedReadingTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_effectiveLengthTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_particleDiameterTestProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#http___diggsml.org_schema-dev_SedimentationType_percentPassing
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Sedimentation
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:clockTime{0,1} , diggs:elapsedTime{0,1} , diggs:hydrometerReading{0,1} , diggs:temperature{0,1} , diggs:compositeCorrection{0,1} , diggs:correctedReading{0,1} , diggs:effectiveLength{0,1} , diggs:particleDiameter{0,1} , diggs:percentPassing{0,1}
Children diggs:clockTime, diggs:compositeCorrection, diggs:correctedReading, diggs:effectiveLength, diggs:elapsedTime, diggs:hydrometerReading, diggs:particleDiameter, diggs:percentPassing, diggs:remark, diggs:status, diggs:temperature, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="SedimentationType">
  <annotation>
    <documentation>Base type for ParticleSizeTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="clockTime" type="gml:TimePositionType">
          <annotation>
            <documentation>Time that measurement is taken</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="elapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>The elapsed time of the hydrometer reading since the start of the test</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hydrometerReading" type="eml:MassPerVolumeMeasure">
          <annotation>
            <documentation>The value read from the hydrometer at reading time</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="temperature" type="eml:ThermodynamicTemperatureMeasure">
          <annotation>
            <documentation>The temperature at the time of the hydrometer reading</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="compositeCorrection" type="eml:MassPerVolumeMeasure">
          <annotation>
            <documentation>The composite correction applied</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="correctedReading" type="eml:MassPerVolumeMeasure">
          <annotation>
            <documentation>The corrected hydrometer reading after correction applied</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="effectiveLength" type="eml:LengthMeasure">
          <annotation>
            <documentation>The the distance through which soil particles fall in a given period of time</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="particleDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>Particle size computed from Stoke's Law</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="percentPassing" type="eml:MassPerMassMeasure">
          <annotation>
            <documentation>Percent of sediment smaller than particle diameter</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
