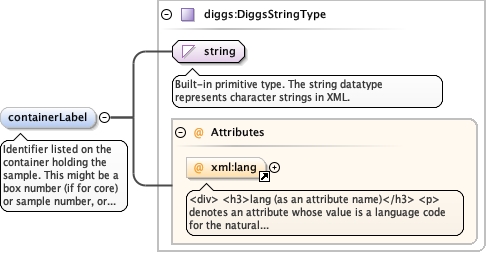

Element diggs:ContainerType / diggs:containerLabel
Namespace http://diggsml.org/schema-dev
Annotations

Identifier listed on the container holding the sample.
This might be a box number (if for core) or sample number, or the
same value as the sample name
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="containerLabel" type="diggs:DiggsStringType">
  <annotation>
    <documentation>Identifier listed on the container holding the sample. This might be a box number (if for core) or sample number, or the same value as the sample name</documentation>
  </annotation>
</element>

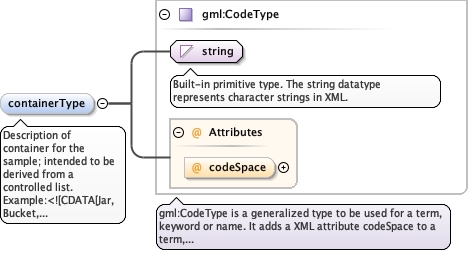

Element diggs:ContainerType / diggs:containerType
Namespace http://diggsml.org/schema-dev
Annotations

Description of container for the sample; intended to be
derived from a controlled list.
Example:Jar, Bucket, Vial, Bag, Box
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="containerType" type="gml:CodeType">
  <annotation>
    <documentation>Description of container for the sample; intended to be derived from a controlled list. Example:
      <![CDATA[Jar, Bucket, Vial, Bag, Box]]>
    </documentation>
  </annotation>
</element>

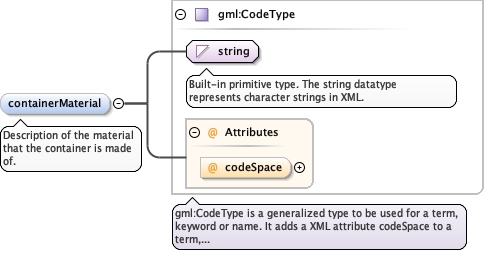

Element diggs:ContainerType / diggs:containerMaterial
Namespace http://diggsml.org/schema-dev
Annotations

Description of the material that the container is made
of.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="containerMaterial" type="gml:CodeType">
  <annotation>
    <documentation>Description of the material that the container is made of.</documentation>
  </annotation>
</element>
Element diggs:ContainerType / diggs:containerHeight
Namespace http://diggsml.org/schema-dev
Annotations

Height of the container
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="containerHeight" type="eml:LengthMeasure">
  <annotation>
    <documentation>Height of the container</documentation>
  </annotation>
</element>
Element diggs:ContainerType / diggs:containerLength
Namespace http://diggsml.org/schema-dev
Annotations

Length of the container
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="containerLength" type="eml:LengthMeasure">
  <annotation>
    <documentation>Length of the container</documentation>
  </annotation>
</element>

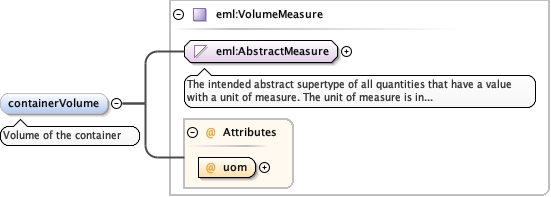

Element diggs:ContainerType / diggs:containerVolume
Namespace http://diggsml.org/schema-dev
Annotations

Volume of the container
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="containerVolume" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Volume of the container</documentation>
  </annotation>
</element>
Element diggs:ContainerType / diggs:containerWeight
Namespace http://diggsml.org/schema-dev
Annotations

Weight of the container
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="containerWeight" type="eml:ForceMeasure">
  <annotation>
    <documentation>Weight of the container</documentation>
  </annotation>
</element>
Element diggs:ContainerType / diggs:containerWidth
Namespace http://diggsml.org/schema-dev
Annotations

Width of the container
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="containerWidth" type="eml:LengthMeasure">
  <annotation>
    <documentation>Width of the container</documentation>
  </annotation>
</element>

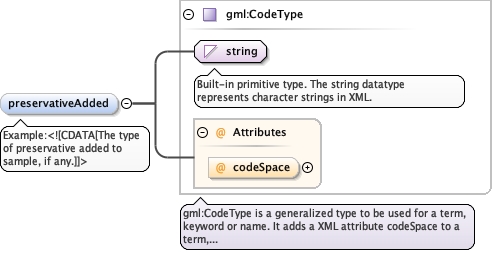

Element diggs:ContainerType / diggs:preservativeAdded
Namespace http://diggsml.org/schema-dev
Annotations

Example:The type of preservative added to sample, if any.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="preservativeAdded" type="gml:CodeType">
  <annotation>
    <documentation>Example:
      <![CDATA[The type of preservative added to sample, if any.]]>
    </documentation>
  </annotation>
</element>

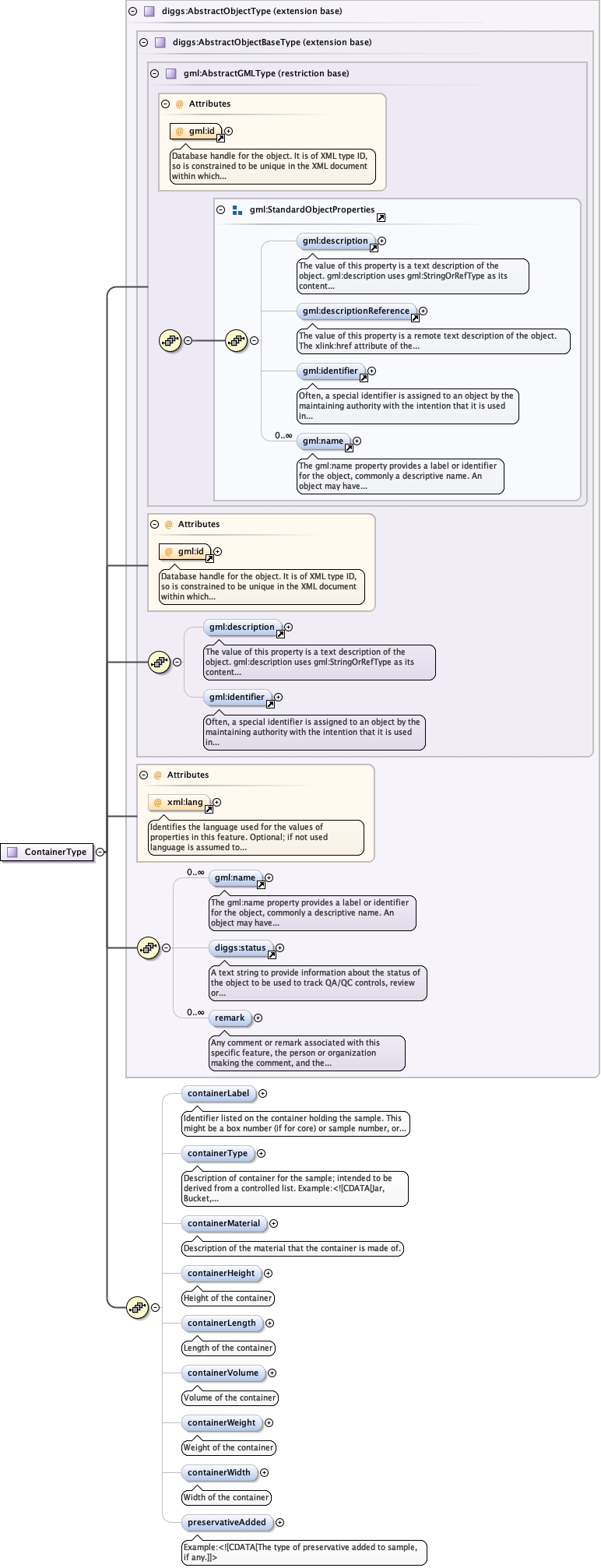

Complex Type diggs:ContainerType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerLabelKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerTypeKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerMaterialKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerHeightKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerLengthKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerVolumeKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerWeightKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_containerWidthKernel_xsd_Complex_Type_diggs_ContainerType.tmp#ContainerType_preservativeAdded
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Container
Model
Children diggs:containerHeight, diggs:containerLabel, diggs:containerLength, diggs:containerMaterial, diggs:containerType, diggs:containerVolume, diggs:containerWeight, diggs:containerWidth, diggs:preservativeAdded, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ContainerType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="containerLabel" type="diggs:DiggsStringType">
          <annotation>
            <documentation>Identifier listed on the container holding the sample. This might be a box number (if for core) or sample number, or the same value as the sample name</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerType" type="gml:CodeType">
          <annotation>
            <documentation>Description of container for the sample; intended to be derived from a controlled list. Example:
              <![CDATA[Jar, Bucket, Vial, Bag, Box]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerMaterial" type="gml:CodeType">
          <annotation>
            <documentation>Description of the material that the container is made of.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerHeight" type="eml:LengthMeasure">
          <annotation>
            <documentation>Height of the container</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerLength" type="eml:LengthMeasure">
          <annotation>
            <documentation>Length of the container</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerVolume" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Volume of the container</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerWeight" type="eml:ForceMeasure">
          <annotation>
            <documentation>Weight of the container</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="containerWidth" type="eml:LengthMeasure">
          <annotation>
            <documentation>Width of the container</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preservativeAdded" type="gml:CodeType">
          <annotation>
            <documentation>Example:
              <![CDATA[The type of preservative added to sample, if any.]]>
            </documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
