Element diggs:DirectShearConsolidationTrialType / diggs:appliedLoad
Namespace http://diggsml.org/schema-dev
Annotations

Load applied for this consolidation loading
increment

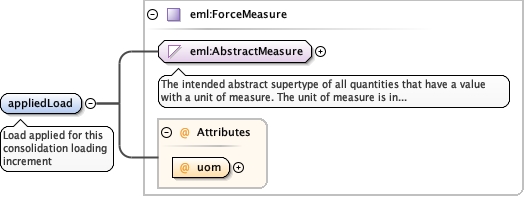

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="1" name="appliedLoad" type="eml:ForceMeasure">
  <annotation>
    <documentation>Load applied for this consolidation loading increment</documentation>
  </annotation>
</element>
Element diggs:DirectShearConsolidationTrialType / diggs:consolidationIncrement
Namespace http://diggsml.org/schema-dev
Annotations

Elapsed time and deformation recorded during this loading
increment

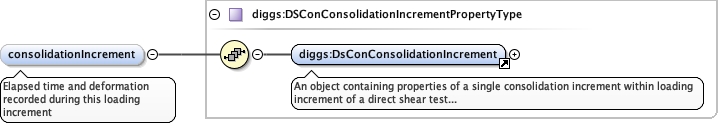

Diagram
DiagramTestProcedures_xsd_Element_diggs_DsConConsolidationIncrement.tmp#http___diggsml.org_schema-dev_DsConConsolidationIncrementTestProcedures_xsd_Complex_Type_diggs_DSConConsolidationIncrementPropertyType.tmp#http___diggsml.org_schema-dev_DSConConsolidationIncrementPropertyType
Type diggs:DSConConsolidationIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:DsConConsolidationIncrement
Children diggs:DsConConsolidationIncrement
Instance

<diggs:consolidationIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DsConConsolidationIncrement gml:id="" xml:lang="">{1,1}</diggs:DsConConsolidationIncrement>
</diggs:consolidationIncrement>
Source

<element maxOccurs="unbounded" minOccurs="0" name="consolidationIncrement" type="diggs:DSConConsolidationIncrementPropertyType">
  <annotation>
    <documentation>Elapsed time and deformation recorded during this loading increment</documentation>
  </annotation>
</element>
Element diggs:DirectShearConsolidationTrialType / diggs:finalNormalDisplacement
Namespace http://diggsml.org/schema-dev
Annotations

Normal deformation of the sample at the end of the
loading increment
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="1" name="finalNormalDisplacement" type="eml:LengthMeasure">
  <annotation>
    <documentation>Normal deformation of the sample at the end of the loading increment</documentation>
  </annotation>
</element>
Complex Type diggs:DirectShearConsolidationTrialType
Namespace http://diggsml.org/schema-dev

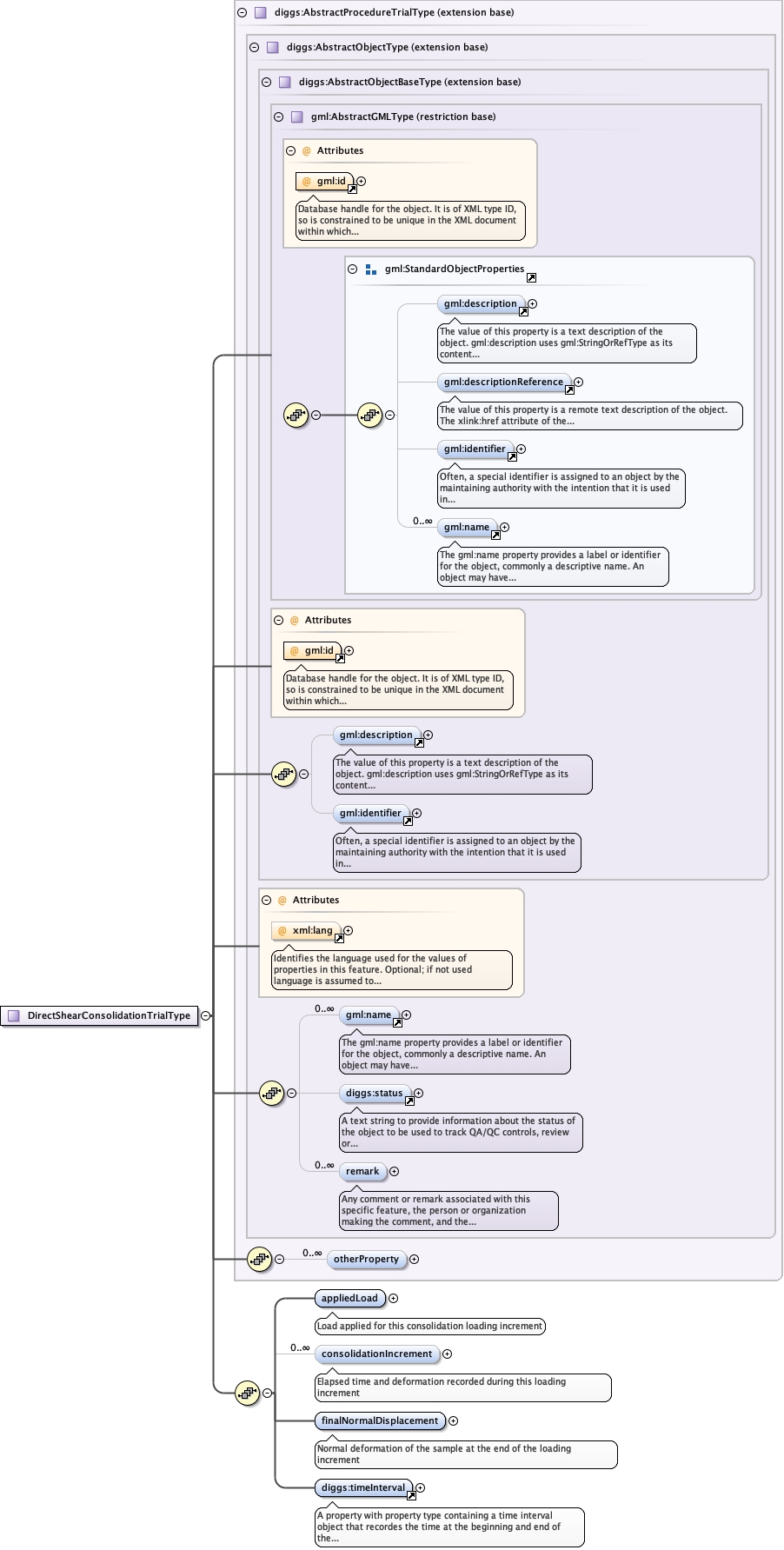

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#http___diggsml.org_schema-dev_DirectShearConsolidationTrialType_appliedLoadTestProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#http___diggsml.org_schema-dev_DirectShearConsolidationTrialType_consolidationIncrementTestProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#http___diggsml.org_schema-dev_DirectShearConsolidationTrialType_finalNormalDisplacementKernel_xsd_Element_diggs_timeInterval_1.tmp#http___diggsml.org_schema-dev_timeInterval
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:DirectShearConsolidationLoadingIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:appliedLoad , diggs:consolidationIncrement* , diggs:finalNormalDisplacement , diggs:timeInterval
Children diggs:appliedLoad, diggs:consolidationIncrement, diggs:finalNormalDisplacement, diggs:otherProperty, diggs:remark, diggs:status, diggs:timeInterval, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DirectShearConsolidationTrialType">
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="1" name="appliedLoad" type="eml:ForceMeasure">
          <annotation>
            <documentation>Load applied for this consolidation loading increment</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="consolidationIncrement" type="diggs:DSConConsolidationIncrementPropertyType">
          <annotation>
            <documentation>Elapsed time and deformation recorded during this loading increment</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="finalNormalDisplacement" type="eml:LengthMeasure">
          <annotation>
            <documentation>Normal deformation of the sample at the end of the loading increment</documentation>
          </annotation>
        </element>
        <element minOccurs="1" ref="diggs:timeInterval"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
