Element diggs:GradingType / diggs:particleSize
Namespace http://diggsml.org/schema-dev
Annotations

Size of this screen openings of the sieve or grain
diameter evaluated via hydrometer, related to the value entered in
the percentPassing or percentRetained property.

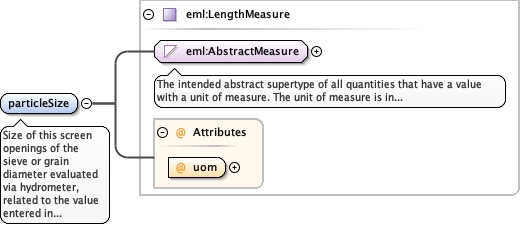

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="particleSize" type="eml:LengthMeasure">
  <annotation>
    <documentation>Size of this screen openings of the sieve or grain diameter evaluated via hydrometer, related to the value entered in the percentPassing or percentRetained property.</documentation>
  </annotation>
</element>
Element diggs:GradingType / diggs:sieveNumber
Namespace http://diggsml.org/schema-dev
Annotations

The number of the sieve (for sieve
analyses)

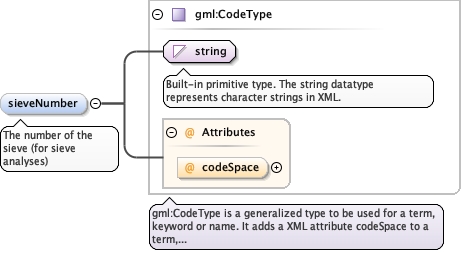

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="sieveNumber" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The number of the sieve (for sieve analyses)</documentation>
  </annotation>
</element>
Element diggs:GradingType / diggs:percentPassing
Namespace http://diggsml.org/schema-dev
Annotations

The amount of the total sample "passing" (that has
particle size smaller than) this size fraction. Expressed as a
weight percent.

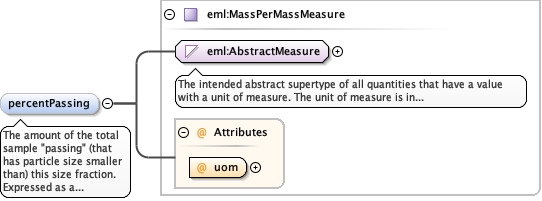

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure
Type eml:MassPerMassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerMassUom required
Source

<element name="percentPassing" type="eml:MassPerMassMeasure" minOccurs="0">
  <annotation>
    <documentation>The amount of the total sample "passing" (that has particle size smaller than) this size fraction. Expressed as a weight percent.</documentation>
  </annotation>
</element>
Element diggs:GradingType / diggs:percentRetained
Namespace http://diggsml.org/schema-dev
Annotations

The amount of the total sample "retained" at this size
fraction (that has particle size greater or equal to the
particleSize property. Expressed as a weight
percent.

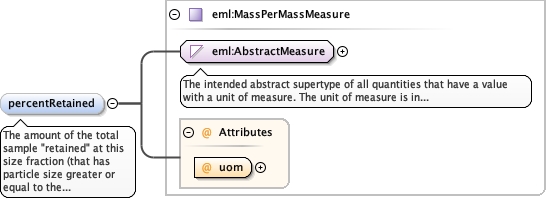

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerMassMeasure.tmp#MassPerMassMeasure
Type eml:MassPerMassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassPerMassUom required
Source

<element name="percentRetained" type="eml:MassPerMassMeasure" minOccurs="0">
  <annotation>
    <documentation>The amount of the total sample "retained" at this size fraction (that has particle size greater or equal to the particleSize property. Expressed as a weight percent.</documentation>
  </annotation>
</element>
Element diggs:GradingType / diggs:weightRetained
Namespace http://diggsml.org/schema-dev
Annotations

The dry weight of sample "retained" at this size fraction
(that has particle size greater or equal to the particleSize
property.

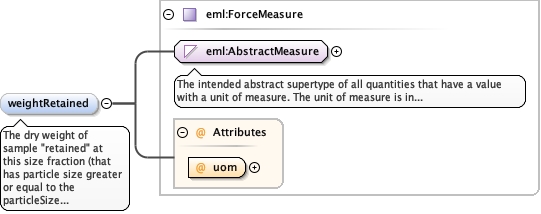

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="weightRetained" type="eml:ForceMeasure" minOccurs="0">
  <annotation>
    <documentation>The dry weight of sample "retained" at this size fraction (that has particle size greater or equal to the particleSize property.</documentation>
  </annotation>
</element>
Element diggs:GradingType / diggs:otherGradingProperty
Namespace http://diggsml.org/schema-dev
Annotations

name/value pairs of other grading parameters not
specifically in the Grading object

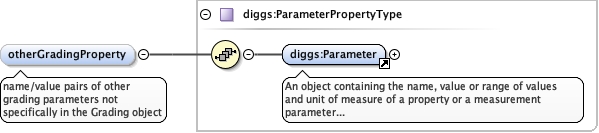

Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Parameter
Children diggs:Parameter
Instance

<diggs:otherGradingProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherGradingProperty>
Source

<element minOccurs="0" name="otherGradingProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>name/value pairs of other grading parameters not specifically in the Grading object</documentation>
  </annotation>
</element>
Complex Type diggs:GradingType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for Grading object.

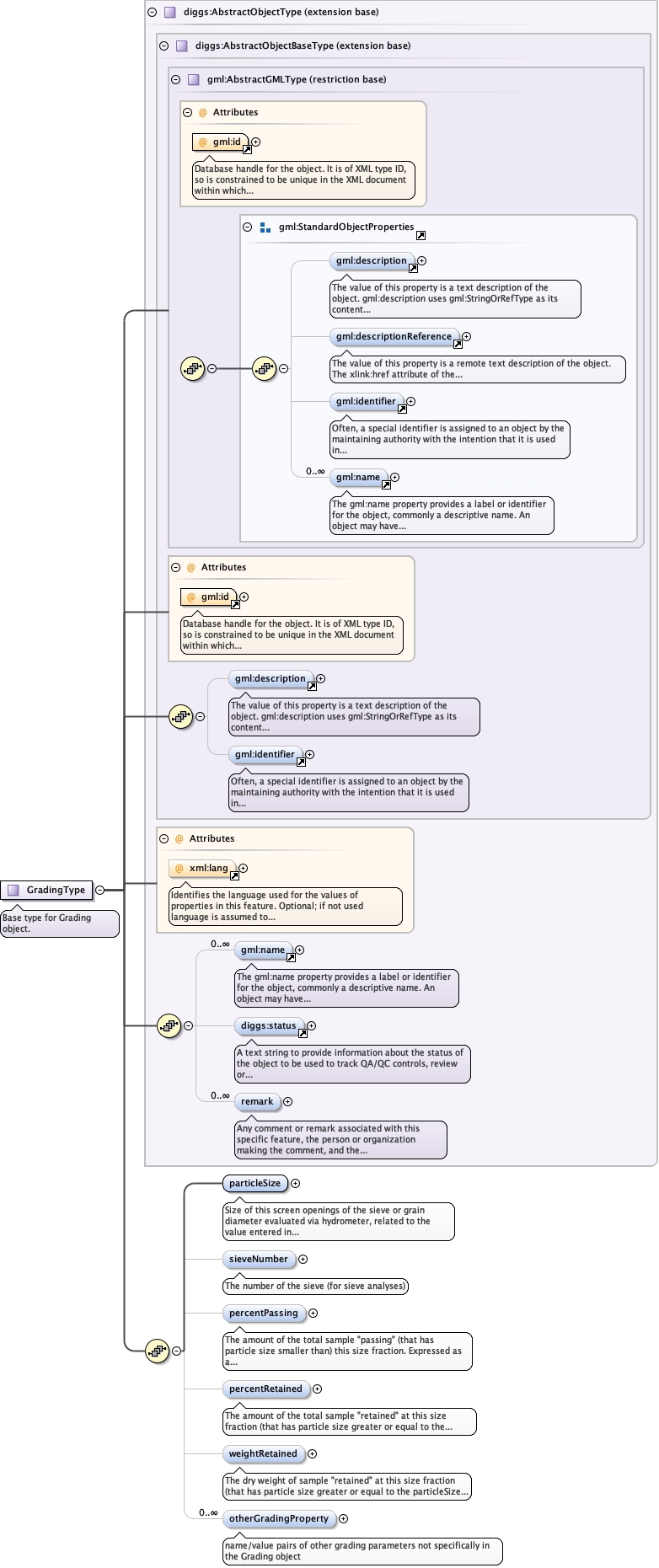

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_particleSizeTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_sieveNumberTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_percentPassingTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_percentRetainedTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_weightRetainedTestProcedures_xsd_Complex_Type_diggs_GradingType.tmp#http___diggsml.org_schema-dev_GradingType_otherGradingProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Grading
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:particleSize , diggs:sieveNumber{0,1} , diggs:percentPassing{0,1} , diggs:percentRetained{0,1} , diggs:weightRetained{0,1} , diggs:otherGradingProperty*
Children diggs:otherGradingProperty, diggs:particleSize, diggs:percentPassing, diggs:percentRetained, diggs:remark, diggs:sieveNumber, diggs:status, diggs:weightRetained, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GradingType">
  <annotation>
    <documentation>Base type for Grading object.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="particleSize" type="eml:LengthMeasure">
          <annotation>
            <documentation>Size of this screen openings of the sieve or grain diameter evaluated via hydrometer, related to the value entered in the percentPassing or percentRetained property.</documentation>
          </annotation>
        </element>
        <element name="sieveNumber" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The number of the sieve (for sieve analyses)</documentation>
          </annotation>
        </element>
        <element name="percentPassing" type="eml:MassPerMassMeasure" minOccurs="0">
          <annotation>
            <documentation>The amount of the total sample "passing" (that has particle size smaller than) this size fraction. Expressed as a weight percent.</documentation>
          </annotation>
        </element>
        <element name="percentRetained" type="eml:MassPerMassMeasure" minOccurs="0">
          <annotation>
            <documentation>The amount of the total sample "retained" at this size fraction (that has particle size greater or equal to the particleSize property. Expressed as a weight percent.</documentation>
          </annotation>
        </element>
        <element name="weightRetained" type="eml:ForceMeasure" minOccurs="0">
          <annotation>
            <documentation>The dry weight of sample "retained" at this size fraction (that has particle size greater or equal to the particleSize property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherGradingProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>name/value pairs of other grading parameters not specifically in the Grading object</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
