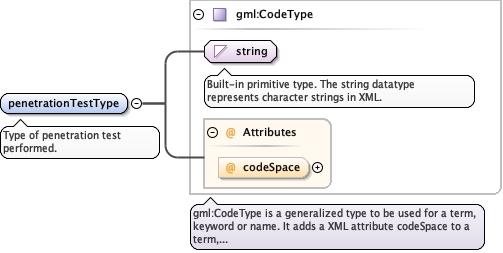

Element diggs:DynamicProbeTestType / diggs:penetrationTestType
Namespace http://diggsml.org/schema-dev
Annotations

Type of penetration test performed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="penetrationTestType" type="gml:CodeType">
  <annotation>
    <documentation>Type of penetration test performed.</documentation>
  </annotation>
</element>

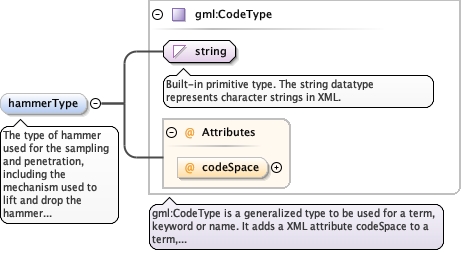

Element diggs:DynamicProbeTestType / diggs:hammerType
Namespace http://diggsml.org/schema-dev
Annotations

The type of hammer used for the sampling and penetration,
including the mechanism used to lift and drop the hammer assembly.
Additional details about the sampler (e.g. cathead diameter, number
of turns, etc) can be mapped to the equipment
object.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="hammerType" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The type of hammer used for the sampling and penetration, including the mechanism used to lift and drop the hammer assembly. Additional details about the sampler (e.g. cathead diameter, number of turns, etc) can be mapped to the equipment object.</documentation>
  </annotation>
</element>

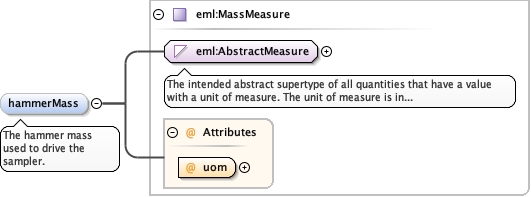

Element diggs:DynamicProbeTestType / diggs:hammerMass
Namespace http://diggsml.org/schema-dev
Annotations

The hammer mass used to drive the
sampler.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure
Type eml:MassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassUom required
Source

<element name="hammerMass" type="eml:MassMeasure" minOccurs="0">
  <annotation>
    <documentation>The hammer mass used to drive the sampler.</documentation>
  </annotation>
</element>

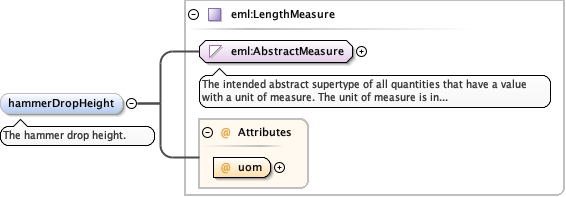

Element diggs:DynamicProbeTestType / diggs:hammerDropHeight
Namespace http://diggsml.org/schema-dev
Annotations

The hammer drop height.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="hammerDropHeight" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The hammer drop height.</documentation>
  </annotation>
</element>

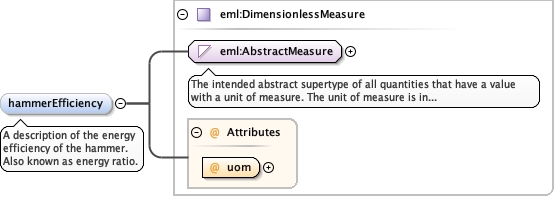

Element diggs:DynamicProbeTestType / diggs:hammerEfficiency
Namespace http://diggsml.org/schema-dev
Annotations

A description of the energy efficiency of the
hammer. Also known as energy ratio.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure_uomMeasureType_xsd_Complex_Type_eml_DimensionlessMeasure.tmp#DimensionlessMeasure
Type eml:DimensionlessMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:DimensionlessUom required
Source

<element name="hammerEfficiency" type="eml:DimensionlessMeasure" minOccurs="0">
  <annotation>
    <documentation>A description of the energy efficiency of the hammer. Also known as energy ratio.</documentation>
  </annotation>
</element>

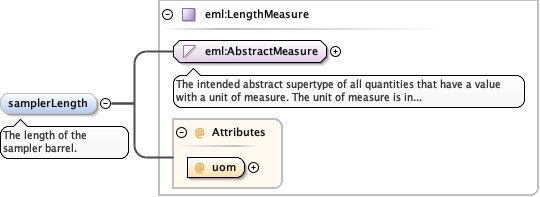

Element diggs:DynamicProbeTestType / diggs:samplerLength
Namespace http://diggsml.org/schema-dev
Annotations

The length of the sampler barrel.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="samplerLength" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The length of the sampler barrel.</documentation>
  </annotation>
</element>

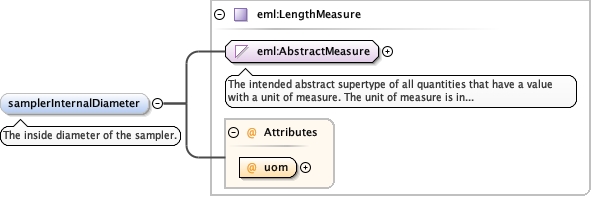

Element diggs:DynamicProbeTestType / diggs:samplerInternalDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The inside diameter of the sampler.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="samplerInternalDiameter" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The inside diameter of the sampler.</documentation>
  </annotation>
</element>

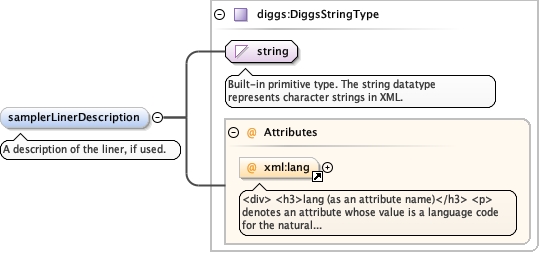

Element diggs:DynamicProbeTestType / diggs:samplerLinerDescription
Namespace http://diggsml.org/schema-dev
Annotations

A description of the liner, if used.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="samplerLinerDescription" type="diggs:DiggsStringType" minOccurs="0">
  <annotation>
    <documentation>A description of the liner, if used.</documentation>
  </annotation>
</element>

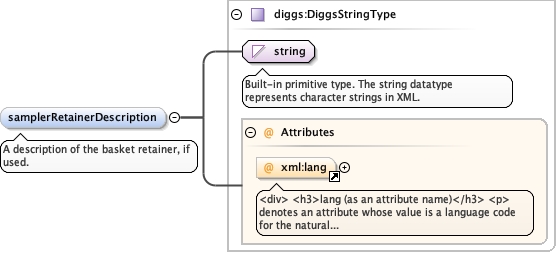

Element diggs:DynamicProbeTestType / diggs:samplerRetainerDescription
Namespace http://diggsml.org/schema-dev
Annotations

A description of the basket retainer, if
used.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="samplerRetainerDescription" type="diggs:DiggsStringType" minOccurs="0">
  <annotation>
    <documentation>A description of the basket retainer, if used.</documentation>
  </annotation>
</element>

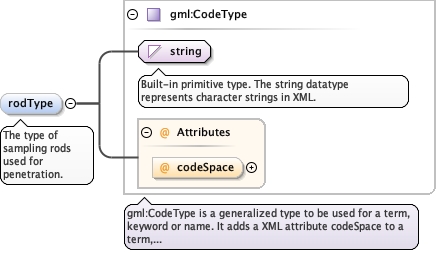

Element diggs:DynamicProbeTestType / diggs:rodType
Namespace http://diggsml.org/schema-dev
Annotations

The type of sampling rods used for
penetration.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="rodType" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The type of sampling rods used for penetration.</documentation>
  </annotation>
</element>

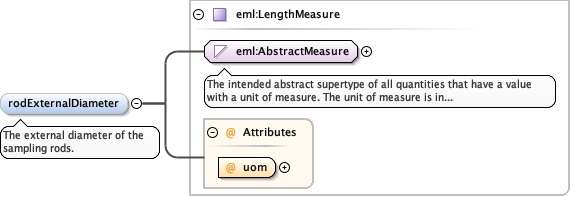

Element diggs:DynamicProbeTestType / diggs:rodExternalDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The external diameter of the sampling
rods.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="rodExternalDiameter" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The external diameter of the sampling rods.</documentation>
  </annotation>
</element>

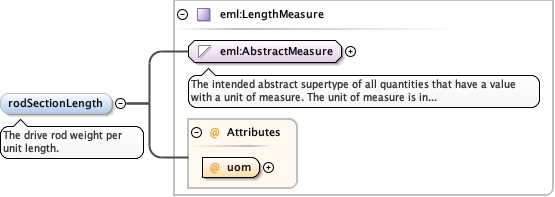

Element diggs:DynamicProbeTestType / diggs:rodSectionLength
Namespace http://diggsml.org/schema-dev
Annotations

The drive rod weight per unit length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="rodSectionLength" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The drive rod weight per unit length.</documentation>
  </annotation>
</element>

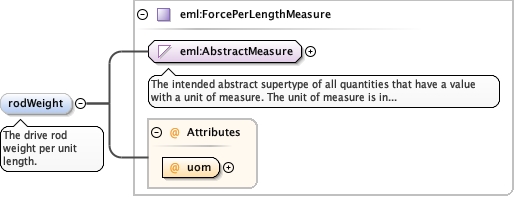

Element diggs:DynamicProbeTestType / diggs:rodWeight
Namespace http://diggsml.org/schema-dev
Annotations

The drive rod weight per unit length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure
Type eml:ForcePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerLengthUom required
Source

<element name="rodWeight" type="eml:ForcePerLengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The drive rod weight per unit length.</documentation>
  </annotation>
</element>

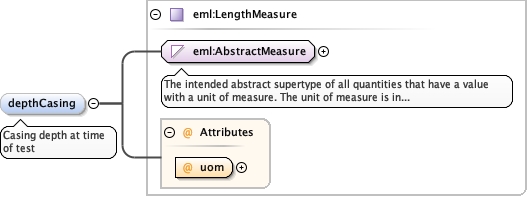

Element diggs:DynamicProbeTestType / diggs:depthCasing
Namespace http://diggsml.org/schema-dev
Annotations

Casing depth at time of test
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="depthCasing" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>Casing depth at time of test</documentation>
  </annotation>
</element>

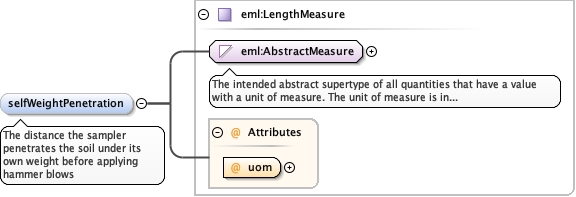

Element diggs:DynamicProbeTestType / diggs:selfWeightPenetration
Namespace http://diggsml.org/schema-dev
Annotations

The distance the sampler penetrates the soil under its
own weight before applying hammer blows
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="selfWeightPenetration" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The distance the sampler penetrates the soil under its own weight before applying hammer blows</documentation>
  </annotation>
</element>

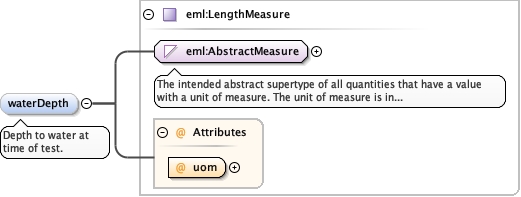

Element diggs:DynamicProbeTestType / diggs:waterDepth
Namespace http://diggsml.org/schema-dev
Annotations

Depth to water at time of test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="waterDepth" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>Depth to water at time of test.</documentation>
  </annotation>
</element>

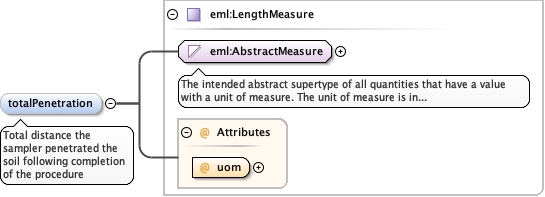

Element diggs:DynamicProbeTestType / diggs:totalPenetration
Namespace http://diggsml.org/schema-dev
Annotations

Total distance the sampler penetrated the soil following
completion of the procedure
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="totalPenetration" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>Total distance the sampler penetrated the soil following completion of the procedure</documentation>
  </annotation>
</element>

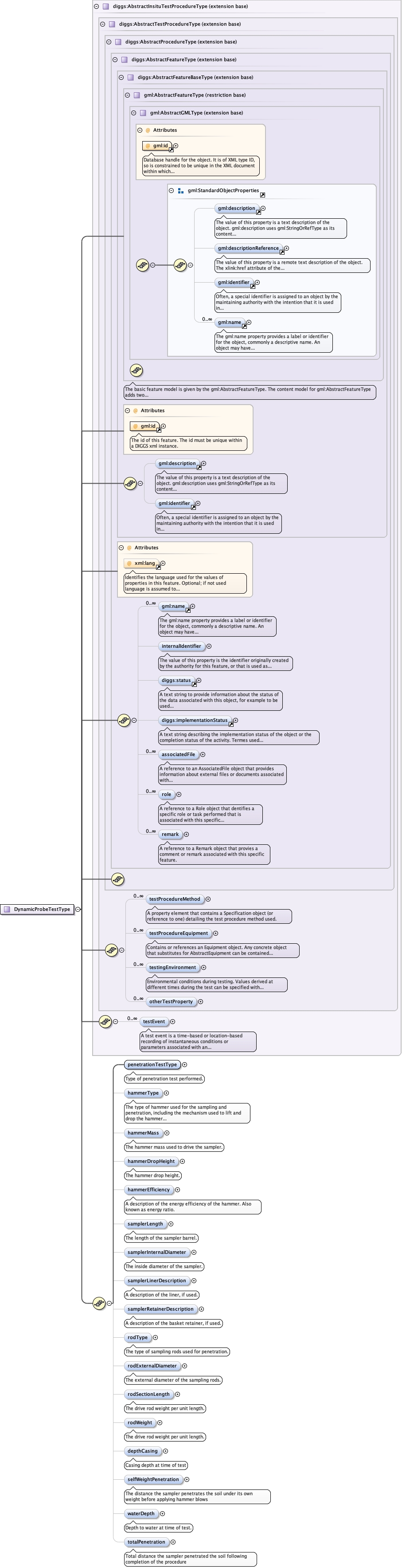

Complex Type diggs:DynamicProbeTestType
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_penetrationTestTypeTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_hammerTypeTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_hammerMassTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_hammerDropHeightTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_hammerEfficiencyTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_samplerLengthTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_samplerInternalDiameterTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_samplerLinerDescriptionTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_samplerRetainerDescriptionTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_rodTypeTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_rodExternalDiameterTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_rodSectionLengthTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_rodWeightTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_depthCasingTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_selfWeightPenetrationTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_waterDepthTestProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#http___diggsml.org_schema-dev_DynamicProbeTestType_totalPenetration
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Element diggs:DynamicProbeTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent* , diggs:penetrationTestType , diggs:hammerType{0,1} , diggs:hammerMass{0,1} , diggs:hammerDropHeight{0,1} , diggs:hammerEfficiency{0,1} , diggs:samplerLength{0,1} , diggs:samplerInternalDiameter{0,1} , diggs:samplerLinerDescription{0,1} , diggs:samplerRetainerDescription{0,1} , diggs:rodType{0,1} , diggs:rodExternalDiameter{0,1} , diggs:rodSectionLength{0,1} , diggs:rodWeight{0,1} , diggs:depthCasing{0,1} , diggs:selfWeightPenetration{0,1} , diggs:waterDepth{0,1} , diggs:totalPenetration{0,1}
Children diggs:associatedFile, diggs:depthCasing, diggs:hammerDropHeight, diggs:hammerEfficiency, diggs:hammerMass, diggs:hammerType, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:penetrationTestType, diggs:remark, diggs:rodExternalDiameter, diggs:rodSectionLength, diggs:rodType, diggs:rodWeight, diggs:role, diggs:samplerInternalDiameter, diggs:samplerLength, diggs:samplerLinerDescription, diggs:samplerRetainerDescription, diggs:selfWeightPenetration, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:totalPenetration, diggs:waterDepth, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DynamicProbeTestType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element name="penetrationTestType" type="gml:CodeType">
          <annotation>
            <documentation>Type of penetration test performed.</documentation>
          </annotation>
        </element>
        <element name="hammerType" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The type of hammer used for the sampling and penetration, including the mechanism used to lift and drop the hammer assembly. Additional details about the sampler (e.g. cathead diameter, number of turns, etc) can be mapped to the equipment object.</documentation>
          </annotation>
        </element>
        <element name="hammerMass" type="eml:MassMeasure" minOccurs="0">
          <annotation>
            <documentation>The hammer mass used to drive the sampler.</documentation>
          </annotation>
        </element>
        <element name="hammerDropHeight" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The hammer drop height.</documentation>
          </annotation>
        </element>
        <element name="hammerEfficiency" type="eml:DimensionlessMeasure" minOccurs="0">
          <annotation>
            <documentation>A description of the energy efficiency of the hammer. Also known as energy ratio.</documentation>
          </annotation>
        </element>
        <element name="samplerLength" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The length of the sampler barrel.</documentation>
          </annotation>
        </element>
        <element name="samplerInternalDiameter" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The inside diameter of the sampler.</documentation>
          </annotation>
        </element>
        <element name="samplerLinerDescription" type="diggs:DiggsStringType" minOccurs="0">
          <annotation>
            <documentation>A description of the liner, if used.</documentation>
          </annotation>
        </element>
        <element name="samplerRetainerDescription" type="diggs:DiggsStringType" minOccurs="0">
          <annotation>
            <documentation>A description of the basket retainer, if used.</documentation>
          </annotation>
        </element>
        <element name="rodType" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The type of sampling rods used for penetration.</documentation>
          </annotation>
        </element>
        <element name="rodExternalDiameter" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The external diameter of the sampling rods.</documentation>
          </annotation>
        </element>
        <element name="rodSectionLength" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The drive rod weight per unit length.</documentation>
          </annotation>
        </element>
        <element name="rodWeight" type="eml:ForcePerLengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The drive rod weight per unit length.</documentation>
          </annotation>
        </element>
        <element name="depthCasing" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>Casing depth at time of test</documentation>
          </annotation>
        </element>
        <element name="selfWeightPenetration" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The distance the sampler penetrates the soil under its own weight before applying hammer blows</documentation>
          </annotation>
        </element>
        <element name="waterDepth" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>Depth to water at time of test.</documentation>
          </annotation>
        </element>
        <element name="totalPenetration" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>Total distance the sampler penetrated the soil following completion of the procedure</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
