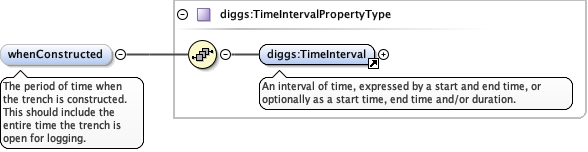

Element diggs:TrenchWallType / diggs:whenConstructed
Namespace http://diggsml.org/schema-dev
Annotations

The period of time when the trench is constructed. This
should include the entire time the trench is open for
logging.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The period of time when the trench is constructed. This should include the entire time the trench is open for logging.</documentation>
  </annotation>
</element>

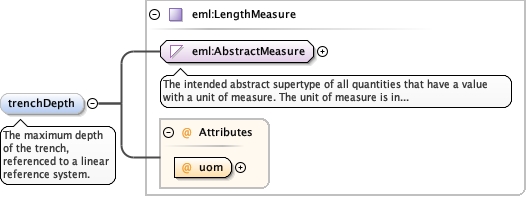

Element diggs:TrenchWallType / diggs:trenchDepth
Namespace http://diggsml.org/schema-dev
Annotations

The maximum depth of the trench, referenced to a linear
reference system.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="trenchDepth" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
  </annotation>
</element>

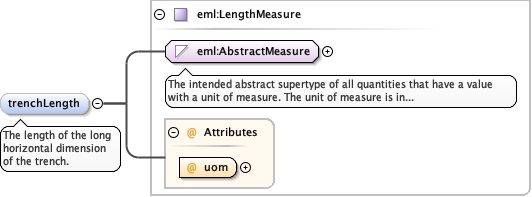

Element diggs:TrenchWallType / diggs:trenchLength
Namespace http://diggsml.org/schema-dev
Annotations

The length of the long horizontal dimension of the
trench.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="trenchLength" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The length of the long horizontal dimension of the trench.</documentation>
  </annotation>
</element>

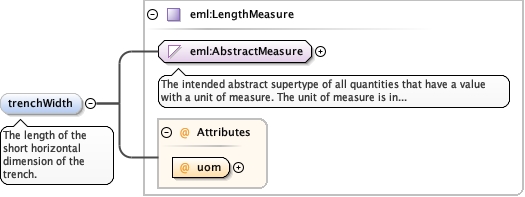

Element diggs:TrenchWallType / diggs:trenchWidth
Namespace http://diggsml.org/schema-dev
Annotations

The length of the short horizontal dimension of the
trench.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="trenchWidth" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The length of the short horizontal dimension of the trench.</documentation>
  </annotation>
</element>

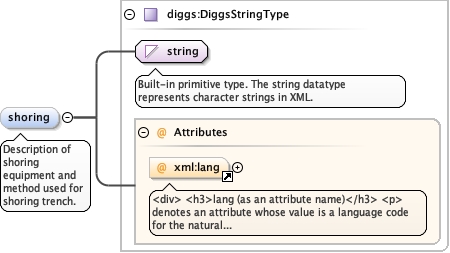

Element diggs:TrenchWallType / diggs:shoring
Namespace http://diggsml.org/schema-dev
Annotations

Description of shoring equipment and method used for
shoring trench.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="shoring" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Description of shoring equipment and method used for shoring trench.</documentation>
  </annotation>
</element>

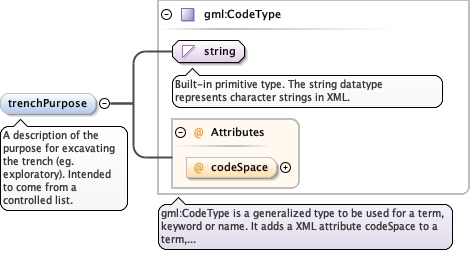

Element diggs:TrenchWallType / diggs:trenchPurpose
Namespace http://diggsml.org/schema-dev
Annotations

A description of the purpose for excavating the trench
(eg. exploratory). Intended to come from a controlled
list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
  <annotation>
    <documentation>A description of the purpose for excavating the trench (eg. exploratory). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

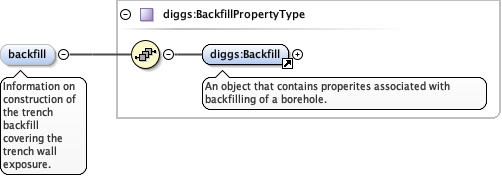

Element diggs:TrenchWallType / diggs:backfill
Namespace http://diggsml.org/schema-dev
Annotations

Information on construction of the trench backfill
covering the trench wall exposure.
Diagram
DiagramKernel_xsd_Element_diggs_Backfill.tmp#BackfillKernel_xsd_Complex_Type_diggs_BackfillPropertyType.tmp#BackfillPropertyType
Type diggs:BackfillPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Backfill
Instance

<diggs:backfill xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Backfill gml:id="" xml:lang="">{1,1}</diggs:Backfill>
</diggs:backfill>
Source

<element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
  <annotation>
    <documentation>Information on construction of the trench backfill covering the trench wall exposure.</documentation>
  </annotation>
</element>

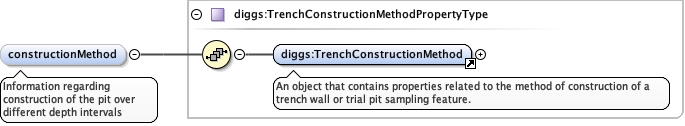

Element diggs:TrenchWallType / diggs:constructionMethod
Namespace http://diggsml.org/schema-dev
Annotations

Information regarding construction of the pit over
different depth intervals
Diagram
DiagramKernel_xsd_Element_diggs_TrenchConstructionMethod.tmp#TrenchConstructionMethodKernel_xsd_Complex_Type_diggs_TrenchConstructionMethodPropertyType.tmp#TrenchConstructionMethodPropertyType
Type diggs:TrenchConstructionMethodPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchConstructionMethod
Instance

<diggs:constructionMethod xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TrenchConstructionMethod gml:id="" xml:lang="">{1,1}</diggs:TrenchConstructionMethod>
</diggs:constructionMethod>
Source

<element minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Information regarding construction of the pit over different depth intervals</documentation>
  </annotation>
</element>

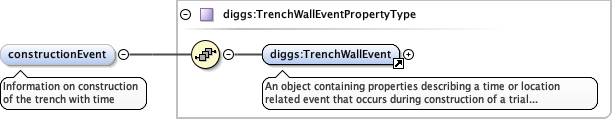

Element diggs:TrenchWallType / diggs:constructionEvent
Namespace http://diggsml.org/schema-dev
Annotations

Information on construction of the trench with
time
Diagram
DiagramKernel_xsd_Element_diggs_TrenchWallEvent.tmp#TrenchWallEventKernel_xsd_Complex_Type_diggs_TrenchWallEventPropertyType.tmp#TrenchWallEventPropertyType
Type diggs:TrenchWallEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchWallEvent
Instance

<diggs:constructionEvent xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TrenchWallEvent gml:id="" xml:lang="">{1,1}</diggs:TrenchWallEvent>
</diggs:constructionEvent>
Source

<element minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Information on construction of the trench with time</documentation>
  </annotation>
</element>

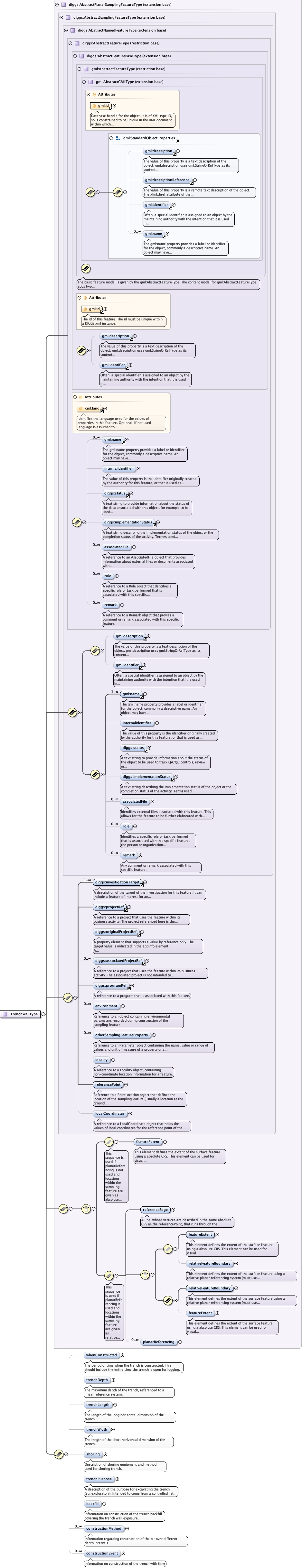

Complex Type diggs:TrenchWallType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeKernel_xsd_Element_diggs_investigationTarget.tmp#investigationTargetKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefKernel_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_featureExtentKernel_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_referenceEdgeKernel_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_relativeFeatureBoundaryKernel_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_planarReferencingKernel_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_whenConstructedKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchDepthKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchLengthKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchWidthKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_shoringKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchPurposeKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_backfillKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionMethodKernel_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionEvent
Type extension of diggs:AbstractPlanarSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:backfill, diggs:constructionEvent, diggs:constructionMethod, diggs:environment, diggs:featureExtent, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:planarReferencing, diggs:programRef, diggs:projectRef, diggs:referenceEdge, diggs:referencePoint, diggs:relativeFeatureBoundary, diggs:remark, diggs:role, diggs:shoring, diggs:status, diggs:trenchDepth, diggs:trenchLength, diggs:trenchPurpose, diggs:trenchWidth, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TrenchWallType">
  <complexContent>
    <extension base="diggs:AbstractPlanarSamplingFeatureType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The period of time when the trench is constructed. This should include the entire time the trench is open for logging.</documentation>
          </annotation>
        </element>
        <element name="trenchDepth" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
          </annotation>
        </element>
        <element name="trenchLength" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The length of the long horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element name="trenchWidth" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The length of the short horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element name="shoring" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Description of shoring equipment and method used for shoring trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
          <annotation>
            <documentation>A description of the purpose for excavating the trench (eg. exploratory). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
          <annotation>
            <documentation>Information on construction of the trench backfill covering the trench wall exposure.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Information regarding construction of the pit over different depth intervals</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Information on construction of the trench with time</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
