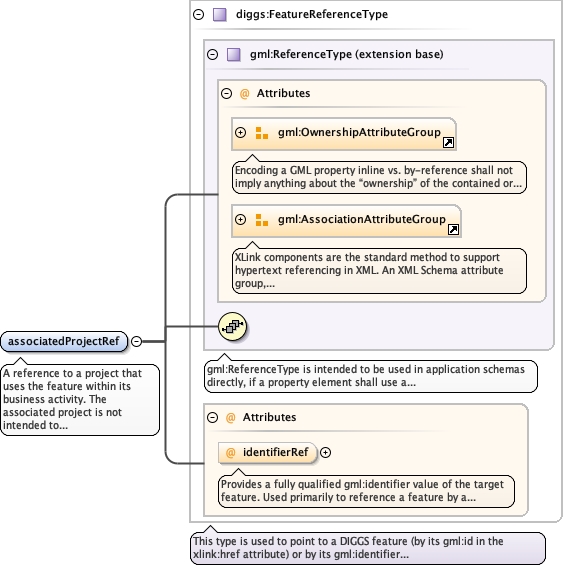

Schema documentation for component diggs:associatedProjectRef

A reference to a project that uses the feature within its business activity. The associated project is not intended to be the one that established the feature in the first place. The property originalProjectRef should be used for that purpose.

QName

Type

Fixed

Default

Use

Annotation

identifierRef

diggs:IdentifierReferenceType

optional

Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

<element name="associatedProjectRef" type="diggs:FeatureReferenceType"> <annotation> <appinfo source="urn:x-gml:targetElement">Diggs:Project</appinfo> <documentation>A reference to a project that uses the feature within its business activity. The associated project is not intended to be the one that established the feature in the first place. The property originalProjectRef should be used for that purpose.</documentation> <documentation>A property element that supports a value by reference only. The target value is indicated in the appinfo element.</documentation> </annotation> </element>
