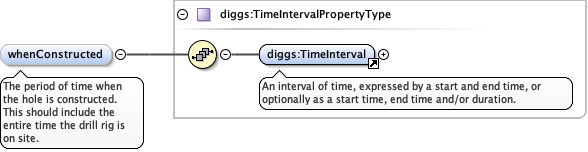

Element diggs:TrialPitType / diggs:whenConstructed
Namespace http://diggsml.org/schema-dev
Annotations

The period of time when the hole is constructed. This
should include the entire time the drill rig is on
site.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The period of time when the hole is constructed. This should include the entire time the drill rig is on site.</documentation>
  </annotation>
</element>

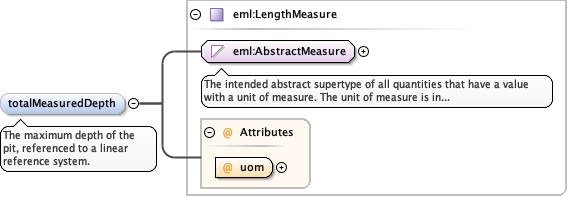

Element diggs:TrialPitType / diggs:totalMeasuredDepth
Namespace http://diggsml.org/schema-dev
Annotations

The maximum depth of the pit, referenced to a linear
reference system.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="totalMeasuredDepth" type="eml:LengthMeasure" minOccurs="0">
  <annotation>
    <documentation>The maximum depth of the pit, referenced to a linear reference system.</documentation>
  </annotation>
</element>

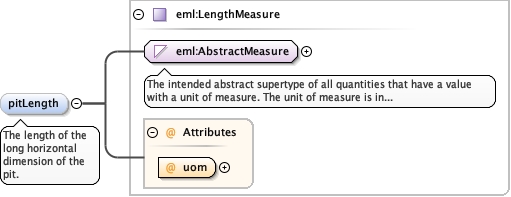

Element diggs:TrialPitType / diggs:pitLength
Namespace http://diggsml.org/schema-dev
Annotations

The length of the long horizontal dimension of the pit.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="pitLength" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The length of the long horizontal dimension of the pit.</documentation>
  </annotation>
</element>

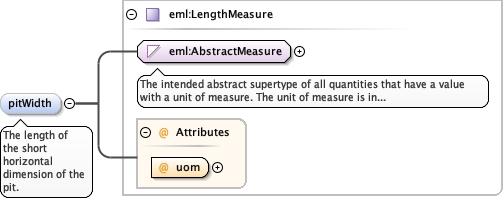

Element diggs:TrialPitType / diggs:pitWidth
Namespace http://diggsml.org/schema-dev
Annotations

The length of the short horizontal dimension of the
pit.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element name="pitWidth" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The length of the short horizontal dimension of the pit.</documentation>
  </annotation>
</element>

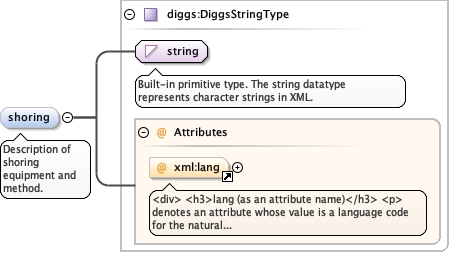

Element diggs:TrialPitType / diggs:shoring
Namespace http://diggsml.org/schema-dev
Annotations

Description of shoring equipment and
method.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="shoring" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Description of shoring equipment and method.</documentation>
  </annotation>
</element>

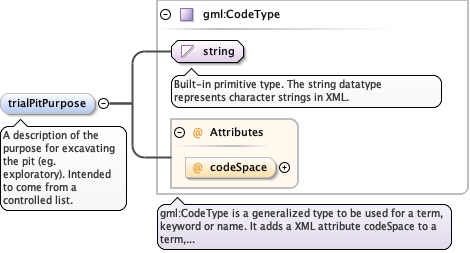

Element diggs:TrialPitType / diggs:trialPitPurpose
Namespace http://diggsml.org/schema-dev
Annotations

A description of the purpose for excavating the pit (eg.
exploratory). Intended to come from a controlled
list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="trialPitPurpose" type="gml:CodeType">
  <annotation>
    <documentation>A description of the purpose for excavating the pit (eg. exploratory). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

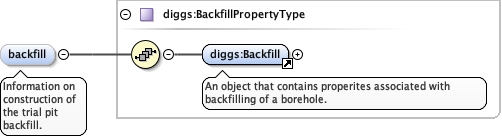

Element diggs:TrialPitType / diggs:backfill
Namespace http://diggsml.org/schema-dev
Annotations

Information on construction of the trial pit
backfill.
Diagram
DiagramKernel_xsd_Element_diggs_Backfill.tmp#BackfillKernel_xsd_Complex_Type_diggs_BackfillPropertyType.tmp#BackfillPropertyType
Type diggs:BackfillPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Backfill
Instance

<diggs:backfill xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Backfill gml:id="" xml:lang="">{1,1}</diggs:Backfill>
</diggs:backfill>
Source

<element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
  <annotation>
    <documentation>Information on construction of the trial pit backfill.</documentation>
  </annotation>
</element>

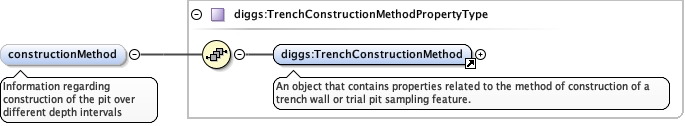

Element diggs:TrialPitType / diggs:constructionMethod
Namespace http://diggsml.org/schema-dev
Annotations

Information regarding construction of the pit over
different depth intervals
Diagram
DiagramKernel_xsd_Element_diggs_TrenchConstructionMethod.tmp#TrenchConstructionMethodKernel_xsd_Complex_Type_diggs_TrenchConstructionMethodPropertyType.tmp#TrenchConstructionMethodPropertyType
Type diggs:TrenchConstructionMethodPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchConstructionMethod
Instance

<diggs:constructionMethod xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TrenchConstructionMethod gml:id="" xml:lang="">{1,1}</diggs:TrenchConstructionMethod>
</diggs:constructionMethod>
Source

<element minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Information regarding construction of the pit over different depth intervals</documentation>
  </annotation>
</element>

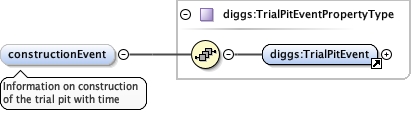

Element diggs:TrialPitType / diggs:constructionEvent
Namespace http://diggsml.org/schema-dev
Annotations

Information on construction of the trial pit with
time
Diagram
DiagramKernel_xsd_Element_diggs_TrialPitEvent.tmp#TrialPitEventKernel_xsd_Complex_Type_diggs_TrialPitEventPropertyType.tmp#TrialPitEventPropertyType
Type diggs:TrialPitEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrialPitEvent
Instance

<diggs:constructionEvent xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TrialPitEvent gml:id="" xml:lang="">{1,1}</diggs:TrialPitEvent>
</diggs:constructionEvent>
Source

<element minOccurs="0" name="constructionEvent" type="diggs:TrialPitEventPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Information on construction of the trial pit with time</documentation>
  </annotation>
</element>

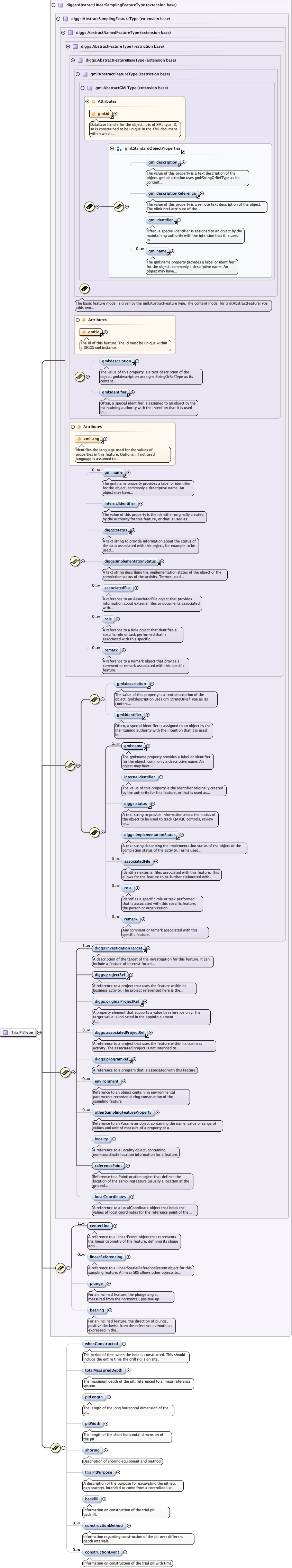

Complex Type diggs:TrialPitType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeKernel_xsd_Element_diggs_investigationTarget.tmp#investigationTargetKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefKernel_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_centerLineKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_linearReferencingKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_plungeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_bearingKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_whenConstructedKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_totalMeasuredDepthKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_pitLengthKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_pitWidthKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_shoringKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_trialPitPurposeKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_backfillKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_constructionMethodKernel_xsd_Complex_Type_diggs_TrialPitType.tmp#TrialPitType_constructionEvent
Type extension of diggs:AbstractLinearSamplingFeatureType
Type hierarchy
Used by
Element diggs:TrialPit
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:backfill, diggs:bearing, diggs:centerLine, diggs:constructionEvent, diggs:constructionMethod, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pitLength, diggs:pitWidth, diggs:plunge, diggs:programRef, diggs:projectRef, diggs:referencePoint, diggs:remark, diggs:role, diggs:shoring, diggs:status, diggs:totalMeasuredDepth, diggs:trialPitPurpose, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TrialPitType">
  <complexContent>
    <extension base="diggs:AbstractLinearSamplingFeatureType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The period of time when the hole is constructed. This should include the entire time the drill rig is on site.</documentation>
          </annotation>
        </element>
        <element name="totalMeasuredDepth" type="eml:LengthMeasure" minOccurs="0">
          <annotation>
            <documentation>The maximum depth of the pit, referenced to a linear reference system.</documentation>
          </annotation>
        </element>
        <element name="pitLength" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The length of the long horizontal dimension of the pit.</documentation>
          </annotation>
        </element>
        <element name="pitWidth" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The length of the short horizontal dimension of the pit.</documentation>
          </annotation>
        </element>
        <element name="shoring" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Description of shoring equipment and method.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trialPitPurpose" type="gml:CodeType">
          <annotation>
            <documentation>A description of the purpose for excavating the pit (eg. exploratory). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
          <annotation>
            <documentation>Information on construction of the trial pit backfill.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Information regarding construction of the pit over different depth intervals</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="constructionEvent" type="diggs:TrialPitEventPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Information on construction of the trial pit with time</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
