Element diggs:ConcretePileType / diggs:pileSizeDesignation
Namespace http://diggsml.org/schema-dev
Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
64</pileSizeDesignation>

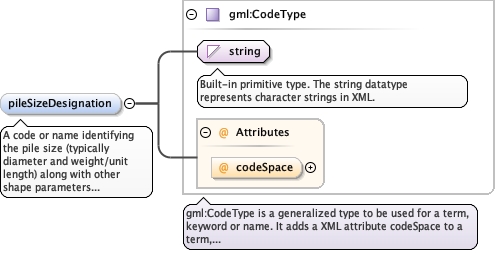

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pileSizeDesignation" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
      <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
    </documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:shape
Namespace http://diggsml.org/schema-dev
Annotations

The shape of the pile cross section.
Diagram
DiagramPiling_xsd_Simple_Type_diggs_PileShapeEnumExtType.tmp#PileShapeEnumExtType
Type diggs:PileShapeEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="shape" type="diggs:PileShapeEnumExtType">
  <annotation>
    <documentation>The shape of the pile cross section.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:hollowWidth
Namespace http://diggsml.org/schema-dev
Annotations

Width of the hollow center of the pile.

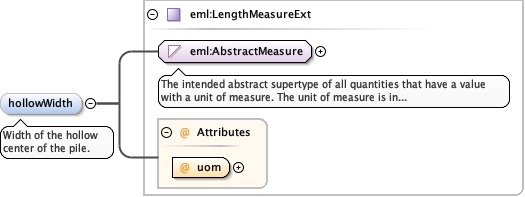

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="hollowWidth" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Width of the hollow center of the pile.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:wallThickness
Namespace http://diggsml.org/schema-dev
Annotations

Thickness of the pile wall.

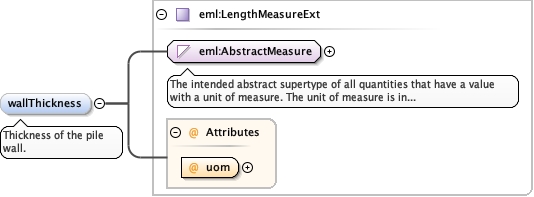

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="wallThickness" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Thickness of the pile wall.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:sideLength
Namespace http://diggsml.org/schema-dev
Annotations

Length of one side for square or hexagonal
piles.

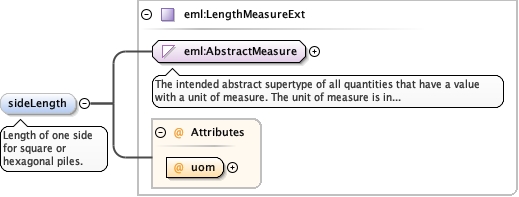

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="sideLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of one side for square or hexagonal piles.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:soilPlugDepth
Namespace http://diggsml.org/schema-dev
Annotations

Depth of the soil plug inside the pile.

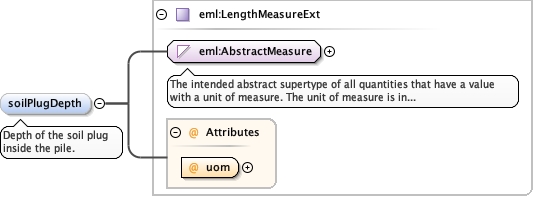

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="soilPlugDepth" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Depth of the soil plug inside the pile.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:soilPlugElevation
Namespace http://diggsml.org/schema-dev
Annotations

Elevation of the top of the soil plug.

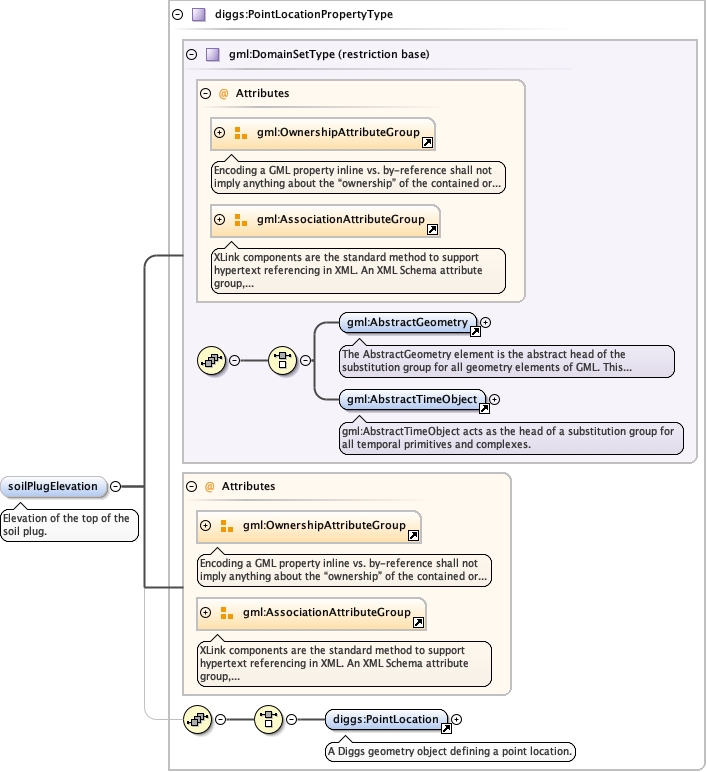

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_PointLocation.tmp#PointLocationKernel_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:PointLocation
Instance

<diggs:soilPlugElevation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:soilPlugElevation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="soilPlugElevation" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>Elevation of the top of the soil plug.</documentation>
  </annotation>
</element>
Element diggs:ConcretePileType / diggs:splices
Namespace http://diggsml.org/schema-dev
Annotations

The list of splices present in the pile.

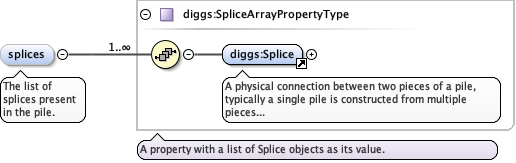

Diagram
DiagramPiling_xsd_Element_diggs_Splice.tmp#SplicePiling_xsd_Complex_Type_diggs_SpliceArrayPropertyType.tmp#SpliceArrayPropertyType
Type diggs:SpliceArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Splice
Instance

<diggs:splices xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Splice gml:id="">{1,1}</diggs:Splice>
</diggs:splices>
Source

<element maxOccurs="unbounded" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
  <annotation>
    <documentation>The list of splices present in the pile.</documentation>
  </annotation>
</element>
Complex Type diggs:ConcretePileType
Namespace http://diggsml.org/schema-dev
Annotations

A pile made from concrete.
Diagram
Diagram
Type extension of diggs:AbstractPileType
Type hierarchy
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:hollowWidth, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:shape, diggs:sideLength, diggs:soilPlugDepth, diggs:soilPlugElevation, diggs:splices, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:wallThickness, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ConcretePileType">
  <annotation>
    <documentation>A pile made from concrete.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
              <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shape" type="diggs:PileShapeEnumExtType">
          <annotation>
            <documentation>The shape of the pile cross section.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hollowWidth" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Width of the hollow center of the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wallThickness" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Thickness of the pile wall.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sideLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of one side for square or hexagonal piles.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugDepth" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Depth of the soil plug inside the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugElevation" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>Elevation of the top of the soil plug.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
          <annotation>
            <documentation>The list of splices present in the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
