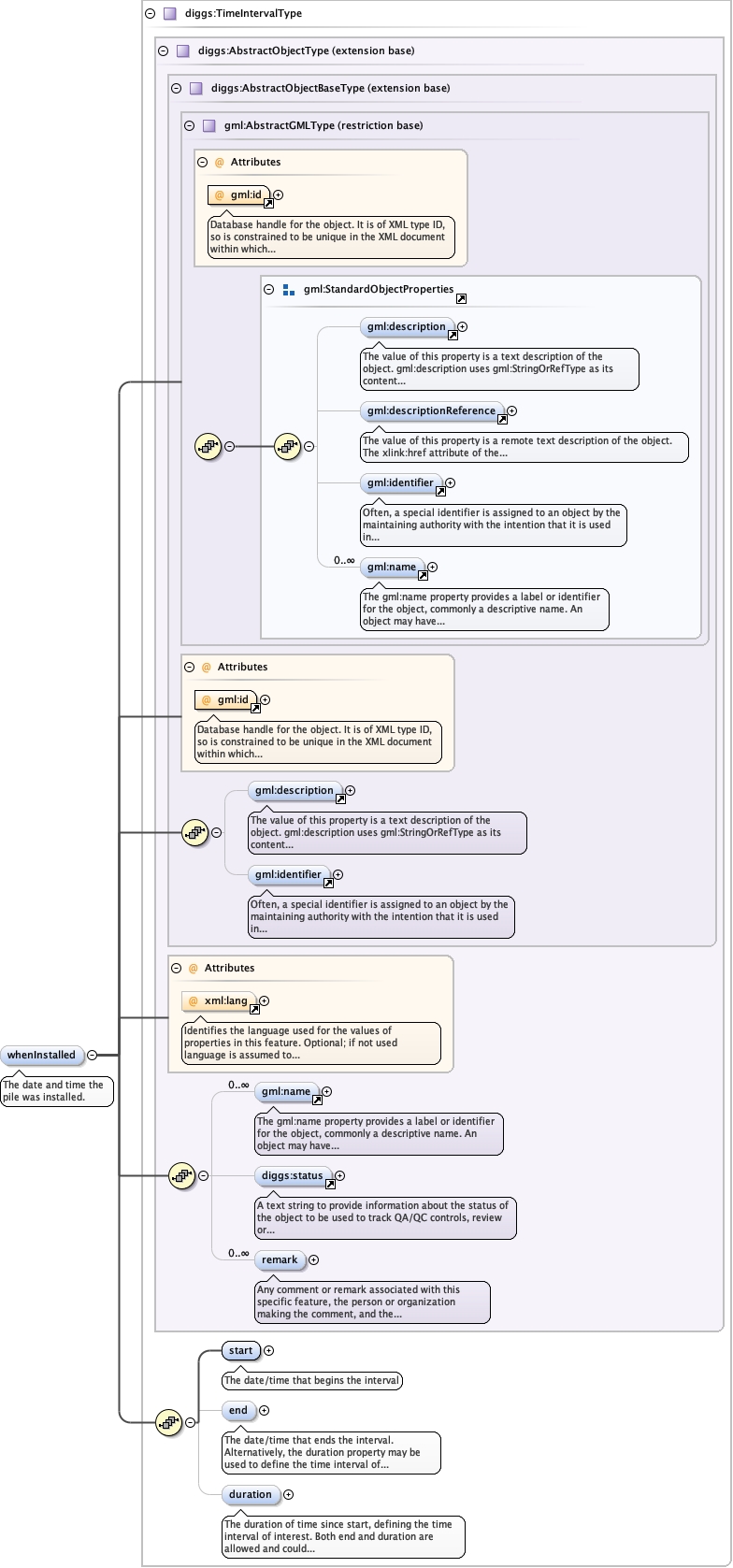

Element diggs:AbstractPileType / diggs:whenInstalled
Namespace http://diggsml.org/schema-dev
Annotations

The date and time the pile was installed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_durationKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType
Type diggs:TimeIntervalType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:whenInstalled gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:start calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:start>
  <diggs:end calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:end>
  <diggs:duration uom="">{0,1}</diggs:duration>
</diggs:whenInstalled>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="whenInstalled" type="diggs:TimeIntervalType">
  <annotation>
    <documentation>The date and time the pile was installed.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:referenceElevation
Namespace http://diggsml.org/schema-dev
Annotations

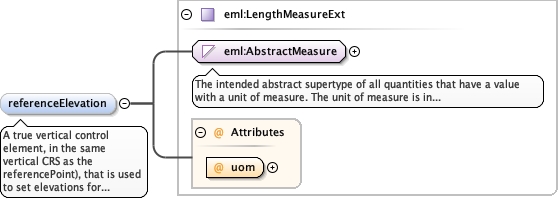

A true vertical control element, in the same vertical CRS
as the referencePoint), that is used to set elevations for othe
structural elements, and not the top of the piling. This property is
used when groundSurfaceElevation is not used as the reference
elevation.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="referenceElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>A true vertical control element, in the same vertical CRS as the referencePoint), that is used to set elevations for othe structural elements, and not the top of the piling. This property is used when groundSurfaceElevation is not used as the reference elevation.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:groundSurfaceElevation
Namespace http://diggsml.org/schema-dev
Annotations

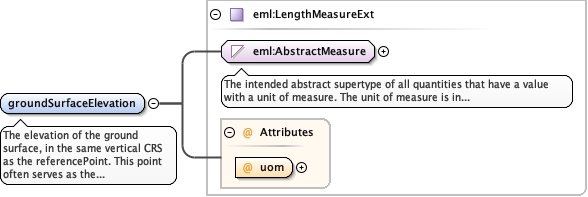

The elevation of the ground surface, in the same vertical
CRS as the referencePoint. This point often serves as the pile's
reference elevation.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="1" name="groundSurfaceElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The elevation of the ground surface, in the same vertical CRS as the referencePoint. This point often serves as the pile's reference elevation.</documentation>
  </annotation>
</element>

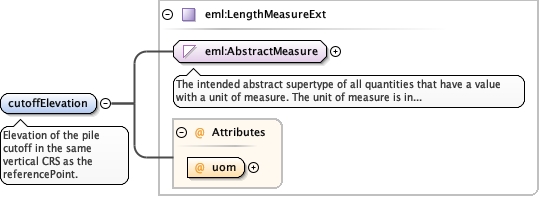

Element diggs:AbstractPileType / diggs:cutoffElevation
Namespace http://diggsml.org/schema-dev
Annotations

Elevation of the pile cutoff in the same vertical CRS as
the referencePoint.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="1" name="cutoffElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Elevation of the pile cutoff in the same vertical CRS as the referencePoint.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:jettingElevation
Namespace http://diggsml.org/schema-dev
Annotations

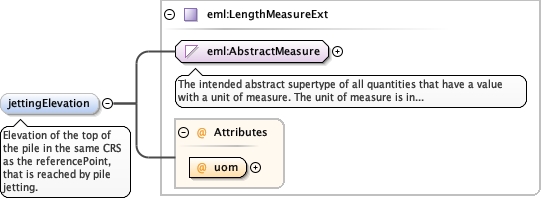

Elevation of the top of the pile in the same CRS as the
referencePoint, that is reached by pile jetting.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="jettingElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Elevation of the top of the pile in the same CRS as the referencePoint, that is reached by pile jetting.</documentation>
  </annotation>
</element>

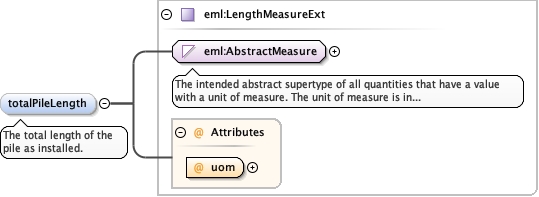

Element diggs:AbstractPileType / diggs:totalPileLength
Namespace http://diggsml.org/schema-dev
Annotations

The total length of the pile as
installed.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="totalPileLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The total length of the pile as installed.</documentation>
  </annotation>
</element>

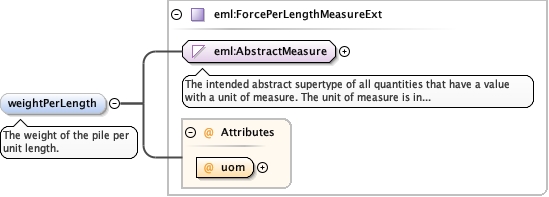

Element diggs:AbstractPileType / diggs:weightPerLength
Namespace http://diggsml.org/schema-dev
Annotations

The weight of the pile per unit length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasureExt.tmp#ForcePerLengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasureExt.tmp#ForcePerLengthMeasureExt
Type eml:ForcePerLengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerLengthUomExt required
Source

<element minOccurs="0" name="weightPerLength" type="eml:ForcePerLengthMeasureExt">
  <annotation>
    <documentation>The weight of the pile per unit length.</documentation>
  </annotation>
</element>

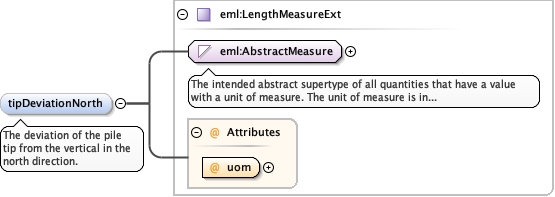

Element diggs:AbstractPileType / diggs:tipDeviationNorth
Namespace http://diggsml.org/schema-dev
Annotations

The deviation of the pile tip from the vertical in the
north direction.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="tipDeviationNorth" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The deviation of the pile tip from the vertical in the north direction.</documentation>
  </annotation>
</element>

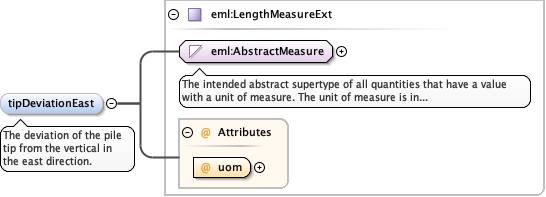

Element diggs:AbstractPileType / diggs:tipDeviationEast
Namespace http://diggsml.org/schema-dev
Annotations

The deviation of the pile tip from the vertical in the
east direction.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="tipDeviationEast" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The deviation of the pile tip from the vertical in the east direction.</documentation>
  </annotation>
</element>

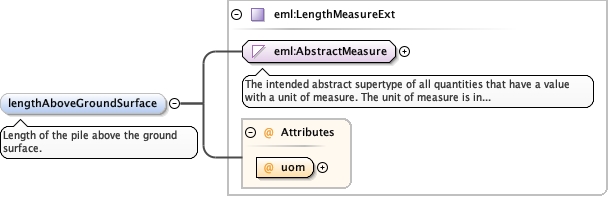

Element diggs:AbstractPileType / diggs:lengthAboveGroundSurface
Namespace http://diggsml.org/schema-dev
Annotations

Length of the pile above the ground
surface.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="lengthAboveGroundSurface" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of the pile above the ground surface.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:lengthBelowGroundSurface
Namespace http://diggsml.org/schema-dev
Annotations

Length of the pile below the ground
surface.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="lengthBelowGroundSurface" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of the pile below the ground surface.</documentation>
  </annotation>
</element>

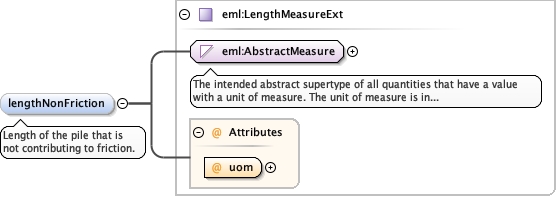

Element diggs:AbstractPileType / diggs:lengthNonFriction
Namespace http://diggsml.org/schema-dev
Annotations

Length of the pile that is not contributing to
friction.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="lengthNonFriction" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of the pile that is not contributing to friction.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:finalTipElevation
Namespace http://diggsml.org/schema-dev
Annotations

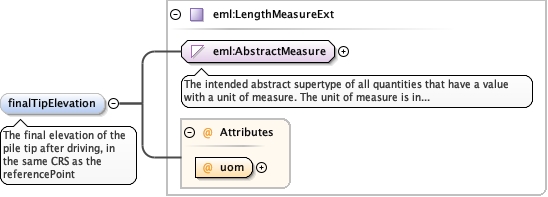

The final elevation of the pile tip after driving, in the
same CRS as the referencePoint
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element form="qualified" maxOccurs="1" minOccurs="0" name="finalTipElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The final elevation of the pile tip after driving, in the same CRS as the referencePoint</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:taperInterval
Namespace http://diggsml.org/schema-dev
Annotations

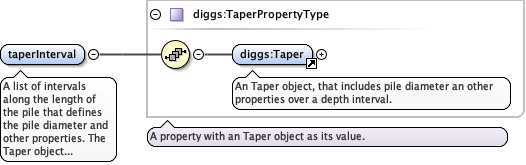

A list of intervals along the length of the pile that
defines the pile diameter and other properties. The Taper object is
used to define the parameters of any kind of pile
taper.
Diagram
DiagramPiling_xsd_Element_diggs_Taper.tmp#TaperPiling_xsd_Complex_Type_diggs_TaperPropertyType.tmp#TaperPropertyType
Type diggs:TaperPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:Taper
Instance

<diggs:taperInterval xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Taper gml:id="">{1,1}</diggs:Taper>
</diggs:taperInterval>
Source

<element maxOccurs="unbounded" minOccurs="1" name="taperInterval" type="diggs:TaperPropertyType">
  <annotation>
    <documentation>A list of intervals along the length of the pile that defines the pile diameter and other properties. The Taper object is used to define the parameters of any kind of pile taper.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:productionPile
Namespace http://diggsml.org/schema-dev
Annotations

True indicates that this is a production pile, false or
not provided indicates it is not a production pile.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="productionPile" type="boolean">
  <annotation>
    <documentation>True indicates that this is a production pile, false or not provided indicates it is not a production pile.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:testPile
Namespace http://diggsml.org/schema-dev
Annotations

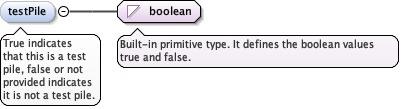

True indicates that this is a test pile, false or not
provided indicates it is not a test pile.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="testPile" type="boolean">
  <annotation>
    <documentation>True indicates that this is a test pile, false or not provided indicates it is not a test pile.</documentation>
  </annotation>
</element>

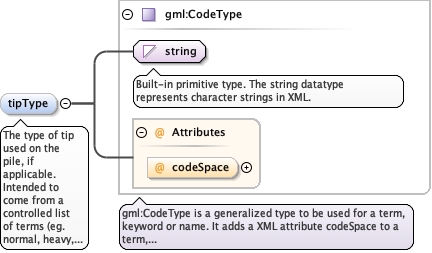

Element diggs:AbstractPileType / diggs:tipType
Namespace http://diggsml.org/schema-dev
Annotations

The type of tip used on the pile, if applicable. Intended
to come from a controlled list of terms (eg. normal, heavy, conical,
etc.)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="tipType" type="gml:CodeType">
  <annotation>
    <documentation>The type of tip used on the pile, if applicable. Intended to come from a controlled list of terms (eg. normal, heavy, conical, etc.)</documentation>
  </annotation>
</element>

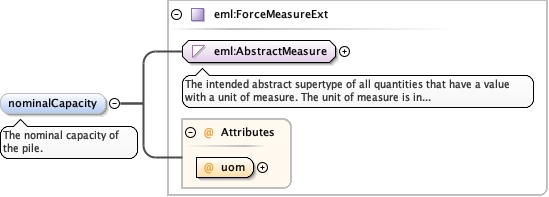

Element diggs:AbstractPileType / diggs:nominalCapacity
Namespace http://diggsml.org/schema-dev
Annotations

The nominal capacity of the pile.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="nominalCapacity" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The nominal capacity of the pile.</documentation>
  </annotation>
</element>

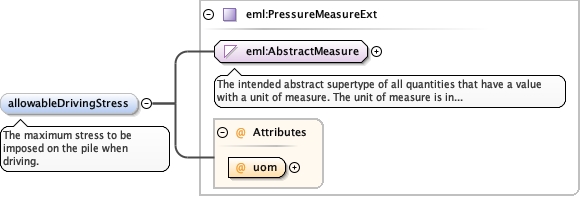

Element diggs:AbstractPileType / diggs:allowableDrivingStress
Namespace http://diggsml.org/schema-dev
Annotations

The maximum stress to be imposed on the pile when
driving.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt
Type eml:PressureMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUomExt required
Source

<element minOccurs="0" name="allowableDrivingStress" type="eml:PressureMeasureExt">
  <annotation>
    <documentation>The maximum stress to be imposed on the pile when driving.</documentation>
  </annotation>
</element>

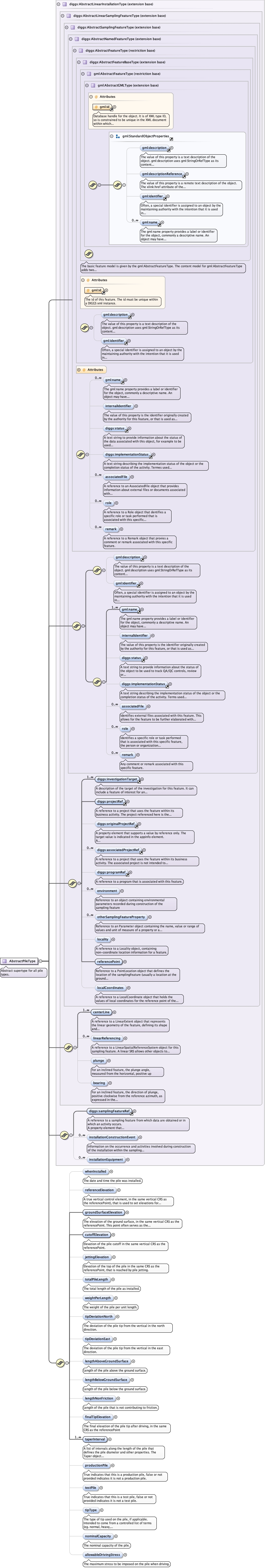

Complex Type diggs:AbstractPileType
Namespace http://diggsml.org/schema-dev
Annotations

Abstract supertype for all pile types.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeKernel_xsd_Element_diggs_investigationTarget.tmp#investigationTargetKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefKernel_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_centerLineKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_linearReferencingKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_plungeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_bearingKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureTypeKernel_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefKernel_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationType_installationConstructionEventKernel_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationType_installationEquipmentKernel_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationTypePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_whenInstalledPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_referenceElevationPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_groundSurfaceElevationPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_cutoffElevationPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_jettingElevationPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_totalPileLengthPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_weightPerLengthPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipDeviationNorthPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipDeviationEastPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthAboveGroundSurfacePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthBelowGroundSurfacePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthNonFrictionPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_finalTipElevationPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_taperIntervalPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_productionPilePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_testPilePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipTypePiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_nominalCapacityPiling_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_allowableDrivingStress
Type extension of diggs:AbstractLinearInstallationType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractPileType" abstract="true">
  <annotation>
    <documentation>Abstract supertype for all pile types.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLinearInstallationType">
      <sequence>
        <element minOccurs="0" name="whenInstalled" type="diggs:TimeIntervalType">
          <annotation>
            <documentation>The date and time the pile was installed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="referenceElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>A true vertical control element, in the same vertical CRS as the referencePoint), that is used to set elevations for othe structural elements, and not the top of the piling. This property is used when groundSurfaceElevation is not used as the reference elevation.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="groundSurfaceElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The elevation of the ground surface, in the same vertical CRS as the referencePoint. This point often serves as the pile's reference elevation.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="cutoffElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Elevation of the pile cutoff in the same vertical CRS as the referencePoint.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="jettingElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Elevation of the top of the pile in the same CRS as the referencePoint, that is reached by pile jetting.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalPileLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The total length of the pile as installed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="weightPerLength" type="eml:ForcePerLengthMeasureExt">
          <annotation>
            <documentation>The weight of the pile per unit length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipDeviationNorth" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The deviation of the pile tip from the vertical in the north direction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipDeviationEast" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The deviation of the pile tip from the vertical in the east direction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthAboveGroundSurface" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of the pile above the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthBelowGroundSurface" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of the pile below the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthNonFriction" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of the pile that is not contributing to friction.</documentation>
          </annotation>
        </element>
        <element form="qualified" maxOccurs="1" minOccurs="0" name="finalTipElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The final elevation of the pile tip after driving, in the same CRS as the referencePoint</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="1" name="taperInterval" type="diggs:TaperPropertyType">
          <annotation>
            <documentation>A list of intervals along the length of the pile that defines the pile diameter and other properties. The Taper object is used to define the parameters of any kind of pile taper.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="productionPile" type="boolean">
          <annotation>
            <documentation>True indicates that this is a production pile, false or not provided indicates it is not a production pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="testPile" type="boolean">
          <annotation>
            <documentation>True indicates that this is a test pile, false or not provided indicates it is not a test pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipType" type="gml:CodeType">
          <annotation>
            <documentation>The type of tip used on the pile, if applicable. Intended to come from a controlled list of terms (eg. normal, heavy, conical, etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="nominalCapacity" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The nominal capacity of the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="allowableDrivingStress" type="eml:PressureMeasureExt">
          <annotation>
            <documentation>The maximum stress to be imposed on the pile when driving.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
