Schema documentation for component eml:PressureMeasureExt

Showing:

Attributes

Diagrams

Properties

Source

Used by

Complex Type eml:PressureMeasureExt

Namespace

http://www.energistics.org/energyml/data/commonv2

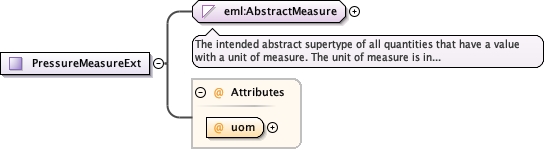

Diagram

Type

extension of eml:AbstractMeasure

Type hierarchy

xs:double
- eml:AbstractMeasure
  - eml:PressureMeasureExt

Used by

Elements

diggs:AbstractPileType/diggs:allowableDrivingStress, diggs:CBRIncrementType/diggs:calculatedStress, diggs:CushionElementType/diggs:elasticModulus, diggs:DrillRigType/diggs:baselineCroudPressure, diggs:DrillRigType/diggs:baselineTorquePressure, diggs:DrillRigType/diggs:groundBearingPressure, diggs:DrillRigType/diggs:maxHydPressure, diggs:PDARecordType/diggs:elasticModulus, diggs:PDARecordType/diggs:pressureAtHammer, diggs:PileDrivingRecordType/diggs:pressureAtHammer, diggs:PorePressureElementType/diggs:poreCapacity, diggs:PressuremeterTestTrialType/diggs:meanPressure, diggs:PressuremeterTestTrialType/diggs:pressureRange, diggs:PressuremeterTestTrialType/diggs:shearModulus, diggs_geo:BackPressureIncrementType/diggs_geo:backPressureApplied, diggs_geo:BackPressureIncrementType/diggs_geo:chamberPressureApplied, diggs_geo:CBRIncrementType/diggs_geo:calculatedStress, diggs_geo:MembraneInfoType/diggs_geo:membraneYoungsModulus, diggs_geo:PorePressureElementType/diggs_geo:poreCapacity, diggs_geo:ShearingIncrementType/diggs_geo:deviatorStress, diggs_geo:ShearingIncrementType/diggs_geo:inducedPoreWaterPressure, diggs_geo:ShearingIncrementType/diggs_geo:totalPoreWaterPressure, diggs_geo:TriaxialTestConsolidationStageType/diggs_geo:effectiveStressEndofConsolidationStage, diggs_geo:TriaxialTestSaturationStageType/diggs_geo:maximumBackPressureApplied, diggs_geo:TriaxialTestShearStageType/diggs_geo:deviatorStressAtFailure, diggs_geo:TriaxialTestShearStageType/diggs_geo:inducedPorewaterPressureAtFailure, diggs_geo:TriaxialTestShearStageType/diggs_geo:porewaterPressureStartOfShearing, diggs_geo:TriaxialTestShearStageType/diggs_geo:totalCellPressureDuringShearStage, diggs_geo:TriaxialTestShearStageType/diggs_geo:totalPorewaterPressureAtFailure, diggs_geo:TriaxialTestShearStageType/diggs_geo:undrainedShearStrengthAtFailure

Complex Types

diggs:ReadingMeasureType, diggs_geo:ReadingMeasureType

Attributes

QName	Type	Use
uom	eml:PressureUomExt	required

Source

<xs:complexType name="PressureMeasureExt">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:PressureUomExt"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

Attribute eml:PressureMeasureExt / @uom

Namespace

No namespace

Type

eml:PressureUomExt

Properties

use	required

Used by

Complex Type

eml:PressureMeasureExt

Source

<xs:attribute name="uom" use="required" type="eml:PressureUomExt"/>
