Element diggs:PressuremeterTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Annotations

Pressuremeter loading or reloading cycle.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>Pressuremeter loading or reloading cycle.</documentation>
  </annotation>
</element>

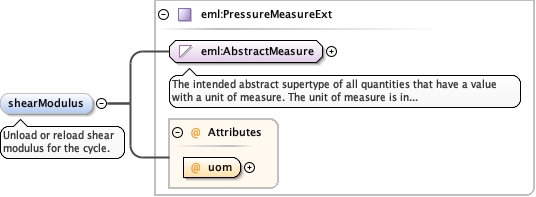

Element diggs:PressuremeterTestTrialType / diggs:shearModulus
Namespace http://diggsml.org/schema-dev
Annotations

Unload or reload shear modulus for the cycle.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt
Type eml:PressureMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUomExt required
Source

<element name="shearModulus" type="eml:PressureMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Unload or reload shear modulus for the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:meanStrain
Namespace http://diggsml.org/schema-dev
Annotations

Mean strain.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="meanStrain" type="double" minOccurs="0">
  <annotation>
    <documentation>Mean strain.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:strainRange
Namespace http://diggsml.org/schema-dev
Annotations

Strain range or amplitude.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="strainRange" type="double" minOccurs="0">
  <annotation>
    <documentation>Strain range or amplitude.</documentation>
  </annotation>
</element>

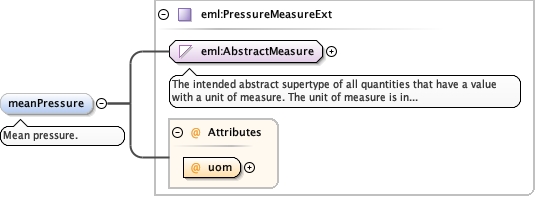

Element diggs:PressuremeterTestTrialType / diggs:meanPressure
Namespace http://diggsml.org/schema-dev
Annotations

Mean pressure.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt
Type eml:PressureMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUomExt required
Source

<element name="meanPressure" type="eml:PressureMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Mean pressure.</documentation>
  </annotation>
</element>

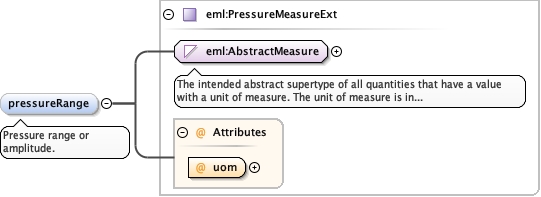

Element diggs:PressuremeterTestTrialType / diggs:pressureRange
Namespace http://diggsml.org/schema-dev
Annotations

Pressure range or amplitude.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt
Type eml:PressureMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUomExt required
Source

<element name="pressureRange" type="eml:PressureMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Pressure range or amplitude.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:linearity
Namespace http://diggsml.org/schema-dev
Annotations

Linearity exponent (from Bolton and Whittle, 1999)
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="linearity" type="double" minOccurs="0">
  <annotation>
    <documentation>Linearity exponent (from Bolton and Whittle, 1999)</documentation>
  </annotation>
</element>

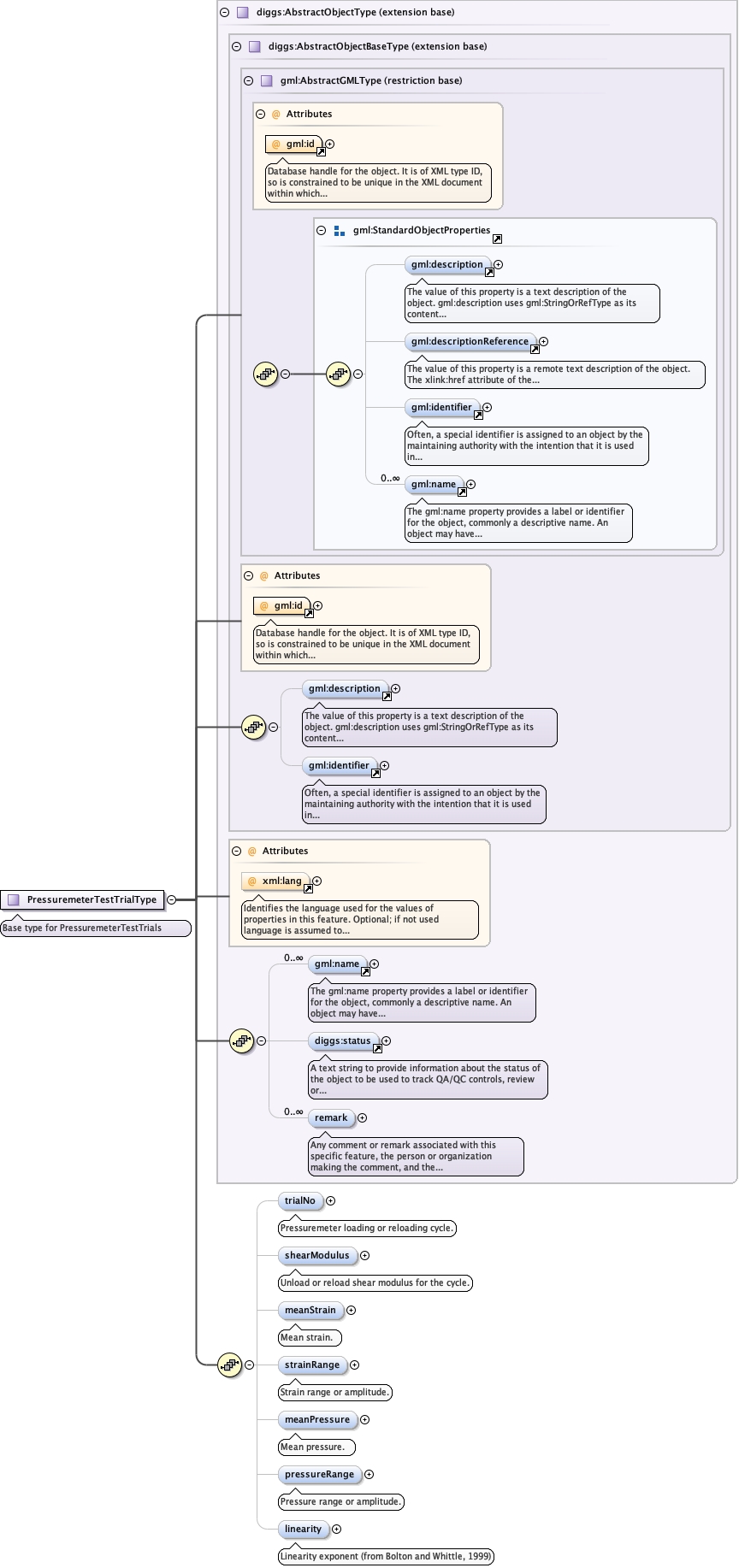

Complex Type diggs:PressuremeterTestTrialType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for PressuremeterTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_trialNoBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_shearModulusBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanStrainBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_strainRangeBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanPressureBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_pressureRangeBetaProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_linearity
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:linearity, diggs:meanPressure, diggs:meanStrain, diggs:pressureRange, diggs:remark, diggs:shearModulus, diggs:status, diggs:strainRange, diggs:trialNo, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="PressuremeterTestTrialType">
  <annotation>
    <documentation>Base type for PressuremeterTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>Pressuremeter loading or reloading cycle.</documentation>
          </annotation>
        </element>
        <element name="shearModulus" type="eml:PressureMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Unload or reload shear modulus for the cycle.</documentation>
          </annotation>
        </element>
        <element name="meanStrain" type="double" minOccurs="0">
          <annotation>
            <documentation>Mean strain.</documentation>
          </annotation>
        </element>
        <element name="strainRange" type="double" minOccurs="0">
          <annotation>
            <documentation>Strain range or amplitude.</documentation>
          </annotation>
        </element>
        <element name="meanPressure" type="eml:PressureMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Mean pressure.</documentation>
          </annotation>
        </element>
        <element name="pressureRange" type="eml:PressureMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Pressure range or amplitude.</documentation>
          </annotation>
        </element>
        <element name="linearity" type="double" minOccurs="0">
          <annotation>
            <documentation>Linearity exponent (from Bolton and Whittle, 1999)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
