Element diggs:CBRIncrementType / diggs:calculatedStress
Namespace http://diggsml.org/schema-dev
Annotations

Stress calculated from the measured load for this penetration increment.

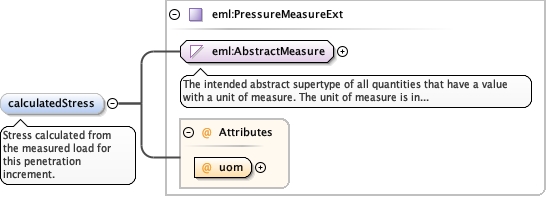

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PressureMeasureExt.tmp#PressureMeasureExt
Type eml:PressureMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PressureUomExt required
Source

<element minOccurs="0" name="calculatedStress" type="eml:PressureMeasureExt">
  <annotation>
    <documentation>Stress calculated from the measured load for this penetration increment.</documentation>
  </annotation>
</element>
Element diggs:CBRIncrementType / diggs:measuredLoad
Namespace http://diggsml.org/schema-dev
Annotations

Measured load on the piston at this penetration
increment

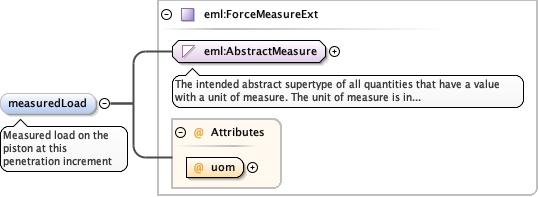

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="measuredLoad" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>Measured load on the piston at this penetration increment</documentation>
  </annotation>
</element>
Element diggs:CBRIncrementType / diggs:measuredPenetration
Namespace http://diggsml.org/schema-dev
Annotations

Measured penetration for this increment

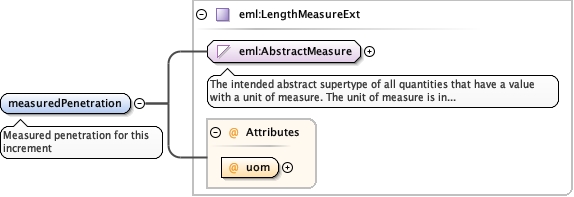

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="1" name="measuredPenetration" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Measured penetration for this increment</documentation>
  </annotation>
</element>
Complex Type diggs:CBRIncrementType
Namespace http://diggsml.org/schema-dev
Annotations

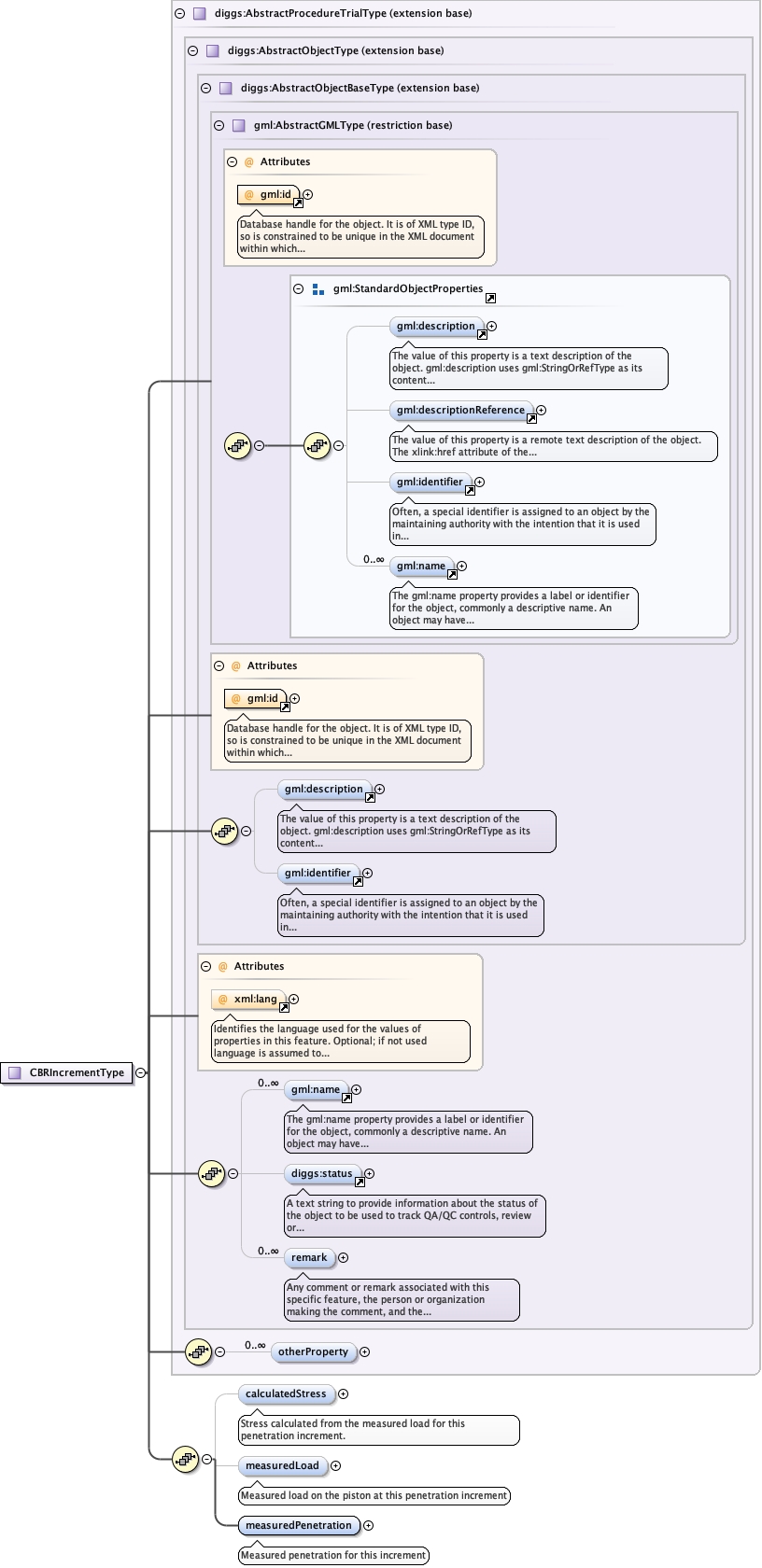

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProcedures_xsd_Complex_Type_diggs_CBRIncrementType.tmp#http___diggsml.org_schema-dev_CBRIncrementType_calculatedStressTestProcedures_xsd_Complex_Type_diggs_CBRIncrementType.tmp#http___diggsml.org_schema-dev_CBRIncrementType_measuredLoadTestProcedures_xsd_Complex_Type_diggs_CBRIncrementType.tmp#http___diggsml.org_schema-dev_CBRIncrementType_measuredPenetration
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:CBRIncrement
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:calculatedStress{0,1} , diggs:measuredLoad{0,1} , diggs:measuredPenetration
Children diggs:calculatedStress, diggs:measuredLoad, diggs:measuredPenetration, diggs:otherProperty, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="CBRIncrementType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="0" name="calculatedStress" type="eml:PressureMeasureExt">
          <annotation>
            <documentation>Stress calculated from the measured load for this penetration increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measuredLoad" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>Measured load on the piston at this penetration increment</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="measuredPenetration" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Measured penetration for this increment</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
