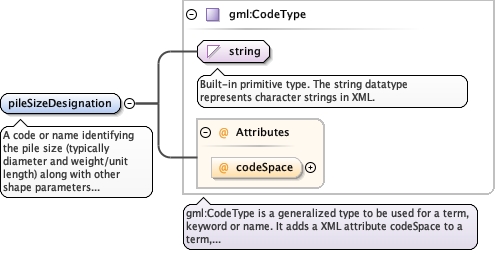

Element diggs:SteelHPileType / diggs:pileSizeDesignation
Namespace http://diggsml.org/schema-dev
Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
64</pileSizeDesignation>
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pileSizeDesignation" type="gml:CodeType">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
      <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
    </documentation>
  </annotation>
</element>

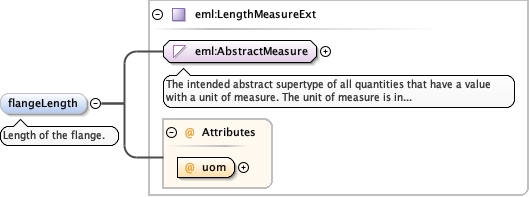

Element diggs:SteelHPileType / diggs:flangeLength
Namespace http://diggsml.org/schema-dev
Annotations

Length of the flange.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="flangeLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Length of the flange.</documentation>
  </annotation>
</element>

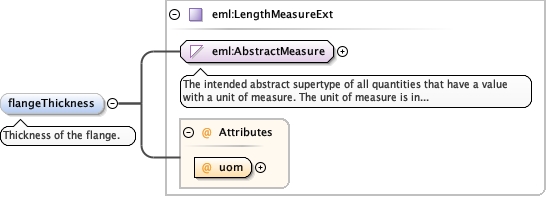

Element diggs:SteelHPileType / diggs:flangeThickness
Namespace http://diggsml.org/schema-dev
Annotations

Thickness of the flange.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="flangeThickness" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Thickness of the flange.</documentation>
  </annotation>
</element>
Element diggs:SteelHPileType / diggs:webThickness
Namespace http://diggsml.org/schema-dev
Annotations

Thickness of the web.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="webThickness" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Thickness of the web.</documentation>
  </annotation>
</element>

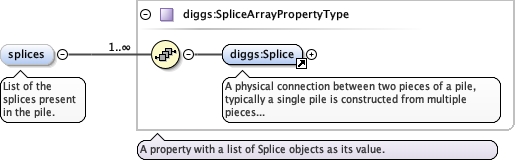

Element diggs:SteelHPileType / diggs:splices
Namespace http://diggsml.org/schema-dev
Annotations

List of the splices present in the pile.
Diagram
DiagramPiling_xsd_Element_diggs_Splice.tmp#SplicePiling_xsd_Complex_Type_diggs_SpliceArrayPropertyType.tmp#SpliceArrayPropertyType
Type diggs:SpliceArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Splice
Instance

<diggs:splices xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Splice gml:id="">{1,1}</diggs:Splice>
</diggs:splices>
Source

<element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
  <annotation>
    <documentation>List of the splices present in the pile.</documentation>
  </annotation>
</element>
Complex Type diggs:SteelHPileType
Namespace http://diggsml.org/schema-dev
Annotations

A pile made of steel with an H shaped cross section.
Diagram
Diagram
Type extension of diggs:AbstractPileType
Type hierarchy
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:flangeLength, diggs:flangeThickness, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:splices, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:webThickness, diggs:weightPerLength, diggs:weldType, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="SteelHPileType">
  <annotation>
    <documentation>A pile made of steel with an H shaped cross section.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
              <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:weldType">
          <annotation>
            <documentation>The type of weld used on the pile, from an enumerated list (circular, spiral)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="flangeLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Length of the flange.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="flangeThickness" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Thickness of the flange.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="webThickness" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Thickness of the web.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
          <annotation>
            <documentation>List of the splices present in the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
