Element diggs:TimeIntervalType / diggs:start
Namespace http://diggsml.org/schema-dev
Annotations

The date/time that begins the interval

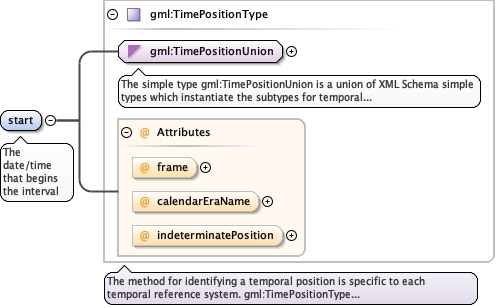

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="start" type="gml:TimePositionType" maxOccurs="1" minOccurs="1">
  <annotation>
    <documentation>The date/time that begins the interval</documentation>
  </annotation>
</element>
Element diggs:TimeIntervalType / diggs:end
Namespace http://diggsml.org/schema-dev
Annotations

The date/time that ends the interval. Alternatively, the
duration property may be used to define the time interval of
interest.

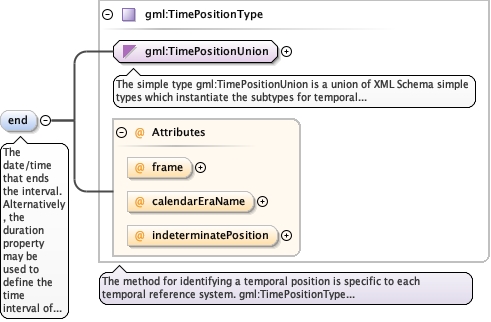

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="end" type="gml:TimePositionType" maxOccurs="1" minOccurs="0">
  <annotation>
    <documentation>The date/time that ends the interval. Alternatively, the duration property may be used to define the time interval of interest.</documentation>
  </annotation>
</element>
Element diggs:TimeIntervalType / diggs:duration
Namespace http://diggsml.org/schema-dev
Annotations

The duration of time since start, defining the time
interval of interest. Both end and duration are allowed and could
produce different time intervals depending on the nature of the
activity or commentary. Where there are differences in elapsed time
and duration these would be explained or expanded on in the remark
property.

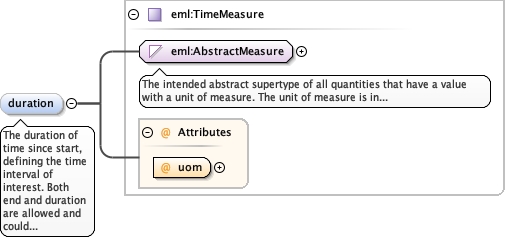

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element name="duration" type="eml:TimeMeasure" maxOccurs="1" minOccurs="0">
  <annotation>
    <documentation>The duration of time since start, defining the time interval of interest. Both end and duration are allowed and could produce different time intervals depending on the nature of the activity or commentary. Where there are differences in elapsed time and duration these would be explained or expanded on in the remark property.</documentation>
  </annotation>
</element>
Complex Type diggs:TimeIntervalType
Namespace http://diggsml.org/schema-dev
Annotations

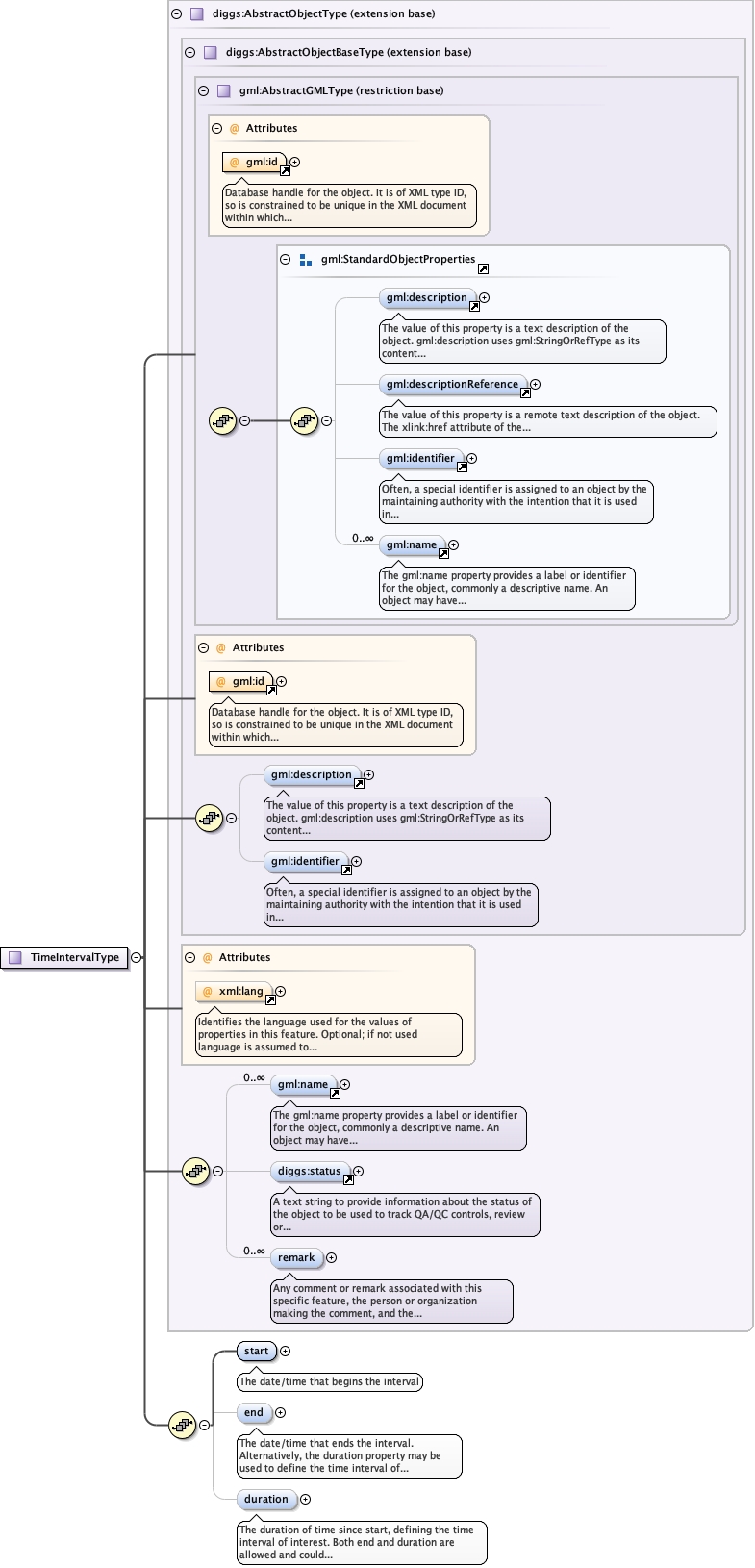

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_duration
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TimeIntervalType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="start" type="gml:TimePositionType" maxOccurs="1" minOccurs="1">
          <annotation>
            <documentation>The date/time that begins the interval</documentation>
          </annotation>
        </element>
        <element name="end" type="gml:TimePositionType" maxOccurs="1" minOccurs="0">
          <annotation>
            <documentation>The date/time that ends the interval. Alternatively, the duration property may be used to define the time interval of interest.</documentation>
          </annotation>
        </element>
        <element name="duration" type="eml:TimeMeasure" maxOccurs="1" minOccurs="0">
          <annotation>
            <documentation>The duration of time since start, defining the time interval of interest. Both end and duration are allowed and could produce different time intervals depending on the nature of the activity or commentary. Where there are differences in elapsed time and duration these would be explained or expanded on in the remark property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
