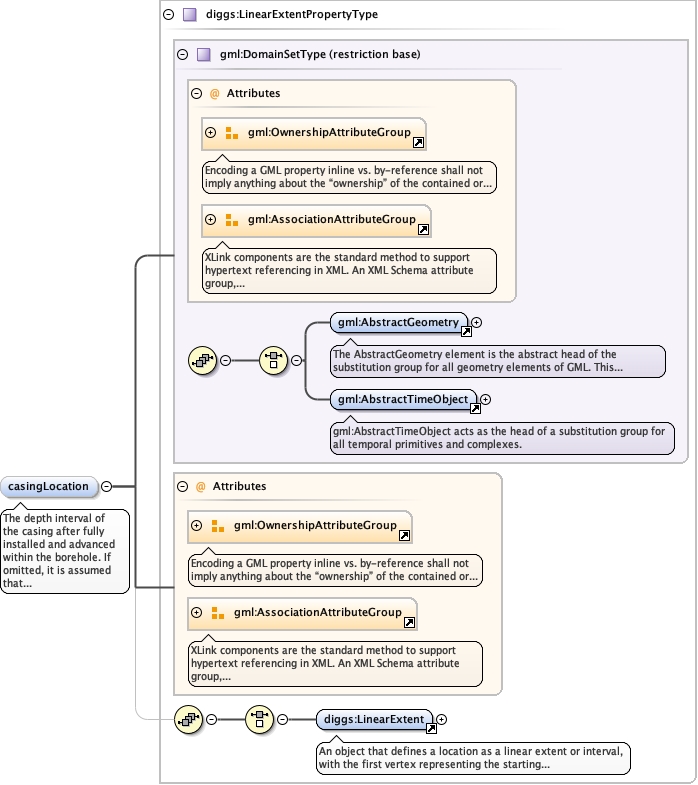

Element diggs:CasingType / diggs:casingLocation
Namespace http://diggsml.org/schema-dev
Annotations

The depth interval of the casing after fully installed
and advanced within the borehole. If omitted, it is assumed that the
casing information pertains to the entire length of the borehole or
well.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:LinearExtent
Instance

<diggs:casingLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:casingLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="casingLocation" type="diggs:LinearExtentPropertyType">
  <annotation>
    <documentation>The depth interval of the casing after fully installed and advanced within the borehole. If omitted, it is assumed that the casing information pertains to the entire length of the borehole or well.</documentation>
  </annotation>
</element>

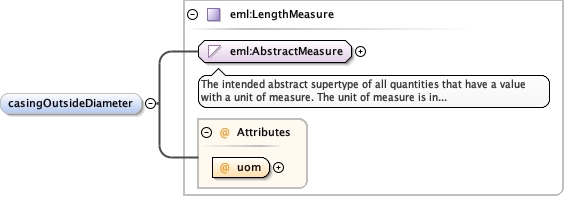

Element diggs:CasingType / diggs:casingOutsideDiameter
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="casingOutsideDiameter" type="eml:LengthMeasure"/>

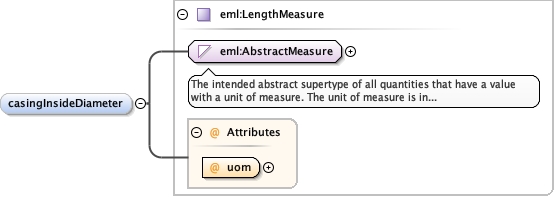

Element diggs:CasingType / diggs:casingInsideDiameter
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="casingInsideDiameter" type="eml:LengthMeasure"/>

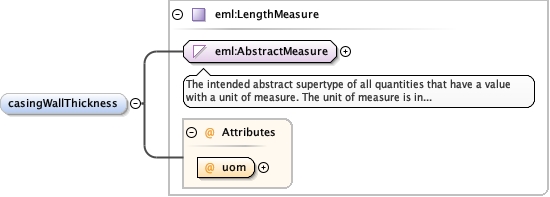

Element diggs:CasingType / diggs:casingWallThickness
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="casingWallThickness" type="eml:LengthMeasure"/>

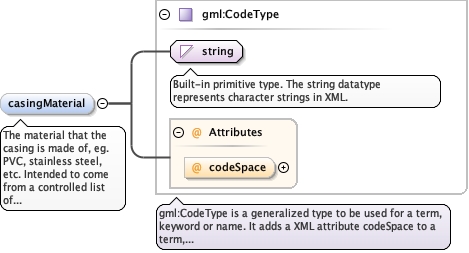

Element diggs:CasingType / diggs:casingMaterial
Namespace http://diggsml.org/schema-dev
Annotations

The material that the casing is made of, eg. PVC,
stainless steel, etc. Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="casingMaterial" type="gml:CodeType">
  <annotation>
    <documentation>The material that the casing is made of, eg. PVC, stainless steel, etc. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:CasingType / diggs:numberGroutPorts
Namespace http://diggsml.org/schema-dev
Annotations

If casing is an overburden casing as sleeve pipe (OCSP)
or other casing through which grout is injected, this property
records the number of ports in the casing.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="numberGroutPorts" type="positiveInteger">
  <annotation>
    <documentation>If casing is an overburden casing as sleeve pipe (OCSP) or other casing through which grout is injected, this property records the number of ports in the casing.</documentation>
  </annotation>
</element>

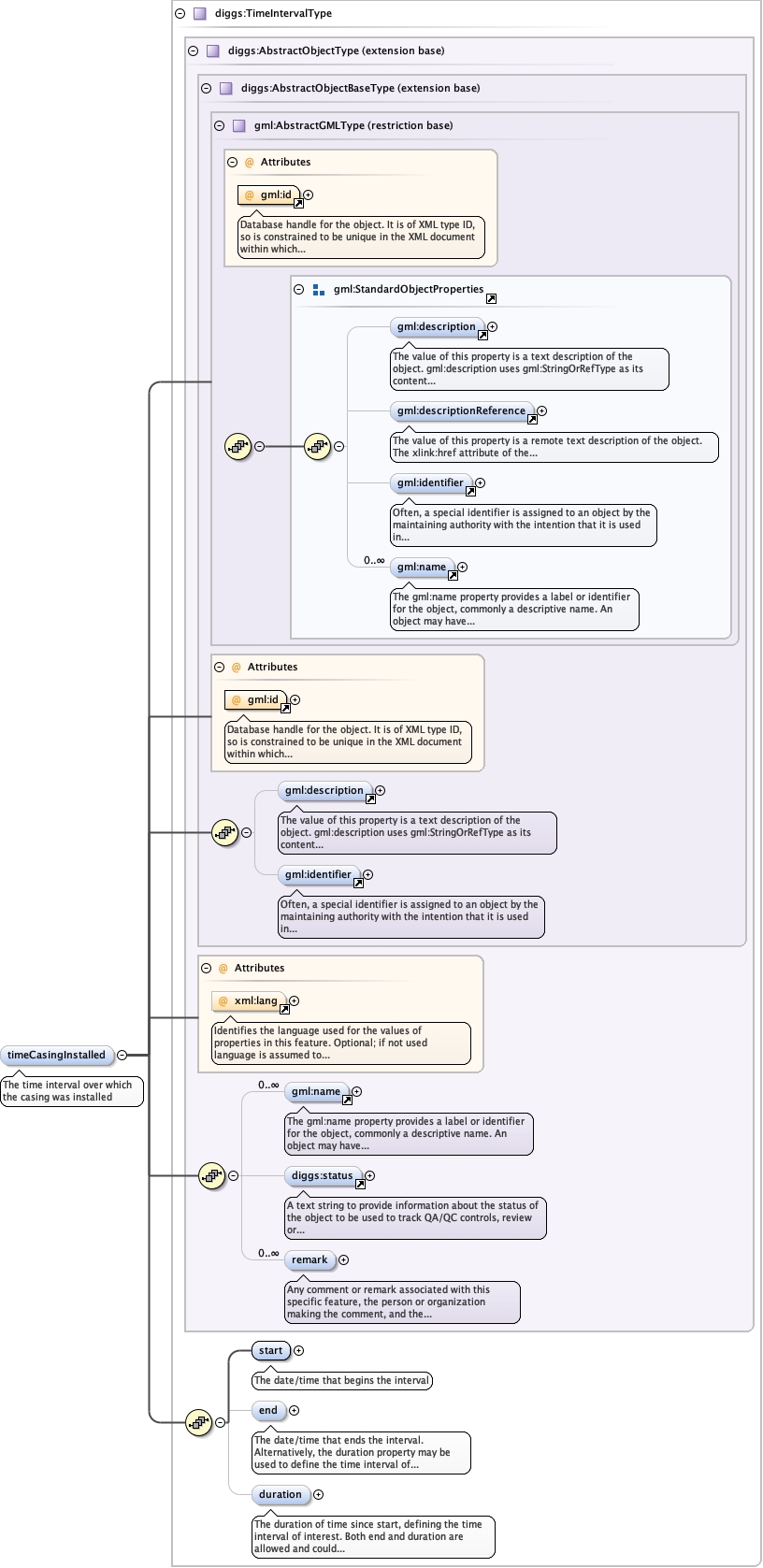

Element diggs:CasingType / diggs:timeCasingInstalled
Namespace http://diggsml.org/schema-dev
Annotations

The time interval over which the casing was installed
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_durationKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType
Type diggs:TimeIntervalType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:timeCasingInstalled gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:start calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:start>
  <diggs:end calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:end>
  <diggs:duration uom="">{0,1}</diggs:duration>
</diggs:timeCasingInstalled>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element maxOccurs="1" minOccurs="0" name="timeCasingInstalled" type="diggs:TimeIntervalType">
  <annotation>
    <documentation>The time interval over which the casing was installed</documentation>
  </annotation>
</element>

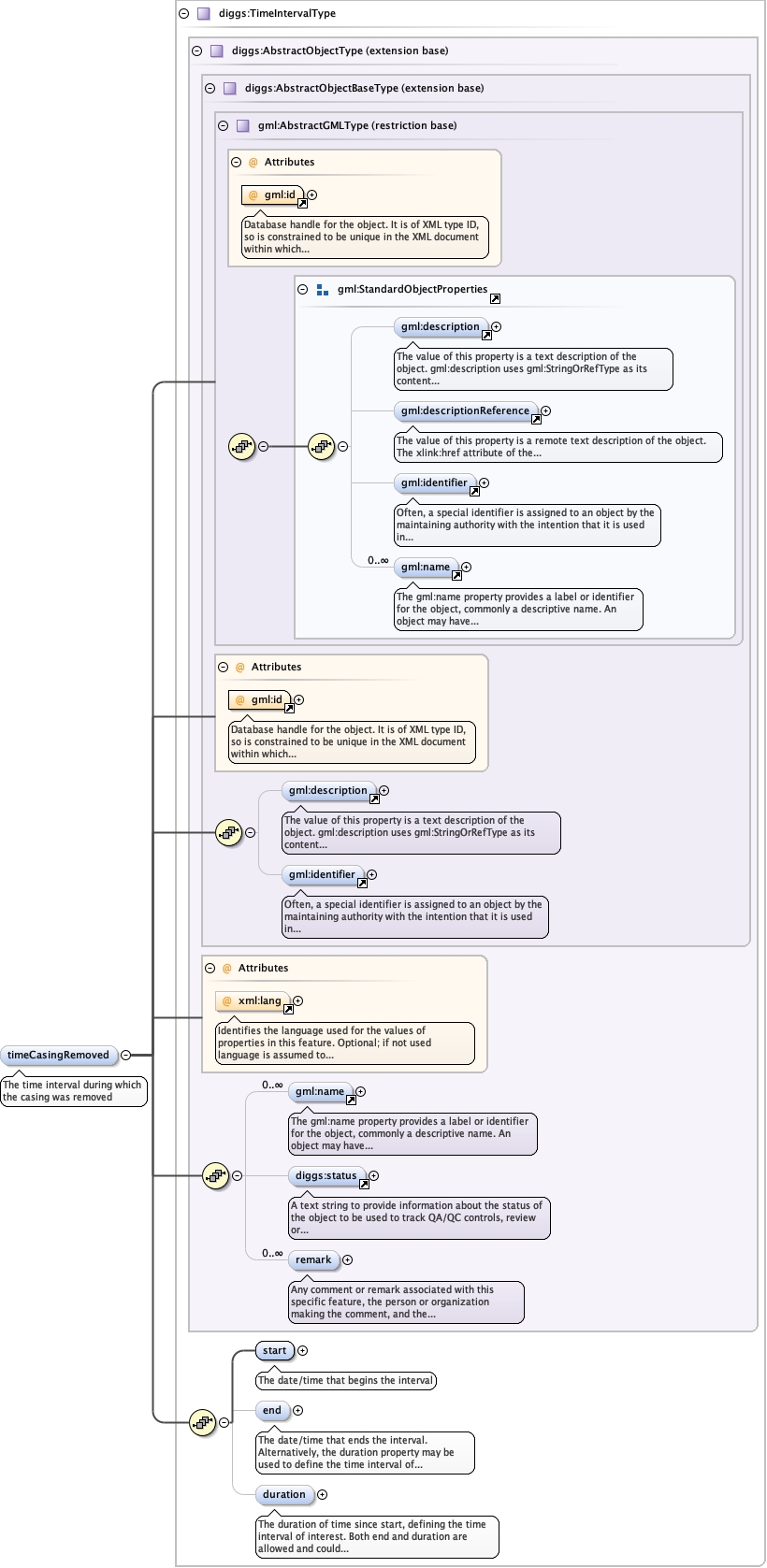

Element diggs:CasingType / diggs:timeCasingRemoved
Namespace http://diggsml.org/schema-dev
Annotations

The time interval during which the casing was removed
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_durationKernel_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType
Type diggs:TimeIntervalType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:timeCasingRemoved gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:start calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:start>
  <diggs:end calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:end>
  <diggs:duration uom="">{0,1}</diggs:duration>
</diggs:timeCasingRemoved>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element maxOccurs="1" minOccurs="0" name="timeCasingRemoved" type="diggs:TimeIntervalType">
  <annotation>
    <documentation>The time interval during which the casing was removed</documentation>
  </annotation>
</element>

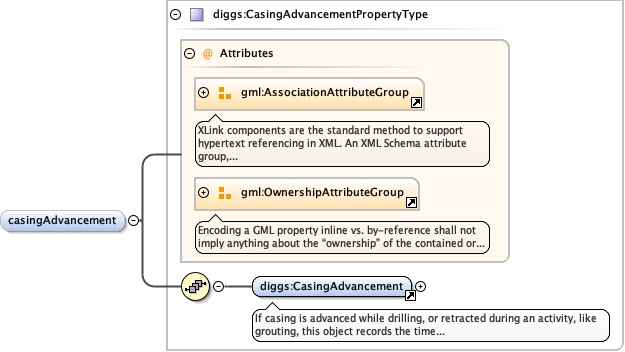

Element diggs:CasingType / diggs:casingAdvancement
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_CasingAdvancement.tmp#CasingAdvancementKernel_xsd_Complex_Type_diggs_CasingAdvancementPropertyType.tmp#CasingAdvancementPropertyType
Type diggs:CasingAdvancementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:CasingAdvancement
Instance

<diggs:casingAdvancement xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:CasingAdvancement gml:id="" xml:lang="">{1,1}</diggs:CasingAdvancement>
</diggs:casingAdvancement>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="casingAdvancement" type="diggs:CasingAdvancementPropertyType"/>

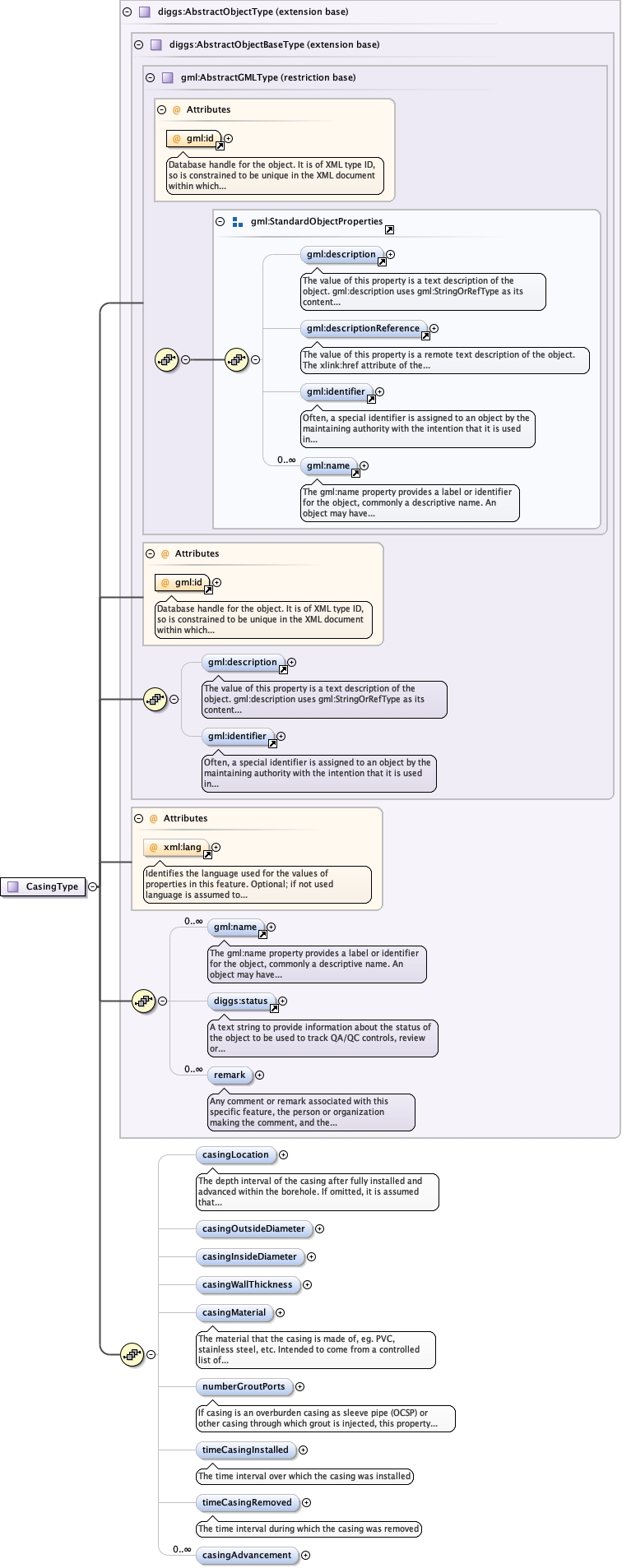

Complex Type diggs:CasingType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingLocationKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingOutsideDiameterKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingInsideDiameterKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingWallThicknessKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingMaterialKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_numberGroutPortsKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_timeCasingInstalledKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_timeCasingRemovedKernel_xsd_Complex_Type_diggs_CasingType.tmp#CasingType_casingAdvancement
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Casing
Model
Children diggs:casingAdvancement, diggs:casingInsideDiameter, diggs:casingLocation, diggs:casingMaterial, diggs:casingOutsideDiameter, diggs:casingWallThickness, diggs:numberGroutPorts, diggs:remark, diggs:status, diggs:timeCasingInstalled, diggs:timeCasingRemoved, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="CasingType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="casingLocation" type="diggs:LinearExtentPropertyType">
          <annotation>
            <documentation>The depth interval of the casing after fully installed and advanced within the borehole. If omitted, it is assumed that the casing information pertains to the entire length of the borehole or well.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="casingOutsideDiameter" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="casingInsideDiameter" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="casingWallThickness" type="eml:LengthMeasure"/>
        <element minOccurs="0" name="casingMaterial" type="gml:CodeType">
          <annotation>
            <documentation>The material that the casing is made of, eg. PVC, stainless steel, etc. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="numberGroutPorts" type="positiveInteger">
          <annotation>
            <documentation>If casing is an overburden casing as sleeve pipe (OCSP) or other casing through which grout is injected, this property records the number of ports in the casing.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="timeCasingInstalled" type="diggs:TimeIntervalType">
          <annotation>
            <documentation>The time interval over which the casing was installed</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="timeCasingRemoved" type="diggs:TimeIntervalType">
          <annotation>
            <documentation>The time interval during which the casing was removed</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="casingAdvancement" type="diggs:CasingAdvancementPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
