Element diggs:SteelPipePileType / diggs:pileSizeDesignation
Namespace http://diggsml.org/schema-dev
Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
64</pileSizeDesignation>

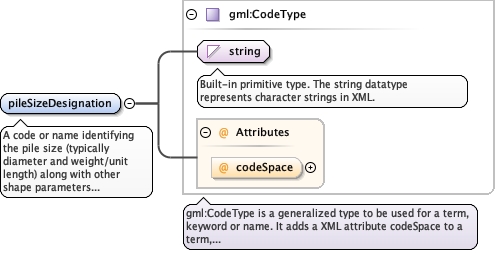

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pileSizeDesignation" type="gml:CodeType">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
      <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
    </documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:wallThickness
Namespace http://diggsml.org/schema-dev
Annotations

The thickness of the pipe wall.

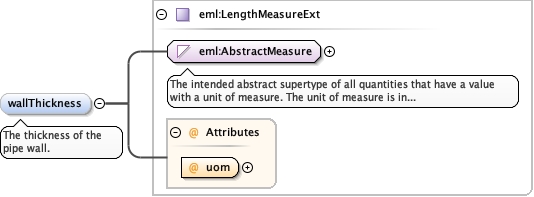

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="wallThickness" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The thickness of the pipe wall.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:openEnded
Namespace http://diggsml.org/schema-dev
Annotations

True indicates that the pipe is open ended, false
indicates that it is closed ended.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="openEnded" type="boolean">
  <annotation>
    <documentation>True indicates that the pipe is open ended, false indicates that it is closed ended.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:concreteFilled
Namespace http://diggsml.org/schema-dev
Annotations

True indicates that the pile is filled with concrete,
false or not provided indicates that the pile is not filled with
concrete.

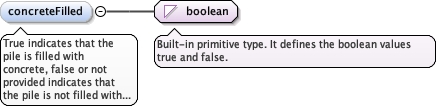

Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="concreteFilled" type="boolean">
  <annotation>
    <documentation>True indicates that the pile is filled with concrete, false or not provided indicates that the pile is not filled with concrete.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:soilPlugDepth
Namespace http://diggsml.org/schema-dev
Annotations

Depth of the soil plug inside the pile.

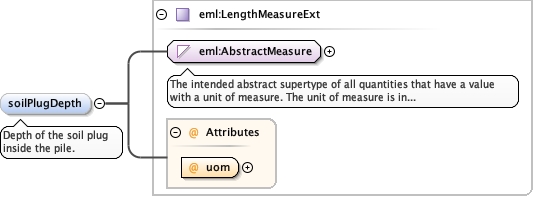

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="soilPlugDepth" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Depth of the soil plug inside the pile.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:soilPlugElevation
Namespace http://diggsml.org/schema-dev
Annotations

Elevation of the top of the soil plug.

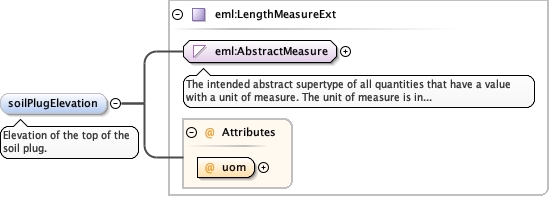

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="soilPlugElevation" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Elevation of the top of the soil plug.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:splices
Namespace http://diggsml.org/schema-dev
Annotations

The list of splices in the pile.

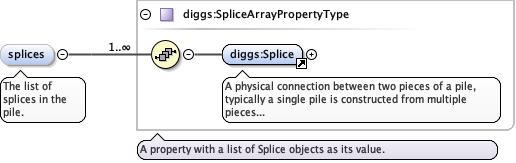

Diagram
DiagramPiling_xsd_Element_diggs_Splice.tmp#SplicePiling_xsd_Complex_Type_diggs_SpliceArrayPropertyType.tmp#SpliceArrayPropertyType
Type diggs:SpliceArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Splice
Instance

<diggs:splices xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Splice gml:id="">{1,1}</diggs:Splice>
</diggs:splices>
Source

<element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
  <annotation>
    <documentation>The list of splices in the pile.</documentation>
  </annotation>
</element>
Complex Type diggs:SteelPipePileType
Namespace http://diggsml.org/schema-dev
Annotations

A pile made from a steel pipe.
Diagram
Diagram
Type extension of diggs:AbstractPileType
Type hierarchy
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:concreteFilled, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:openEnded, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:soilPlugDepth, diggs:soilPlugElevation, diggs:splices, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:wallThickness, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="SteelPipePileType">
  <annotation>
    <documentation>A pile made from a steel pipe.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms,
              <![CDATA[
                                Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
                                    64</pileSizeDesignation>]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wallThickness" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The thickness of the pipe wall.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="openEnded" type="boolean">
          <annotation>
            <documentation>True indicates that the pipe is open ended, false indicates that it is closed ended.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="concreteFilled" type="boolean">
          <annotation>
            <documentation>True indicates that the pile is filled with concrete, false or not provided indicates that the pile is not filled with concrete.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugDepth" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Depth of the soil plug inside the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugElevation" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Elevation of the top of the soil plug.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
          <annotation>
            <documentation>The list of splices in the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
