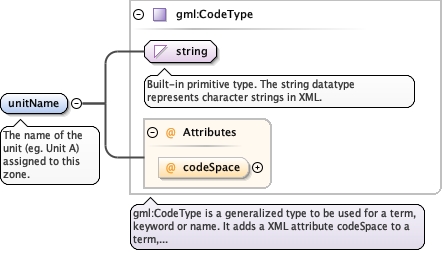

Element diggs:GeoUnitObservationType / diggs:unitName
Namespace http://diggsml.org/schema-dev
Annotations

The name of the unit (eg. Unit A) assigned to this
zone.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="1" name="unitName" type="gml:CodeType" maxOccurs="unbounded">
  <annotation>
    <documentation>The name of the unit (eg. Unit A) assigned to this zone.</documentation>
  </annotation>
</element>

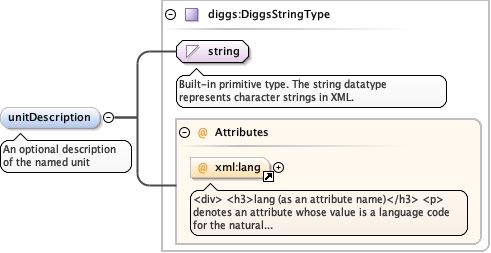

Element diggs:GeoUnitObservationType / diggs:unitDescription
Namespace http://diggsml.org/schema-dev
Annotations

An optional description of the named unit
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="unitDescription" type="diggs:DiggsStringType">
  <annotation>
    <documentation>An optional description of the named unit</documentation>
  </annotation>
</element>

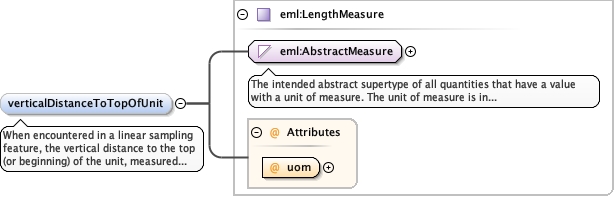

Element diggs:GeoUnitObservationType / diggs:verticalDistanceToTopOfUnit
Namespace http://diggsml.org/schema-dev
Annotations

When encountered in a linear sampling feature, the
vertical distance to the top (or beginning) of the unit, measured
from the feature's reference point.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="verticalDistanceToTopOfUnit" type="eml:LengthMeasure">
  <annotation>
    <documentation>When encountered in a linear sampling feature, the vertical distance to the top (or beginning) of the unit, measured from the feature's reference point.</documentation>
  </annotation>
</element>

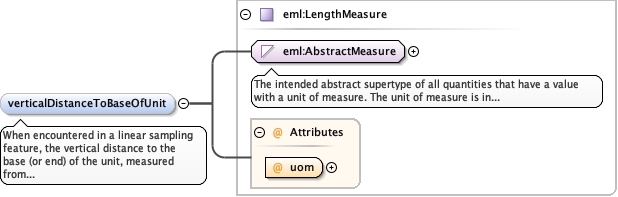

Element diggs:GeoUnitObservationType / diggs:verticalDistanceToBaseOfUnit
Namespace http://diggsml.org/schema-dev
Annotations

When encountered in a linear sampling feature, the
vertical distance to the base (or end) of the unit, measured from
the feature's reference point.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="verticalDistanceToBaseOfUnit" type="eml:LengthMeasure">
  <annotation>
    <documentation>When encountered in a linear sampling feature, the vertical distance to the base (or end) of the unit, measured from the feature's reference point.</documentation>
  </annotation>
</element>

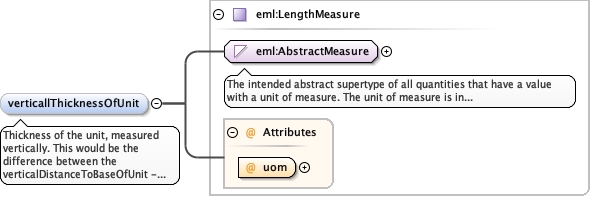

Element diggs:GeoUnitObservationType / diggs:verticallThicknessOfUnit
Namespace http://diggsml.org/schema-dev
Annotations

Thickness of the unit, measured vertically. This would be
the difference between the verticalDistanceToBaseOfUnit -
verticalDistanceToTopOfUnit.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="verticallThicknessOfUnit" type="eml:LengthMeasure">
  <annotation>
    <documentation>Thickness of the unit, measured vertically. This would be the difference between the verticalDistanceToBaseOfUnit - verticalDistanceToTopOfUnit.</documentation>
  </annotation>
</element>

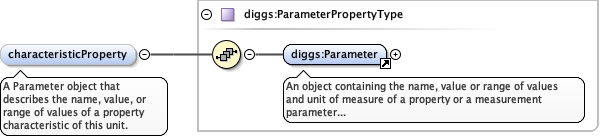

Element diggs:GeoUnitObservationType / diggs:characteristicProperty
Namespace http://diggsml.org/schema-dev
Annotations

A Parameter object that describes the name, value, or
range of values of a property characteristic of this
unit.
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:characteristicProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:characteristicProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="characteristicProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A Parameter object that describes the name, value, or range of values of a property characteristic of this unit.</documentation>
  </annotation>
</element>

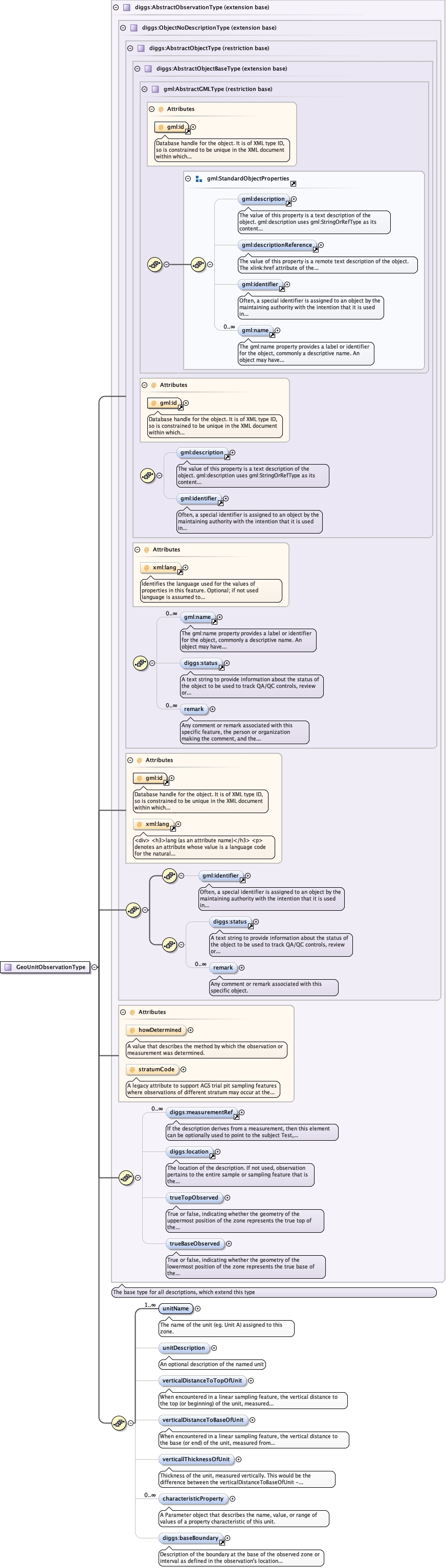

Complex Type diggs:GeoUnitObservationType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idxml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_remarkKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionTypeKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_howDeterminedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeKernel_xsd_Element_diggs_measurementRef.tmp#measurementRefKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_unitNameConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_unitDescriptionConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_verticalDistanceToTopOfUnitConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_verticalDistanceToBaseOfUnitConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_verticallThicknessOfUnitConstruction_xsd_Complex_Type_diggs_GeoUnitObservationType.tmp#GeoUnitObservationType_characteristicPropertyKernel_xsd_Element_diggs_baseBoundary.tmp#baseBoundary
Type extension of diggs:AbstractObservationType
Type hierarchy
Used by
Model
Children diggs:baseBoundary, diggs:characteristicProperty, diggs:location, diggs:measurementRef, diggs:remark, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, diggs:unitDescription, diggs:unitName, diggs:verticalDistanceToBaseOfUnit, diggs:verticalDistanceToTopOfUnit, diggs:verticallThicknessOfUnit, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
stratumCode string optional
A legacy attribute to support AGS trial pit sampling features
where observations of different stratum may occur at the same depth in a
pit. It is a reference letter or number whose sole purpose is to link
the stratum shown on a face sketch of the trial pit to the specific
observation.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GeoUnitObservationType">
  <complexContent>
    <extension base="diggs:AbstractObservationType">
      <sequence>
        <element minOccurs="1" name="unitName" type="gml:CodeType" maxOccurs="unbounded">
          <annotation>
            <documentation>The name of the unit (eg. Unit A) assigned to this zone.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="unitDescription" type="diggs:DiggsStringType">
          <annotation>
            <documentation>An optional description of the named unit</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalDistanceToTopOfUnit" type="eml:LengthMeasure">
          <annotation>
            <documentation>When encountered in a linear sampling feature, the vertical distance to the top (or beginning) of the unit, measured from the feature's reference point.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalDistanceToBaseOfUnit" type="eml:LengthMeasure">
          <annotation>
            <documentation>When encountered in a linear sampling feature, the vertical distance to the base (or end) of the unit, measured from the feature's reference point.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticallThicknessOfUnit" type="eml:LengthMeasure">
          <annotation>
            <documentation>Thickness of the unit, measured vertically. This would be the difference between the verticalDistanceToBaseOfUnit - verticalDistanceToTopOfUnit.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="characteristicProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A Parameter object that describes the name, value, or range of values of a property characteristic of this unit.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:baseBoundary"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
