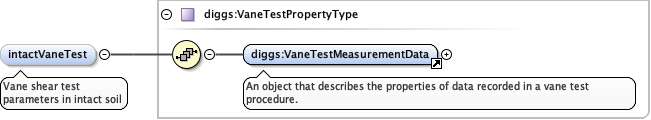

Element diggs:InsituVaneTestType / diggs:intactVaneTest
Namespace http://diggsml.org/schema-dev
Annotations

Vane shear test parameters in intact soil
Diagram
DiagramTestProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataTestProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#http___diggsml.org_schema-dev_VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
Model
diggs:VaneTestMeasurementData
Children diggs:VaneTestMeasurementData
Instance

<diggs:intactVaneTest xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:VaneTestMeasurementData gml:id="" xml:lang="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:intactVaneTest>
Source

<element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
  <annotation>
    <documentation>Vane shear test parameters in intact soil</documentation>
  </annotation>
</element>

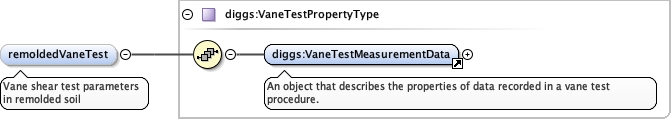

Element diggs:InsituVaneTestType / diggs:remoldedVaneTest
Namespace http://diggsml.org/schema-dev
Annotations

Vane shear test parameters in remolded
soil
Diagram
DiagramTestProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataTestProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#http___diggsml.org_schema-dev_VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:VaneTestMeasurementData
Children diggs:VaneTestMeasurementData
Instance

<diggs:remoldedVaneTest xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:VaneTestMeasurementData gml:id="" xml:lang="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:remoldedVaneTest>
Source

<element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Vane shear test parameters in remolded soil</documentation>
  </annotation>
</element>

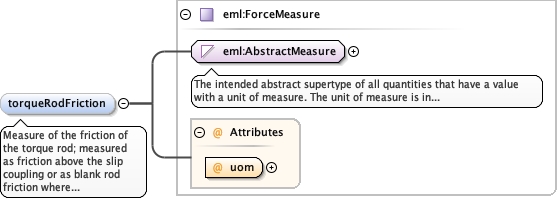

Element diggs:InsituVaneTestType / diggs:torqueRodFriction
Namespace http://diggsml.org/schema-dev
Annotations

Measure of the friction of the torque rod; measured as
friction above the slip coupling or as blank rod friction where rod
is in direct contact with the soil.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="torqueRodFriction" type="eml:ForceMeasure">
  <annotation>
    <documentation>Measure of the friction of the torque rod; measured as friction above the slip coupling or as blank rod friction where rod is in direct contact with the soil.</documentation>
  </annotation>
</element>

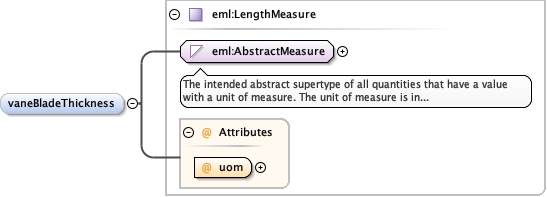

Element diggs:InsituVaneTestType / diggs:vaneBladeThickness
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneBladeThickness" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>

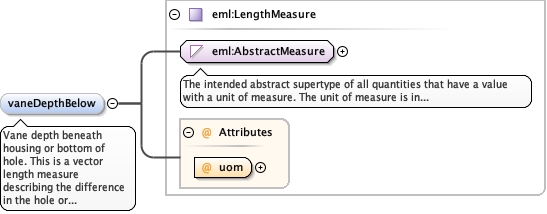

Element diggs:InsituVaneTestType / diggs:vaneDepthBelow
Namespace http://diggsml.org/schema-dev
Annotations

Vane depth beneath housing or bottom of hole. This is a
vector length measure describing the difference in the hole or
housing bottom and the test location.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneDepthBelow" type="eml:LengthMeasure">
  <annotation>
    <documentation>Vane depth beneath housing or bottom of hole. This is a vector length measure describing the difference in the hole or housing bottom and the test location.</documentation>
  </annotation>
</element>

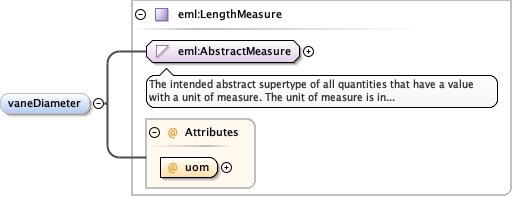

Element diggs:InsituVaneTestType / diggs:vaneDiameter
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneHeight
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneHeight" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>

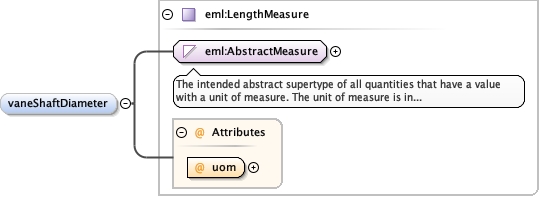

Element diggs:InsituVaneTestType / diggs:vaneShaftDiameter
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="vaneShaftDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneSystemType
Namespace http://diggsml.org/schema-dev
Annotations

Type of vane system, eg. slip coupling, no slip coupling,
vane shoe push/drill, etc. Intended to come from a controlled list
of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
  <annotation>
    <documentation>Type of vane system, eg. slip coupling, no slip coupling, vane shoe push/drill, etc. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

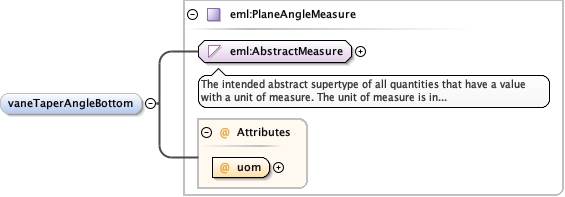

Element diggs:InsituVaneTestType / diggs:vaneTaperAngleBottom
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="vaneTaperAngleBottom" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>

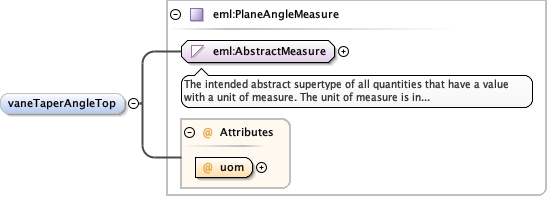

Element diggs:InsituVaneTestType / diggs:vaneTaperAngleTop
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="vaneTaperAngleTop" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation/>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneType
Namespace http://diggsml.org/schema-dev
Annotations

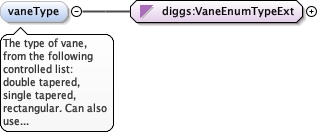

The type of vane, from the following controlled list:
double tapered, single tapered, rectangular. Can also use other:xxx
to define a new type.
Diagram
DiagramTestProcedures_xsd_Simple_Type_diggs_VaneEnumTypeExt.tmp#VaneEnumTypeExt
Type diggs:VaneEnumTypeExt
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="vaneType" type="diggs:VaneEnumTypeExt">
  <annotation>
    <documentation>The type of vane, from the following controlled list: double tapered, single tapered, rectangular. Can also use other:xxx to define a new type.</documentation>
  </annotation>
</element>

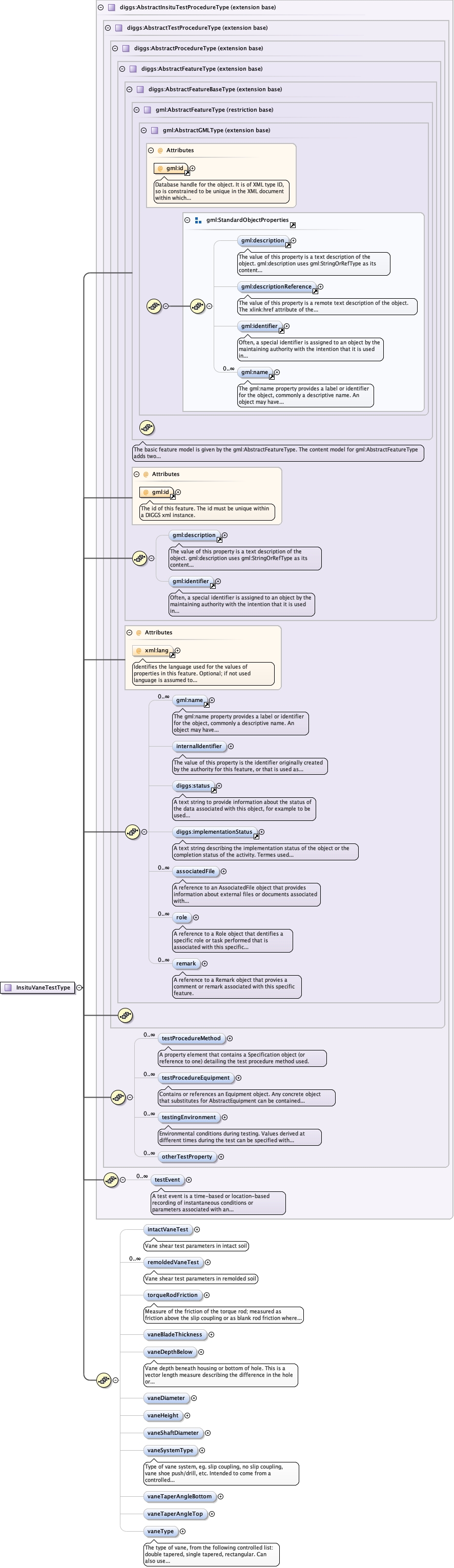

Complex Type diggs:InsituVaneTestType
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_intactVaneTestTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_remoldedVaneTestTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_torqueRodFrictionTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneBladeThicknessTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneDepthBelowTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneDiameterTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneHeightTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneShaftDiameterTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneSystemTypeTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneTaperAngleBottomTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneTaperAngleTopTestProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#http___diggsml.org_schema-dev_InsituVaneTestType_vaneType
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Element diggs:InsituVaneTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent* , diggs:intactVaneTest{0,1} , diggs:remoldedVaneTest* , diggs:torqueRodFriction{0,1} , diggs:vaneBladeThickness{0,1} , diggs:vaneDepthBelow{0,1} , diggs:vaneDiameter{0,1} , diggs:vaneHeight{0,1} , diggs:vaneShaftDiameter{0,1} , diggs:vaneSystemType{0,1} , diggs:vaneTaperAngleBottom{0,1} , diggs:vaneTaperAngleTop{0,1} , diggs:vaneType{0,1}
Children diggs:associatedFile, diggs:implementationStatus, diggs:intactVaneTest, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:remoldedVaneTest, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:torqueRodFriction, diggs:vaneBladeThickness, diggs:vaneDepthBelow, diggs:vaneDiameter, diggs:vaneHeight, diggs:vaneShaftDiameter, diggs:vaneSystemType, diggs:vaneTaperAngleBottom, diggs:vaneTaperAngleTop, diggs:vaneType, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="InsituVaneTestType">
  <annotation>
    <documentation/>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
          <annotation>
            <documentation>Vane shear test parameters in intact soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Vane shear test parameters in remolded soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueRodFriction" type="eml:ForceMeasure">
          <annotation>
            <documentation>Measure of the friction of the torque rod; measured as friction above the slip coupling or as blank rod friction where rod is in direct contact with the soil.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneBladeThickness" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDepthBelow" type="eml:LengthMeasure">
          <annotation>
            <documentation>Vane depth beneath housing or bottom of hole. This is a vector length measure describing the difference in the hole or housing bottom and the test location.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneHeight" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneShaftDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
          <annotation>
            <documentation>Type of vane system, eg. slip coupling, no slip coupling, vane shoe push/drill, etc. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleBottom" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleTop" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneType" type="diggs:VaneEnumTypeExt">
          <annotation>
            <documentation>The type of vane, from the following controlled list: double tapered, single tapered, rectangular. Can also use other:xxx to define a new type.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
