Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:minimumDepthBelowLS
Namespace http://diggsml.org/schema-dev
Annotations

The minimum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element form="qualified" name="minimumDepthBelowLS" type="eml:LengthMeasure">
  <annotation>
    <documentation>The minimum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
  </annotation>
</element>

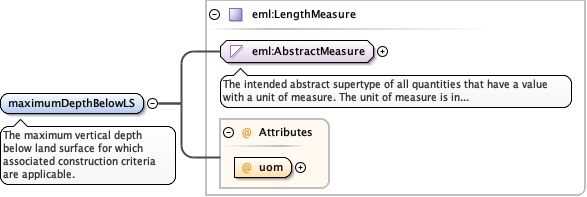

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:maximumDepthBelowLS
Namespace http://diggsml.org/schema-dev
Annotations

The maximum vertical depth below land surface for which
associated construction criteria are applicable.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element form="qualified" name="maximumDepthBelowLS" type="eml:LengthMeasure">
  <annotation>
    <documentation>The maximum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
  </annotation>
</element>

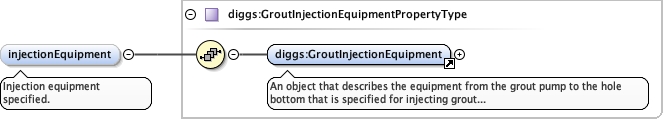

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionEquipment
Namespace http://diggsml.org/schema-dev
Annotations

Injection equipment specified.
Diagram
DiagramConstruction_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentConstruction_xsd_Complex_Type_diggs_GroutInjectionEquipmentPropertyType.tmp#GroutInjectionEquipmentPropertyType
Type diggs:GroutInjectionEquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutInjectionEquipment
Instance

<diggs:injectionEquipment xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutInjectionEquipment gml:id="" xml:lang="">{1,1}</diggs:GroutInjectionEquipment>
</diggs:injectionEquipment>
Source

<element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
  <annotation>
    <documentation>Injection equipment specified.</documentation>
  </annotation>
</element>

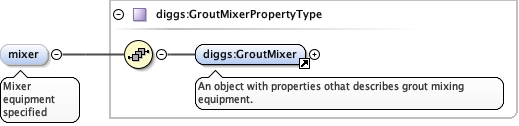

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:mixer
Namespace http://diggsml.org/schema-dev
Annotations

Mixer equipment specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutMixer.tmp#GroutMixerConstruction_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutMixer gml:id="" xml:lang="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Source

<element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
  <annotation>
    <documentation>Mixer equipment specified</documentation>
  </annotation>
</element>

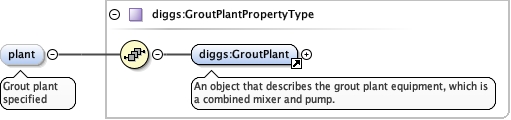

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:plant
Namespace http://diggsml.org/schema-dev
Annotations

Grout plant specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPlant.tmp#GroutPlantConstruction_xsd_Complex_Type_diggs_GroutPlantPropertyType.tmp#GroutPlantPropertyType
Type diggs:GroutPlantPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPlant
Instance

<diggs:plant xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutPlant gml:id="" xml:lang="">{1,1}</diggs:GroutPlant>
</diggs:plant>
Source

<element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
  <annotation>
    <documentation>Grout plant specified</documentation>
  </annotation>
</element>

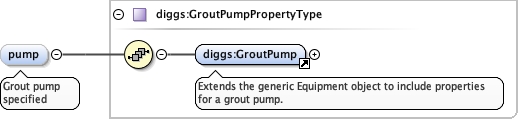

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pump
Namespace http://diggsml.org/schema-dev
Annotations

Grout pump specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPump.tmp#GroutPumpConstruction_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutPump gml:id="" xml:lang="">{1,1}</diggs:GroutPump>
</diggs:pump>
Source

<element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
  <annotation>
    <documentation>Grout pump specified</documentation>
  </annotation>
</element>

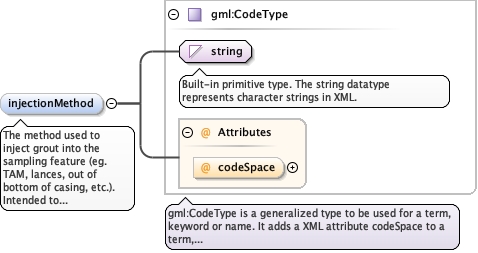

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionMethod
Namespace http://diggsml.org/schema-dev
Annotations

The method used to inject grout into the sampling feature
(eg. TAM, lances, out of bottom of casing, etc.). Intended to come
from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
  <annotation>
    <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

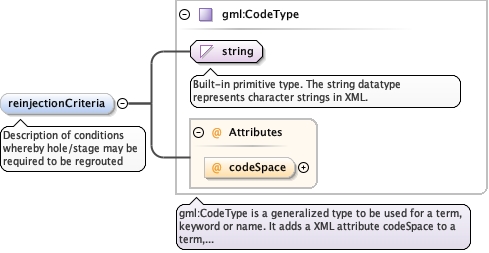

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:reinjectionCriteria
Namespace http://diggsml.org/schema-dev
Annotations

Description of conditions whereby hole/stage may be
required to be regrouted
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
  <annotation>
    <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingRequired
Namespace http://diggsml.org/schema-dev
Annotations

Set to true here, grouting parameters are
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
  </annotation>
</element>

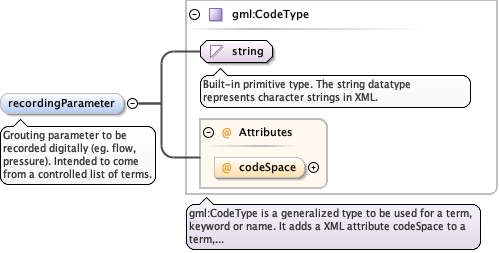

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:recordingParameter
Namespace http://diggsml.org/schema-dev
Annotations

Grouting parameter to be recorded digitally (eg.
flow, pressure). Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
  <annotation>
    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:digitalRecordingNotRequired
Namespace http://diggsml.org/schema-dev
Annotations

Set to true here, grouting parameters are NOT
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
  </annotation>
</element>

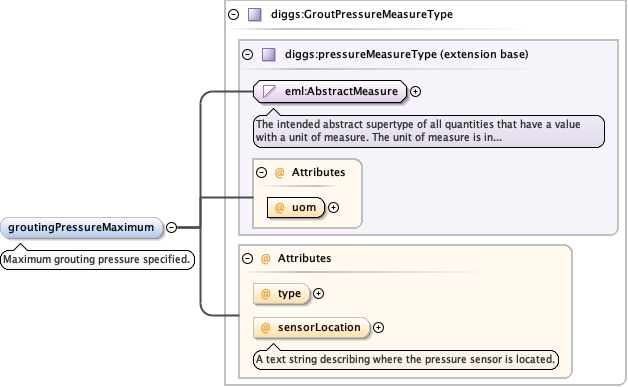

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum grouting pressure specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Maximum grouting pressure specified.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutingPressureMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum grouting pressure specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Minimum grouting pressure specified.</documentation>
  </annotation>
</element>

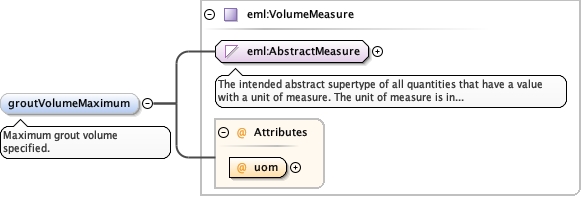

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum grout volume specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Maximum grout volume specified.</documentation>
  </annotation>
</element>

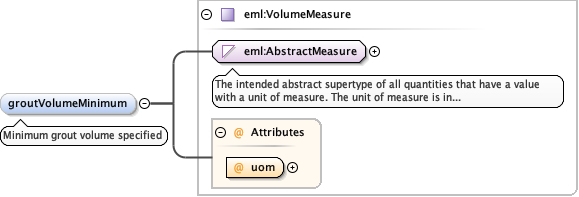

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:groutVolumeMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum grout volume specified
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Minimum grout volume specified</documentation>
  </annotation>
</element>

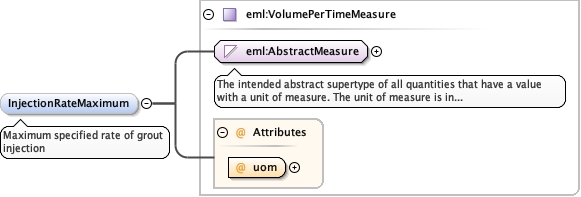

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:InjectionRateMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum specified rate of grout injection
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="InjectionRateMaximum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Maximum specified rate of grout injection</documentation>
  </annotation>
</element>

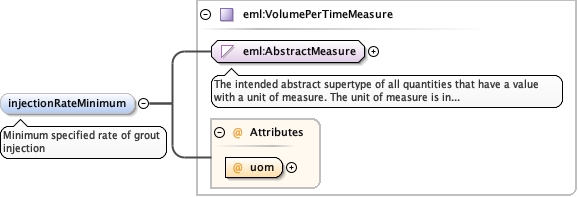

Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:injectionRateMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum specified rate of grout injection
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Minimum specified rate of grout injection</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:pressureControlLogic
Namespace http://diggsml.org/schema-dev
Annotations

Property defining how grout injection is to be
controlled, either by constant flow or constant pressure. From an
enumerated list.
Diagram
DiagramConstruction_xsd_Simple_Type_diggs_pressureControlLogicEnumType.tmp#pressureControlLogicEnumType
Type diggs:pressureControlLogicEnumType
Properties
content simple
minOccurs 0
Facets
enumeration constant flow
enumeration constant pressure
Source

<element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
  <annotation>
    <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum specified stage length.

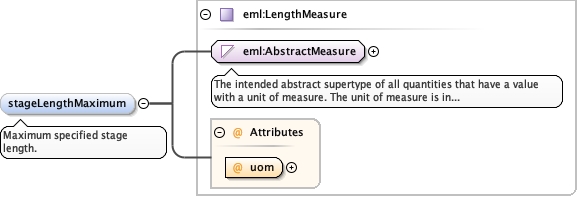

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Maximum specified stage length.</documentation>
  </annotation>
</element>
Element diggs:DepthDependentGroutConstructionCriteriaType / diggs:stageLengthMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum specified stage length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Minimum specified stage length.</documentation>
  </annotation>
</element>
Complex Type diggs:DepthDependentGroutConstructionCriteriaType
Namespace http://diggsml.org/schema-dev

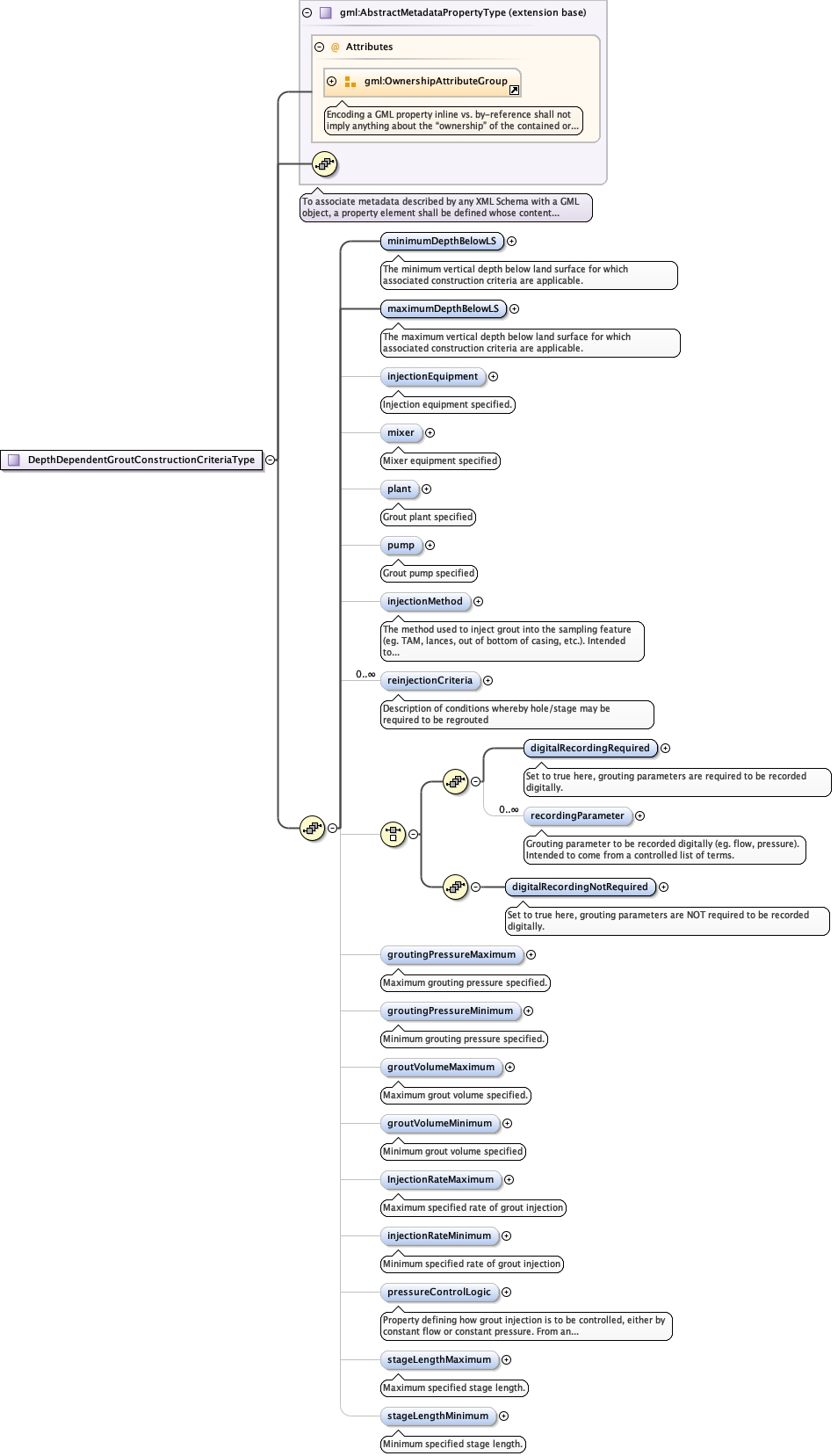

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_minimumDepthBelowLSConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_maximumDepthBelowLSConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionEquipmentConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_mixerConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_plantConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pumpConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionMethodConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_reinjectionCriteriaConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingRequiredConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_recordingParameterConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_digitalRecordingNotRequiredConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutingPressureMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_groutVolumeMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_InjectionRateMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_injectionRateMinimumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_pressureControlLogicConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMaximumConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaType.tmp#DepthDependentGroutConstructionCriteriaType_stageLengthMinimum
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:InjectionRateMaximum, diggs:digitalRecordingNotRequired, diggs:digitalRecordingRequired, diggs:groutVolumeMaximum, diggs:groutVolumeMinimum, diggs:groutingPressureMaximum, diggs:groutingPressureMinimum, diggs:injectionEquipment, diggs:injectionMethod, diggs:injectionRateMinimum, diggs:maximumDepthBelowLS, diggs:minimumDepthBelowLS, diggs:mixer, diggs:plant, diggs:pressureControlLogic, diggs:pump, diggs:recordingParameter, diggs:reinjectionCriteria, diggs:stageLengthMaximum, diggs:stageLengthMinimum
Attributes
QName Type Default Use
owns boolean false optional
Source

<complexType name="DepthDependentGroutConstructionCriteriaType">
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element form="qualified" name="minimumDepthBelowLS" type="eml:LengthMeasure">
          <annotation>
            <documentation>The minimum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
          </annotation>
        </element>
        <element form="qualified" name="maximumDepthBelowLS" type="eml:LengthMeasure">
          <annotation>
            <documentation>The maximum vertical depth below land surface for which associated construction criteria are applicable.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
          <annotation>
            <documentation>Injection equipment specified.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
          <annotation>
            <documentation>Mixer equipment specified</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
          <annotation>
            <documentation>Grout plant specified</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
          <annotation>
            <documentation>Grout pump specified</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
          <annotation>
            <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
          <annotation>
            <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
          </annotation>
        </element>
        <choice minOccurs="0">
          <sequence>
            <element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
              <annotation>
                <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
              </annotation>
            </element>
            <element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
              <annotation>
                <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
              </annotation>
            </element>
          </sequence>
          <sequence>
            <element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
              <annotation>
                <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
          <annotation>
            <documentation>Maximum grouting pressure specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
          <annotation>
            <documentation>Minimum grouting pressure specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Maximum grout volume specified.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Minimum grout volume specified</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="InjectionRateMaximum" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Maximum specified rate of grout injection</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Minimum specified rate of grout injection</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
          <annotation>
            <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
          <annotation>
            <documentation>Maximum specified stage length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
          <annotation>
            <documentation>Minimum specified stage length.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
