Specifies the grouting treatment solution for thisactivity. Allowed values are: Compaction - injecting a very stiffhomogeneous grout mix under relatively high-pressures and at lowinjection rates to subsurface locations in pre-designed patterns inorder to displace and compact soils. Compensation - also know asfracture grouting, is the injection of a cement slurry grout,hydrofracturing soil, creating lenses. The lenses compactsurrounding soil and then lift the overlying soil and structures.Jet - consists of breaking up the soil with a high-pressure jet in apredrilled borehole and mixing the loosened soil with a cement groutalone or mixed with air and/or water. Permeation - Introduction ofcement or chemical-based grout into soil pores without an essentialchange in the original soil volume and structure, changing thesupport capability of granular soils without disturbing them Rock -the injection of specially formulated cement-based mixes into theground to improve its strength or reduce permeability.

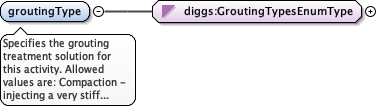

<element minOccurs="1" name="groutingType" type="diggs:GroutingTypesEnumType"><annotation><documentation>Specifies the grouting treatment solution for this activity. Allowed values are: Compaction - injecting a very stiff homogeneous grout mix under relatively high-pressures and at low injection rates to subsurface locations in pre-designed patterns in order to displace and compact soils. Compensation - also know as fracture grouting, is the injection of a cement slurry grout, hydrofracturing soil, creating lenses. The lenses compact surrounding soil and then lift the overlying soil and structures. Jet - consists of breaking up the soil with a high-pressure jet in a predrilled borehole and mixing the loosened soil with a cement grout alone or mixed with air and/or water. Permeation - Introduction of cement or chemical-based grout into soil pores without an essential change in the original soil volume and structure, changing the support capability of granular soils without disturbing them Rock - the injection of specially formulated cement-based mixes into the ground to improve its strength or reduce permeability.</documentation></annotation></element>

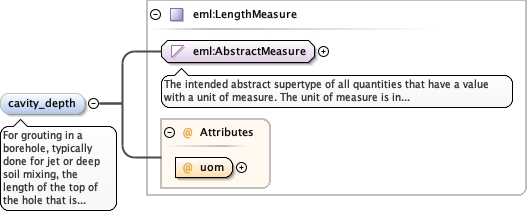

For grouting in a borehole, typically done for jet ordeep soil mixing, the length of the top of the hole that ispre-drilled out completely to form a cavity to contain theadditional volume of soil and grout generated by the activity. For agrout trench cutoff wall, this value is the depth of excavation ofthe trench made from the surface to contain the additional volume ofsoil and grout generated by the activity.
<element minOccurs="0" name="cavity_depth" type="eml:LengthMeasure"><annotation><documentation>For grouting in a borehole, typically done for jet or deep soil mixing, the length of the top of the hole that is pre-drilled out completely to form a cavity to contain the additional volume of soil and grout generated by the activity. For a grout trench cutoff wall, this value is the depth of excavation of the trench made from the surface to contain the additional volume of soil and grout generated by the activity.</documentation></annotation></element>
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

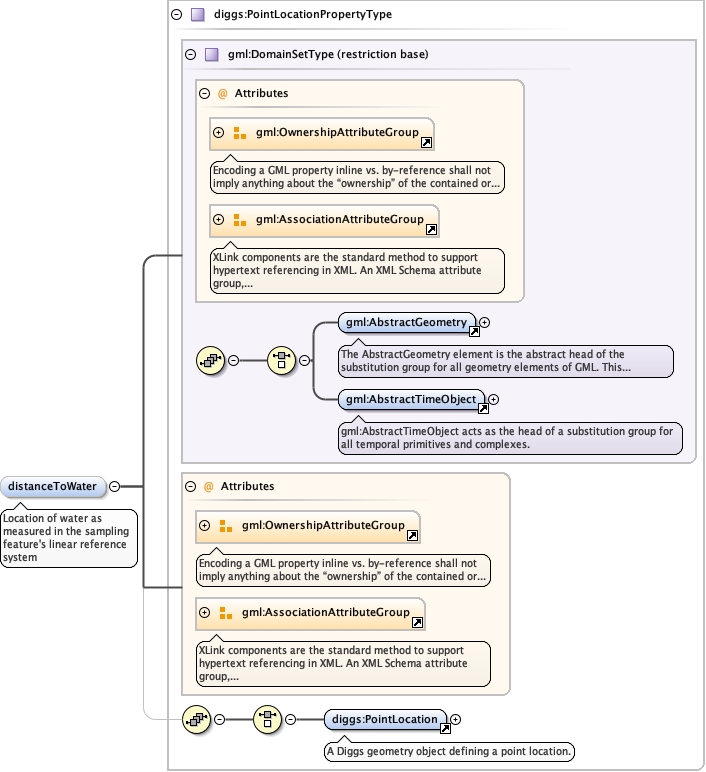

<element name="distanceToWater" type="diggs:PointLocationPropertyType" minOccurs="0" form="qualified"><annotation><documentation>Location of water as measured in the sampling feature's linear reference system</documentation></annotation></element>
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

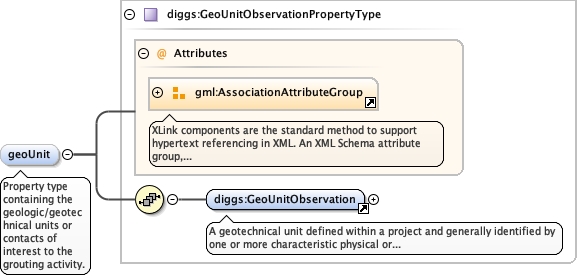

<element minOccurs="0" name="geoUnit" type="diggs:GeoUnitObservationPropertyType" maxOccurs="unbounded"><annotation><documentation>Property type containing the geologic/geotechnical units or contacts of interest to the grouting activity.</documentation></annotation></element>
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

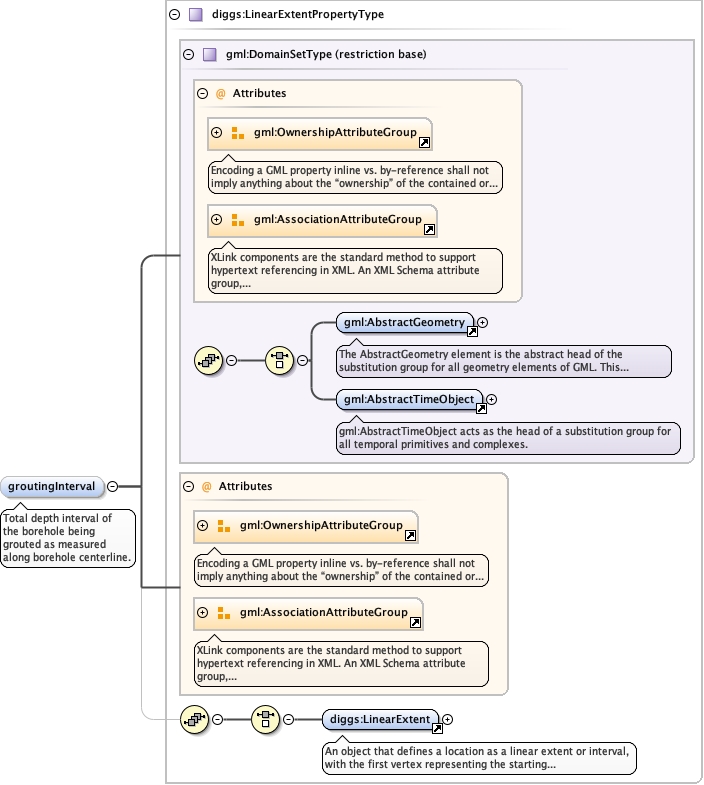

<element minOccurs="0" name="groutingInterval" type="diggs:LinearExtentPropertyType"><annotation><documentation>Total depth interval of the borehole being grouted as measured along borehole centerline.</documentation></annotation></element>
The 'actuate' attribute is used to communicate the desired timing of traversal from the starting resource to the ending resource; it's value should be treated as follows:onLoad - traverse to the ending resource immediately on loading the starting resource onRequest - traverse from the starting resource to the ending resource only on a post-loading event triggered for this purpose other - behavior is unconstrained; examine other markup in link for hints none - behavior is unconstrained
The 'show' attribute is used to communicate the desired presentation of the ending resource on traversal from the starting resource; it's value should be treated as follows: new - load ending resource in a new window, frame, pane, or other presentation contextreplace - load the resource in the same window, frame, pane, or other presentation contextembed - load ending resource in place of the presentation of the starting resourceother - behavior is unconstrained; examine other markup in the link for hints none - behavior is unconstrained

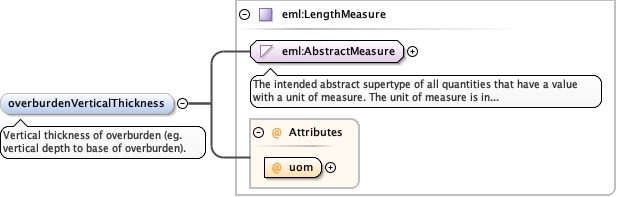

<element minOccurs="0" name="overburdenVerticalThickness" type="eml:LengthMeasure"><annotation><documentation>Vertical thickness of overburden (eg. vertical depth to base of overburden).</documentation></annotation></element>

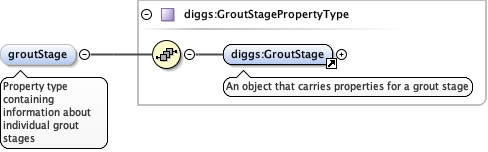

<element minOccurs="0" name="groutStage" type="diggs:GroutStagePropertyType" maxOccurs="unbounded"><annotation><documentation>Property type containing information about individual grout stages</documentation></annotation></element>
<element minOccurs="0" name="continuousGrouting" type="diggs:ContinuousGroutingPropertyType" maxOccurs="1"><annotation><documentation>Property type containing information about continuous grouting as part of a jet grouting or deep soil mixing activity</documentation></annotation></element>

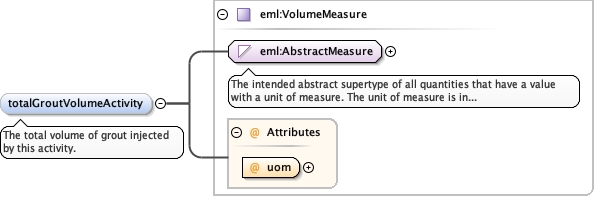

<element minOccurs="0" name="totalGroutVolumeActivity" type="eml:VolumeMeasure"><annotation><documentation>The total volume of grout injected by this activity.</documentation></annotation></element>

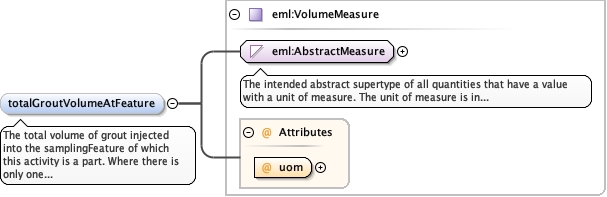

The total volume of grout injected into thesamplingFeature of which this activity is a part. Where there isonly one activity in a samplingFeature. this value will equaltotalGroutVolumeActivity.
<element minOccurs="0" name="totalGroutVolumeAtFeature" type="eml:VolumeMeasure"><annotation><documentation>The total volume of grout injected into the samplingFeature of which this activity is a part. Where there is only one activity in a samplingFeature. this value will equal totalGroutVolumeActivity.</documentation></annotation></element>

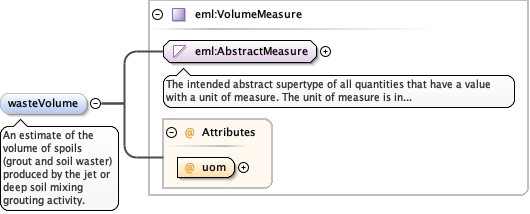

<element minOccurs="0" name="wasteVolume" type="eml:VolumeMeasure"><annotation><documentation>An estimate of the volume of spoils (grout and soil waster) produced by the jet or deep soil mixing grouting activity.</documentation></annotation></element>
Database handle for the object. It is of XML type ID, so is constrained to beunique in the XML document within which it occurs. An external identifier for the object inthe form of a URI may be constructed using standard XML and XPointer methods. This is doneby concatenating the URI for the document, a fragment separator, and the value of the idattribute.
<div><h3>lang (as an attribute name)</h3><p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p></div><div><h4>Notes</h4><p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p><p>See BCP 47 at<a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at<a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p><p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p></div>
Source

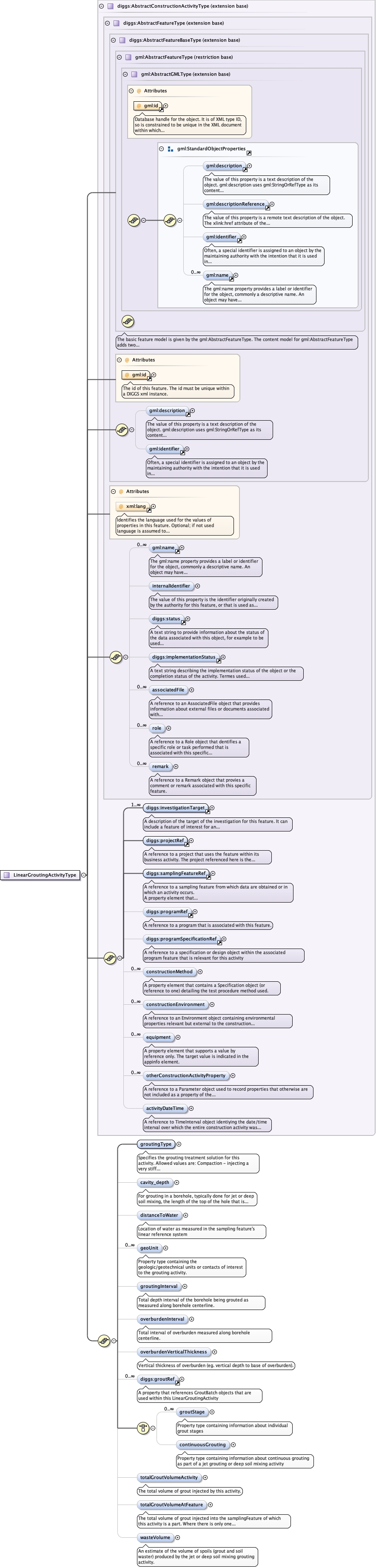

<complexType name="LinearGroutingActivityType"><complexContent><extension base="diggs:AbstractConstructionActivityType"><sequence><element minOccurs="1" name="groutingType" type="diggs:GroutingTypesEnumType"><annotation><documentation>Specifies the grouting treatment solution for this activity. Allowed values are: Compaction - injecting a very stiff homogeneous grout mix under relatively high-pressures and at low injection rates to subsurface locations in pre-designed patterns in order to displace and compact soils. Compensation - also know as fracture grouting, is the injection of a cement slurry grout, hydrofracturing soil, creating lenses. The lenses compact surrounding soil and then lift the overlying soil and structures. Jet - consists of breaking up the soil with a high-pressure jet in a predrilled borehole and mixing the loosened soil with a cement grout alone or mixed with air and/or water. Permeation - Introduction of cement or chemical-based grout into soil pores without an essential change in the original soil volume and structure, changing the support capability of granular soils without disturbing them Rock - the injection of specially formulated cement-based mixes into the ground to improve its strength or reduce permeability.</documentation></annotation></element><element minOccurs="0" name="cavity_depth" type="eml:LengthMeasure"><annotation><documentation>For grouting in a borehole, typically done for jet or deep soil mixing, the length of the top of the hole that is pre-drilled out completely to form a cavity to contain the additional volume of soil and grout generated by the activity. For a grout trench cutoff wall, this value is the depth of excavation of the trench made from the surface to contain the additional volume of soil and grout generated by the activity.</documentation></annotation></element><element name="distanceToWater" type="diggs:PointLocationPropertyType" minOccurs="0" form="qualified"><annotation><documentation>Location of water as measured in the sampling feature's linear reference system</documentation></annotation></element><element minOccurs="0" name="geoUnit" type="diggs:GeoUnitObservationPropertyType" maxOccurs="unbounded"><annotation><documentation>Property type containing the geologic/geotechnical units or contacts of interest to the grouting activity.</documentation></annotation></element><element minOccurs="0" name="groutingInterval" type="diggs:LinearExtentPropertyType"><annotation><documentation>Total depth interval of the borehole being grouted as measured along borehole centerline.</documentation></annotation></element><element minOccurs="0" name="overburdenInterval" type="diggs:LinearExtentPropertyType"><annotation><documentation>Total interval of overburden measured along borehole centerline.</documentation></annotation></element><element minOccurs="0" name="overburdenVerticalThickness" type="eml:LengthMeasure"><annotation><documentation>Vertical thickness of overburden (eg. vertical depth to base of overburden).</documentation></annotation></element><element minOccurs="0" maxOccurs="unbounded" ref="diggs:groutRef"><annotation><appinfo>diggs:GroutBatch</appinfo><documentation>A property that references GroutBatch objects that are used within this LinearGroutingActivity</documentation></annotation></element><choice><element minOccurs="0" name="groutStage" type="diggs:GroutStagePropertyType" maxOccurs="unbounded"><annotation><documentation>Property type containing information about individual grout stages</documentation></annotation></element><element minOccurs="0" name="continuousGrouting" type="diggs:ContinuousGroutingPropertyType" maxOccurs="1"><annotation><documentation>Property type containing information about continuous grouting as part of a jet grouting or deep soil mixing activity</documentation></annotation></element></choice><element minOccurs="0" name="totalGroutVolumeActivity" type="eml:VolumeMeasure"><annotation><documentation>The total volume of grout injected by this activity.</documentation></annotation></element><element minOccurs="0" name="totalGroutVolumeAtFeature" type="eml:VolumeMeasure"><annotation><documentation>The total volume of grout injected into the samplingFeature of which this activity is a part. Where there is only one activity in a samplingFeature. this value will equal totalGroutVolumeActivity.</documentation></annotation></element><element minOccurs="0" name="wasteVolume" type="eml:VolumeMeasure"><annotation><documentation>An estimate of the volume of spoils (grout and soil waster) produced by the jet or deep soil mixing grouting activity.</documentation></annotation></element></sequence></extension></complexContent></complexType>
