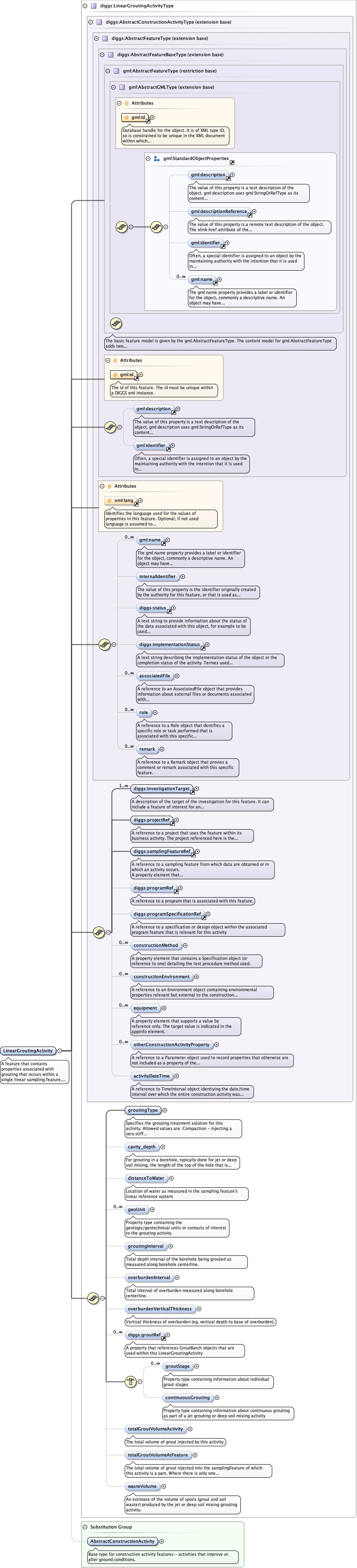

Schema documentation for component diggs:LinearGroutingActivity

A feature that contains properties associated with grouting that occurs within a single linear sampling feature, typically a borehole or sounding. A grouting activity feature can accommodate all grouting within a sampling feature, where the grouting setup is the same for all grout stages. Otherwise, multiple grouting actvities can be assigned to a sampling feature to accommodate variations in grout setup, equipment, mix types, or where there is significant time between various grouting activities.

<diggs:LinearGroutingActivity gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{1,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:projectRef>
  <diggs:samplingFeatureRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:samplingFeatureRef>
  <diggs:programRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programRef>
  <diggs:programSpecificationRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programSpecificationRef>
  <diggs:constructionMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:constructionMethod>
  <diggs:constructionEnvironment>{0,unbounded}</diggs:constructionEnvironment>
  <diggs:equipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:equipment>
  <diggs:otherConstructionActivityProperty>{0,unbounded}</diggs:otherConstructionActivityProperty>
  <diggs:activityDateTime>{0,1}</diggs:activityDateTime>
  <diggs:groutingType>{1,1}</diggs:groutingType>
  <diggs:cavity_depth uom="">{0,1}</diggs:cavity_depth>
  <diggs:distanceToWater xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:distanceToWater>
  <diggs:geoUnit xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:geoUnit>
  <diggs:groutingInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:groutingInterval>
  <diggs:overburdenInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:overburdenInterval>
  <diggs:overburdenVerticalThickness uom="">{0,1}</diggs:overburdenVerticalThickness>
  <diggs:groutRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:groutRef>
  <diggs:groutStage>{0,unbounded}</diggs:groutStage>
  <diggs:continuousGrouting>{0,1}</diggs:continuousGrouting>
  <diggs:totalGroutVolumeActivity uom="">{0,1}</diggs:totalGroutVolumeActivity>
  <diggs:totalGroutVolumeAtFeature uom="">{0,1}</diggs:totalGroutVolumeAtFeature>
  <diggs:wasteVolume uom="">{0,1}</diggs:wasteVolume>
</diggs:LinearGroutingActivity>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element name="LinearGroutingActivity" substitutionGroup="diggs:AbstractConstructionActivity" type="diggs:LinearGroutingActivityType"> <annotation> <documentation>A feature that contains properties associated with grouting that occurs within a single linear sampling feature, typically a borehole or sounding. A grouting activity feature can accommodate all grouting within a sampling feature, where the grouting setup is the same for all grout stages. Otherwise, multiple grouting actvities can be assigned to a sampling feature to accommodate variations in grout setup, equipment, mix types, or where there is significant time between various grouting activities.</documentation> </annotation> </element>
