Element diggs:FallConeTrialType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="trialNo" type="positiveInteger"/>

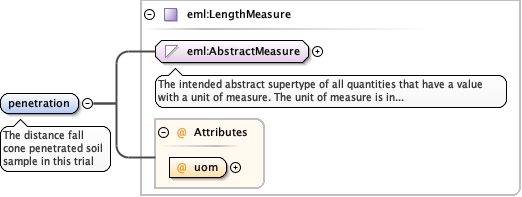

Element diggs:FallConeTrialType / diggs:penetration
Namespace http://diggsml.org/schema-dev
Annotations

The distance fall cone penetrated soil sample in this
trial
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="1" name="penetration" type="eml:LengthMeasure">
  <annotation>
    <documentation>The distance fall cone penetrated soil sample in this trial</documentation>
  </annotation>
</element>

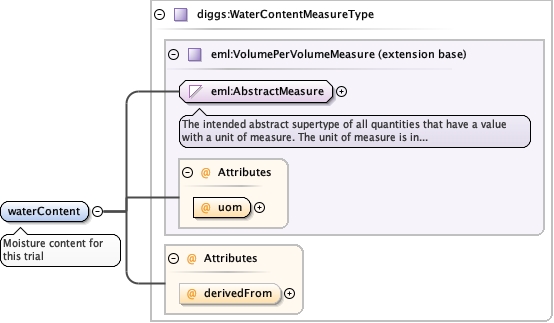

Element diggs:FallConeTrialType / diggs:waterContent
Namespace http://diggsml.org/schema-dev
Annotations

Moisture content for this trial
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasureKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType_derivedFromKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType
Type diggs:WaterContentMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
derivedFrom diggs:WaterContentMethodType optional
uom eml:VolumePerVolumeUom required
Source

<element name="waterContent" type="diggs:WaterContentMeasureType">
  <annotation>
    <documentation>Moisture content for this trial</documentation>
  </annotation>
</element>

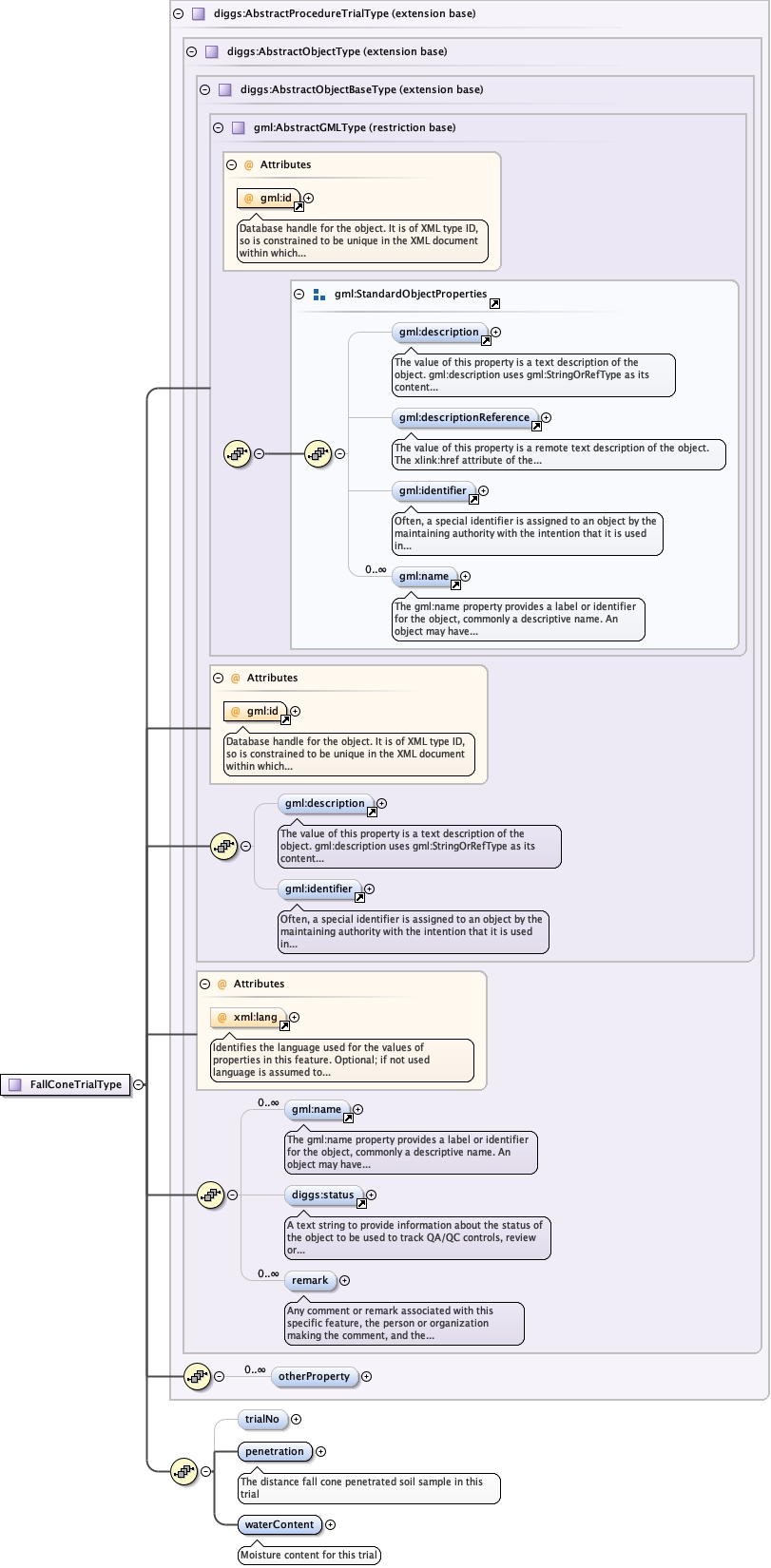

Complex Type diggs:FallConeTrialType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyKernel_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeTestProcedures_xsd_Complex_Type_diggs_FallConeTrialType.tmp#http___diggsml.org_schema-dev_FallConeTrialType_trialNoTestProcedures_xsd_Complex_Type_diggs_FallConeTrialType.tmp#http___diggsml.org_schema-dev_FallConeTrialType_penetrationTestProcedures_xsd_Complex_Type_diggs_FallConeTrialType.tmp#http___diggsml.org_schema-dev_FallConeTrialType_waterContent
Type extension of diggs:AbstractProcedureTrialType
Type hierarchy
Used by
Element diggs:FallConeTrial
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:trialNo{0,1} , diggs:penetration , diggs:waterContent
Children diggs:otherProperty, diggs:penetration, diggs:remark, diggs:status, diggs:trialNo, diggs:waterContent, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="FallConeTrialType">
  <complexContent>
    <extension base="diggs:AbstractProcedureTrialType">
      <sequence>
        <element minOccurs="0" name="trialNo" type="positiveInteger"/>
        <element minOccurs="1" name="penetration" type="eml:LengthMeasure">
          <annotation>
            <documentation>The distance fall cone penetrated soil sample in this trial</documentation>
          </annotation>
        </element>
        <element name="waterContent" type="diggs:WaterContentMeasureType">
          <annotation>
            <documentation>Moisture content for this trial</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
