Showing:

Annotations
Attributes
Diagrams
Facets
Instances
Model
Properties
Source
Used by

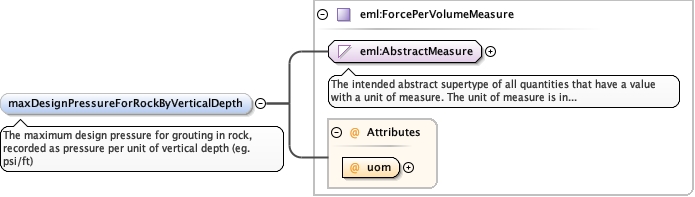

Element diggs:GroutConstructionSpecificationType / diggs:maxDesignPressureForRockByVerticalDepth
Namespace http://diggsml.org/schema-dev
Annotations

The maximum design pressure for grouting in rock,
recorded as pressure per unit of vertical depth (eg. psi/ft)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerVolumeMeasure.tmp#ForcePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerVolumeMeasure.tmp#ForcePerVolumeMeasure
Type eml:ForcePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerVolumeUom required
Source

<element name="maxDesignPressureForRockByVerticalDepth" type="eml:ForcePerVolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>The maximum design pressure for grouting in rock, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:maxDesignPressureForSoilByVerticalDepth
Namespace http://diggsml.org/schema-dev
Annotations

The maximum design pressure for grouting in soil,
recorded as pressure per unit of vertical depth (eg. psi/ft)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerVolumeMeasure.tmp#ForcePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerVolumeMeasure.tmp#ForcePerVolumeMeasure
Type eml:ForcePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerVolumeUom required
Source

<element name="maxDesignPressureForSoilByVerticalDepth" type="eml:ForcePerVolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>The maximum design pressure for grouting in soil, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:depthDependentGroutConstructionCriteria
Namespace http://diggsml.org/schema-dev
Diagram
DiagramConstruction_xsd_Element_diggs_DepthDependentGroutConstructionCriteria.tmp#DepthDependentGroutConstructionCriteriaConstruction_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaPropertyType.tmp#DepthDependentGroutConstructionCriteriaPropertyType
Type diggs:DepthDependentGroutConstructionCriteriaPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:DepthDependentGroutConstructionCriteria
Instance

<diggs:depthDependentGroutConstructionCriteria xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DepthDependentGroutConstructionCriteria owns="false">{1,1}</diggs:DepthDependentGroutConstructionCriteria>
</diggs:depthDependentGroutConstructionCriteria>
Source

<element maxOccurs="unbounded" minOccurs="0" name="depthDependentGroutConstructionCriteria" type="diggs:DepthDependentGroutConstructionCriteriaPropertyType"/>

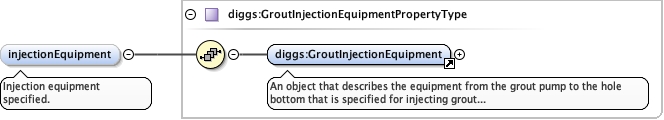

Element diggs:GroutConstructionSpecificationType / diggs:injectionEquipment
Namespace http://diggsml.org/schema-dev
Annotations

Injection equipment specified.
Diagram
DiagramConstruction_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentConstruction_xsd_Complex_Type_diggs_GroutInjectionEquipmentPropertyType.tmp#GroutInjectionEquipmentPropertyType
Type diggs:GroutInjectionEquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutInjectionEquipment
Instance

<diggs:injectionEquipment xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutInjectionEquipment gml:id="" xml:lang="">{1,1}</diggs:GroutInjectionEquipment>
</diggs:injectionEquipment>
Source

<element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
  <annotation>
    <documentation>Injection equipment specified.</documentation>
  </annotation>
</element>

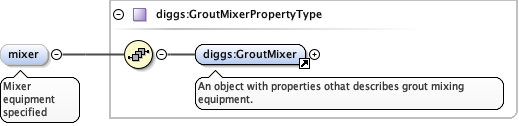

Element diggs:GroutConstructionSpecificationType / diggs:mixer
Namespace http://diggsml.org/schema-dev
Annotations

Mixer equipment specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutMixer.tmp#GroutMixerConstruction_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutMixer gml:id="" xml:lang="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Source

<element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
  <annotation>
    <documentation>Mixer equipment specified</documentation>
  </annotation>
</element>

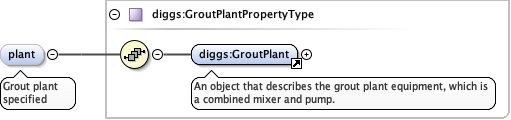

Element diggs:GroutConstructionSpecificationType / diggs:plant
Namespace http://diggsml.org/schema-dev
Annotations

Grout plant specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPlant.tmp#GroutPlantConstruction_xsd_Complex_Type_diggs_GroutPlantPropertyType.tmp#GroutPlantPropertyType
Type diggs:GroutPlantPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPlant
Instance

<diggs:plant xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutPlant gml:id="" xml:lang="">{1,1}</diggs:GroutPlant>
</diggs:plant>
Source

<element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
  <annotation>
    <documentation>Grout plant specified</documentation>
  </annotation>
</element>

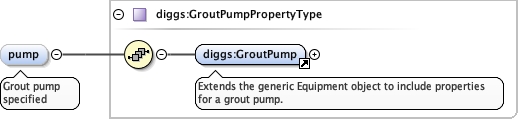

Element diggs:GroutConstructionSpecificationType / diggs:pump
Namespace http://diggsml.org/schema-dev
Annotations

Grout pump specified
Diagram
DiagramConstruction_xsd_Element_diggs_GroutPump.tmp#GroutPumpConstruction_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:GroutPump gml:id="" xml:lang="">{1,1}</diggs:GroutPump>
</diggs:pump>
Source

<element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
  <annotation>
    <documentation>Grout pump specified</documentation>
  </annotation>
</element>

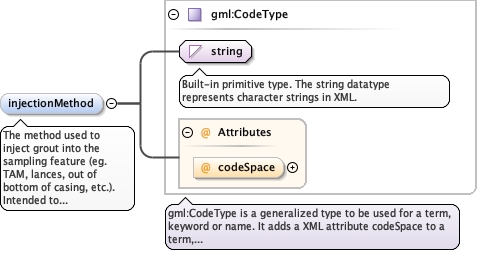

Element diggs:GroutConstructionSpecificationType / diggs:injectionMethod
Namespace http://diggsml.org/schema-dev
Annotations

The method used to inject grout into the sampling
feature (eg. TAM, lances, out of bottom of casing, etc.).
Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
  <annotation>
    <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

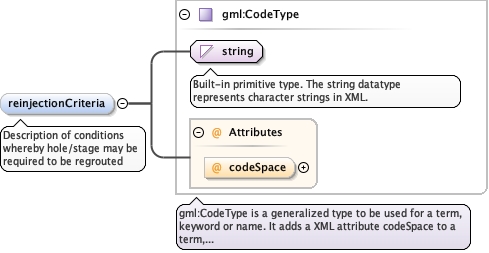

Element diggs:GroutConstructionSpecificationType / diggs:reinjectionCriteria
Namespace http://diggsml.org/schema-dev
Annotations

Description of conditions whereby hole/stage may
be required to be regrouted
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
  <annotation>
    <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:digitalRecordingRequired
Namespace http://diggsml.org/schema-dev
Annotations

Set to true here, grouting parameters are
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
  </annotation>
</element>

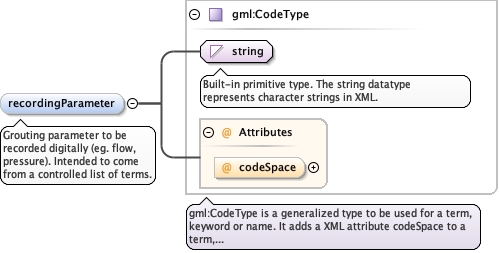

Element diggs:GroutConstructionSpecificationType / diggs:recordingParameter
Namespace http://diggsml.org/schema-dev
Annotations

Grouting parameter to be recorded
digitally (eg. flow, pressure). Intended to come
from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
  <annotation>
    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:digitalRecordingNotRequired
Namespace http://diggsml.org/schema-dev
Annotations

Set to true here, grouting parameters are
NOT required to be recorded
digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
  </annotation>
</element>

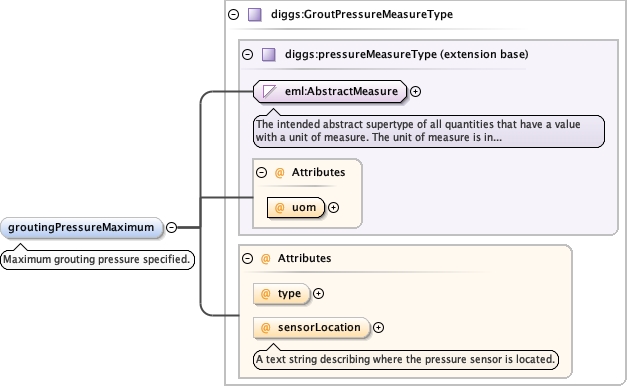

Element diggs:GroutConstructionSpecificationType / diggs:groutingPressureMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum grouting pressure
specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Maximum grouting pressure specified.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:groutingPressureMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum grouting pressure
specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Minimum grouting pressure specified.</documentation>
  </annotation>
</element>

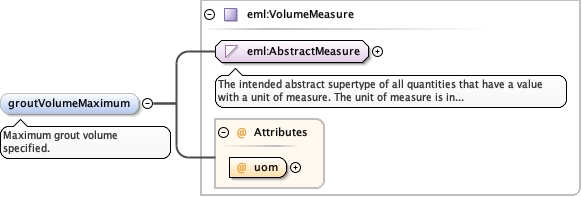

Element diggs:GroutConstructionSpecificationType / diggs:groutVolumeMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum grout volume specified.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Maximum grout volume specified.</documentation>
  </annotation>
</element>

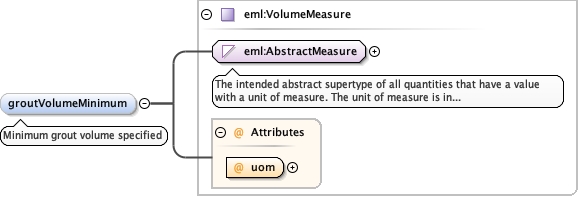

Element diggs:GroutConstructionSpecificationType / diggs:groutVolumeMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum grout volume specified
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Minimum grout volume specified</documentation>
  </annotation>
</element>

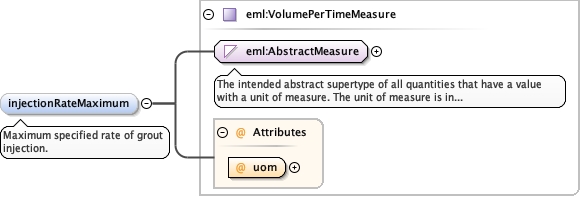

Element diggs:GroutConstructionSpecificationType / diggs:injectionRateMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum specified rate of grout
injection.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="injectionRateMaximum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Maximum specified rate of grout injection.</documentation>
  </annotation>
</element>

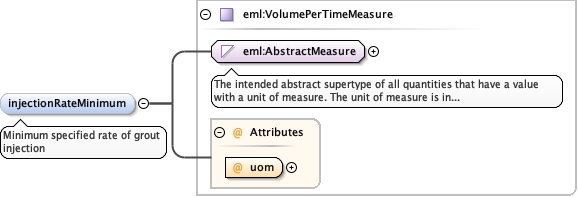

Element diggs:GroutConstructionSpecificationType / diggs:injectionRateMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum specified rate of grout
injection
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Minimum specified rate of grout injection</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:pressureControlLogic
Namespace http://diggsml.org/schema-dev
Annotations

Property defining how grout injection is to be
controlled, either by constant flow or constant pressure.
From an enumerated list.
Diagram
DiagramConstruction_xsd_Simple_Type_diggs_pressureControlLogicEnumType.tmp#pressureControlLogicEnumType
Type diggs:pressureControlLogicEnumType
Properties
content simple
minOccurs 0
Facets
enumeration constant flow
enumeration constant pressure
Source

<element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
  <annotation>
    <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
  </annotation>
</element>

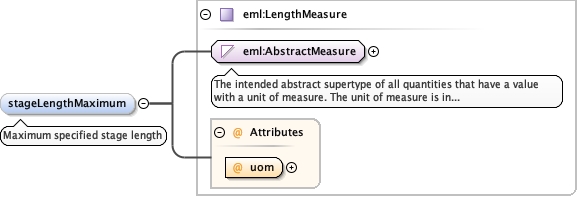

Element diggs:GroutConstructionSpecificationType / diggs:stageLengthMaximum
Namespace http://diggsml.org/schema-dev
Annotations

Maximum specified stage length
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Maximum specified stage length</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:stageLengthMinimum
Namespace http://diggsml.org/schema-dev
Annotations

Minimum specified stage length
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
  <annotation>
    <documentation>Minimum specified stage length</documentation>
  </annotation>
</element>

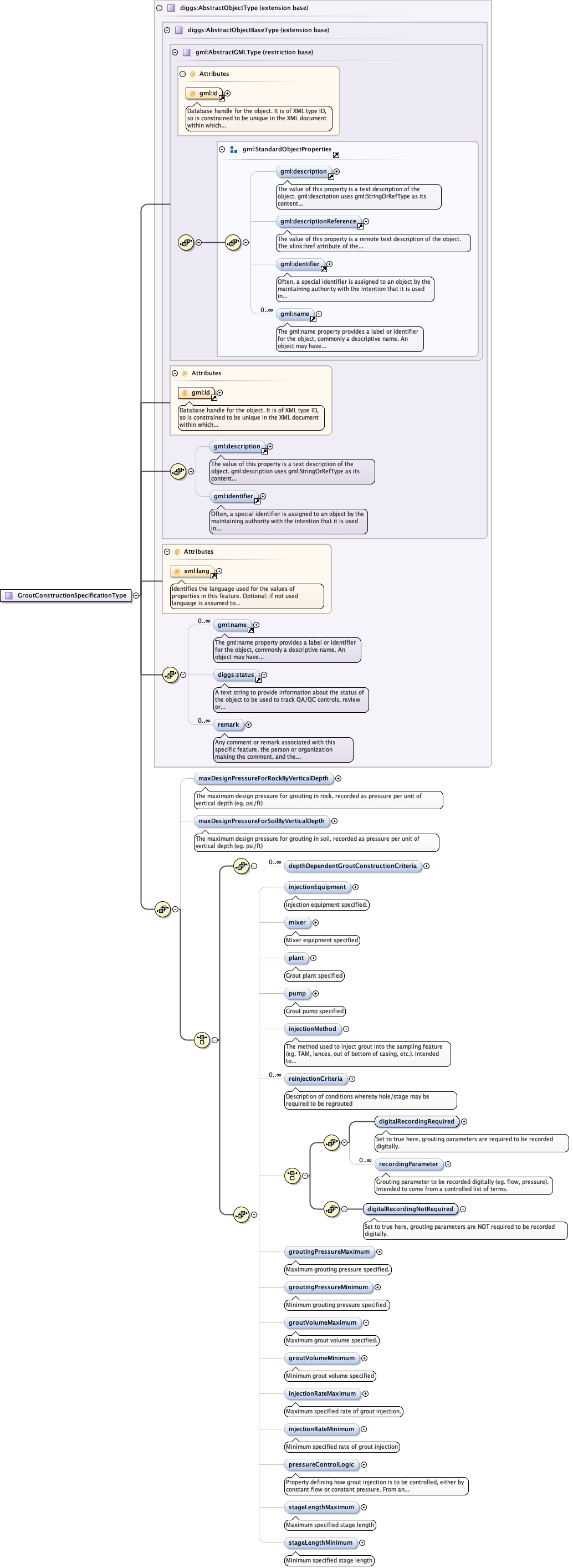

Complex Type diggs:GroutConstructionSpecificationType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_maxDesignPressureForRockByVerticalDepthConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_maxDesignPressureForSoilByVerticalDepthConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_depthDependentGroutConstructionCriteriaConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionEquipmentConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_mixerConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_plantConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_pumpConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionMethodConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_reinjectionCriteriaConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_digitalRecordingRequiredConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_recordingParameterConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_digitalRecordingNotRequiredConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutingPressureMaximumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutingPressureMinimumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutVolumeMaximumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutVolumeMinimumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionRateMaximumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionRateMinimumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_pressureControlLogicConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_stageLengthMaximumConstruction_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_stageLengthMinimum
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:depthDependentGroutConstructionCriteria, diggs:digitalRecordingNotRequired, diggs:digitalRecordingRequired, diggs:groutVolumeMaximum, diggs:groutVolumeMinimum, diggs:groutingPressureMaximum, diggs:groutingPressureMinimum, diggs:injectionEquipment, diggs:injectionMethod, diggs:injectionRateMaximum, diggs:injectionRateMinimum, diggs:maxDesignPressureForRockByVerticalDepth, diggs:maxDesignPressureForSoilByVerticalDepth, diggs:mixer, diggs:plant, diggs:pressureControlLogic, diggs:pump, diggs:recordingParameter, diggs:reinjectionCriteria, diggs:remark, diggs:stageLengthMaximum, diggs:stageLengthMinimum, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GroutConstructionSpecificationType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="maxDesignPressureForRockByVerticalDepth" type="eml:ForcePerVolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>The maximum design pressure for grouting in rock, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
          </annotation>
        </element>
        <element name="maxDesignPressureForSoilByVerticalDepth" type="eml:ForcePerVolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>The maximum design pressure for grouting in soil, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
          </annotation>
        </element>
        <choice>
          <sequence>
            <element maxOccurs="unbounded" minOccurs="0" name="depthDependentGroutConstructionCriteria" type="diggs:DepthDependentGroutConstructionCriteriaPropertyType"/>
          </sequence>
          <sequence>
            <element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
              <annotation>
                <documentation>Injection equipment specified.</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
              <annotation>
                <documentation>Mixer equipment specified</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
              <annotation>
                <documentation>Grout plant specified</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
              <annotation>
                <documentation>Grout pump specified</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
              <annotation>
                <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
              <annotation>
                <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
              </annotation>
            </element>
            <choice minOccurs="0">
              <sequence>
                <element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
                  <annotation>
                    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
                  </annotation>
                </element>
                <element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
                  <annotation>
                    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
                  </annotation>
                </element>
              </sequence>
              <sequence>
                <element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
                  <annotation>
                    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
                  </annotation>
                </element>
              </sequence>
            </choice>
            <element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
              <annotation>
                <documentation>Maximum grouting pressure specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
              <annotation>
                <documentation>Minimum grouting pressure specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutVolumeMaximum" type="eml:VolumeMeasure">
              <annotation>
                <documentation>Maximum grout volume specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutVolumeMinimum" type="eml:VolumeMeasure">
              <annotation>
                <documentation>Minimum grout volume specified</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionRateMaximum" type="eml:VolumePerTimeMeasure">
              <annotation>
                <documentation>Maximum specified rate of grout injection.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionRateMinimum" type="eml:VolumePerTimeMeasure">
              <annotation>
                <documentation>Minimum specified rate of grout injection</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
              <annotation>
                <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="stageLengthMaximum" type="eml:LengthMeasure">
              <annotation>
                <documentation>Maximum specified stage length</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="stageLengthMinimum" type="eml:LengthMeasure">
              <annotation>
                <documentation>Minimum specified stage length</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
