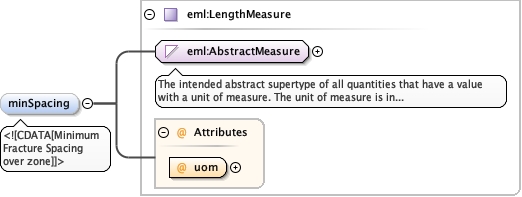

Element diggs:FractureSpacingType / diggs:minSpacing
Namespace http://diggsml.org/schema-dev
Annotations

Minimum Fracture Spacing over zone
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="minSpacing" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Minimum Fracture Spacing over zone]]>
    </documentation>
  </annotation>
</element>

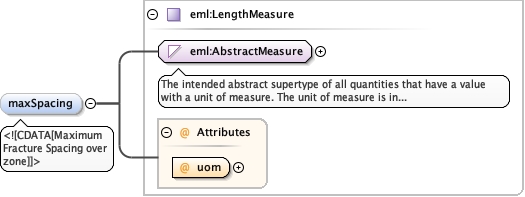

Element diggs:FractureSpacingType / diggs:maxSpacing
Namespace http://diggsml.org/schema-dev
Annotations

Maximum Fracture Spacing over zone
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="maxSpacing" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Maximum Fracture Spacing over zone]]>
    </documentation>
  </annotation>
</element>

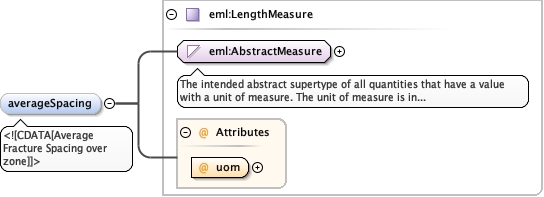

Element diggs:FractureSpacingType / diggs:averageSpacing
Namespace http://diggsml.org/schema-dev
Annotations

Average Fracture Spacing over zone
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="averageSpacing" type="eml:LengthMeasure">
  <annotation>
    <documentation>
      <![CDATA[Average Fracture Spacing over zone]]>
    </documentation>
  </annotation>
</element>
Element diggs:FractureSpacingType / diggs:fractureCount
Namespace http://diggsml.org/schema-dev
Annotations

The number of fractures identified within the extent of the DiscontinuityObservation.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="fractureCount" type="positiveInteger">
  <annotation>
    <documentation>The number of fractures identified within the extent of the DiscontinuityObservation.</documentation>
  </annotation>
</element>

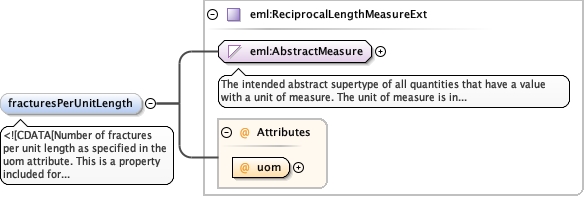

Element diggs:FractureSpacingType / diggs:fracturesPerUnitLength
Namespace http://diggsml.org/schema-dev
Annotations

Number of fractures per unit length as specified in the uom attribute. This is a property included for compatibility with an AGS field but should generally not be otherwise used, as it is borehole specific and can be calculated from fractureCount and the length of the LinearExtent reported for the DiscontinuityObservation
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ReciprocalLengthMeasureExt.tmp#ReciprocalLengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ReciprocalLengthMeasureExt.tmp#ReciprocalLengthMeasureExt
Type eml:ReciprocalLengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ReciprocalLengthUomExt required
Source

<element minOccurs="0" name="fracturesPerUnitLength" type="eml:ReciprocalLengthMeasureExt">
  <annotation>
    <documentation>
      <![CDATA[Number of fractures per unit length as specified in the uom attribute. This is a property included for compatibility with an AGS field but should generally not be otherwise used, as it is borehole specific and can be calculated from fractureCount and the length of the LinearExtent reported for the DiscontinuityObservation]]>
    </documentation>
  </annotation>
</element>

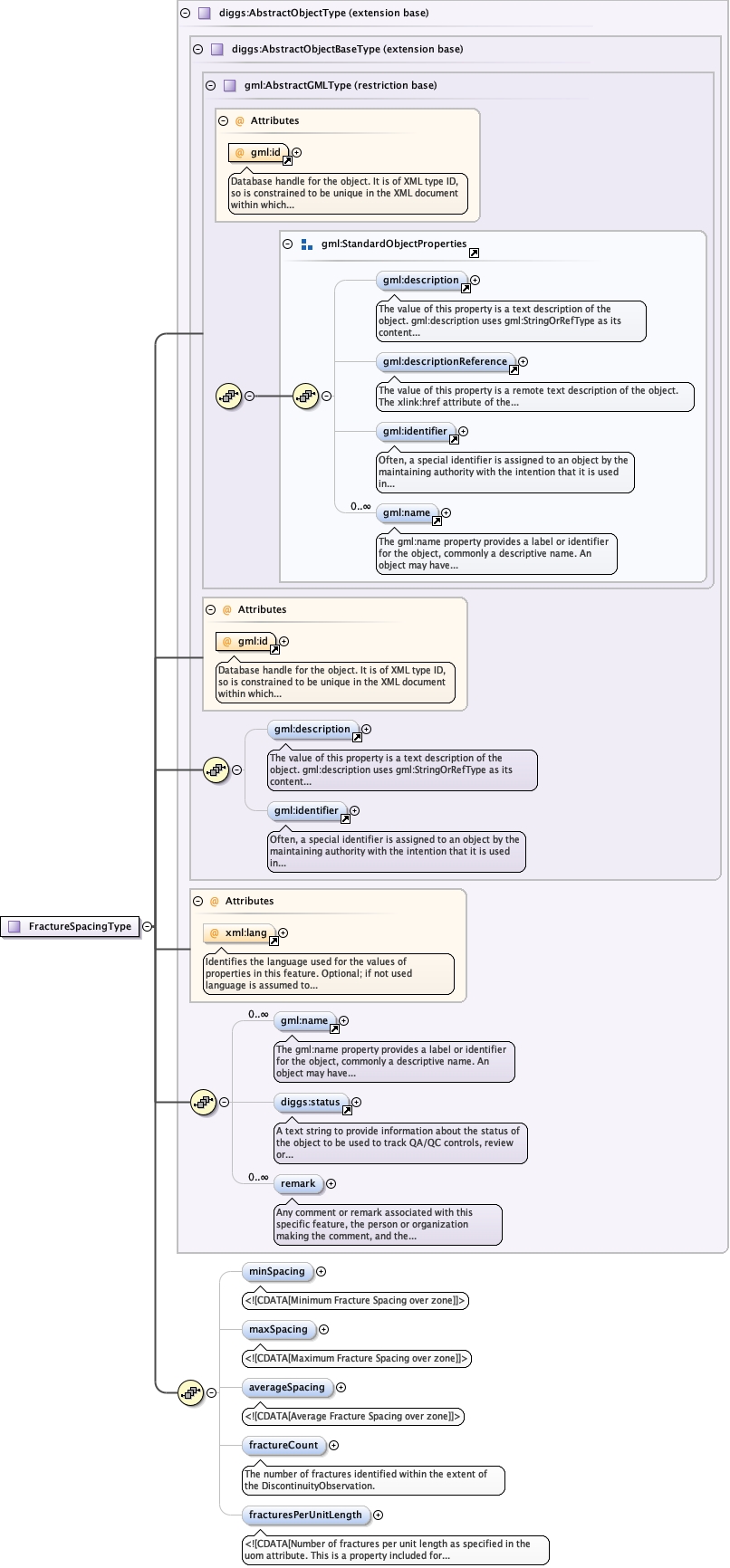

Complex Type diggs:FractureSpacingType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_FractureSpacingType.tmp#FractureSpacingType_minSpacingKernel_xsd_Complex_Type_diggs_FractureSpacingType.tmp#FractureSpacingType_maxSpacingKernel_xsd_Complex_Type_diggs_FractureSpacingType.tmp#FractureSpacingType_averageSpacingKernel_xsd_Complex_Type_diggs_FractureSpacingType.tmp#FractureSpacingType_fractureCountKernel_xsd_Complex_Type_diggs_FractureSpacingType.tmp#FractureSpacingType_fracturesPerUnitLength
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:averageSpacing, diggs:fractureCount, diggs:fracturesPerUnitLength, diggs:maxSpacing, diggs:minSpacing, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="FractureSpacingType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence minOccurs="1">
        <element minOccurs="0" name="minSpacing" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Minimum Fracture Spacing over zone]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxSpacing" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Maximum Fracture Spacing over zone]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="averageSpacing" type="eml:LengthMeasure">
          <annotation>
            <documentation>
              <![CDATA[Average Fracture Spacing over zone]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fractureCount" type="positiveInteger">
          <annotation>
            <documentation>The number of fractures identified within the extent of the DiscontinuityObservation.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fracturesPerUnitLength" type="eml:ReciprocalLengthMeasureExt">
          <annotation>
            <documentation>
              <![CDATA[Number of fractures per unit length as specified in the uom attribute. This is a property included for compatibility with an AGS field but should generally not be otherwise used, as it is borehole specific and can be calculated from fractureCount and the length of the LinearExtent reported for the DiscontinuityObservation]]>
            </documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
