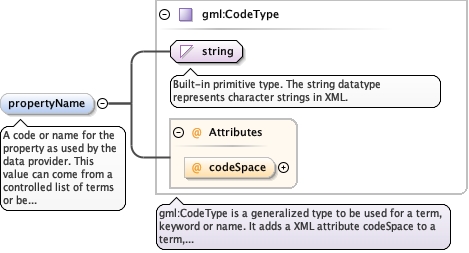

Element diggs:GroutInjectionPropType / diggs:propertyName
Namespace http://diggsml.org/schema-dev
Annotations

A code or name for the property as used by the data
provider. This value can come from a controlled list of terms or be
an uncontrolled text string. The value would be commonly used to
label a column of a log sheet or provide other local meaning to the
property. The value of mnemonic should be unique for all of the
properties included in the dataValue block transmitted as part of
this measurement.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
  <annotation>
    <documentation>A code or name for the property as used by the data provider. This value can come from a controlled list of terms or be an uncontrolled text string. The value would be commonly used to label a column of a log sheet or provide other local meaning to the property. The value of mnemonic should be unique for all of the properties included in the dataValue block transmitted as part of this measurement.</documentation>
  </annotation>
</element>
Element diggs:GroutInjectionPropType / diggs:typeData
Namespace http://diggsml.org/schema-dev
Annotations

The data type for this property (eg. double, long,
string, etc.)
Diagram
DiagramKernel_xsd_Simple_Type_diggs_PropertyDataTypeEnumType.tmp#PropertyDataTypeEnumType
Type diggs:PropertyDataTypeEnumType
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
  <annotation>
    <documentation>The data type for this property (eg. double, long, string, etc.)</documentation>
  </annotation>
</element>

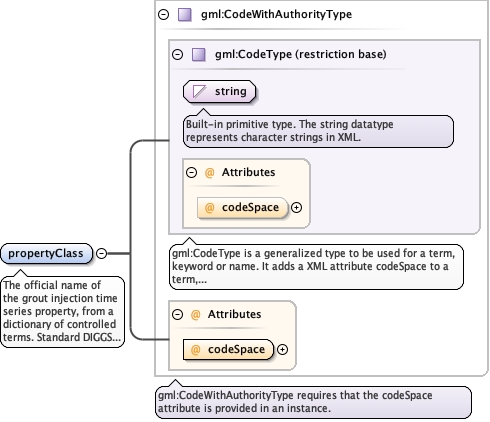

Element diggs:GroutInjectionPropType / diggs:propertyClass
Namespace http://diggsml.org/schema-dev
Annotations

The official name of the grout injection time series
property, from a dictionary of controlled terms. Standard DIGGS
property class values are: - apparent_lugeon_value - column_pressure
- effective_pressure - elapsed_time - grout_flow_rate -
gauge_pressure - grout_specific_gravity - grout_temperature -
injection_pressure - line_loss - mix - packer_pressure -
stroke_count - take
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeTypegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeWithAuthorityType.tmp#CodeWithAuthorityType
Type gml:CodeWithAuthorityType
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI required
Source

<element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
  <annotation>
    <documentation>The official name of the grout injection time series property, from a dictionary of controlled terms. Standard DIGGS property class values are: - apparent_lugeon_value - column_pressure - effective_pressure - elapsed_time - grout_flow_rate - gauge_pressure - grout_specific_gravity - grout_temperature - injection_pressure - line_loss - mix - packer_pressure - stroke_count - take</documentation>
  </annotation>
</element>

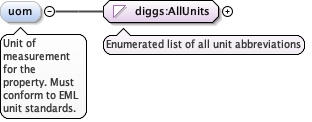

Element diggs:GroutInjectionPropType / diggs:uom
Namespace http://diggsml.org/schema-dev
Annotations

Unit of measurement for the property. Must conform to EML
unit standards.
Diagram
DiagramKernel_xsd_Simple_Type_diggs_AllUnits.tmp#AllUnits
Type diggs:AllUnits
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
  <annotation>
    <documentation>Unit of measurement for the property. Must conform to EML unit standards.</documentation>
  </annotation>
</element>

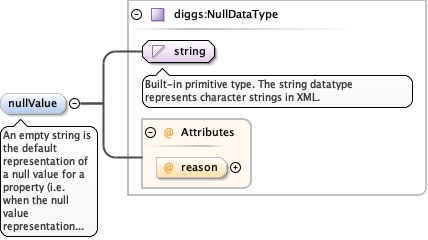

Element diggs:GroutInjectionPropType / diggs:nullValue
Namespace http://diggsml.org/schema-dev
Annotations

An empty string is the default representation of a null
value for a property (i.e. when the null value representation is not
explicitly defined). This value defines a value to be interpreted as
null for this property in the dataValues block. The reason attribute
can be used to define the reason for the null value, (eg. witheld).
This can be customized with an other: qualifier (eg. other:below
detection limit) or reference a URI for a more complete
definition.
Diagram
DiagramKernel_xsd_Complex_Type_diggs_NullDataType.tmp#NullDataType_reasonKernel_xsd_Complex_Type_diggs_NullDataType.tmp#NullDataType
Type diggs:NullDataType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
reason gml:NilReasonType optional
Source

<element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
  <annotation>
    <documentation>An empty string is the default representation of a null value for a property (i.e. when the null value representation is not explicitly defined). This value defines a value to be interpreted as null for this property in the dataValues block. The reason attribute can be used to define the reason for the null value, (eg. witheld). This can be customized with an other: qualifier (eg. other:below detection limit) or reference a URI for a more complete definition.</documentation>
  </annotation>
</element>

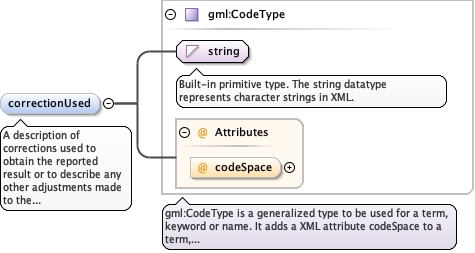

Element diggs:GroutInjectionPropType / diggs:correctionUsed
Namespace http://diggsml.org/schema-dev
Annotations

A description of corrections used to obtain the reported
result or to describe any other adjustments made to the reported
data. Can come from a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="correctionUsed" type="gml:CodeType">
  <annotation>
    <documentation>A description of corrections used to obtain the reported result or to describe any other adjustments made to the reported data. Can come from a controlled list.</documentation>
  </annotation>
</element>

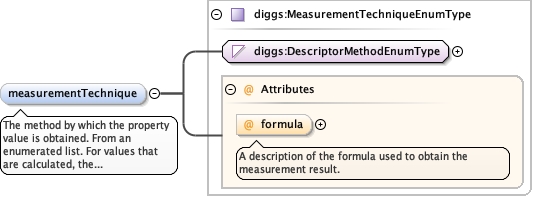

Element diggs:GroutInjectionPropType / diggs:measurementTechnique
Namespace http://diggsml.org/schema-dev
Annotations

The method by which the property value is obtained. From
an enumerated list. For values that are calculated, the formula
attribute allows for a formula to be included, a
description/reference to the formula used to calculate te value, or
details of any moving average. The samplingRate attribute describes
the raw rate of measurement collection from which any moving
averages may be derived.
Diagram
DiagramKernel_xsd_Simple_Type_diggs_DescriptorMethodEnumType.tmp#DescriptorMethodEnumTypeKernel_xsd_Complex_Type_diggs_MeasurementTechniqueEnumType.tmp#MeasurementTechniqueEnumType_formulaKernel_xsd_Complex_Type_diggs_MeasurementTechniqueEnumType.tmp#MeasurementTechniqueEnumType
Type diggs:MeasurementTechniqueEnumType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
formula string optional
A description of the formula used to obtain the measurement
result.
Source

<element minOccurs="0" name="measurementTechnique" type="diggs:MeasurementTechniqueEnumType">
  <annotation>
    <documentation>The method by which the property value is obtained. From an enumerated list. For values that are calculated, the formula attribute allows for a formula to be included, a description/reference to the formula used to calculate te value, or details of any moving average. The samplingRate attribute describes the raw rate of measurement collection from which any moving averages may be derived.</documentation>
  </annotation>
</element>

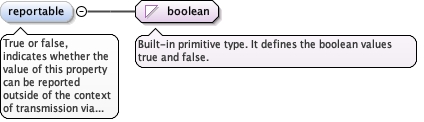

Element diggs:GroutInjectionPropType / diggs:reportable
Namespace http://diggsml.org/schema-dev
Annotations

True or false, indicates whether the value of this
property can be reported outside of the context of transmission via
an xml instance.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
maxOccurs 1
default true
Source

<element default="true" maxOccurs="1" minOccurs="0" name="reportable" type="boolean">
  <annotation>
    <documentation>True or false, indicates whether the value of this property can be reported outside of the context of transmission via an xml instance.</documentation>
  </annotation>
</element>

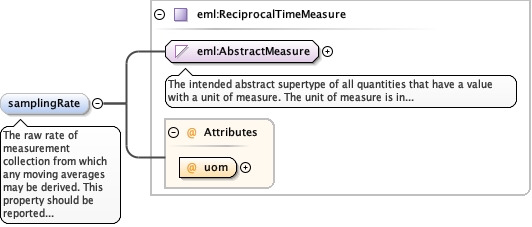

Element diggs:GroutInjectionPropType / diggs:samplingRate
Namespace http://diggsml.org/schema-dev
Annotations

The raw rate of measurement collection from which any
moving averages may be derived. This property should be reported if
the value of the measurementTechnique property is moving
average.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ReciprocalTimeMeasure.tmp#ReciprocalTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_ReciprocalTimeMeasure.tmp#ReciprocalTimeMeasure
Type eml:ReciprocalTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ReciprocalTimeUom required
Source

<element maxOccurs="1" minOccurs="0" name="samplingRate" type="eml:ReciprocalTimeMeasure">
  <annotation>
    <documentation>The raw rate of measurement collection from which any moving averages may be derived. This property should be reported if the value of the measurementTechnique property is moving average.</documentation>
  </annotation>
</element>

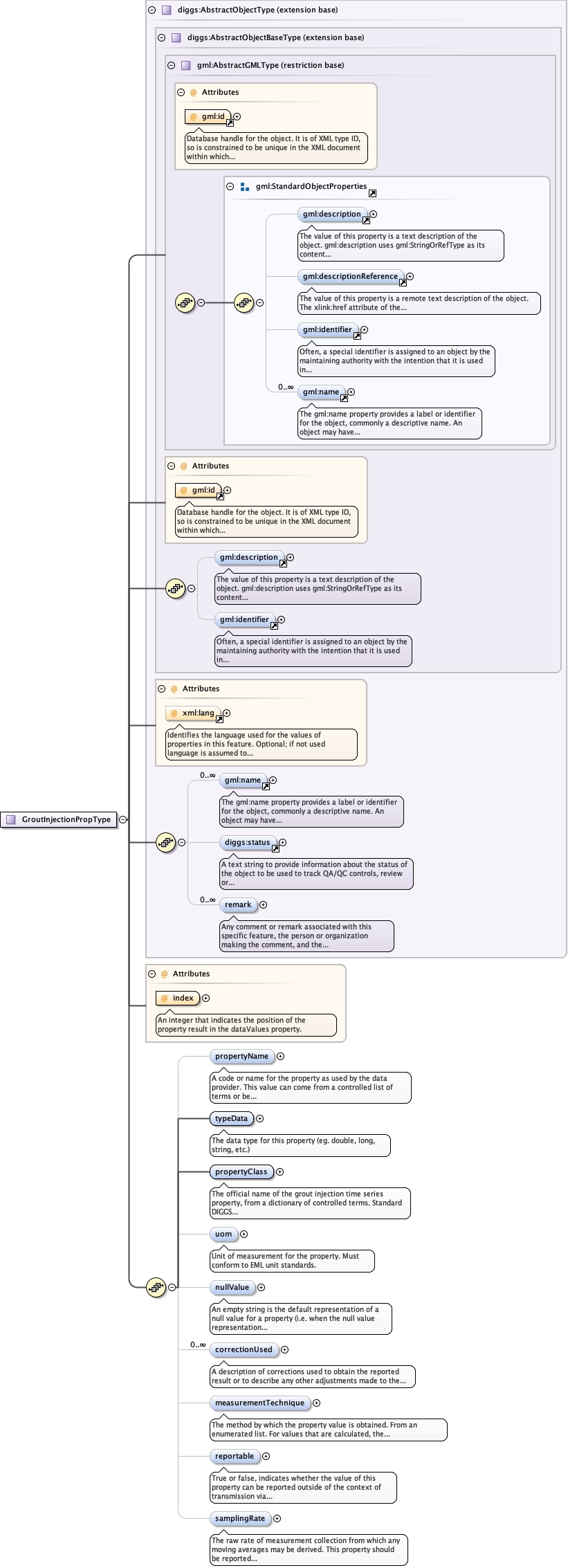

Complex Type diggs:GroutInjectionPropType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_indexConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_propertyNameConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_typeDataConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_propertyClassConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_uomConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_nullValueConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_correctionUsedConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_measurementTechniqueConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_reportableConstruction_xsd_Complex_Type_diggs_GroutInjectionPropType.tmp#GroutInjectionPropType_samplingRate
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:correctionUsed, diggs:measurementTechnique, diggs:nullValue, diggs:propertyClass, diggs:propertyName, diggs:remark, diggs:reportable, diggs:samplingRate, diggs:status, diggs:typeData, diggs:uom, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger required
An integer that indicates the position of the property result in the dataValues property.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GroutInjectionPropType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="propertyName" type="gml:CodeType">
          <annotation>
            <documentation>A code or name for the property as used by the data provider. This value can come from a controlled list of terms or be an uncontrolled text string. The value would be commonly used to label a column of a log sheet or provide other local meaning to the property. The value of mnemonic should be unique for all of the properties included in the dataValue block transmitted as part of this measurement.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="typeData" type="diggs:PropertyDataTypeEnumType">
          <annotation>
            <documentation>The data type for this property (eg. double, long, string, etc.)</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="1" name="propertyClass" type="gml:CodeWithAuthorityType">
          <annotation>
            <documentation>The official name of the grout injection time series property, from a dictionary of controlled terms. Standard DIGGS property class values are: - apparent_lugeon_value - column_pressure - effective_pressure - elapsed_time - grout_flow_rate - gauge_pressure - grout_specific_gravity - grout_temperature - injection_pressure - line_loss - mix - packer_pressure - stroke_count - take</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="uom" type="diggs:AllUnits">
          <annotation>
            <documentation>Unit of measurement for the property. Must conform to EML unit standards.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="nullValue" type="diggs:NullDataType">
          <annotation>
            <documentation>An empty string is the default representation of a null value for a property (i.e. when the null value representation is not explicitly defined). This value defines a value to be interpreted as null for this property in the dataValues block. The reason attribute can be used to define the reason for the null value, (eg. witheld). This can be customized with an other: qualifier (eg. other:below detection limit) or reference a URI for a more complete definition.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="correctionUsed" type="gml:CodeType">
          <annotation>
            <documentation>A description of corrections used to obtain the reported result or to describe any other adjustments made to the reported data. Can come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="measurementTechnique" type="diggs:MeasurementTechniqueEnumType">
          <annotation>
            <documentation>The method by which the property value is obtained. From an enumerated list. For values that are calculated, the formula attribute allows for a formula to be included, a description/reference to the formula used to calculate te value, or details of any moving average. The samplingRate attribute describes the raw rate of measurement collection from which any moving averages may be derived.</documentation>
          </annotation>
        </element>
        <element default="true" maxOccurs="1" minOccurs="0" name="reportable" type="boolean">
          <annotation>
            <documentation>True or false, indicates whether the value of this property can be reported outside of the context of transmission via an xml instance.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="samplingRate" type="eml:ReciprocalTimeMeasure">
          <annotation>
            <documentation>The raw rate of measurement collection from which any moving averages may be derived. This property should be reported if the value of the measurementTechnique property is moving average.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="index" type="positiveInteger" use="required">
        <annotation>
          <documentation>An integer that indicates the position of the property result in the dataValues property.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:GroutInjectionPropType / @index
Namespace No namespace
Annotations

An integer that indicates the position of the property result in the dataValues property.
Type positiveInteger
Properties
use required
Used by
Source

<attribute name="index" type="positiveInteger" use="required">
  <annotation>
    <documentation>An integer that indicates the position of the property result in the dataValues property.</documentation>
  </annotation>
</attribute>
