Schema documentation for component diggs:MeasurementTechniqueEnumType

Showing:

Annotations

Attributes

Diagrams

Properties

Source

Used by

Complex Type diggs:MeasurementTechniqueEnumType

Namespace

http://diggsml.org/schema-dev

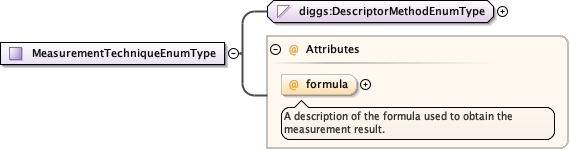

Diagram

Type

extension of diggs:DescriptorMethodEnumType

Type hierarchy

string
- diggs:DescriptorMethodEnumType
  - diggs:MeasurementTechniqueEnumType

Used by

Elements

diggs:ContinuousGroutInjectionPropType/diggs:measurementTechnique, diggs:DriveRecordPropType/diggs:measurementTechnique, diggs:GroutInjectionPropType/diggs:measurementTechnique, diggs:LugeonStepDataPropType/diggs:measurementTechnique, diggs:MembraneInfoType/diggs:membraneYoungsmodulusDetermination, diggs:PDARecordPropType/diggs:measurementTechnique, diggs:PorePressureDissipationPropType/diggs:measurementTechnique, diggs:PropType/diggs:measurementTechnique, diggs:SyneresisPropType/diggs:measurementTechnique, diggs_geo:PorePressureDissipationPropType/diggs_geo:measurementTechnique

Attributes

QName

Type

Use

Annotation

formula

string

optional

A description of the formula used to obtain the measurement
result.

Source

<complexType name="MeasurementTechniqueEnumType">
  <simpleContent>
    <extension base="diggs:DescriptorMethodEnumType">
      <attribute name="formula" type="string">
        <annotation>
          <documentation>A description of the formula used to obtain the measurement result.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>

Attribute diggs:MeasurementTechniqueEnumType / @formula

Namespace

No namespace

Annotations

A description of the formula used to obtain the measurement
result.

Type

string

Properties

content

simple

Used by

Complex Type

diggs:MeasurementTechniqueEnumType

Source

<attribute name="formula" type="string">
  <annotation>
    <documentation>A description of the formula used to obtain the measurement result.</documentation>
  </annotation>
</attribute>
