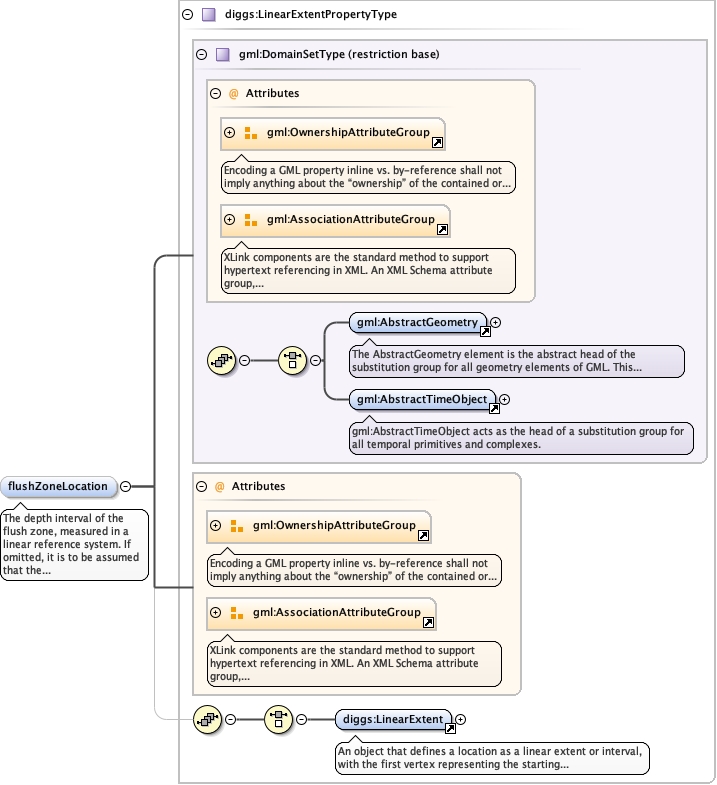

Element diggs:FlushType / diggs:flushZoneLocation
Namespace http://diggsml.org/schema-dev
Annotations

The depth interval of the flush zone, measured in a
linear reference system. If omitted, it is to be assumed that the
flushing activity pertains to the entire hole
length.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:LinearExtent
Instance

<diggs:flushZoneLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:flushZoneLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="flushZoneLocation" type="diggs:LinearExtentPropertyType" minOccurs="0">
  <annotation>
    <documentation>The depth interval of the flush zone, measured in a linear reference system. If omitted, it is to be assumed that the flushing activity pertains to the entire hole length.</documentation>
  </annotation>
</element>

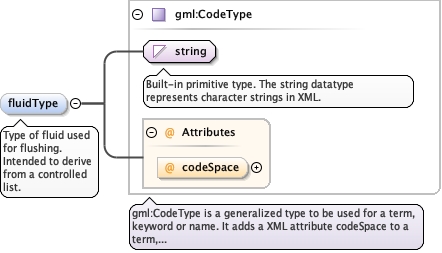

Element diggs:FlushType / diggs:fluidType
Namespace http://diggsml.org/schema-dev
Annotations

Type of fluid used for flushing. Intended to derive from
a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="fluidType" type="gml:CodeType">
  <annotation>
    <documentation>Type of fluid used for flushing. Intended to derive from a controlled list.</documentation>
  </annotation>
</element>
Element diggs:FlushType / diggs:minFlushReturn
Namespace http://diggsml.org/schema-dev
Annotations

Percentage of fluid that returns from the hole following
flushing. (minimum value)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="minFlushReturn" type="eml:VolumePerVolumeMeasure">
  <annotation>
    <documentation>Percentage of fluid that returns from the hole following flushing. (minimum value)</documentation>
  </annotation>
</element>

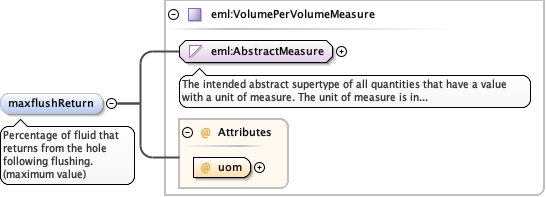

Element diggs:FlushType / diggs:maxflushReturn
Namespace http://diggsml.org/schema-dev
Annotations

Percentage of fluid that returns from the hole following
flushing. (maximum value)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="maxflushReturn" type="eml:VolumePerVolumeMeasure">
  <annotation>
    <documentation>Percentage of fluid that returns from the hole following flushing. (maximum value)</documentation>
  </annotation>
</element>

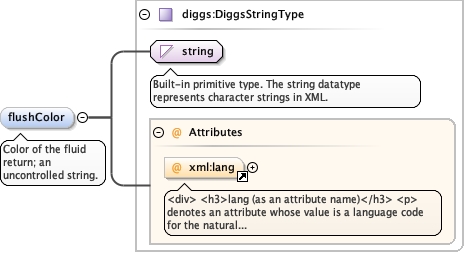

Element diggs:FlushType / diggs:flushColor
Namespace http://diggsml.org/schema-dev
Annotations

Color of the fluid return; an uncontrolled
string.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="flushColor" type="diggs:DiggsStringType">
  <annotation>
    <documentation>Color of the fluid return; an uncontrolled string.</documentation>
  </annotation>
</element>

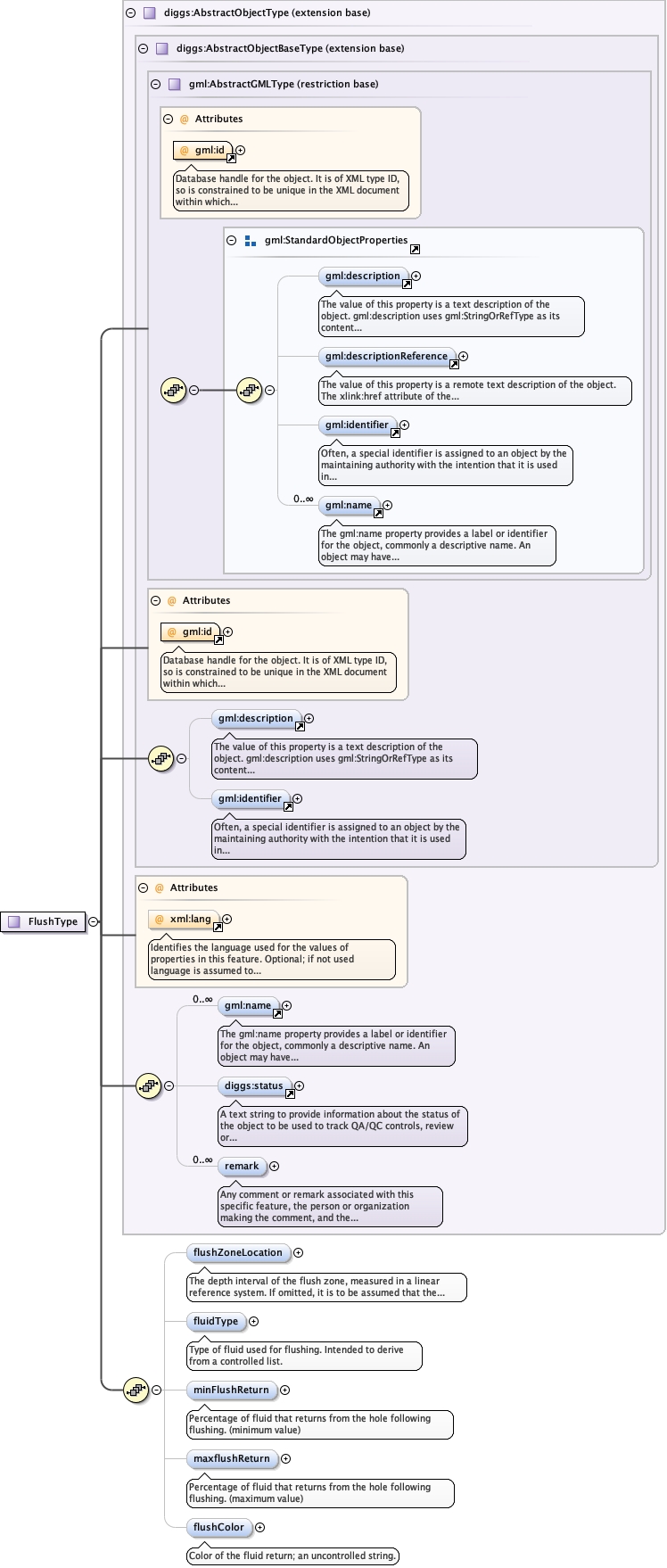

Complex Type diggs:FlushType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_FlushType.tmp#FlushType_flushZoneLocationKernel_xsd_Complex_Type_diggs_FlushType.tmp#FlushType_fluidTypeKernel_xsd_Complex_Type_diggs_FlushType.tmp#FlushType_minFlushReturnKernel_xsd_Complex_Type_diggs_FlushType.tmp#FlushType_maxflushReturnKernel_xsd_Complex_Type_diggs_FlushType.tmp#FlushType_flushColor
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Flush
Model
Children diggs:fluidType, diggs:flushColor, diggs:flushZoneLocation, diggs:maxflushReturn, diggs:minFlushReturn, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="FlushType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="flushZoneLocation" type="diggs:LinearExtentPropertyType" minOccurs="0">
          <annotation>
            <documentation>The depth interval of the flush zone, measured in a linear reference system. If omitted, it is to be assumed that the flushing activity pertains to the entire hole length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fluidType" type="gml:CodeType">
          <annotation>
            <documentation>Type of fluid used for flushing. Intended to derive from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="minFlushReturn" type="eml:VolumePerVolumeMeasure">
          <annotation>
            <documentation>Percentage of fluid that returns from the hole following flushing. (minimum value)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxflushReturn" type="eml:VolumePerVolumeMeasure">
          <annotation>
            <documentation>Percentage of fluid that returns from the hole following flushing. (maximum value)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="flushColor" type="diggs:DiggsStringType">
          <annotation>
            <documentation>Color of the fluid return; an uncontrolled string.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
