Element diggs:LabCompactionTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Annotations

The count of the test cycle
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The count of the test cycle</documentation>
  </annotation>
</element>

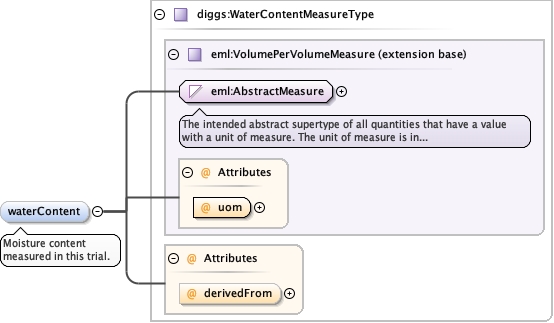

Element diggs:LabCompactionTestTrialType / diggs:waterContent
Namespace http://diggsml.org/schema-dev
Annotations

Moisture content measured in this trial.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasureKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType_derivedFromKernel_xsd_Complex_Type_diggs_WaterContentMeasureType.tmp#WaterContentMeasureType
Type diggs:WaterContentMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
derivedFrom diggs:WaterContentMethodType optional
uom eml:VolumePerVolumeUom required
Source

<element name="waterContent" type="diggs:WaterContentMeasureType" minOccurs="0">
  <annotation>
    <documentation>Moisture content measured in this trial.</documentation>
  </annotation>
</element>

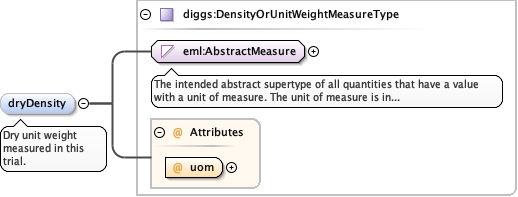

Element diggs:LabCompactionTestTrialType / diggs:dryDensity
Namespace http://diggsml.org/schema-dev
Annotations

Dry unit weight measured in this trial.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsDensityOrUnitWeightUom required
Source

<element name="dryDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
  <annotation>
    <documentation>Dry unit weight measured in this trial.</documentation>
  </annotation>
</element>

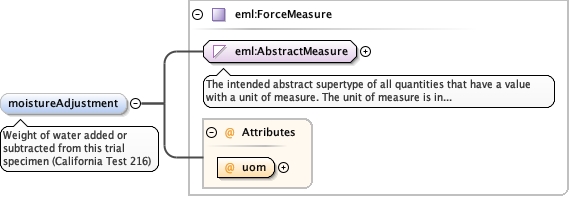

Element diggs:LabCompactionTestTrialType / diggs:moistureAdjustment
Namespace http://diggsml.org/schema-dev
Annotations

Weight of water added or subtracted from this trial
specimen (California Test 216)
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="moistureAdjustment" type="eml:ForceMeasure" minOccurs="0">
  <annotation>
    <documentation>Weight of water added or subtracted from this trial specimen (California Test 216)</documentation>
  </annotation>
</element>
Element diggs:LabCompactionTestTrialType / diggs:tamperReading
Namespace http://diggsml.org/schema-dev
Annotations

Tamper reading (California Test 216)
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="tamperReading" type="double" minOccurs="0">
  <annotation>
    <documentation>Tamper reading (California Test 216)</documentation>
  </annotation>
</element>

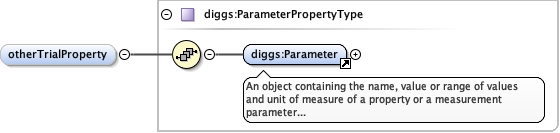

Element diggs:LabCompactionTestTrialType / diggs:otherTrialProperty
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Parameter
Children diggs:Parameter
Instance

<diggs:otherTrialProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherTrialProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherTrialProperty" type="diggs:ParameterPropertyType"/>

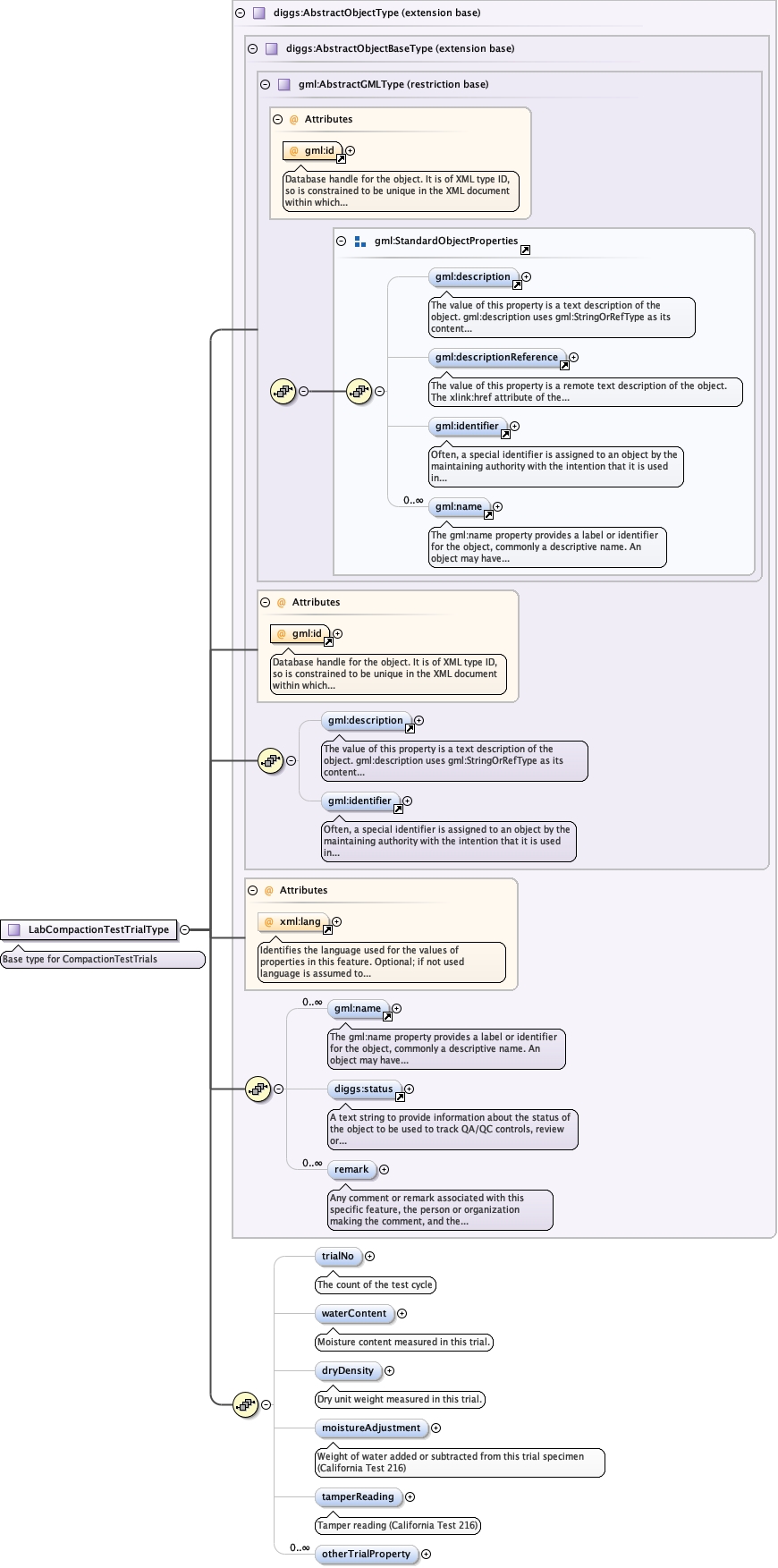

Complex Type diggs:LabCompactionTestTrialType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for CompactionTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_trialNoTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_waterContentTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_dryDensityTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_moistureAdjustmentTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_tamperReadingTestProcedures_xsd_Complex_Type_diggs_LabCompactionTestTrialType.tmp#http___diggsml.org_schema-dev_LabCompactionTestTrialType_otherTrialProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:LabCompactionTestTrial
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:trialNo{0,1} , diggs:waterContent{0,1} , diggs:dryDensity{0,1} , diggs:moistureAdjustment{0,1} , diggs:tamperReading{0,1} , diggs:otherTrialProperty*
Children diggs:dryDensity, diggs:moistureAdjustment, diggs:otherTrialProperty, diggs:remark, diggs:status, diggs:tamperReading, diggs:trialNo, diggs:waterContent, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LabCompactionTestTrialType">
  <annotation>
    <documentation>Base type for CompactionTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The count of the test cycle</documentation>
          </annotation>
        </element>
        <element name="waterContent" type="diggs:WaterContentMeasureType" minOccurs="0">
          <annotation>
            <documentation>Moisture content measured in this trial.</documentation>
          </annotation>
        </element>
        <element name="dryDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
          <annotation>
            <documentation>Dry unit weight measured in this trial.</documentation>
          </annotation>
        </element>
        <element name="moistureAdjustment" type="eml:ForceMeasure" minOccurs="0">
          <annotation>
            <documentation>Weight of water added or subtracted from this trial specimen (California Test 216)</documentation>
          </annotation>
        </element>
        <element name="tamperReading" type="double" minOccurs="0">
          <annotation>
            <documentation>Tamper reading (California Test 216)</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherTrialProperty" type="diggs:ParameterPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
