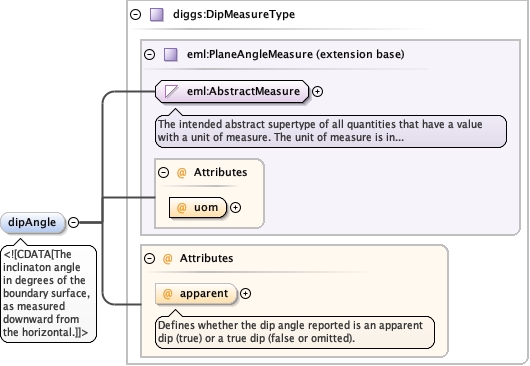

Element diggs:BoundaryType / diggs:dipAngle
Namespace http://diggsml.org/schema-dev
Annotations

The inclinaton angle in degrees of the boundary surface, as measured downward from the horizontal.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparentKernel_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType
Type diggs:DipMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip (true) or a true dip (false or omitted).
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
  <annotation>
    <documentation>
      <![CDATA[The inclinaton angle in degrees of the boundary surface, as measured downward from the horizontal.]]>
    </documentation>
  </annotation>
</element>

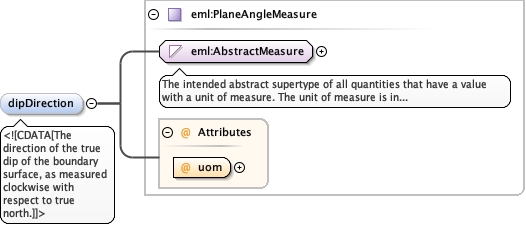

Element diggs:BoundaryType / diggs:dipDirection
Namespace http://diggsml.org/schema-dev
Annotations

The direction of the true dip of the boundary surface, as measured clockwise with respect to true north.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure
Type eml:PlaneAngleMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="dipDirection" type="eml:PlaneAngleMeasure">
  <annotation>
    <documentation>
      <![CDATA[The direction of the true dip of the boundary surface, as measured clockwise with respect to true north.]]>
    </documentation>
  </annotation>
</element>

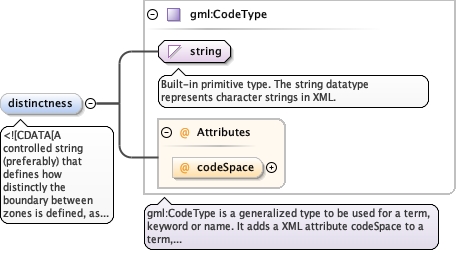

Element diggs:BoundaryType / diggs:distinctness
Namespace http://diggsml.org/schema-dev
Annotations

A controlled string (preferably) that defines how distinctly the boundary between zones is defined, as governed by both the contrast between adjacent zones and by the width of the boundary. (eg. sharp, gradational)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="distinctness" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[A controlled string (preferably) that defines how distinctly the boundary between zones is defined, as governed by both the contrast between adjacent zones and by the width of the boundary. (eg. sharp, gradational)]]>
    </documentation>
  </annotation>
</element>

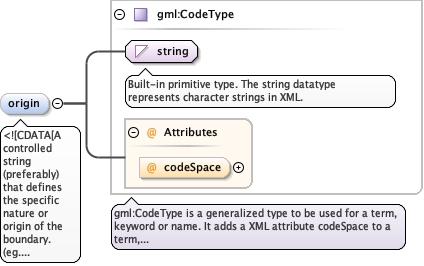

Element diggs:BoundaryType / diggs:origin
Namespace http://diggsml.org/schema-dev
Annotations

A controlled string (preferably) that defines the specific nature or origin of the boundary. (eg. unconformity, fault, etc.)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="origin" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[A controlled string (preferably) that defines the specific nature or origin of the boundary. (eg. unconformity, fault, etc.)]]>
    </documentation>
  </annotation>
</element>

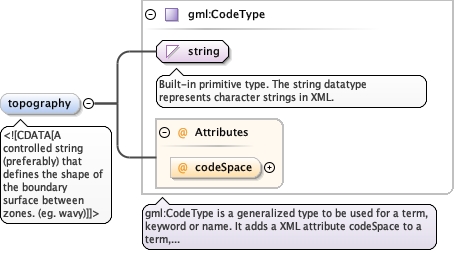

Element diggs:BoundaryType / diggs:topography
Namespace http://diggsml.org/schema-dev
Annotations

A controlled string (preferably) that defines the shape of the boundary surface between zones. (eg. wavy)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="topography" type="gml:CodeType">
  <annotation>
    <documentation>
      <![CDATA[A controlled string (preferably) that defines the shape of the boundary surface between zones. (eg. wavy)]]>
    </documentation>
  </annotation>
</element>

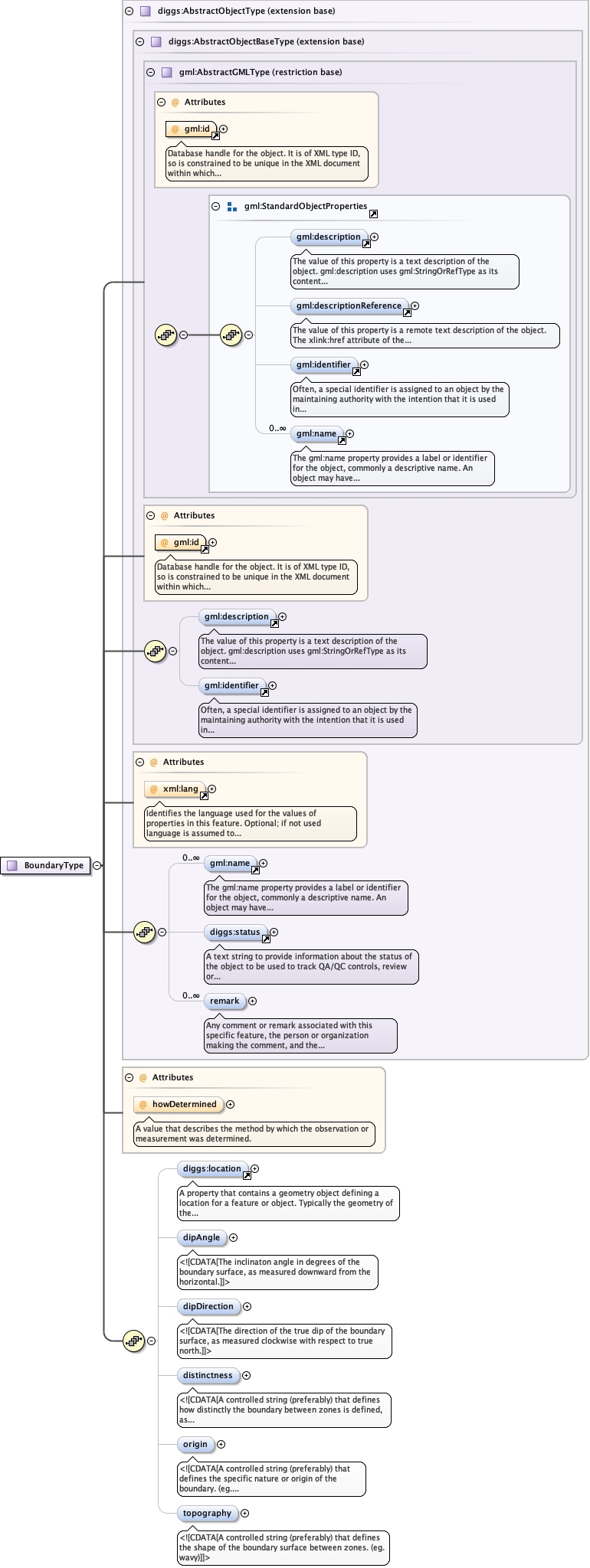

Complex Type diggs:BoundaryType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_howDeterminedKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_dipAngleKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_dipDirectionKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_distinctnessKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_originKernel_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_topography
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Boundary
Model
Children diggs:dipAngle, diggs:dipDirection, diggs:distinctness, diggs:location, diggs:origin, diggs:remark, diggs:status, diggs:topography, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="BoundaryType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:location"/>
        <element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
          <annotation>
            <documentation>
              <![CDATA[The inclinaton angle in degrees of the boundary surface, as measured downward from the horizontal.]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dipDirection" type="eml:PlaneAngleMeasure">
          <annotation>
            <documentation>
              <![CDATA[The direction of the true dip of the boundary surface, as measured clockwise with respect to true north.]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="distinctness" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[A controlled string (preferably) that defines how distinctly the boundary between zones is defined, as governed by both the contrast between adjacent zones and by the width of the boundary. (eg. sharp, gradational)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="origin" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[A controlled string (preferably) that defines the specific nature or origin of the boundary. (eg. unconformity, fault, etc.)]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="topography" type="gml:CodeType">
          <annotation>
            <documentation>
              <![CDATA[A controlled string (preferably) that defines the shape of the boundary surface between zones. (eg. wavy)]]>
            </documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
        <annotation>
          <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:BoundaryType / @howDetermined
Namespace No namespace
Annotations

A value that describes the method by which the observation or measurement
was determined.
Type diggs:DescriptorMethodEnumType
Properties
content simple
Facets
enumeration assigned
Value is assigned a priori as a commonly used value or by assumption
enumeration calculated
Value is computed directly from other value(s)
enumeration extrapolated
Value is estimated by extrapolating trends in the known data
enumeration graphic
Value is manually picked from a graph or visual display
enumeration inferred
Value is estimated from some indirect measurements such as from a wireline log or transducer.
enumeration interpolated
Value is estimated betweem two known values using some presumed
function
enumeration maximum
Value is the largest value inferred for the property
enumeration measured
Value is determined directly from a laboratory or in situ test
enumeration minimum
Value is the smallest value inferred for the property
enumeration missing
Method known but not reported here
enumeration modeled
Value is estimated from a representation of the measured feature
enumeration moving average
Value is calculated as a moving average of reading
enumeration other
Method other than the choices in this list. Further information should be provided in the remarks property
enumeration reported
Value or description comes from a third party source
enumeration unknown
Method of determination unknown and can likely not be determined
enumeration visual
Value or description comes from visual or visual/manual inspection
Used by
Complex Type diggs:BoundaryType
Source

<attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
  <annotation>
    <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
  </annotation>
</attribute>
