Element diggs:BackfillType / diggs:backfillDateTime
Namespace http://diggsml.org/schema-dev
Annotations

The date/time interval over which the entire backfilling
operation was conducted. Date/time intervals can also be specified
for the emplacement of individual backfill layers in the
backfillLayers property.

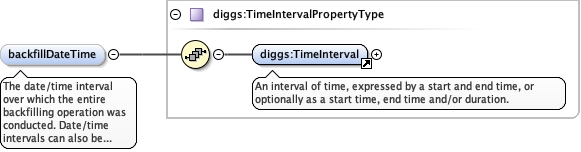

Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:backfillDateTime xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:backfillDateTime>
Source

<element minOccurs="0" name="backfillDateTime" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The date/time interval over which the entire backfilling operation was conducted. Date/time intervals can also be specified for the emplacement of individual backfill layers in the backfillLayers property.</documentation>
  </annotation>
</element>
Element diggs:BackfillType / diggs:backfillLayer
Namespace http://diggsml.org/schema-dev
Annotations

The depth intervals where backfill is emplaced. The
backfill intervals should not overlap, nor should there be gaps
between intervals.

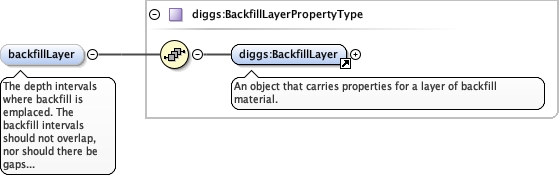

Diagram
DiagramKernel_xsd_Element_diggs_BackfillLayer.tmp#BackfillLayerKernel_xsd_Complex_Type_diggs_BackfillLayerPropertyType.tmp#BackfillLayerPropertyType
Type diggs:BackfillLayerPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:BackfillLayer
Instance

<diggs:backfillLayer xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:BackfillLayer gml:id="" xml:lang="">{1,1}</diggs:BackfillLayer>
</diggs:backfillLayer>
Source

<element minOccurs="0" name="backfillLayer" type="diggs:BackfillLayerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The depth intervals where backfill is emplaced. The backfill intervals should not overlap, nor should there be gaps between intervals.</documentation>
  </annotation>
</element>
Element diggs:BackfillType / diggs:backfillType
Namespace http://diggsml.org/schema-dev
Annotations

A controlled list of terms to indicate what type of
backfilling is described in the object. Choices are: annular space
within borehole - backfilling occurs within the annular space
between the outer casing and the natural borehole wall annular space
between casings - backfilling occurs within the annular space
between nested casings open hole - backfilling occurs within an open
hole within casing - backfilling occurs within the innermost
casing

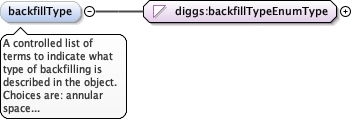

Diagram
DiagramKernel_xsd_Simple_Type_diggs_backfillTypeEnumType.tmp#backfillTypeEnumType
Type diggs:backfillTypeEnumType
Properties
content simple
minOccurs 0
Facets
enumeration annular space within borehole
enumeration annular space within casings
enumeration open hole
enumeration within casing
Source

<element minOccurs="0" name="backfillType" type="diggs:backfillTypeEnumType">
  <annotation>
    <documentation>A controlled list of terms to indicate what type of backfilling is described in the object. Choices are: annular space within borehole - backfilling occurs within the annular space between the outer casing and the natural borehole wall annular space between casings - backfilling occurs within the annular space between nested casings open hole - backfilling occurs within an open hole within casing - backfilling occurs within the innermost casing</documentation>
  </annotation>
</element>
Complex Type diggs:BackfillType
Namespace http://diggsml.org/schema-dev

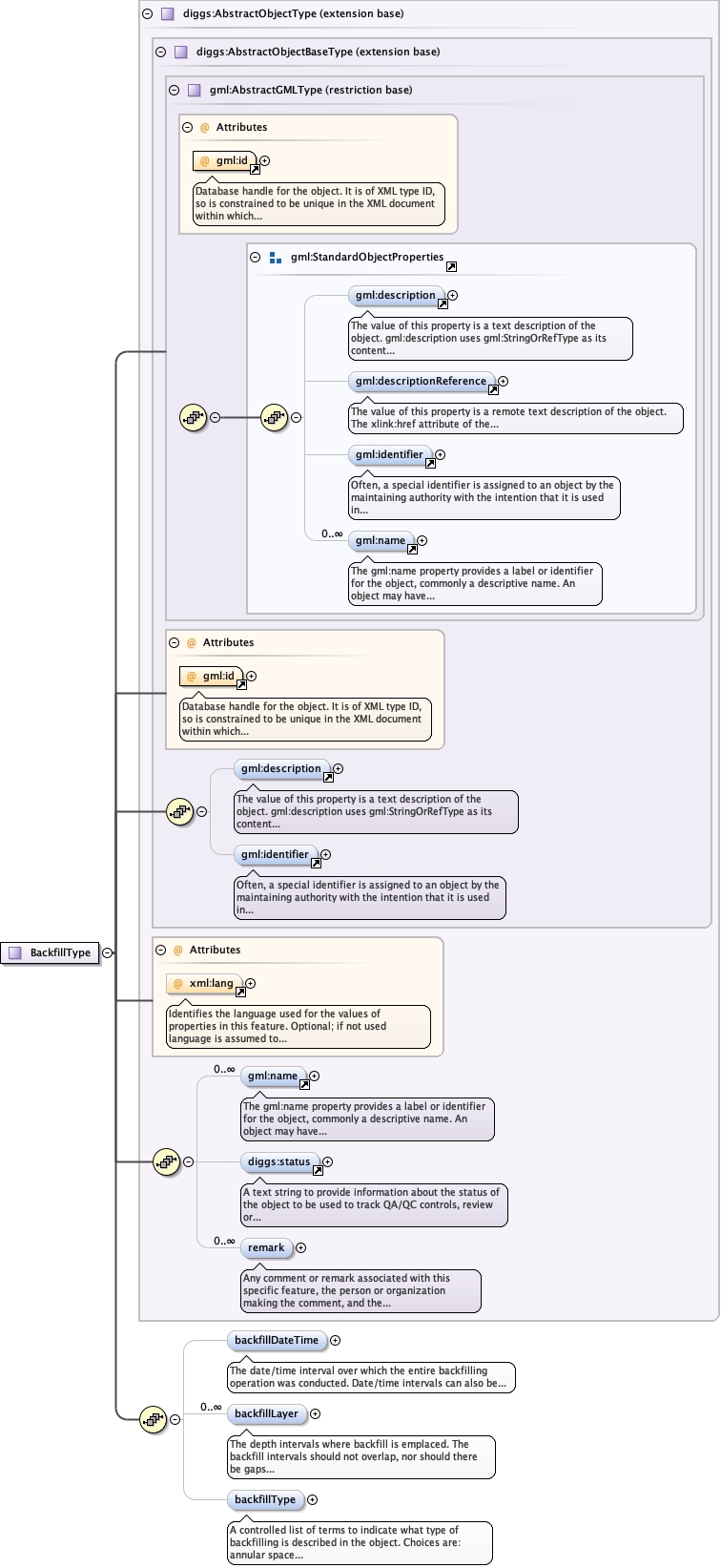

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_BackfillType.tmp#BackfillType_backfillDateTimeKernel_xsd_Complex_Type_diggs_BackfillType.tmp#BackfillType_backfillLayerKernel_xsd_Complex_Type_diggs_BackfillType.tmp#BackfillType_backfillType
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Backfill
Model
Children diggs:backfillDateTime, diggs:backfillLayer, diggs:backfillType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="BackfillType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="backfillDateTime" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The date/time interval over which the entire backfilling operation was conducted. Date/time intervals can also be specified for the emplacement of individual backfill layers in the backfillLayers property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfillLayer" type="diggs:BackfillLayerPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The depth intervals where backfill is emplaced. The backfill intervals should not overlap, nor should there be gaps between intervals.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfillType" type="diggs:backfillTypeEnumType">
          <annotation>
            <documentation>A controlled list of terms to indicate what type of backfilling is described in the object. Choices are: annular space within borehole - backfilling occurs within the annular space between the outer casing and the natural borehole wall annular space between casings - backfilling occurs within the annular space between nested casings open hole - backfilling occurs within an open hole within casing - backfilling occurs within the innermost casing</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
