Element diggs:MCVTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Annotations

The count of the test cycle
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The count of the test cycle</documentation>
  </annotation>
</element>

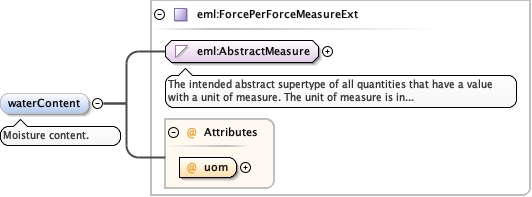

Element diggs:MCVTestTrialType / diggs:waterContent
Namespace http://diggsml.org/schema-dev
Annotations

Moisture content.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerForceMeasureExt.tmp#ForcePerForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForcePerForceMeasureExt.tmp#ForcePerForceMeasureExt
Type eml:ForcePerForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForcePerForceUomExt required
Source

<element name="waterContent" type="eml:ForcePerForceMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Moisture content.</documentation>
  </annotation>
</element>

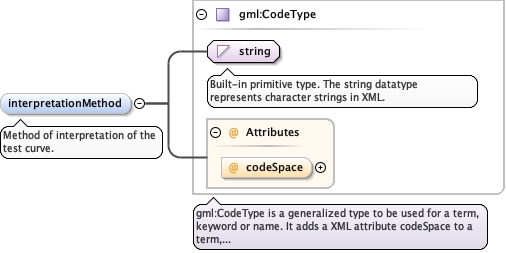

Element diggs:MCVTestTrialType / diggs:interpretationMethod
Namespace http://diggsml.org/schema-dev
Annotations

Method of interpretation of the test curve.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>Method of interpretation of the test curve.</documentation>
  </annotation>
</element>

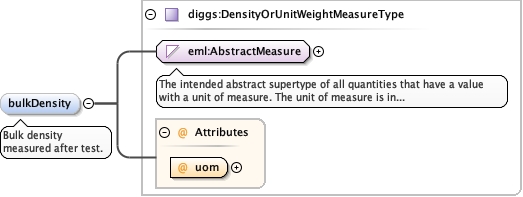

Element diggs:MCVTestTrialType / diggs:bulkDensity
Namespace http://diggsml.org/schema-dev
Annotations

Bulk density measured after test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsDensityOrUnitWeightUom required
Source

<element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
  <annotation>
    <documentation>Bulk density measured after test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:mcv
Namespace http://diggsml.org/schema-dev
Annotations

Measured MCV
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="mcv" type="double" minOccurs="0">
  <annotation>
    <documentation>Measured MCV</documentation>
  </annotation>
</element>

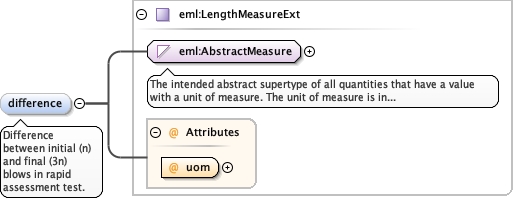

Element diggs:MCVTestTrialType / diggs:difference
Namespace http://diggsml.org/schema-dev
Annotations

Difference between initial (n) and final (3n) blows in rapid assessment test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="difference" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Difference between initial (n) and final (3n) blows in rapid assessment test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:strongerWeaker
Namespace http://diggsml.org/schema-dev
Annotations

Stronger or weaker than pre-calibrated standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="strongerWeaker" type="string" minOccurs="0">
  <annotation>
    <documentation>Stronger or weaker than pre-calibrated standard.</documentation>
  </annotation>
</element>

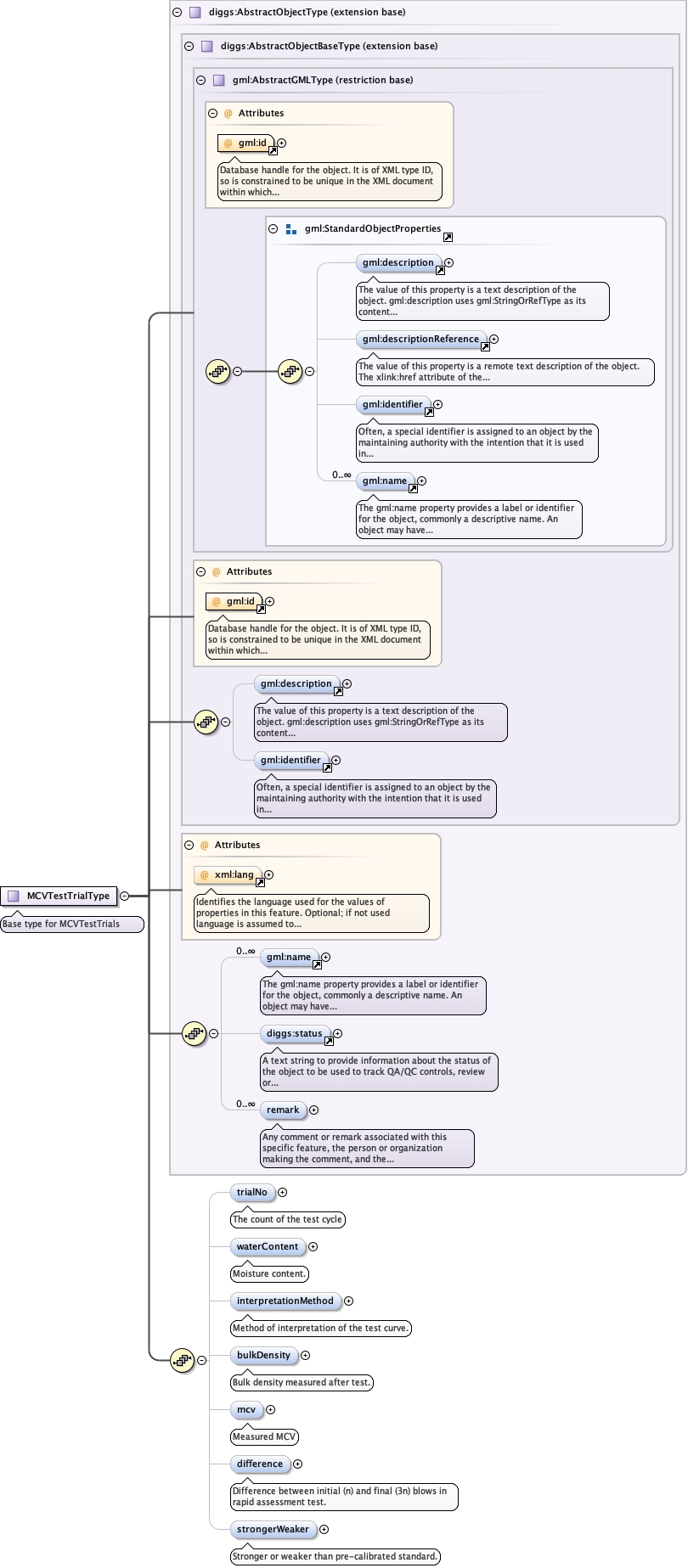

Complex Type diggs:MCVTestTrialType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for MCVTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_trialNoBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_waterContentBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_interpretationMethodBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_bulkDensityBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_mcvBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_differenceBetaProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_strongerWeaker
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bulkDensity, diggs:difference, diggs:interpretationMethod, diggs:mcv, diggs:remark, diggs:status, diggs:strongerWeaker, diggs:trialNo, diggs:waterContent, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="MCVTestTrialType">
  <annotation>
    <documentation>Base type for MCVTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The count of the test cycle</documentation>
          </annotation>
        </element>
        <element name="waterContent" type="eml:ForcePerForceMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Moisture content.</documentation>
          </annotation>
        </element>
        <element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>Method of interpretation of the test curve.</documentation>
          </annotation>
        </element>
        <element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
          <annotation>
            <documentation>Bulk density measured after test.</documentation>
          </annotation>
        </element>
        <element name="mcv" type="double" minOccurs="0">
          <annotation>
            <documentation>Measured MCV</documentation>
          </annotation>
        </element>
        <element name="difference" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Difference between initial (n) and final (3n) blows in rapid assessment test.</documentation>
          </annotation>
        </element>
        <element name="strongerWeaker" type="string" minOccurs="0">
          <annotation>
            <documentation>Stronger or weaker than pre-calibrated standard.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
