Element diggs:LimitType / diggs:constraint
Namespace http://diggsml.org/schema-dev
Annotations

The constraint defines a condition under which the limit
applies

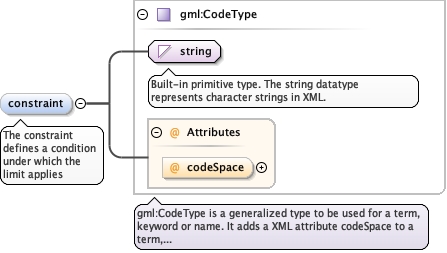

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="constraint" type="gml:CodeType">
  <annotation>
    <documentation>The constraint defines a condition under which the limit applies</documentation>
  </annotation>
</element>
Element diggs:LimitType / diggs:limitType
Namespace http://diggsml.org/schema-dev
Annotations

A controlled list of terms that decribe the type of limit
reported. Allowable values are: upper lower method quantification
reporting minimum allowable value maximum allowable
value

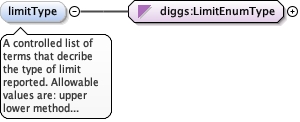

Diagram
DiagramKernel_xsd_Simple_Type_diggs_LimitEnumType.tmp#LimitEnumType
Type diggs:LimitEnumType
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="limitType" type="diggs:LimitEnumType">
  <annotation>
    <documentation>A controlled list of terms that decribe the type of limit reported. Allowable values are: upper lower method quantification reporting minimum allowable value maximum allowable value</documentation>
  </annotation>
</element>
Element diggs:LimitType / diggs:value
Namespace http://diggsml.org/schema-dev
Annotations

The value of the limit.

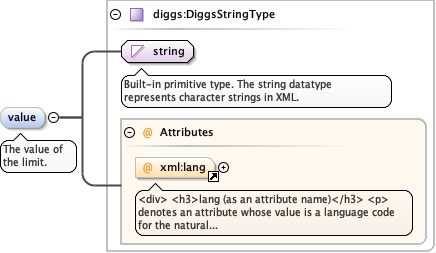

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element maxOccurs="1" minOccurs="0" name="value" type="diggs:DiggsStringType">
  <annotation>
    <documentation>The value of the limit.</documentation>
  </annotation>
</element>
Complex Type diggs:LimitType
Namespace http://diggsml.org/schema-dev

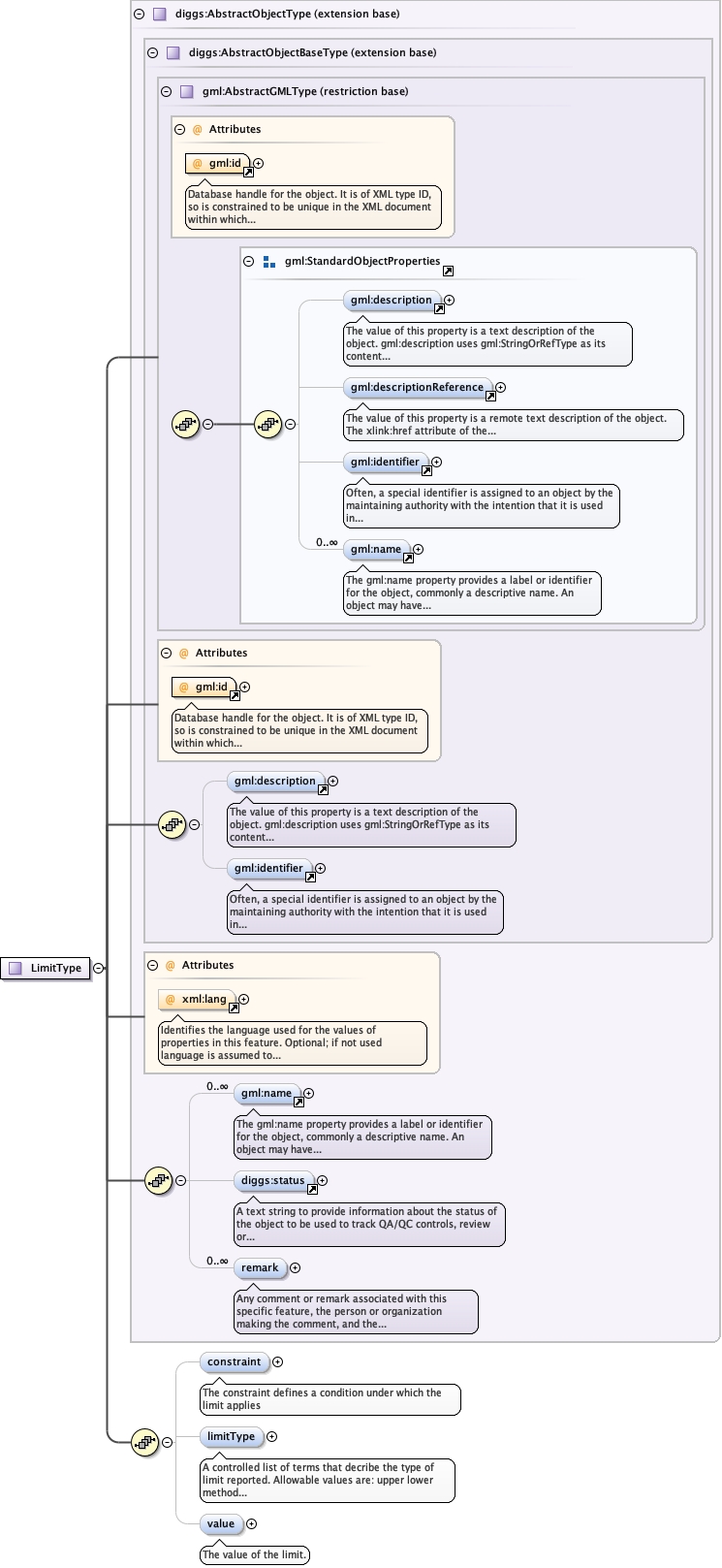

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_constraintKernel_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_limitTypeKernel_xsd_Complex_Type_diggs_LimitType.tmp#LimitType_value
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Limit
Model
Children diggs:constraint, diggs:limitType, diggs:remark, diggs:status, diggs:value, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LimitType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="constraint" type="gml:CodeType">
          <annotation>
            <documentation>The constraint defines a condition under which the limit applies</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="limitType" type="diggs:LimitEnumType">
          <annotation>
            <documentation>A controlled list of terms that decribe the type of limit reported. Allowable values are: upper lower method quantification reporting minimum allowable value maximum allowable value</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="value" type="diggs:DiggsStringType">
          <annotation>
            <documentation>The value of the limit.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
