Element diggs:ChainOfCustodyEventType / diggs:sourceCustodian
Namespace http://diggsml.org/schema-dev
Annotations

A reference to the BusinessAssociate object that is
releasing custody of the sample.

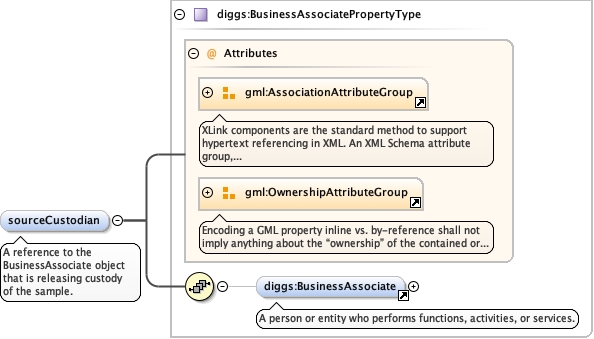

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateKernel_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:BusinessAssociate
Instance

<diggs:sourceCustodian xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:BusinessAssociate gml:id="" xml:lang="">{0,1}</diggs:BusinessAssociate>
</diggs:sourceCustodian>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="sourceCustodian" type="diggs:BusinessAssociatePropertyType">
  <annotation>
    <documentation>A reference to the BusinessAssociate object that is releasing custody of the sample.</documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:destinationCustodian
Namespace http://diggsml.org/schema-dev
Annotations

A reference to the BusinessAssociate object that is
receiving custody of the sample.

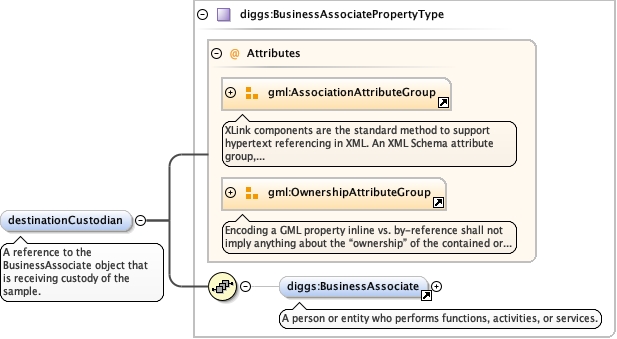

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateKernel_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:BusinessAssociate
Instance

<diggs:destinationCustodian xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:BusinessAssociate gml:id="" xml:lang="">{0,1}</diggs:BusinessAssociate>
</diggs:destinationCustodian>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="destinationCustodian" type="diggs:BusinessAssociatePropertyType">
  <annotation>
    <documentation>A reference to the BusinessAssociate object that is receiving custody of the sample.</documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:dateInitiated
Namespace http://diggsml.org/schema-dev
Annotations

Date that sample was shipped or date that chain of custody event was initiated

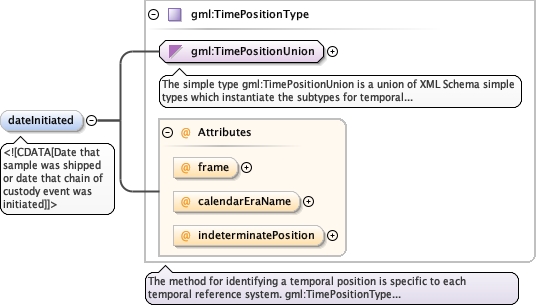

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="dateInitiated" type="gml:TimePositionType">
  <annotation>
    <documentation>
      <![CDATA[Date that sample was shipped or date that chain of custody event was initiated]]>
    </documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:dateCompleted
Namespace http://diggsml.org/schema-dev
Annotations

Date that sample was received or date that chain of custody event was completed

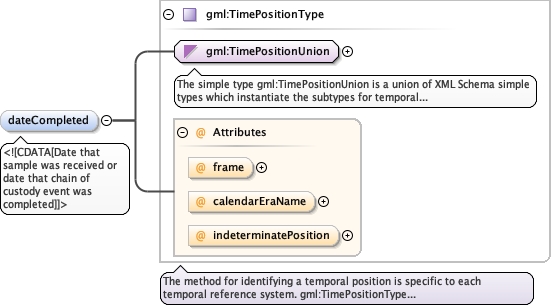

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="dateCompleted" type="gml:TimePositionType" minOccurs="0">
  <annotation>
    <documentation>
      <![CDATA[Date that sample was received or date that chain of custody event was completed]]>
    </documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:sampleContainer
Namespace http://diggsml.org/schema-dev
Annotations

Information about the sample container, if repackaged from the initial container.

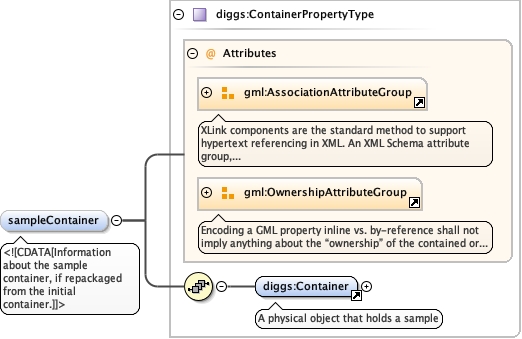

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_Container.tmp#ContainerKernel_xsd_Complex_Type_diggs_ContainerPropertyType.tmp#ContainerPropertyType
Type diggs:ContainerPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Container
Instance

<diggs:sampleContainer xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Container gml:id="" xml:lang="">{1,1}</diggs:Container>
</diggs:sampleContainer>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="sampleContainer" type="diggs:ContainerPropertyType">
  <annotation>
    <documentation>
      <![CDATA[Information about the sample container, if repackaged from the initial container.]]>
    </documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:shippingContainer
Namespace http://diggsml.org/schema-dev
Annotations

Information about the container that the sample containers are transported in.

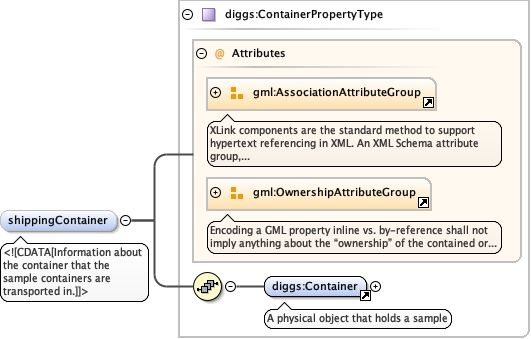

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_Container.tmp#ContainerKernel_xsd_Complex_Type_diggs_ContainerPropertyType.tmp#ContainerPropertyType
Type diggs:ContainerPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Container
Instance

<diggs:shippingContainer xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Container gml:id="" xml:lang="">{1,1}</diggs:Container>
</diggs:shippingContainer>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="shippingContainer" type="diggs:ContainerPropertyType">
  <annotation>
    <documentation>
      <![CDATA[Information about the container that the sample containers are transported in.]]>
    </documentation>
  </annotation>
</element>
Element diggs:ChainOfCustodyEventType / diggs:storageLocation
Namespace http://diggsml.org/schema-dev
Annotations

The location of the sample once it has reached it's
destination. Can be expressed as properties of a Locality object
(eg. address or other local term describing location, or as a
coordinate point (PointLocation)

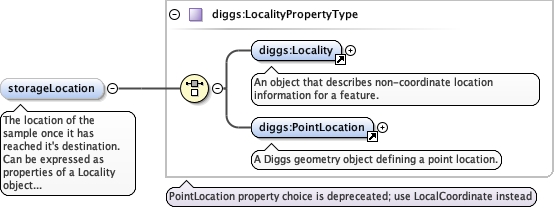

Diagram
DiagramKernel_xsd_Element_diggs_Locality.tmp#LocalityKernel_xsd_Element_diggs_PointLocation.tmp#PointLocationKernel_xsd_Complex_Type_diggs_LocalityPropertyType.tmp#LocalityPropertyType
Type diggs:LocalityPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Locality, diggs:PointLocation
Instance

<diggs:storageLocation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Locality gml:id="">{1,1}</diggs:Locality>
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:storageLocation>
Source

<element maxOccurs="1" minOccurs="0" name="storageLocation" type="diggs:LocalityPropertyType">
  <annotation>
    <documentation>The location of the sample once it has reached it's destination. Can be expressed as properties of a Locality object (eg. address or other local term describing location, or as a coordinate point (PointLocation)</documentation>
  </annotation>
</element>
Complex Type diggs:ChainOfCustodyEventType
Namespace http://diggsml.org/schema-dev

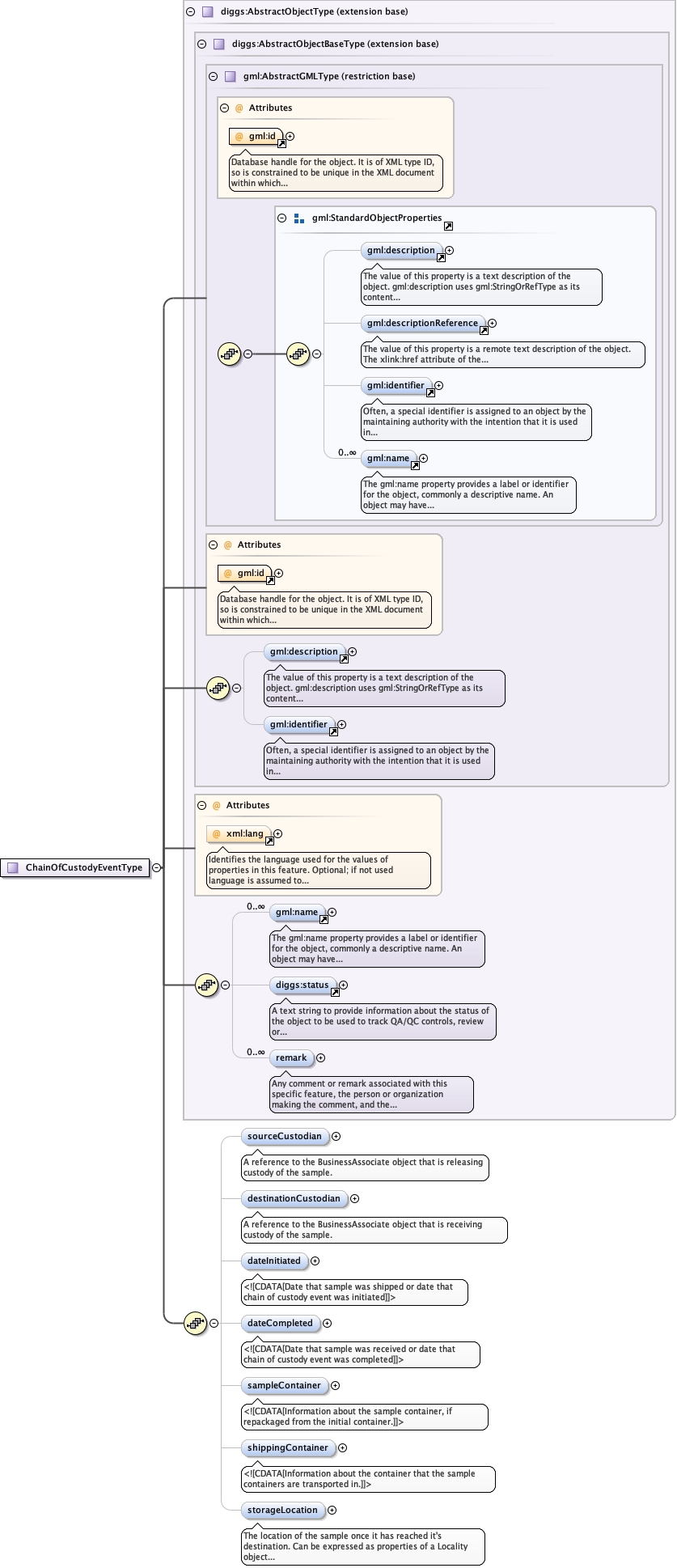

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_sourceCustodianKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_destinationCustodianKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_dateInitiatedKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_dateCompletedKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_sampleContainerKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_shippingContainerKernel_xsd_Complex_Type_diggs_ChainOfCustodyEventType.tmp#ChainOfCustodyEventType_storageLocation
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:dateCompleted, diggs:dateInitiated, diggs:destinationCustodian, diggs:remark, diggs:sampleContainer, diggs:shippingContainer, diggs:sourceCustodian, diggs:status, diggs:storageLocation, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="ChainOfCustodyEventType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="sourceCustodian" type="diggs:BusinessAssociatePropertyType">
          <annotation>
            <documentation>A reference to the BusinessAssociate object that is releasing custody of the sample.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="destinationCustodian" type="diggs:BusinessAssociatePropertyType">
          <annotation>
            <documentation>A reference to the BusinessAssociate object that is receiving custody of the sample.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dateInitiated" type="gml:TimePositionType">
          <annotation>
            <documentation>
              <![CDATA[Date that sample was shipped or date that chain of custody event was initiated]]>
            </documentation>
          </annotation>
        </element>
        <element name="dateCompleted" type="gml:TimePositionType" minOccurs="0">
          <annotation>
            <documentation>
              <![CDATA[Date that sample was received or date that chain of custody event was completed]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sampleContainer" type="diggs:ContainerPropertyType">
          <annotation>
            <documentation>
              <![CDATA[Information about the sample container, if repackaged from the initial container.]]>
            </documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shippingContainer" type="diggs:ContainerPropertyType">
          <annotation>
            <documentation>
              <![CDATA[Information about the container that the sample containers are transported in.]]>
            </documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="storageLocation" type="diggs:LocalityPropertyType">
          <annotation>
            <documentation>The location of the sample once it has reached it's destination. Can be expressed as properties of a Locality object (eg. address or other local term describing location, or as a coordinate point (PointLocation)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
