Element diggs:SieveAnalysisType / diggs:coarseFractionWetSieved
Namespace http://diggsml.org/schema-dev
Annotations

True if the sample is wet sieved (eg. washed through the
screen; false if not.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="coarseFractionWetSieved" type="boolean">
  <annotation>
    <documentation>True if the sample is wet sieved (eg. washed through the screen; false if not.</documentation>
  </annotation>
</element>
Element diggs:SieveAnalysisType / diggs:dispersantUsed
Namespace http://diggsml.org/schema-dev
Annotations

True, if dispersant is used prior to washing sample for
determination amount of less than 75 micron
sediment.

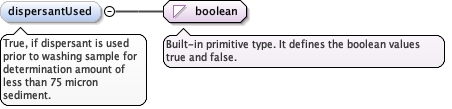

Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="dispersantUsed" type="boolean">
  <annotation>
    <documentation>True, if dispersant is used prior to washing sample for determination amount of less than 75 micron sediment.</documentation>
  </annotation>
</element>
Element diggs:SieveAnalysisType / diggs:sandGravelConsistency
Namespace http://diggsml.org/schema-dev
Annotations

A description of the condition of sand and gravel size
particles in the specimen that could bias the particle-size results
(eg. hard, soft, friable, weathered). Intended to come from a
controlled list.

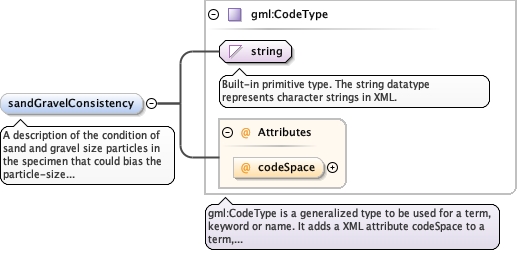

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="sandGravelConsistency" type="gml:CodeType">
  <annotation>
    <documentation>A description of the condition of sand and gravel size particles in the specimen that could bias the particle-size results (eg. hard, soft, friable, weathered). Intended to come from a controlled list.</documentation>
  </annotation>
</element>
Element diggs:SieveAnalysisType / diggs:otherSieveAnalysisProperty
Namespace http://diggsml.org/schema-dev

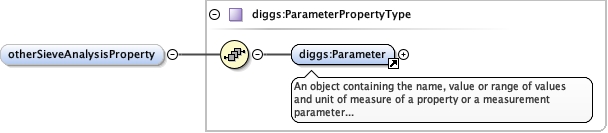

Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Parameter
Children diggs:Parameter
Instance

<diggs:otherSieveAnalysisProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherSieveAnalysisProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherSieveAnalysisProperty" type="diggs:ParameterPropertyType"/>
Element diggs:SieveAnalysisType / diggs:panData
Namespace http://diggsml.org/schema-dev

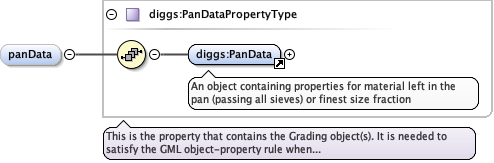

Diagram
DiagramTestProcedures_xsd_Element_diggs_PanData.tmp#http___diggsml.org_schema-dev_PanDataTestProcedures_xsd_Complex_Type_diggs_PanDataPropertyType.tmp#http___diggsml.org_schema-dev_PanDataPropertyType
Type diggs:PanDataPropertyType
Properties
content complex
minOccurs 0
Model
diggs:PanData
Children diggs:PanData
Instance

<diggs:panData xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PanData gml:id="" xml:lang="">{1,1}</diggs:PanData>
</diggs:panData>
Source

<element minOccurs="0" name="panData" type="diggs:PanDataPropertyType"/>
Complex Type diggs:SieveAnalysisType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for ParticleSizeTest

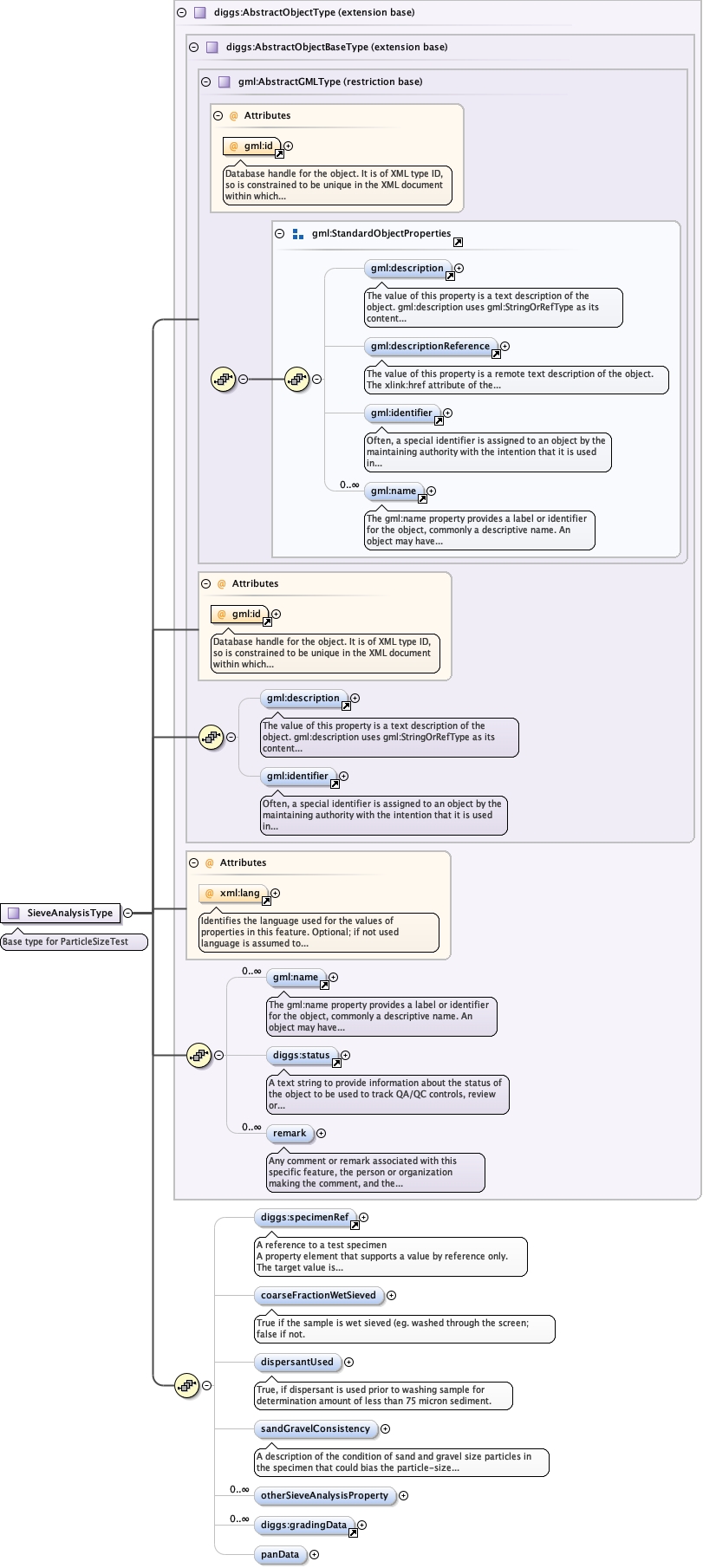

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Element_diggs_specimenRef.tmp#specimenRefTestProcedures_xsd_Complex_Type_diggs_SieveAnalysisType.tmp#http___diggsml.org_schema-dev_SieveAnalysisType_coarseFractionWetSievedTestProcedures_xsd_Complex_Type_diggs_SieveAnalysisType.tmp#http___diggsml.org_schema-dev_SieveAnalysisType_dispersantUsedTestProcedures_xsd_Complex_Type_diggs_SieveAnalysisType.tmp#http___diggsml.org_schema-dev_SieveAnalysisType_sandGravelConsistencyTestProcedures_xsd_Complex_Type_diggs_SieveAnalysisType.tmp#http___diggsml.org_schema-dev_SieveAnalysisType_otherSieveAnalysisPropertyTestProcedures_xsd_Element_diggs_gradingData.tmp#http___diggsml.org_schema-dev_gradingDataTestProcedures_xsd_Complex_Type_diggs_SieveAnalysisType.tmp#http___diggsml.org_schema-dev_SieveAnalysisType_panData
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:SieveAnalysis
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:specimenRef{0,1} , diggs:coarseFractionWetSieved{0,1} , diggs:dispersantUsed{0,1} , diggs:sandGravelConsistency{0,1} , diggs:otherSieveAnalysisProperty* , diggs:gradingData* , diggs:panData{0,1}
Children diggs:coarseFractionWetSieved, diggs:dispersantUsed, diggs:gradingData, diggs:otherSieveAnalysisProperty, diggs:panData, diggs:remark, diggs:sandGravelConsistency, diggs:specimenRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="SieveAnalysisType">
  <annotation>
    <documentation>Base type for ParticleSizeTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:specimenRef"/>
        <element minOccurs="0" name="coarseFractionWetSieved" type="boolean">
          <annotation>
            <documentation>True if the sample is wet sieved (eg. washed through the screen; false if not.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dispersantUsed" type="boolean">
          <annotation>
            <documentation>True, if dispersant is used prior to washing sample for determination amount of less than 75 micron sediment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sandGravelConsistency" type="gml:CodeType">
          <annotation>
            <documentation>A description of the condition of sand and gravel size particles in the specimen that could bias the particle-size results (eg. hard, soft, friable, weathered). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherSieveAnalysisProperty" type="diggs:ParameterPropertyType"/>
        <element ref="diggs:gradingData" minOccurs="0" maxOccurs="unbounded"/>
        <element minOccurs="0" name="panData" type="diggs:PanDataPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
