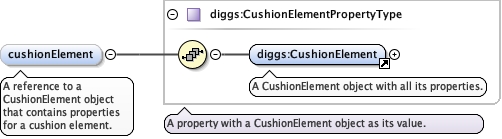

Element diggs:CushionType / diggs:cushionElement
Namespace http://diggsml.org/schema-dev
Annotations

A reference to a CushionElement object that contains
properties for a cushion element.
Diagram
DiagramPiling_xsd_Element_diggs_CushionElement.tmp#CushionElementPiling_xsd_Complex_Type_diggs_CushionElementPropertyType.tmp#CushionElementPropertyType
Type diggs:CushionElementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:CushionElement
Instance

<diggs:cushionElement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:CushionElement gml:id="">{1,1}</diggs:CushionElement>
</diggs:cushionElement>
Source

<element minOccurs="0" name="cushionElement" maxOccurs="unbounded" type="diggs:CushionElementPropertyType">
  <annotation>
    <documentation>A reference to a CushionElement object that contains properties for a cushion element.</documentation>
  </annotation>
</element>

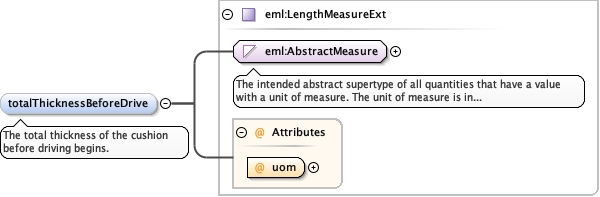

Element diggs:CushionType / diggs:totalThicknessBeforeDrive
Namespace http://diggsml.org/schema-dev
Annotations

The total thickness of the cushion before driving
begins.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="totalThicknessBeforeDrive" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The total thickness of the cushion before driving begins.</documentation>
  </annotation>
</element>

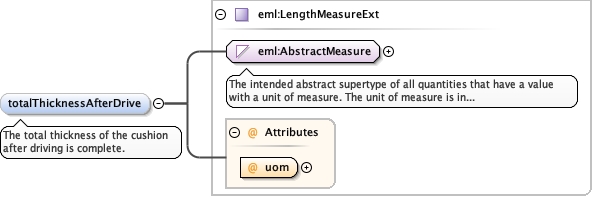

Element diggs:CushionType / diggs:totalThicknessAfterDrive
Namespace http://diggsml.org/schema-dev
Annotations

The total thickness of the cushion after driving is
complete.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="totalThicknessAfterDrive" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The total thickness of the cushion after driving is complete.</documentation>
  </annotation>
</element>

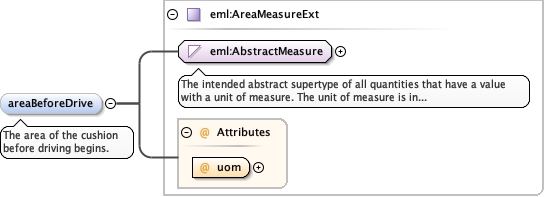

Element diggs:CushionType / diggs:areaBeforeDrive
Namespace http://diggsml.org/schema-dev
Annotations

The area of the cushion before driving
begins.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt_uomMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt
Type eml:AreaMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUomExt required
Source

<element minOccurs="0" name="areaBeforeDrive" type="eml:AreaMeasureExt">
  <annotation>
    <documentation>The area of the cushion before driving begins.</documentation>
  </annotation>
</element>

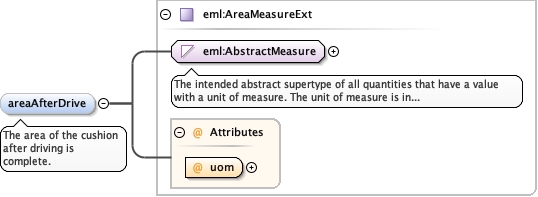

Element diggs:CushionType / diggs:areaAfterDrive
Namespace http://diggsml.org/schema-dev
Annotations

The area of the cushion after driving is
complete.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt_uomMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt
Type eml:AreaMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUomExt required
Source

<element minOccurs="0" name="areaAfterDrive" type="eml:AreaMeasureExt">
  <annotation>
    <documentation>The area of the cushion after driving is complete.</documentation>
  </annotation>
</element>
Element diggs:CushionType / diggs:coefficientOfRestitution
Namespace http://diggsml.org/schema-dev
Annotations

A value between 0 and 1 describing the energy returned
after impact, 1 is a perfectly elastic impact and 0 is a perfectly
plastic impact.
Diagram
DiagramPiling_xsd_Simple_Type_diggs_value0to1ValueType.tmp#value0to1ValueType
Type diggs:value0to1ValueType
Properties
content simple
minOccurs 0
Facets
maxInclusive 1
minInclusive 0
Source

<element minOccurs="0" name="coefficientOfRestitution" type="diggs:value0to1ValueType">
  <annotation>
    <documentation>A value between 0 and 1 describing the energy returned after impact, 1 is a perfectly elastic impact and 0 is a perfectly plastic impact.</documentation>
  </annotation>
</element>

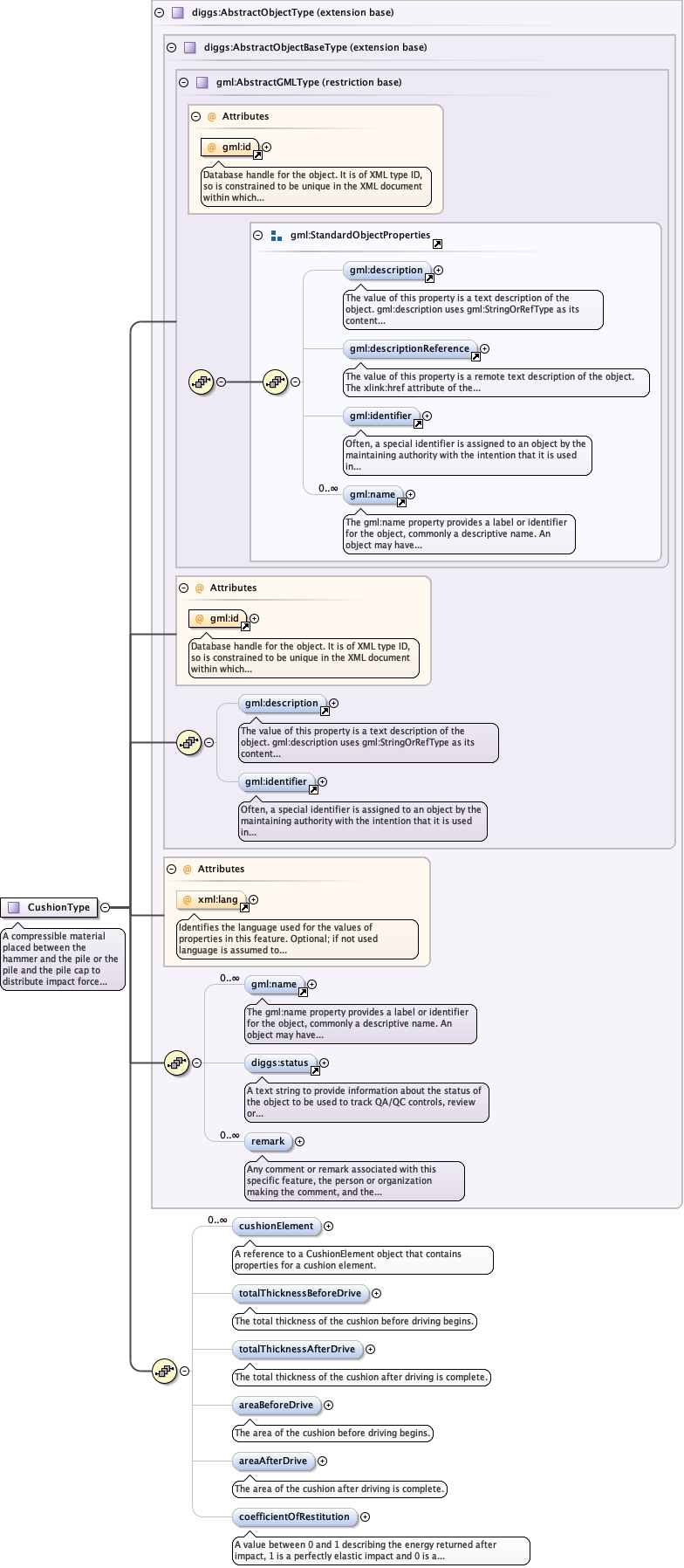

Complex Type diggs:CushionType
Namespace http://diggsml.org/schema-dev
Annotations

A compressible material placed between the hammer and the pile or the
pile and the pile cap to distribute impact force and reduce damage.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypePiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_cushionElementPiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_totalThicknessBeforeDrivePiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_totalThicknessAfterDrivePiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_areaBeforeDrivePiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_areaAfterDrivePiling_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_coefficientOfRestitution
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
mixed false
Used by
Element diggs:Cushion
Model
Children diggs:areaAfterDrive, diggs:areaBeforeDrive, diggs:coefficientOfRestitution, diggs:cushionElement, diggs:remark, diggs:status, diggs:totalThicknessAfterDrive, diggs:totalThicknessBeforeDrive, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="CushionType">
  <annotation>
    <documentation>A compressible material placed between the hammer and the pile or the pile and the pile cap to distribute impact force and reduce damage.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="cushionElement" maxOccurs="unbounded" type="diggs:CushionElementPropertyType">
          <annotation>
            <documentation>A reference to a CushionElement object that contains properties for a cushion element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalThicknessBeforeDrive" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The total thickness of the cushion before driving begins.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalThicknessAfterDrive" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The total thickness of the cushion after driving is complete.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="areaBeforeDrive" type="eml:AreaMeasureExt">
          <annotation>
            <documentation>The area of the cushion before driving begins.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="areaAfterDrive" type="eml:AreaMeasureExt">
          <annotation>
            <documentation>The area of the cushion after driving is complete.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="coefficientOfRestitution" type="diggs:value0to1ValueType">
          <annotation>
            <documentation>A value between 0 and 1 describing the energy returned after impact, 1 is a perfectly elastic impact and 0 is a perfectly plastic impact.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
