Element diggs:PumpingTestReadingType / diggs:trialNo
Namespace http://diggsml.org/schema-dev
Annotations

The count of the test cycle
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The count of the test cycle</documentation>
  </annotation>
</element>
Element diggs:PumpingTestReadingType / diggs:dateTimeOfReading
Namespace http://diggsml.org/schema-dev
Annotations

Date and time of reading.
Diagram
Diagram
Type dateTime
Properties
content simple
minOccurs 0
Source

<element name="dateTimeOfReading" type="dateTime" minOccurs="0">
  <annotation>
    <documentation>Date and time of reading.</documentation>
  </annotation>
</element>

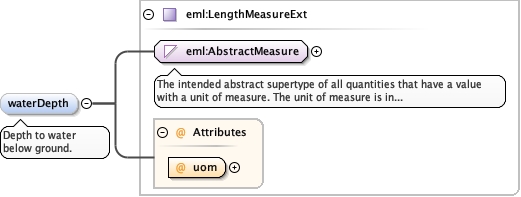

Element diggs:PumpingTestReadingType / diggs:waterDepth
Namespace http://diggsml.org/schema-dev
Annotations

Depth to water below ground.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="waterDepth" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Depth to water below ground.</documentation>
  </annotation>
</element>

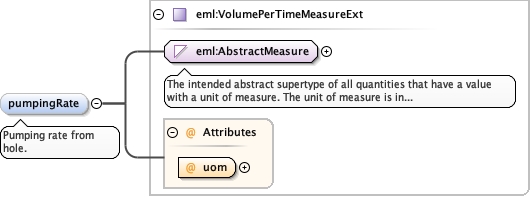

Element diggs:PumpingTestReadingType / diggs:pumpingRate
Namespace http://diggsml.org/schema-dev
Annotations

Pumping rate from hole.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasureExt.tmp#VolumePerTimeMeasureExt_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasureExt.tmp#VolumePerTimeMeasureExt
Type eml:VolumePerTimeMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUomExt required
Source

<element name="pumpingRate" type="eml:VolumePerTimeMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Pumping rate from hole.</documentation>
  </annotation>
</element>

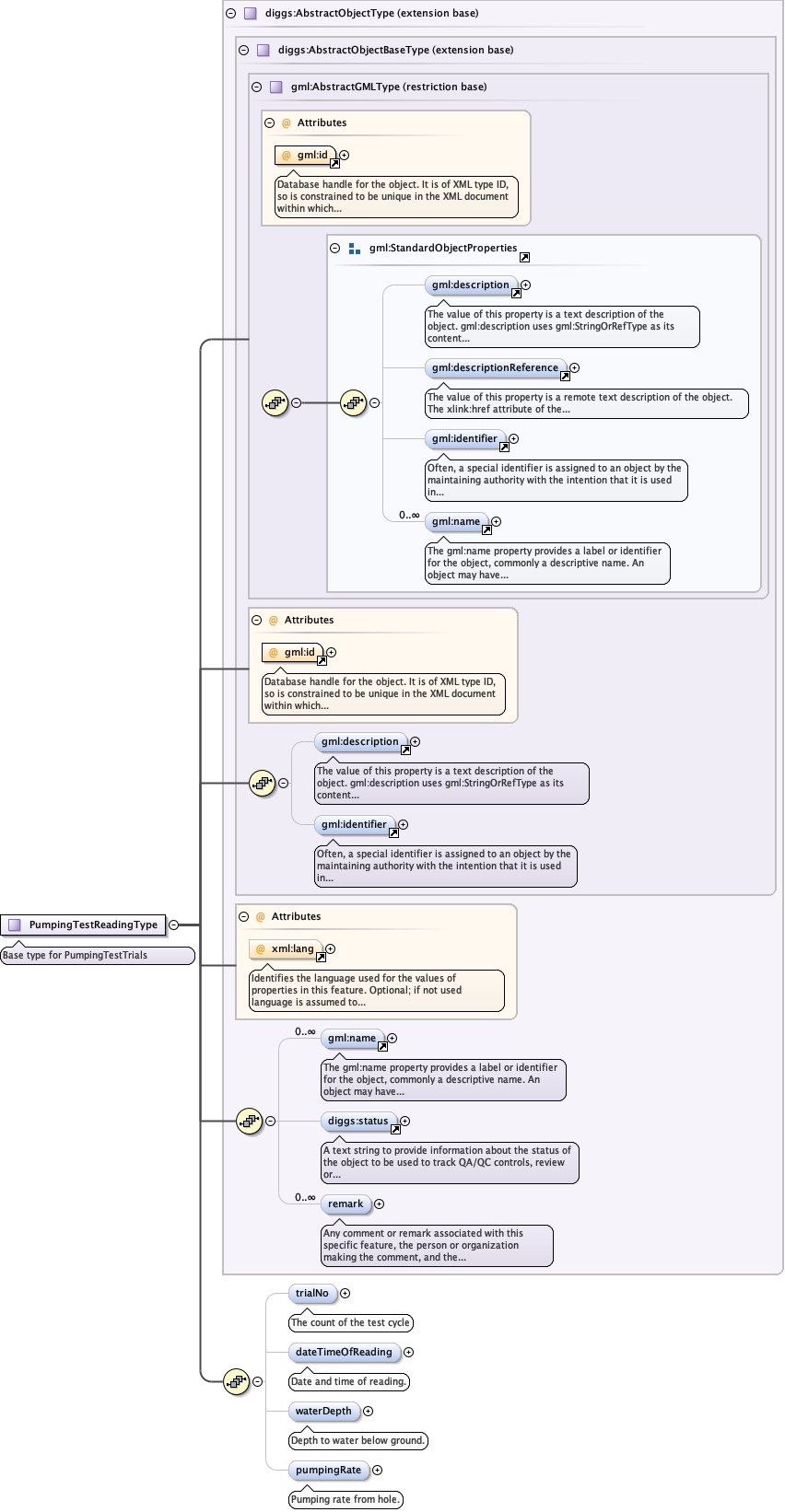

Complex Type diggs:PumpingTestReadingType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for PumpingTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeBetaProcedures_xsd_Complex_Type_diggs_PumpingTestReadingType.tmp#PumpingTestReadingType_trialNoBetaProcedures_xsd_Complex_Type_diggs_PumpingTestReadingType.tmp#PumpingTestReadingType_dateTimeOfReadingBetaProcedures_xsd_Complex_Type_diggs_PumpingTestReadingType.tmp#PumpingTestReadingType_waterDepthBetaProcedures_xsd_Complex_Type_diggs_PumpingTestReadingType.tmp#PumpingTestReadingType_pumpingRate
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:dateTimeOfReading, diggs:pumpingRate, diggs:remark, diggs:status, diggs:trialNo, diggs:waterDepth, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="PumpingTestReadingType">
  <annotation>
    <documentation>Base type for PumpingTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The count of the test cycle</documentation>
          </annotation>
        </element>
        <element name="dateTimeOfReading" type="dateTime" minOccurs="0">
          <annotation>
            <documentation>Date and time of reading.</documentation>
          </annotation>
        </element>
        <element name="waterDepth" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Depth to water below ground.</documentation>
          </annotation>
        </element>
        <element name="pumpingRate" type="eml:VolumePerTimeMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Pumping rate from hole.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
