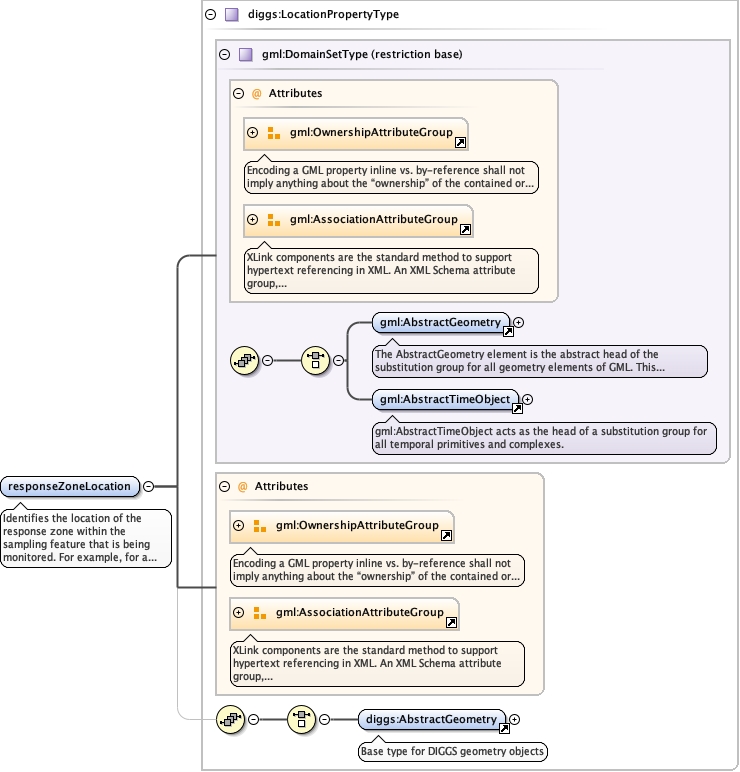

Element diggs:ReadingType / diggs:responseZoneLocation
Namespace http://diggsml.org/schema-dev
Annotations

Identifies the location of the response zone within
the sampling feature that is being monitored. For example, for a
water level measurement, the location would be the depth
interval in the well where perforations are located (or where
water enters the well)
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_AbstractGeometry.tmp#http___diggsml.org_schema-dev_AbstractGeometryKernel_xsd_Complex_Type_diggs_LocationPropertyType.tmp#LocationPropertyType
Type diggs:LocationPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:AbstractGeometry
Instance

<diggs:responseZoneLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractGeometry axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractGeometry>
</diggs:responseZoneLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="responseZoneLocation" type="diggs:LocationPropertyType">
  <annotation>
    <documentation>Identifies the location of the response zone within the sampling feature that is being monitored. For example, for a water level measurement, the location would be the depth interval in the well where perforations are located (or where water enters the well)</documentation>
  </annotation>
</element>

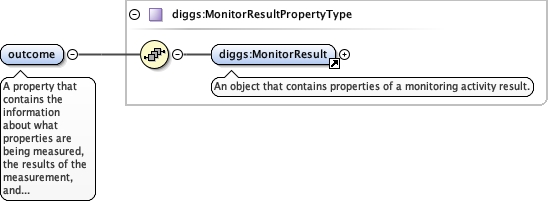

Element diggs:ReadingType / diggs:outcome
Namespace http://diggsml.org/schema-dev
Annotations

A property that contains the information about what
properties are being measured, the results of the measurement, and
the associated locations that the measurement results relate
to.
Diagram
DiagramKernel_xsd_Element_diggs_MonitorResult.tmp#MonitorResultKernel_xsd_Complex_Type_diggs_MonitorResultPropertyType.tmp#MonitorResultPropertyType
Type diggs:MonitorResultPropertyType
Properties
content complex
Model
Children diggs:MonitorResult
Instance

<diggs:outcome xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:MonitorResult gml:id="">{1,1}</diggs:MonitorResult>
</diggs:outcome>
Source

<element name="outcome" type="diggs:MonitorResultPropertyType">
  <annotation>
    <documentation>A property that contains the information about what properties are being measured, the results of the measurement, and the associated locations that the measurement results relate to.</documentation>
  </annotation>
</element>
Element diggs:ReadingType / diggs:sensor
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_Sensor.tmp#SensorKernel_xsd_Complex_Type_diggs_SensorPropertyType.tmp#SensorPropertyType
Type diggs:SensorPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Sensor
Instance

<diggs:sensor xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Sensor xlink:actuate="" xlink:arcrole="" xlink:href="" gml:id="" xml:lang="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:Sensor>
</diggs:sensor>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="sensor" type="diggs:SensorPropertyType" maxOccurs="unbounded" minOccurs="0"/>

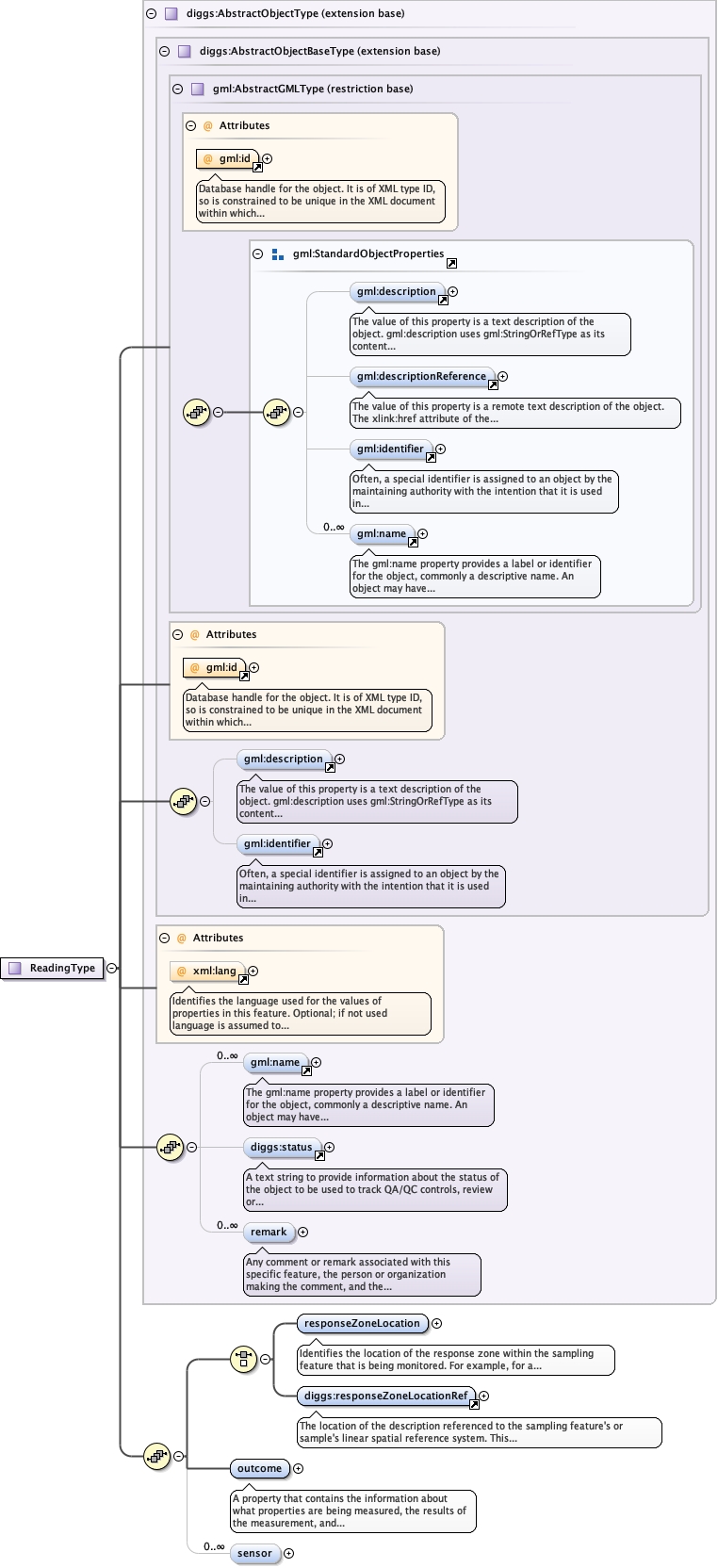

Complex Type diggs:ReadingType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ReadingType.tmp#ReadingType_responseZoneLocationDeprecated_xsd_Element_diggs_responseZoneLocationRef.tmp#responseZoneLocationRefKernel_xsd_Complex_Type_diggs_ReadingType.tmp#ReadingType_outcomeKernel_xsd_Complex_Type_diggs_ReadingType.tmp#ReadingType_sensor
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Reading
Model
Children diggs:outcome, diggs:remark, diggs:responseZoneLocation, diggs:responseZoneLocationRef, diggs:sensor, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ReadingType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <choice>
          <element name="responseZoneLocation" type="diggs:LocationPropertyType">
            <annotation>
              <documentation>Identifies the location of the response zone within the sampling feature that is being monitored. For example, for a water level measurement, the location would be the depth interval in the well where perforations are located (or where water enters the well)</documentation>
            </annotation>
          </element>
          <element minOccurs="1" ref="diggs:responseZoneLocationRef">
            <annotation>
              <documentation>The location of the description referenced to the sampling feature's or sample's linear spatial reference system. This is deprecated in favor of using an xlink:href attribute in the resposeZoneLocation property.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="outcome" type="diggs:MonitorResultPropertyType">
          <annotation>
            <documentation>A property that contains the information about what properties are being measured, the results of the measurement, and the associated locations that the measurement results relate to.</documentation>
          </annotation>
        </element>
        <element name="sensor" type="diggs:SensorPropertyType" maxOccurs="unbounded" minOccurs="0"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
