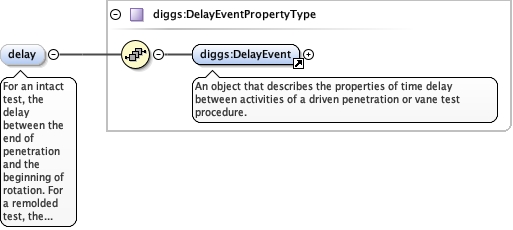

Element diggs:VaneTestMeasurementDataType / diggs:delay
Namespace http://diggsml.org/schema-dev
Annotations

For an intact test, the delay between the end of
penetration and the beginning of rotation. For a remolded test, the
time between the end of remolding and the beginning of
rotation.
Diagram
DiagramKernel_xsd_Element_diggs_DelayEvent.tmp#DelayEventKernel_xsd_Complex_Type_diggs_DelayEventPropertyType.tmp#DelayEventPropertyType
Type diggs:DelayEventPropertyType
Properties
content complex
minOccurs 0
Model
diggs:DelayEvent
Children diggs:DelayEvent
Instance

<diggs:delay xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DelayEvent gml:id="" xml:lang="">{1,1}</diggs:DelayEvent>
</diggs:delay>
Source

<element name="delay" type="diggs:DelayEventPropertyType" minOccurs="0">
  <annotation>
    <documentation>For an intact test, the delay between the end of penetration and the beginning of rotation. For a remolded test, the time between the end of remolding and the beginning of rotation.</documentation>
  </annotation>
</element>

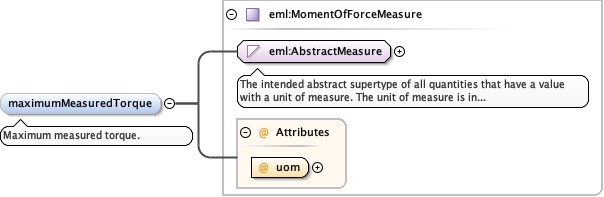

Element diggs:VaneTestMeasurementDataType / diggs:maximumMeasuredTorque
Namespace http://diggsml.org/schema-dev
Annotations

Maximum measured torque.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<element minOccurs="0" name="maximumMeasuredTorque" type="eml:MomentOfForceMeasure">
  <annotation>
    <documentation>Maximum measured torque.</documentation>
  </annotation>
</element>
Element diggs:VaneTestMeasurementDataType / diggs:remoldedRevolutions
Namespace http://diggsml.org/schema-dev
Annotations

If test done in remolded soil, the number of rotations of
the device to produce the remolding.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element minOccurs="0" name="remoldedRevolutions" type="positiveInteger" maxOccurs="1">
  <annotation>
    <documentation>If test done in remolded soil, the number of rotations of the device to produce the remolding.</documentation>
  </annotation>
</element>

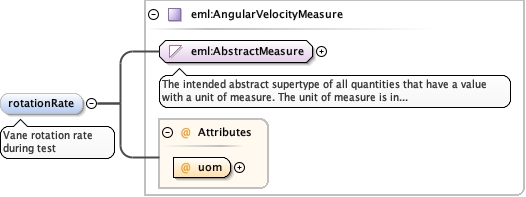

Element diggs:VaneTestMeasurementDataType / diggs:rotationRate
Namespace http://diggsml.org/schema-dev
Annotations

Vane rotation rate during test
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure_uomMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure
Type eml:AngularVelocityMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AngularVelocityUom required
Source

<element minOccurs="0" name="rotationRate" type="eml:AngularVelocityMeasure">
  <annotation>
    <documentation>Vane rotation rate during test</documentation>
  </annotation>
</element>

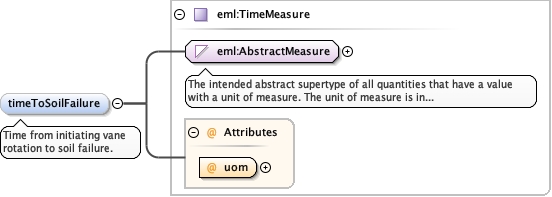

Element diggs:VaneTestMeasurementDataType / diggs:timeToSoilFailure
Namespace http://diggsml.org/schema-dev
Annotations

Time from initiating vane rotation to soil
failure.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="timeToSoilFailure" type="eml:TimeMeasure">
  <annotation>
    <documentation>Time from initiating vane rotation to soil failure.</documentation>
  </annotation>
</element>

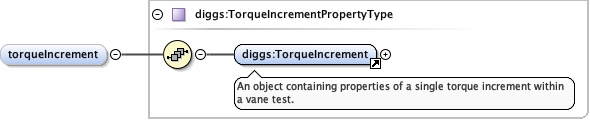

Element diggs:VaneTestMeasurementDataType / diggs:torqueIncrement
Namespace http://diggsml.org/schema-dev
Annotations
Diagram
DiagramTestProcedures_xsd_Element_diggs_TorqueIncrement.tmp#http___diggsml.org_schema-dev_TorqueIncrementTestProcedures_xsd_Complex_Type_diggs_TorqueIncrementPropertyType.tmp#http___diggsml.org_schema-dev_TorqueIncrementPropertyType
Type diggs:TorqueIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:TorqueIncrement
Children diggs:TorqueIncrement
Instance

<diggs:torqueIncrement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TorqueIncrement gml:id="" xml:lang="">{1,1}</diggs:TorqueIncrement>
</diggs:torqueIncrement>
Source

<element minOccurs="0" name="torqueIncrement" type="diggs:TorqueIncrementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation/>
  </annotation>
</element>

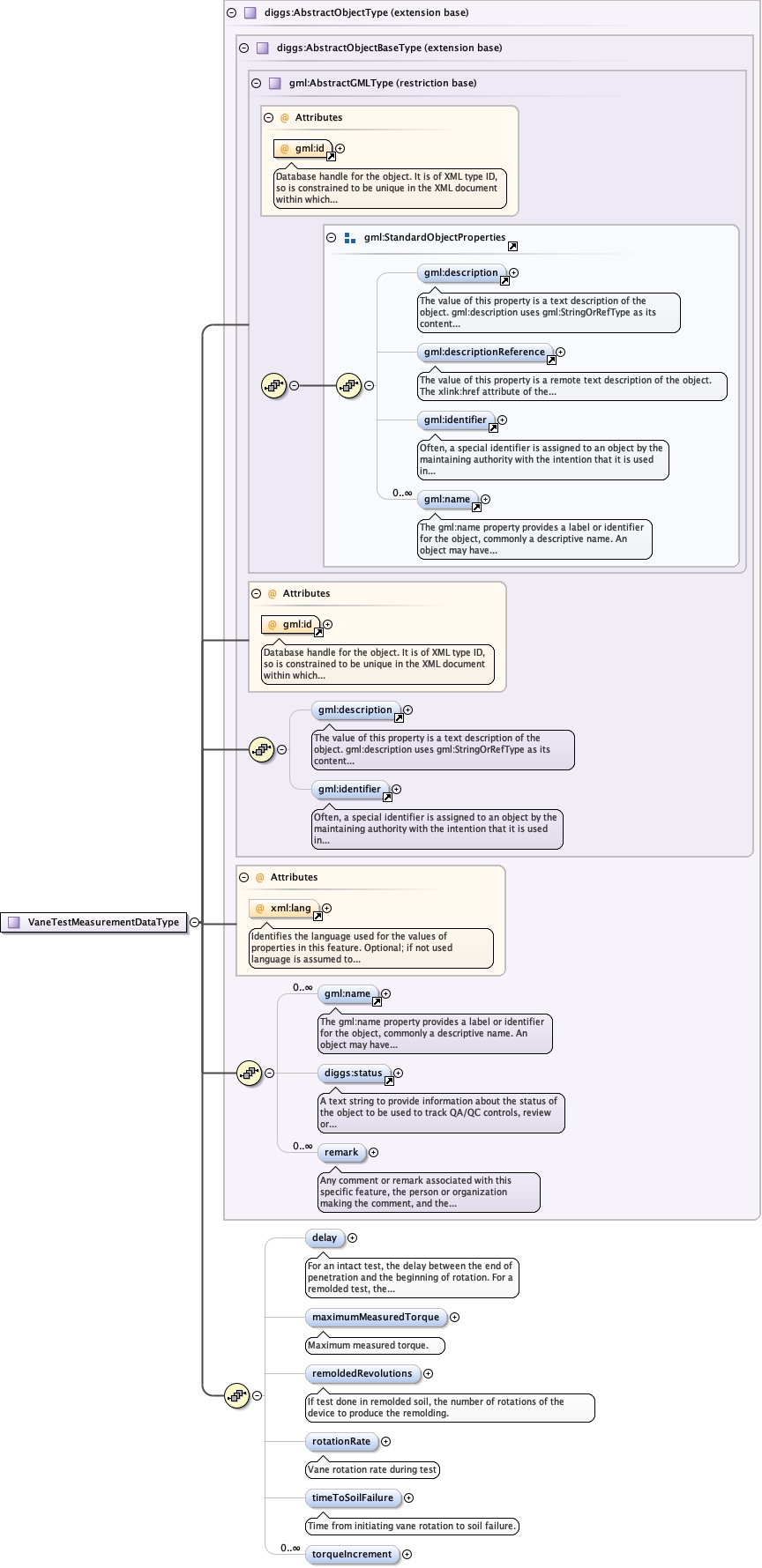

Complex Type diggs:VaneTestMeasurementDataType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_delayTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_maximumMeasuredTorqueTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_remoldedRevolutionsTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_rotationRateTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_timeToSoilFailureTestProcedures_xsd_Complex_Type_diggs_VaneTestMeasurementDataType.tmp#http___diggsml.org_schema-dev_VaneTestMeasurementDataType_torqueIncrement
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:VaneTestMeasurementData
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:delay{0,1} , diggs:maximumMeasuredTorque{0,1} , diggs:remoldedRevolutions{0,1} , diggs:rotationRate{0,1} , diggs:timeToSoilFailure{0,1} , diggs:torqueIncrement*
Children diggs:delay, diggs:maximumMeasuredTorque, diggs:remark, diggs:remoldedRevolutions, diggs:rotationRate, diggs:status, diggs:timeToSoilFailure, diggs:torqueIncrement, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="VaneTestMeasurementDataType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="delay" type="diggs:DelayEventPropertyType" minOccurs="0">
          <annotation>
            <documentation>For an intact test, the delay between the end of penetration and the beginning of rotation. For a remolded test, the time between the end of remolding and the beginning of rotation.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maximumMeasuredTorque" type="eml:MomentOfForceMeasure">
          <annotation>
            <documentation>Maximum measured torque.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="remoldedRevolutions" type="positiveInteger" maxOccurs="1">
          <annotation>
            <documentation>If test done in remolded soil, the number of rotations of the device to produce the remolding.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rotationRate" type="eml:AngularVelocityMeasure">
          <annotation>
            <documentation>Vane rotation rate during test</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="timeToSoilFailure" type="eml:TimeMeasure">
          <annotation>
            <documentation>Time from initiating vane rotation to soil failure.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueIncrement" type="diggs:TorqueIncrementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation/>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
