Element diggs:ComponentLithologyType / diggs:lithology
Namespace http://diggsml.org/schema-dev
Annotations

A property that contains a ComponentLith object that describes the component lithology.

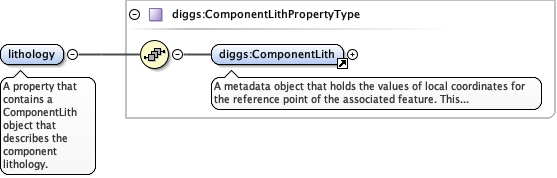

Diagram
DiagramKernel_xsd_Element_diggs_ComponentLith.tmp#ComponentLithKernel_xsd_Complex_Type_diggs_ComponentLithPropertyType.tmp#ComponentLithPropertyType
Type diggs:ComponentLithPropertyType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children diggs:ComponentLith
Instance

<diggs:lithology xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:ComponentLith gml:id="" xml:lang="">{1,1}</diggs:ComponentLith>
</diggs:lithology>
Source

<element maxOccurs="1" minOccurs="1" name="lithology" type="diggs:ComponentLithPropertyType">
  <annotation>
    <documentation>A property that contains a ComponentLith object that describes the component lithology.</documentation>
  </annotation>
</element>
Element diggs:ComponentLithologyType / diggs:abundanceCode
Namespace http://diggsml.org/schema-dev
Annotations

A measure of the relative amount of the subordinate lithology present as a string, Terms such as few, rare, common, etc. represent relative abundance as a range of percentages that are specific to different standards bodies, so the use of these terms should reference a codelist dictionary using the codeSpace attribute.. Specific percentage estimates should use the abundancePercent and/or maxAbundancePercent properties.

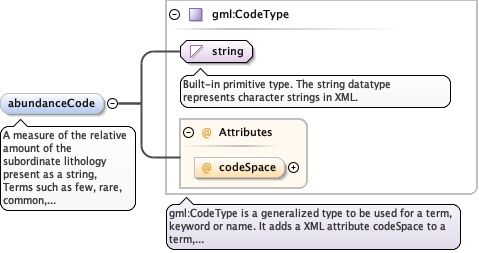

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="abundanceCode" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>A measure of the relative amount of the subordinate lithology present as a string, Terms such as few, rare, common, etc. represent relative abundance as a range of percentages that are specific to different standards bodies, so the use of these terms should reference a codelist dictionary using the codeSpace attribute.. Specific percentage estimates should use the abundancePercent and/or maxAbundancePercent properties.</documentation>
  </annotation>
</element>
Element diggs:ComponentLithologyType / diggs:abundancePercent
Namespace http://diggsml.org/schema-dev
Annotations

A measure of the amount of the lithologic component present, expressed as a percentage. If expressing the percentage as a range - eg. 30-50%, this property should report the lower estimate and maxAbuncancePercentage should be used to report the upper estimate.

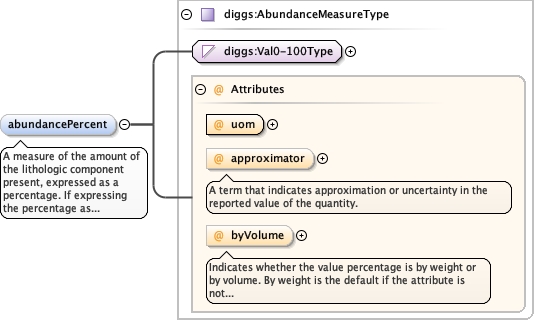

Diagram
DiagramKernel_xsd_Simple_Type_diggs_Val0-100Type.tmp#Val0-100TypeKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_uomKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_approximatorKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_byVolumeKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType
Type diggs:AbundanceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
approximator diggs:ApproximatorEnumExtType optional
A term that indicates approximation or uncertainty in the reported value of the quantity.
byVolume boolean optional
Indicates whether the value percentage is by weight or by volume. By weight is the default if the attribute is not present. True indicates that the percentage is by volume.
uom eml:DimensionlessUom required
Source

<element name="abundancePercent" type="diggs:AbundanceMeasureType" minOccurs="0">
  <annotation>
    <documentation>A measure of the amount of the lithologic component present, expressed as a percentage. If expressing the percentage as a range - eg. 30-50%, this property should report the lower estimate and maxAbuncancePercentage should be used to report the upper estimate.</documentation>
  </annotation>
</element>
Element diggs:ComponentLithologyType / diggs:maxAbundancePercent
Namespace http://diggsml.org/schema-dev
Annotations

If expressing the percentage of the lithologic component as a range - eg. 30-50%, this property should report the the upper estimate.

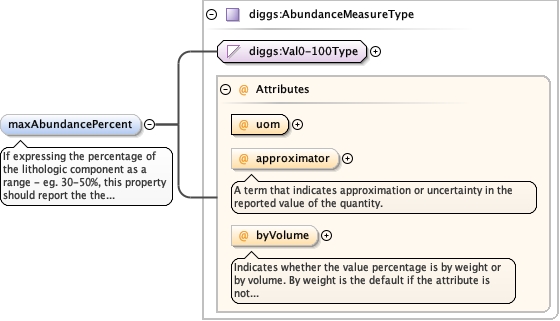

Diagram
DiagramKernel_xsd_Simple_Type_diggs_Val0-100Type.tmp#Val0-100TypeKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_uomKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_approximatorKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType_byVolumeKernel_xsd_Complex_Type_diggs_AbundanceMeasureType.tmp#AbundanceMeasureType
Type diggs:AbundanceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
approximator diggs:ApproximatorEnumExtType optional
A term that indicates approximation or uncertainty in the reported value of the quantity.
byVolume boolean optional
Indicates whether the value percentage is by weight or by volume. By weight is the default if the attribute is not present. True indicates that the percentage is by volume.
uom eml:DimensionlessUom required
Source

<element name="maxAbundancePercent" type="diggs:AbundanceMeasureType" minOccurs="0">
  <annotation>
    <documentation>If expressing the percentage of the lithologic component as a range - eg. 30-50%, this property should report the the upper estimate.</documentation>
  </annotation>
</element>
Complex Type diggs:ComponentLithologyType
Namespace http://diggsml.org/schema-dev

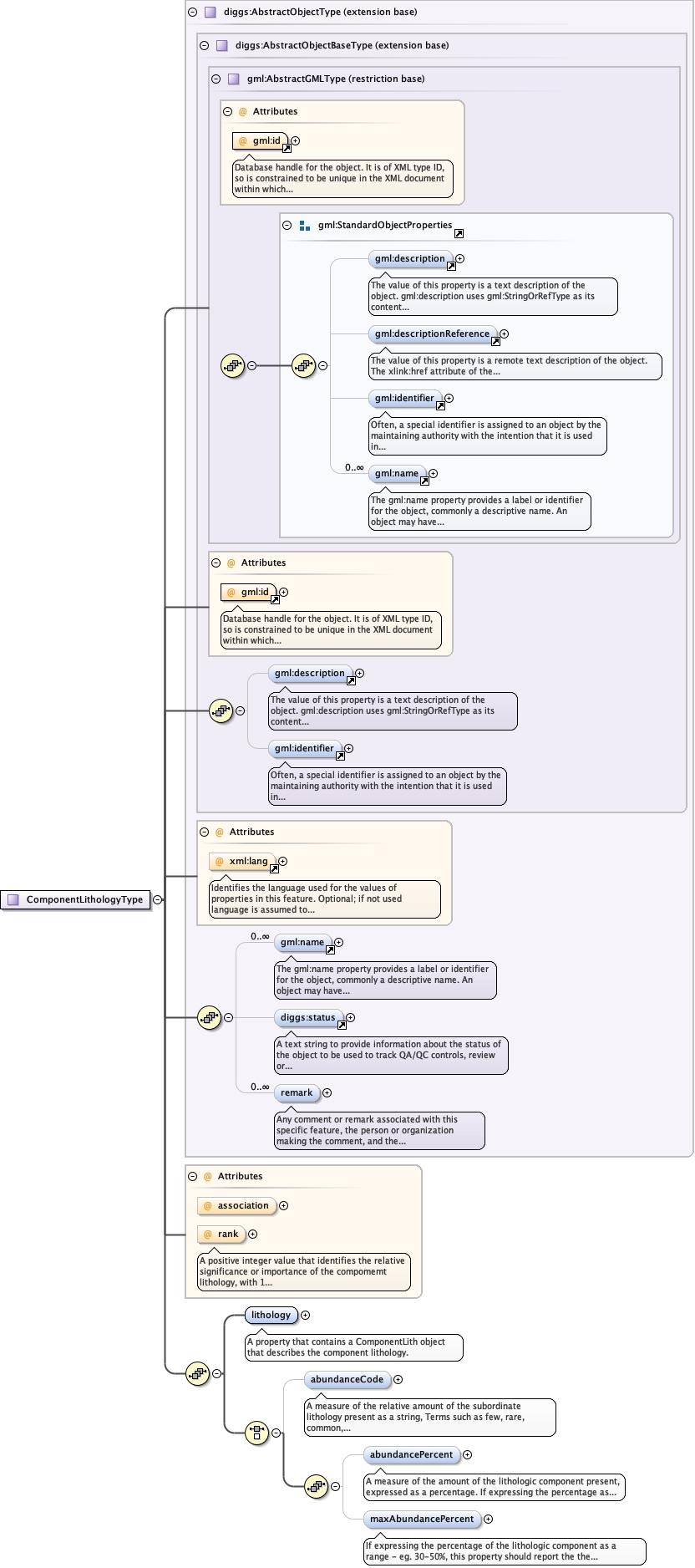

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_associationKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_rankKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_lithologyKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundanceCodeKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundancePercentKernel_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_maxAbundancePercent
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:lithology, diggs:maxAbundancePercent, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
association diggs:LithologyCharacterEnumExtType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
rank positiveInteger optional
A positive integer value that identifies the relative significance or importance of the compomemt lithology, with 1 signifying the highest rank. Using this attribute eliminates possible ambiguity when using abundanceCode to infer significance.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ComponentLithologyType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence maxOccurs="1" minOccurs="1">
        <element maxOccurs="1" minOccurs="1" name="lithology" type="diggs:ComponentLithPropertyType">
          <annotation>
            <documentation>A property that contains a ComponentLith object that describes the component lithology.</documentation>
          </annotation>
        </element>
        <choice>
          <element name="abundanceCode" type="gml:CodeType" minOccurs="0">
            <annotation>
              <documentation>A measure of the relative amount of the subordinate lithology present as a string, Terms such as few, rare, common, etc. represent relative abundance as a range of percentages that are specific to different standards bodies, so the use of these terms should reference a codelist dictionary using the codeSpace attribute.. Specific percentage estimates should use the abundancePercent and/or maxAbundancePercent properties.</documentation>
            </annotation>
          </element>
          <sequence>
            <element name="abundancePercent" type="diggs:AbundanceMeasureType" minOccurs="0">
              <annotation>
                <documentation>A measure of the amount of the lithologic component present, expressed as a percentage. If expressing the percentage as a range - eg. 30-50%, this property should report the lower estimate and maxAbuncancePercentage should be used to report the upper estimate.</documentation>
              </annotation>
            </element>
            <element name="maxAbundancePercent" type="diggs:AbundanceMeasureType" minOccurs="0">
              <annotation>
                <documentation>If expressing the percentage of the lithologic component as a range - eg. 30-50%, this property should report the the upper estimate.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
      </sequence>
      <attribute name="association" type="diggs:LithologyCharacterEnumExtType"/>
      <attribute name="rank" type="positiveInteger" use="optional">
        <annotation>
          <documentation>A positive integer value that identifies the relative significance or importance of the compomemt lithology, with 1 signifying the highest rank. Using this attribute eliminates possible ambiguity when using abundanceCode to infer significance.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:ComponentLithologyType / @association
Namespace No namespace
Type diggs:LithologyCharacterEnumExtType
Properties
content simple
Used by
Source

<attribute name="association" type="diggs:LithologyCharacterEnumExtType"/>
Attribute diggs:ComponentLithologyType / @rank
Namespace No namespace
Annotations

A positive integer value that identifies the relative significance or importance of the compomemt lithology, with 1 signifying the highest rank. Using this attribute eliminates possible ambiguity when using abundanceCode to infer significance.
Type positiveInteger
Properties
use optional
Used by
Source

<attribute name="rank" type="positiveInteger" use="optional">
  <annotation>
    <documentation>A positive integer value that identifies the relative significance or importance of the compomemt lithology, with 1 signifying the highest rank. Using this attribute eliminates possible ambiguity when using abundanceCode to infer significance.</documentation>
  </annotation>
</attribute>
