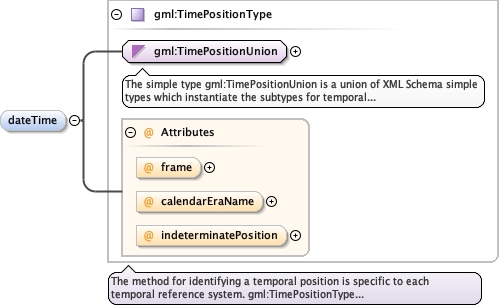

Element diggs:TemperatureMeasurementType / diggs:dateTime
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="dateTime" type="gml:TimePositionType"/>

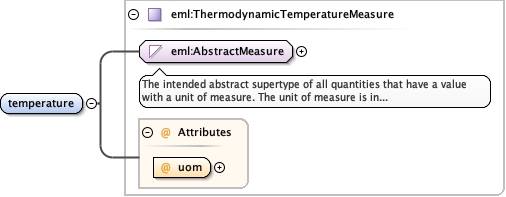

Element diggs:TemperatureMeasurementType / diggs:temperature
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element minOccurs="1" name="temperature" type="eml:ThermodynamicTemperatureMeasure"/>

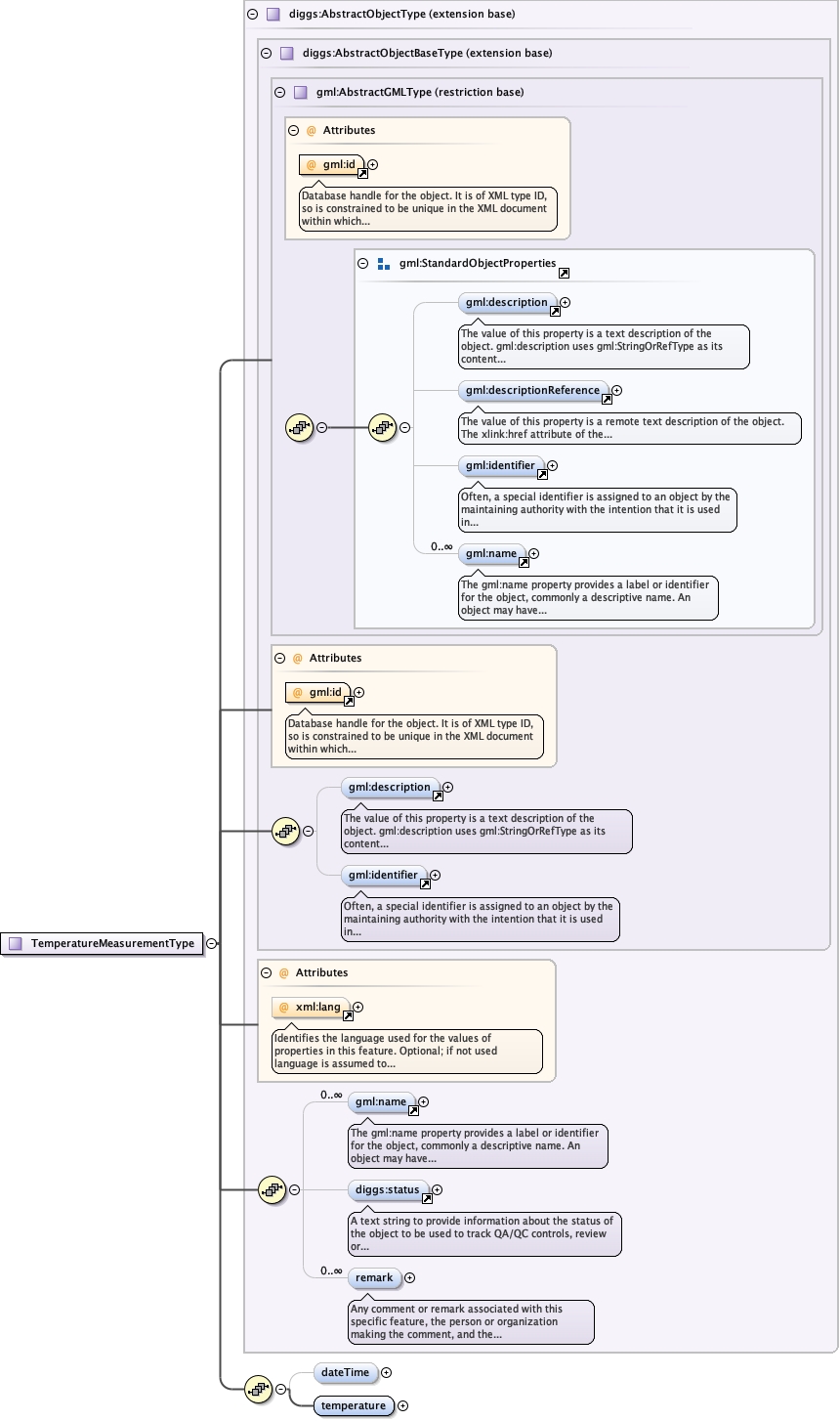

Complex Type diggs:TemperatureMeasurementType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_TemperatureMeasurementType.tmp#TemperatureMeasurementType_dateTimeKernel_xsd_Complex_Type_diggs_TemperatureMeasurementType.tmp#TemperatureMeasurementType_temperature
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:dateTime, diggs:remark, diggs:status, diggs:temperature, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TemperatureMeasurementType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" type="gml:TimePositionType"/>
        <element minOccurs="1" name="temperature" type="eml:ThermodynamicTemperatureMeasure"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
