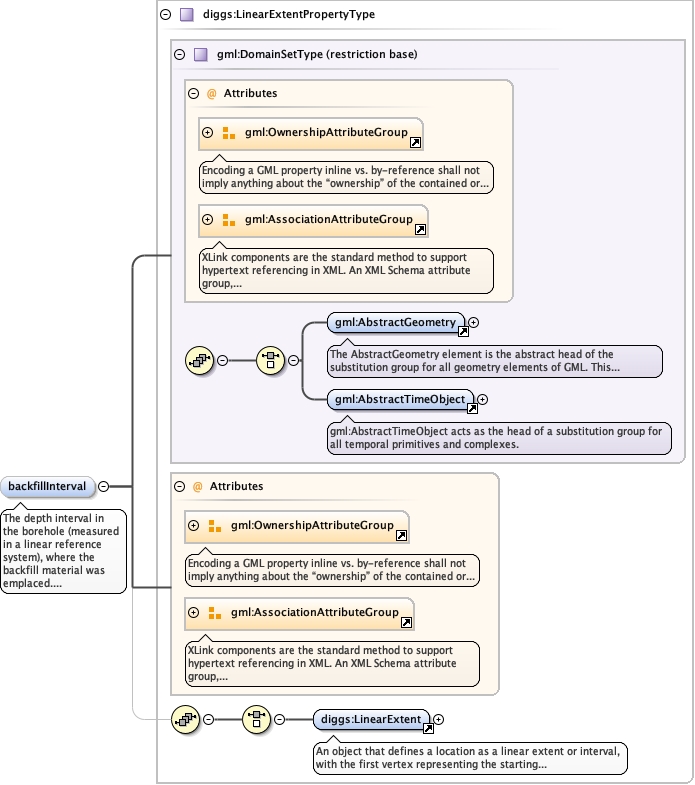

Element diggs:BackfillLayerType / diggs:backfillInterval
Namespace http://diggsml.org/schema-dev
Annotations

The depth interval in the borehole (measured in a linear
reference system), where the backfill material was emplaced. If
omitted, it is assumed that the backfill information pertains to the
entire length of the hole
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:LinearExtent
Instance

<diggs:backfillInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:backfillInterval>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="backfillInterval" type="diggs:LinearExtentPropertyType">
  <annotation>
    <documentation>The depth interval in the borehole (measured in a linear reference system), where the backfill material was emplaced. If omitted, it is assumed that the backfill information pertains to the entire length of the hole</documentation>
  </annotation>
</element>

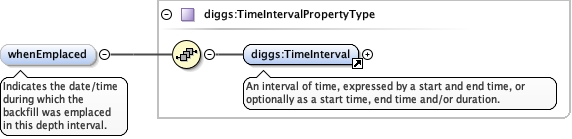

Element diggs:BackfillLayerType / diggs:whenEmplaced
Namespace http://diggsml.org/schema-dev
Annotations

Indicates the date/time during which the backfill was
emplaced in this depth interval.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:whenEmplaced xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:whenEmplaced>
Source

<element minOccurs="0" name="whenEmplaced" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>Indicates the date/time during which the backfill was emplaced in this depth interval.</documentation>
  </annotation>
</element>

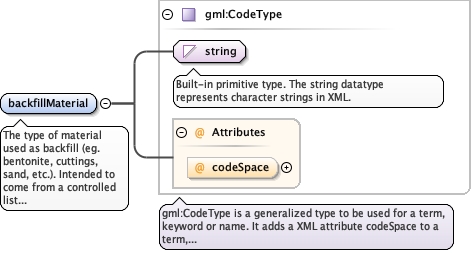

Element diggs:BackfillLayerType / diggs:backfillMaterial
Namespace http://diggsml.org/schema-dev
Annotations

The type of material used as backfill (eg. bentonite,
cuttings, sand, etc.). Intended to come from a controlled list
assigned to an authority.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="backfillMaterial" type="gml:CodeType">
  <annotation>
    <documentation>The type of material used as backfill (eg. bentonite, cuttings, sand, etc.). Intended to come from a controlled list assigned to an authority.</documentation>
  </annotation>
</element>
Element diggs:BackfillLayerType / diggs:isSanitarySeal
Namespace http://diggsml.org/schema-dev
Annotations

If true, identifies this backfill layer as a sanitary
seal.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element name="isSanitarySeal" type="boolean" minOccurs="0">
  <annotation>
    <documentation>If true, identifies this backfill layer as a sanitary seal.</documentation>
  </annotation>
</element>

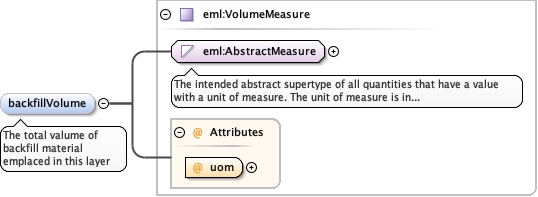

Element diggs:BackfillLayerType / diggs:backfillVolume
Namespace http://diggsml.org/schema-dev
Annotations

The total valume of backfill material emplaced in this
layer
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element name="backfillVolume" type="eml:VolumeMeasure" minOccurs="0">
  <annotation>
    <documentation>The total valume of backfill material emplaced in this layer</documentation>
  </annotation>
</element>

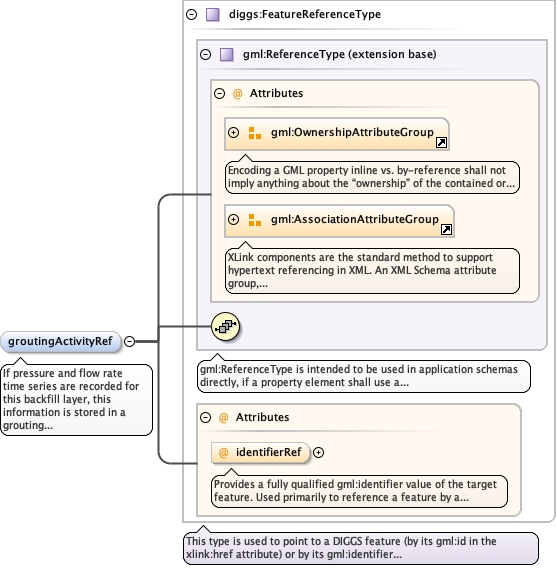

Element diggs:BackfillLayerType / diggs:groutingActivityRef
Namespace http://diggsml.org/schema-dev
Annotations

If pressure and flow rate time series are recorded for
this backfill layer, this information is stored in a grouting
activity feature. This property points to the grouting activity
corresponding to emplacement of this layer
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="groutingActivityRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo>diggs:GroutingActivity</appinfo>
    <documentation>If pressure and flow rate time series are recorded for this backfill layer, this information is stored in a grouting activity feature. This property points to the grouting activity corresponding to emplacement of this layer</documentation>
  </annotation>
</element>

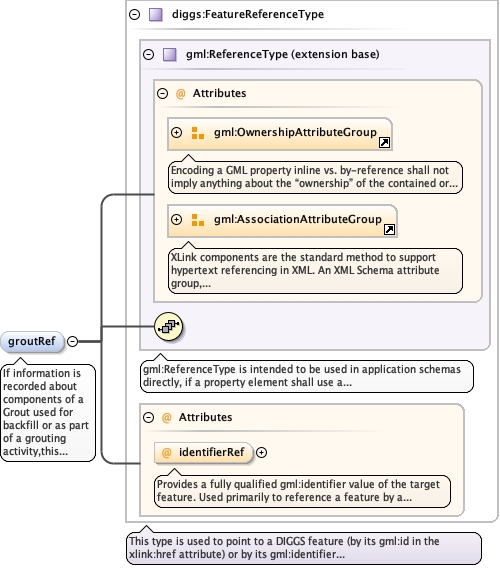

Element diggs:BackfillLayerType / diggs:groutRef
Namespace http://diggsml.org/schema-dev
Annotations

If information is recorded about components of a Grout
used for backfill or as part of a grouting activity,this property
points to the GroutBatch object corresponding to the grout batch
used in this backfill layer.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="groutRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo>diggs:GroutBatch</appinfo>
    <documentation>If information is recorded about components of a Grout used for backfill or as part of a grouting activity,this property points to the GroutBatch object corresponding to the grout batch used in this backfill layer.</documentation>
  </annotation>
</element>

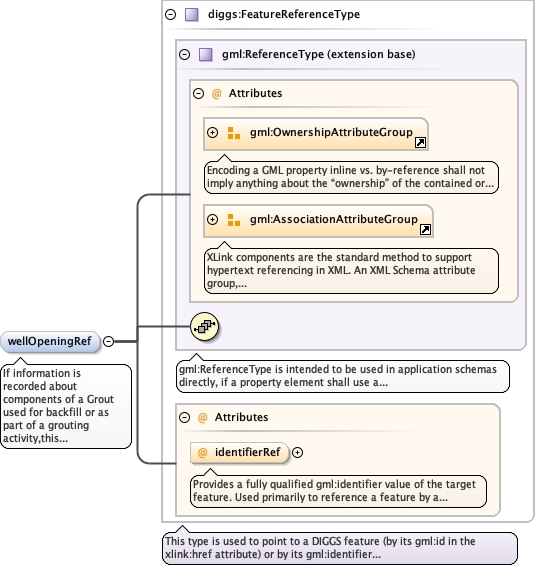

Element diggs:BackfillLayerType / diggs:wellOpeningRef
Namespace http://diggsml.org/schema-dev
Annotations

If information is recorded about components of a Grout
used for backfill or as part of a grouting activity,this property
points to the GroutBatch object corresponding to the grout batch
used in this backfill layer.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="wellOpeningRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo>diggs:GroutBatch</appinfo>
    <documentation>If information is recorded about components of a Grout used for backfill or as part of a grouting activity,this property points to the GroutBatch object corresponding to the grout batch used in this backfill layer.</documentation>
  </annotation>
</element>
Complex Type diggs:BackfillLayerType
Namespace http://diggsml.org/schema-dev

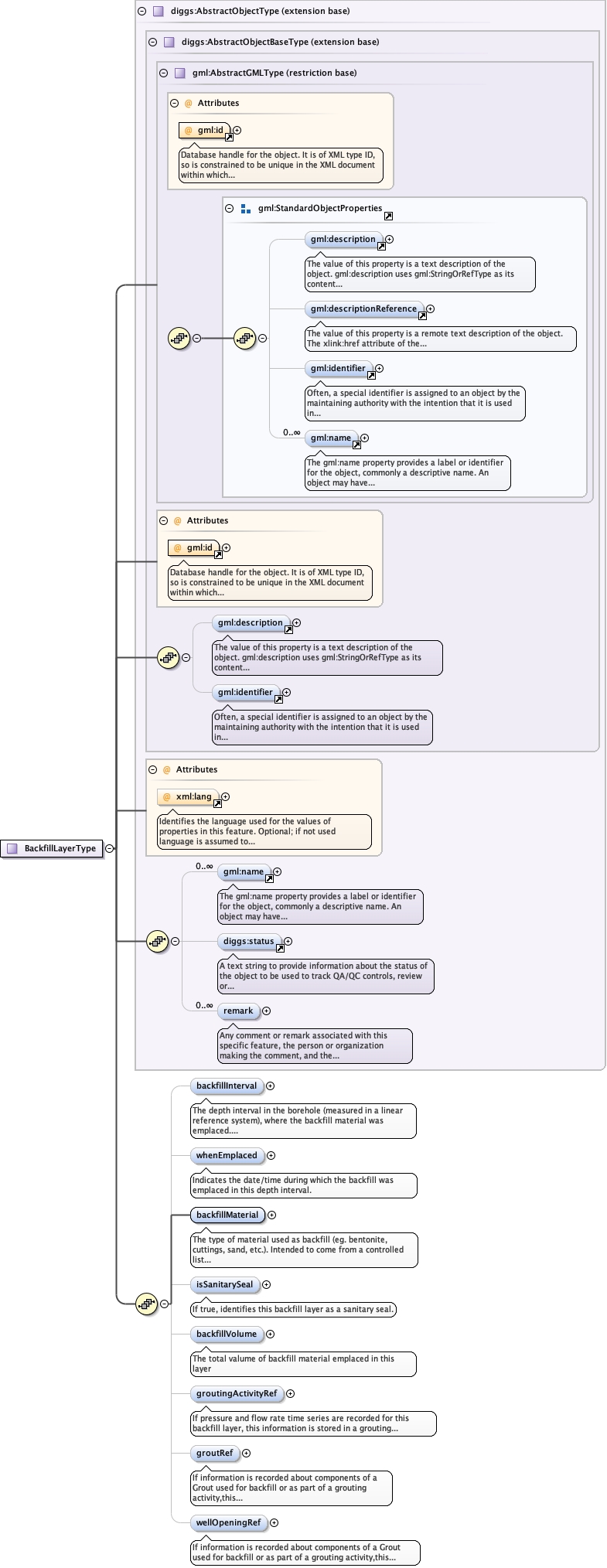

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillIntervalKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_whenEmplacedKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillMaterialKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_isSanitarySealKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillVolumeKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_groutingActivityRefKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_groutRefKernel_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_wellOpeningRef
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:backfillInterval, diggs:backfillMaterial, diggs:backfillVolume, diggs:groutRef, diggs:groutingActivityRef, diggs:isSanitarySeal, diggs:remark, diggs:status, diggs:wellOpeningRef, diggs:whenEmplaced, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="BackfillLayerType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="backfillInterval" type="diggs:LinearExtentPropertyType">
          <annotation>
            <documentation>The depth interval in the borehole (measured in a linear reference system), where the backfill material was emplaced. If omitted, it is assumed that the backfill information pertains to the entire length of the hole</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="whenEmplaced" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>Indicates the date/time during which the backfill was emplaced in this depth interval.</documentation>
          </annotation>
        </element>
        <element name="backfillMaterial" type="gml:CodeType">
          <annotation>
            <documentation>The type of material used as backfill (eg. bentonite, cuttings, sand, etc.). Intended to come from a controlled list assigned to an authority.</documentation>
          </annotation>
        </element>
        <element name="isSanitarySeal" type="boolean" minOccurs="0">
          <annotation>
            <documentation>If true, identifies this backfill layer as a sanitary seal.</documentation>
          </annotation>
        </element>
        <element name="backfillVolume" type="eml:VolumeMeasure" minOccurs="0">
          <annotation>
            <documentation>The total valume of backfill material emplaced in this layer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutingActivityRef" type="diggs:FeatureReferenceType">
          <annotation>
            <appinfo>diggs:GroutingActivity</appinfo>
            <documentation>If pressure and flow rate time series are recorded for this backfill layer, this information is stored in a grouting activity feature. This property points to the grouting activity corresponding to emplacement of this layer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutRef" type="diggs:FeatureReferenceType">
          <annotation>
            <appinfo>diggs:GroutBatch</appinfo>
            <documentation>If information is recorded about components of a Grout used for backfill or as part of a grouting activity,this property points to the GroutBatch object corresponding to the grout batch used in this backfill layer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wellOpeningRef" type="diggs:FeatureReferenceType">
          <annotation>
            <appinfo>diggs:GroutBatch</appinfo>
            <documentation>If information is recorded about components of a Grout used for backfill or as part of a grouting activity,this property points to the GroutBatch object corresponding to the grout batch used in this backfill layer.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
