Element diggs:TerminationCriteriaType / diggs:apparentLugeonValue
Namespace http://diggsml.org/schema-dev
Annotations

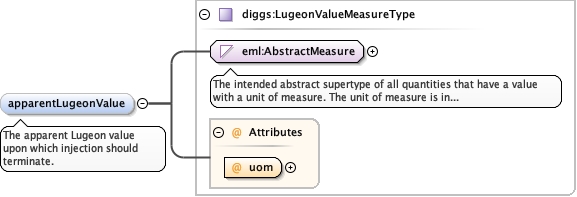

The apparent Lugeon value upon which injection should
terminate.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_LugeonValueMeasureType.tmp#LugeonValueMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LugeonValueMeasureType.tmp#LugeonValueMeasureType
Type diggs:LugeonValueMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:fixedLugeonValueUOM required
Source

<element minOccurs="0" name="apparentLugeonValue" type="diggs:LugeonValueMeasureType">
  <annotation>
    <documentation>The apparent Lugeon value upon which injection should terminate.</documentation>
  </annotation>
</element>
Element diggs:TerminationCriteriaType / diggs:crossCommunication
Namespace http://diggsml.org/schema-dev
Annotations

Value is true if cross-communication of grout (eg. grout
appearing in an adjacent hole) should be a criteria for injection
termination, false if not.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="crossCommunication" type="boolean">
  <annotation>
    <documentation>Value is true if cross-communication of grout (eg. grout appearing in an adjacent hole) should be a criteria for injection termination, false if not.</documentation>
  </annotation>
</element>
Element diggs:TerminationCriteriaType / diggs:gInValue
Namespace http://diggsml.org/schema-dev
Annotations

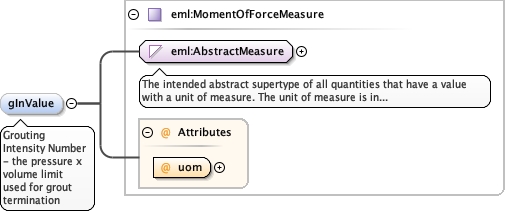

Grouting Intensity Number - the pressure x volume limit
used for grout termination
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<element minOccurs="0" name="gInValue" type="eml:MomentOfForceMeasure">
  <annotation>
    <documentation>Grouting Intensity Number - the pressure x volume limit used for grout termination</documentation>
  </annotation>
</element>

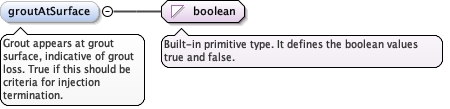

Element diggs:TerminationCriteriaType / diggs:groutAtSurface
Namespace http://diggsml.org/schema-dev
Annotations

Grout appears at grout surface, indicative of grout loss.
True if this should be criteria for injection
termination.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="groutAtSurface" type="boolean">
  <annotation>
    <documentation>Grout appears at grout surface, indicative of grout loss. True if this should be criteria for injection termination.</documentation>
  </annotation>
</element>
Element diggs:TerminationCriteriaType / diggs:groutFlowAtConstantPressure
Namespace http://diggsml.org/schema-dev
Annotations

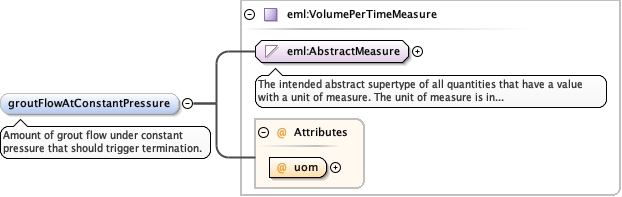

Amount of grout flow under constant pressure that should
trigger termination.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element minOccurs="0" name="groutFlowAtConstantPressure" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Amount of grout flow under constant pressure that should trigger termination.</documentation>
  </annotation>
</element>

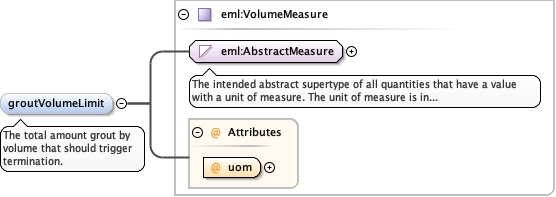

Element diggs:TerminationCriteriaType / diggs:groutVolumeLimit
Namespace http://diggsml.org/schema-dev
Annotations

The total amount grout by volume that should trigger
termination.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="groutVolumeLimit" type="eml:VolumeMeasure">
  <annotation>
    <documentation>The total amount grout by volume that should trigger termination.</documentation>
  </annotation>
</element>

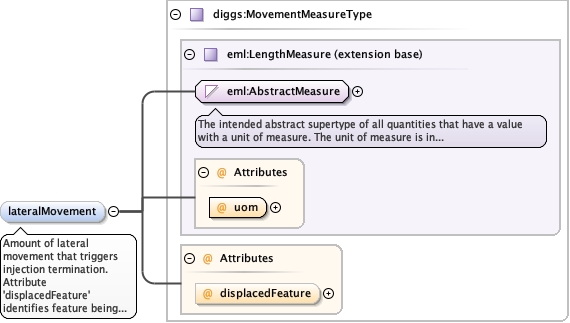

Element diggs:TerminationCriteriaType / diggs:lateralMovement
Namespace http://diggsml.org/schema-dev
Annotations

Amount of lateral movement that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source

<element minOccurs="0" name="lateralMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of lateral movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>
Element diggs:TerminationCriteriaType / diggs:movement
Namespace http://diggsml.org/schema-dev
Annotations

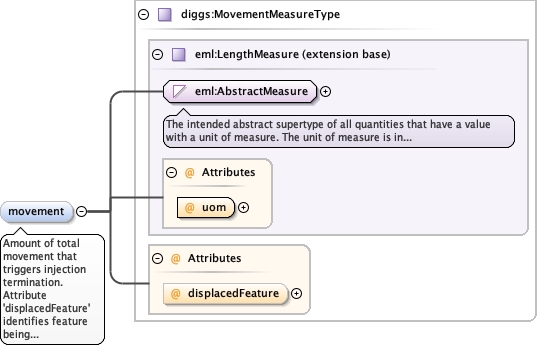

Amount of total movement that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source

<element minOccurs="0" name="movement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of total movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

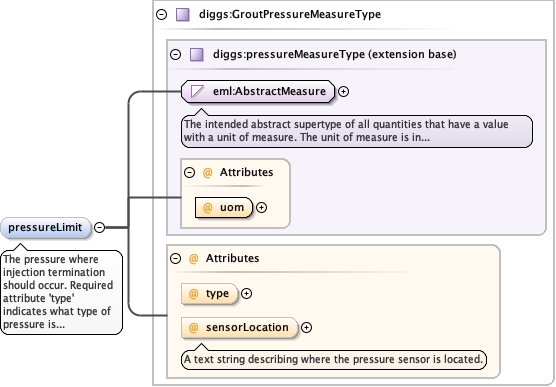

Element diggs:TerminationCriteriaType / diggs:pressureLimit
Namespace http://diggsml.org/schema-dev
Annotations

The pressure where injection termination should occur.
Required attribute 'type' indicates what type of pressure is being
measured - eg. gauge, effective, transducer) and optional attribute
'sensorLocation' is a string type indicating where sensor is located
(eg. pump, grout head, etc.).
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
sensorLocation string optional
A text string describing where the pressure sensor is
located.
type diggs:pressureMeasureTypeEnumType optional
uom diggs:diggsPressureUom required
Source

<element minOccurs="0" name="pressureLimit" type="diggs:GroutPressureMeasureType" maxOccurs="unbounded">
  <annotation>
    <documentation>The pressure where injection termination should occur. Required attribute 'type' indicates what type of pressure is being measured - eg. gauge, effective, transducer) and optional attribute 'sensorLocation' is a string type indicating where sensor is located (eg. pump, grout head, etc.).</documentation>
  </annotation>
</element>

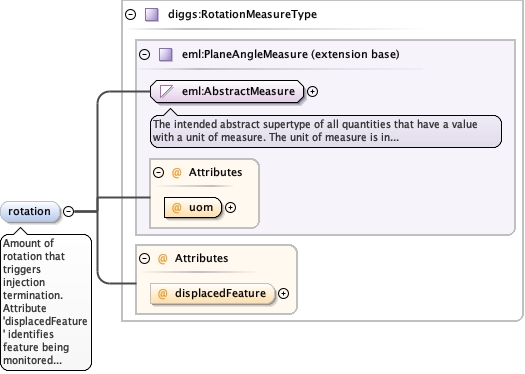

Element diggs:TerminationCriteriaType / diggs:rotation
Namespace http://diggsml.org/schema-dev
Annotations

Amount of rotation that triggers injection termination.
Attribute 'displacedFeature' identifies feature being monitored for
movement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType
Type diggs:RotationMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source

<element minOccurs="0" name="rotation" maxOccurs="unbounded" type="diggs:RotationMeasureType">
  <annotation>
    <documentation>Amount of rotation that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

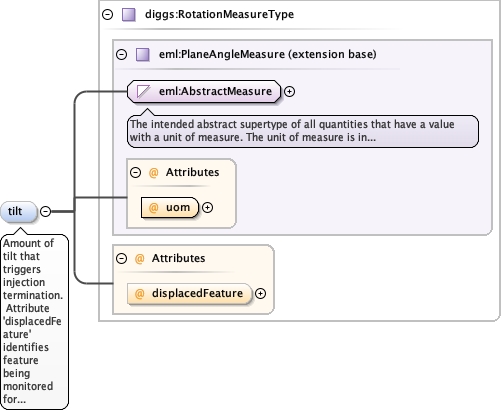

Element diggs:TerminationCriteriaType / diggs:tilt
Namespace http://diggsml.org/schema-dev
Annotations

Amount of tilt that triggers injection termination.
Attribute 'displacedFeature' identifies feature being monitored for
movement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType
Type diggs:RotationMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source

<element minOccurs="0" name="tilt" maxOccurs="unbounded" type="diggs:RotationMeasureType">
  <annotation>
    <documentation>Amount of tilt that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

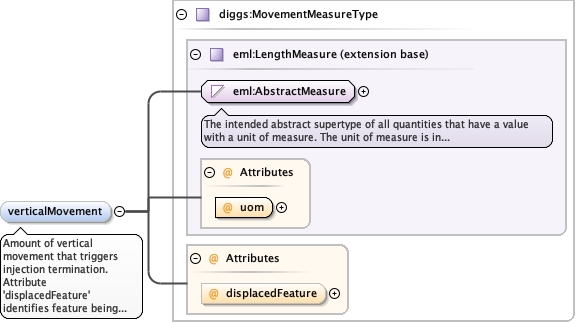

Element diggs:TerminationCriteriaType / diggs:verticalMovement
Namespace http://diggsml.org/schema-dev
Annotations

Amount of vertical movement that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source

<element minOccurs="0" name="verticalMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of vertical movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

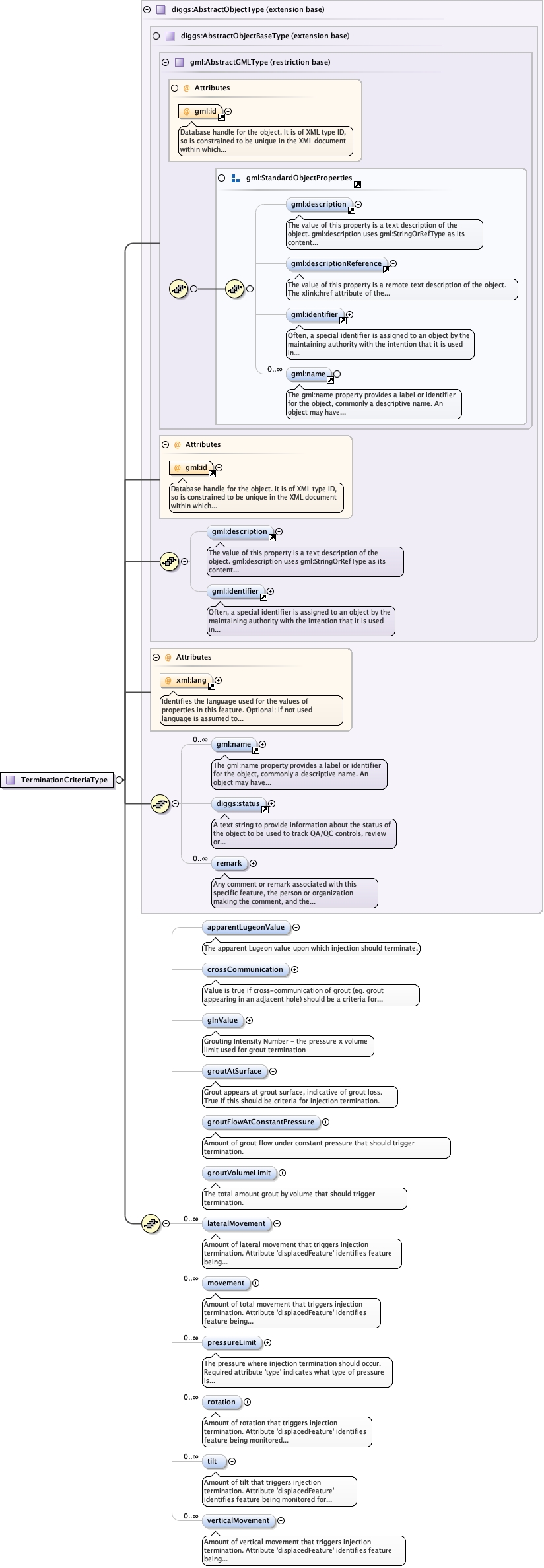

Complex Type diggs:TerminationCriteriaType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_apparentLugeonValueConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_crossCommunicationConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_gInValueConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutAtSurfaceConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutFlowAtConstantPressureConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutVolumeLimitConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_lateralMovementConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_movementConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_pressureLimitConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_rotationConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_tiltConstruction_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_verticalMovement
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:apparentLugeonValue, diggs:crossCommunication, diggs:gInValue, diggs:groutAtSurface, diggs:groutFlowAtConstantPressure, diggs:groutVolumeLimit, diggs:lateralMovement, diggs:movement, diggs:pressureLimit, diggs:remark, diggs:rotation, diggs:status, diggs:tilt, diggs:verticalMovement, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TerminationCriteriaType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="apparentLugeonValue" type="diggs:LugeonValueMeasureType">
          <annotation>
            <documentation>The apparent Lugeon value upon which injection should terminate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="crossCommunication" type="boolean">
          <annotation>
            <documentation>Value is true if cross-communication of grout (eg. grout appearing in an adjacent hole) should be a criteria for injection termination, false if not.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="gInValue" type="eml:MomentOfForceMeasure">
          <annotation>
            <documentation>Grouting Intensity Number - the pressure x volume limit used for grout termination</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutAtSurface" type="boolean">
          <annotation>
            <documentation>Grout appears at grout surface, indicative of grout loss. True if this should be criteria for injection termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutFlowAtConstantPressure" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Amount of grout flow under constant pressure that should trigger termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeLimit" type="eml:VolumeMeasure">
          <annotation>
            <documentation>The total amount grout by volume that should trigger termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lateralMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of lateral movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="movement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of total movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureLimit" type="diggs:GroutPressureMeasureType" maxOccurs="unbounded">
          <annotation>
            <documentation>The pressure where injection termination should occur. Required attribute 'type' indicates what type of pressure is being measured - eg. gauge, effective, transducer) and optional attribute 'sensorLocation' is a string type indicating where sensor is located (eg. pump, grout head, etc.).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rotation" maxOccurs="unbounded" type="diggs:RotationMeasureType">
          <annotation>
            <documentation>Amount of rotation that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tilt" maxOccurs="unbounded" type="diggs:RotationMeasureType">
          <annotation>
            <documentation>Amount of tilt that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of vertical movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
