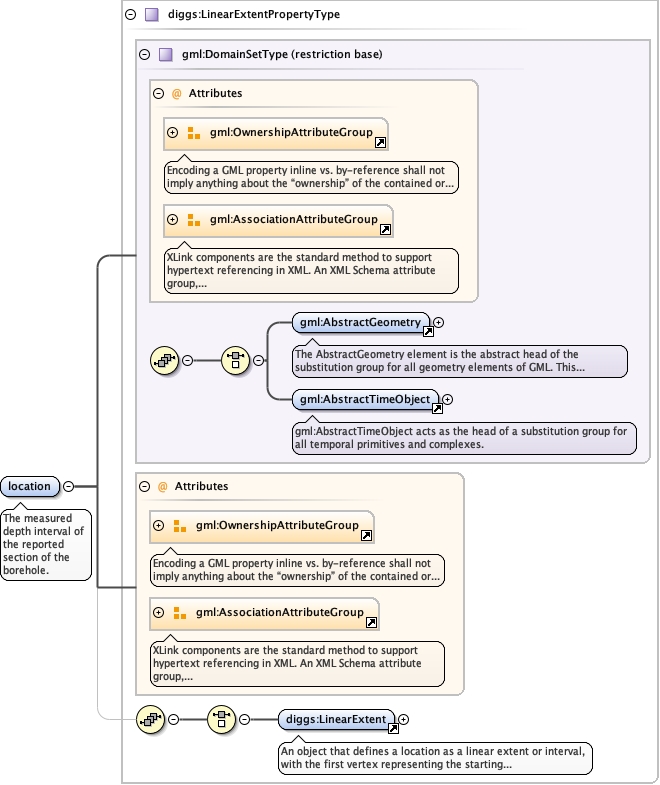

Element diggs:AdvancementType / diggs:location
Namespace http://diggsml.org/schema-dev
Annotations

The measured depth interval of the reported section of
the borehole.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Children diggs:LinearExtent
Instance

<diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:location>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="location" type="diggs:LinearExtentPropertyType" minOccurs="1">
  <annotation>
    <documentation>The measured depth interval of the reported section of the borehole.</documentation>
  </annotation>
</element>

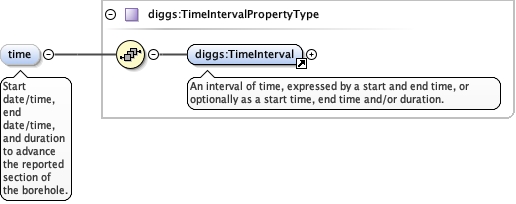

Element diggs:AdvancementType / diggs:time
Namespace http://diggsml.org/schema-dev
Annotations

Start date/time, end date/time, and duration to
advance the reported section of the borehole.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:time xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:time>
Source

<element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
  <annotation>
    <documentation>Start date/time, end date/time, and duration to advance the reported section of the borehole.</documentation>
  </annotation>
</element>

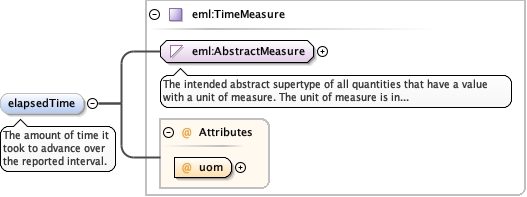

Element diggs:AdvancementType / diggs:elapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

The amount of time it took to advance over the
reported interval.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element name="elapsedTime" type="eml:TimeMeasure" minOccurs="0">
  <annotation>
    <documentation>The amount of time it took to advance over the reported interval.</documentation>
  </annotation>
</element>

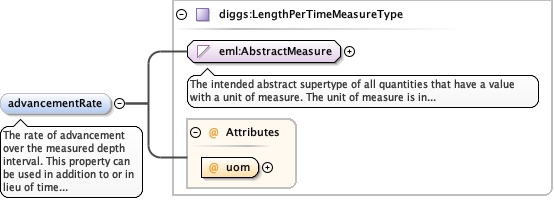

Element diggs:AdvancementType / diggs:advancementRate
Namespace http://diggsml.org/schema-dev
Annotations

The rate of advancement over the measured depth interval.
This property can be used in addition to or in lieu of time or
elapsedTime.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomKernel_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom diggs:lengthPerTimeUom required
Source

<element name="advancementRate" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The rate of advancement over the measured depth interval. This property can be used in addition to or in lieu of time or elapsedTime.</documentation>
  </annotation>
</element>

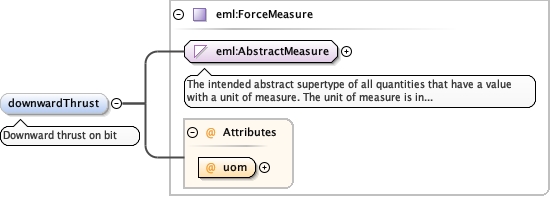

Element diggs:AdvancementType / diggs:downwardThrust
Namespace http://diggsml.org/schema-dev
Annotations

Downward thrust on bit
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="downwardThrust" minOccurs="0" type="eml:ForceMeasure">
  <annotation>
    <documentation>Downward thrust on bit</documentation>
  </annotation>
</element>

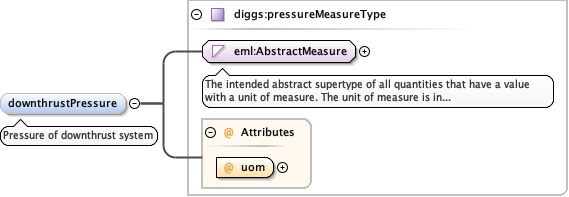

Element diggs:AdvancementType / diggs:downthrustPressure
Namespace http://diggsml.org/schema-dev
Annotations

Pressure of downthrust system
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="downthrustPressure" minOccurs="0" type="diggs:pressureMeasureType">
  <annotation>
    <documentation>Pressure of downthrust system</documentation>
  </annotation>
</element>

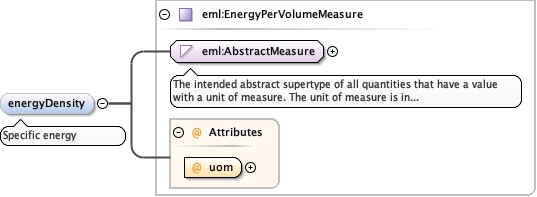

Element diggs:AdvancementType / diggs:energyDensity
Namespace http://diggsml.org/schema-dev
Annotations

Specific energy
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_EnergyPerVolumeMeasure.tmp#EnergyPerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_EnergyPerVolumeMeasure.tmp#EnergyPerVolumeMeasure
Type eml:EnergyPerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:EnergyPerVolumeUom required
Source

<element name="energyDensity" minOccurs="0" type="eml:EnergyPerVolumeMeasure">
  <annotation>
    <documentation>Specific energy</documentation>
  </annotation>
</element>

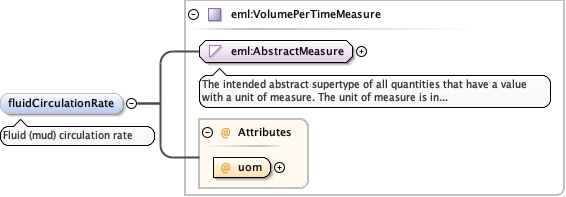

Element diggs:AdvancementType / diggs:fluidCirculationRate
Namespace http://diggsml.org/schema-dev
Annotations

Fluid (mud) circulation rate
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element name="fluidCirculationRate" minOccurs="0" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Fluid (mud) circulation rate</documentation>
  </annotation>
</element>

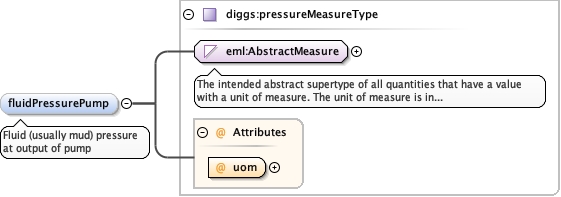

Element diggs:AdvancementType / diggs:fluidPressurePump
Namespace http://diggsml.org/schema-dev
Annotations

Fluid (usually mud) pressure at output of
pump
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="fluidPressurePump" minOccurs="0" type="diggs:pressureMeasureType">
  <annotation>
    <documentation>Fluid (usually mud) pressure at output of pump</documentation>
  </annotation>
</element>

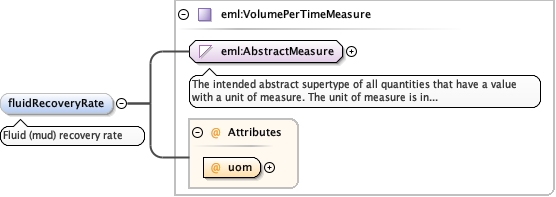

Element diggs:AdvancementType / diggs:fluidRecoveryRate
Namespace http://diggsml.org/schema-dev
Annotations

Fluid (mud) recovery rate
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasure.tmp#VolumePerTimeMeasure
Type eml:VolumePerTimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUom required
Source

<element name="fluidRecoveryRate" minOccurs="0" type="eml:VolumePerTimeMeasure">
  <annotation>
    <documentation>Fluid (mud) recovery rate</documentation>
  </annotation>
</element>

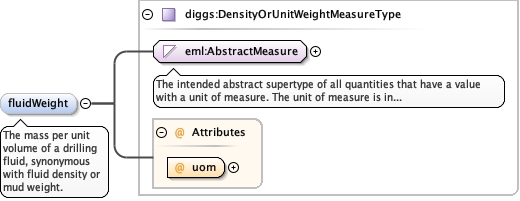

Element diggs:AdvancementType / diggs:fluidWeight
Namespace http://diggsml.org/schema-dev
Annotations

The mass per unit volume of a drilling fluid, synonymous
with fluid density or mud weight.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomKernel_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsDensityOrUnitWeightUom required
Source

<element minOccurs="0" name="fluidWeight" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>The mass per unit volume of a drilling fluid, synonymous with fluid density or mud weight.</documentation>
  </annotation>
</element>
Element diggs:AdvancementType / diggs:hammeringUsed
Namespace http://diggsml.org/schema-dev
Annotations

True if drill stem was hammered while advancing (eg.
chiseling).
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element name="hammeringUsed" minOccurs="0" type="boolean">
  <annotation>
    <documentation>True if drill stem was hammered while advancing (eg. chiseling).</documentation>
  </annotation>
</element>

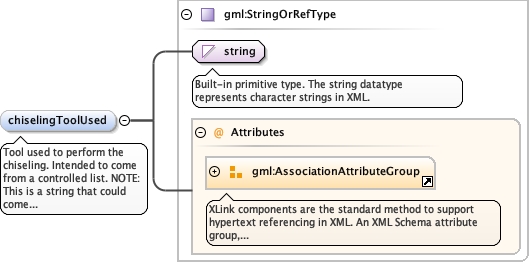

Element diggs:AdvancementType / diggs:chiselingToolUsed
Namespace http://diggsml.org/schema-dev
Annotations

Tool used to perform the chiseling. Intended to come from
a controlled list. NOTE: This is a string that could come from a
controlled list of terms, but could also reference an Equipment
metadata object.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_StringOrRefType.tmp#StringOrRefType
Type gml:StringOrRefType
Properties
content complex
minOccurs 0
Attributes
QName Type Fixed Use Annotation
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="chiselingToolUsed" type="gml:StringOrRefType">
  <annotation>
    <documentation>Tool used to perform the chiseling. Intended to come from a controlled list. NOTE: This is a string that could come from a controlled list of terms, but could also reference an Equipment metadata object.</documentation>
  </annotation>
</element>

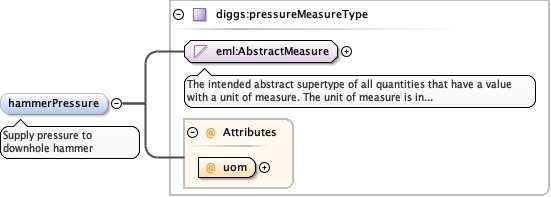

Element diggs:AdvancementType / diggs:hammerPressure
Namespace http://diggsml.org/schema-dev
Annotations

Supply pressure to downhole hammer
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="hammerPressure" minOccurs="0" type="diggs:pressureMeasureType">
  <annotation>
    <documentation>Supply pressure to downhole hammer</documentation>
  </annotation>
</element>

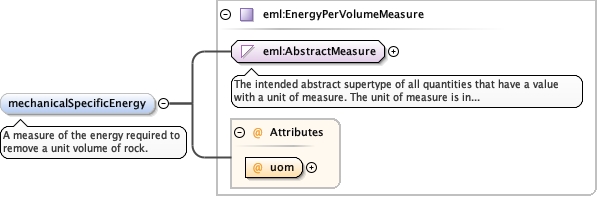

Element diggs:AdvancementType / diggs:mechanicalSpecificEnergy
Namespace http://diggsml.org/schema-dev
Annotations

A measure of the energy required to remove a unit volume
of rock.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_EnergyPerVolumeMeasure.tmp#EnergyPerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_EnergyPerVolumeMeasure.tmp#EnergyPerVolumeMeasure
Type eml:EnergyPerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:EnergyPerVolumeUom required
Source

<element name="mechanicalSpecificEnergy" minOccurs="0" type="eml:EnergyPerVolumeMeasure">
  <annotation>
    <documentation>A measure of the energy required to remove a unit volume of rock.</documentation>
  </annotation>
</element>

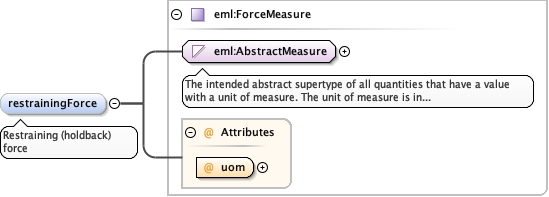

Element diggs:AdvancementType / diggs:restrainingForce
Namespace http://diggsml.org/schema-dev
Annotations

Restraining (holdback) force
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element name="restrainingForce" minOccurs="0" type="eml:ForceMeasure">
  <annotation>
    <documentation>Restraining (holdback) force</documentation>
  </annotation>
</element>

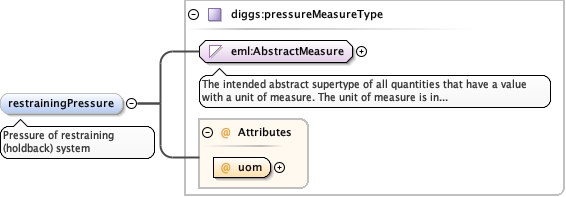

Element diggs:AdvancementType / diggs:restrainingPressure
Namespace http://diggsml.org/schema-dev
Annotations

Pressure of restraining (holdback) system
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="restrainingPressure" minOccurs="0" type="diggs:pressureMeasureType">
  <annotation>
    <documentation>Pressure of restraining (holdback) system</documentation>
  </annotation>
</element>

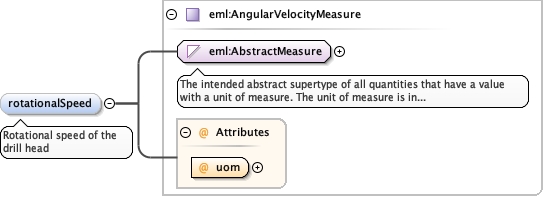

Element diggs:AdvancementType / diggs:rotationalSpeed
Namespace http://diggsml.org/schema-dev
Annotations

Rotational speed of the drill head
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure_uomMeasureType_xsd_Complex_Type_eml_AngularVelocityMeasure.tmp#AngularVelocityMeasure
Type eml:AngularVelocityMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AngularVelocityUom required
Source

<element name="rotationalSpeed" minOccurs="0" type="eml:AngularVelocityMeasure">
  <annotation>
    <documentation>Rotational speed of the drill head</documentation>
  </annotation>
</element>

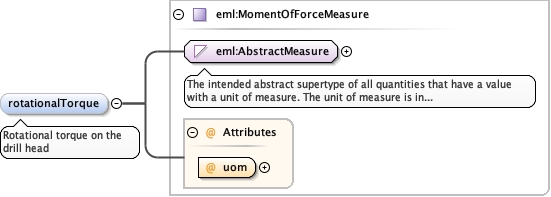

Element diggs:AdvancementType / diggs:rotationalTorque
Namespace http://diggsml.org/schema-dev
Annotations

Rotational torque on the drill head
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<element name="rotationalTorque" minOccurs="0" type="eml:MomentOfForceMeasure">
  <annotation>
    <documentation>Rotational torque on the drill head</documentation>
  </annotation>
</element>

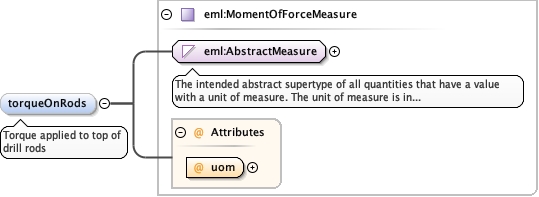

Element diggs:AdvancementType / diggs:torqueOnRods
Namespace http://diggsml.org/schema-dev
Annotations

Torque applied to top of drill rods
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<element name="torqueOnRods" minOccurs="0" type="eml:MomentOfForceMeasure">
  <annotation>
    <documentation>Torque applied to top of drill rods</documentation>
  </annotation>
</element>

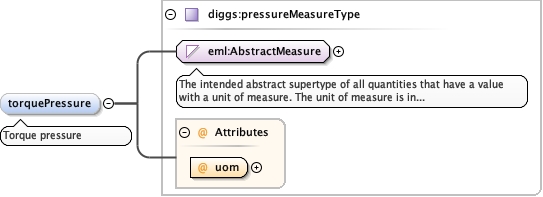

Element diggs:AdvancementType / diggs:torquePressure
Namespace http://diggsml.org/schema-dev
Annotations

Torque pressure
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType_uomKernel_xsd_Complex_Type_diggs_pressureMeasureType.tmp#pressureMeasureType
Type diggs:pressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:diggsPressureUom required
Source

<element name="torquePressure" minOccurs="0" type="diggs:pressureMeasureType">
  <annotation>
    <documentation>Torque pressure</documentation>
  </annotation>
</element>

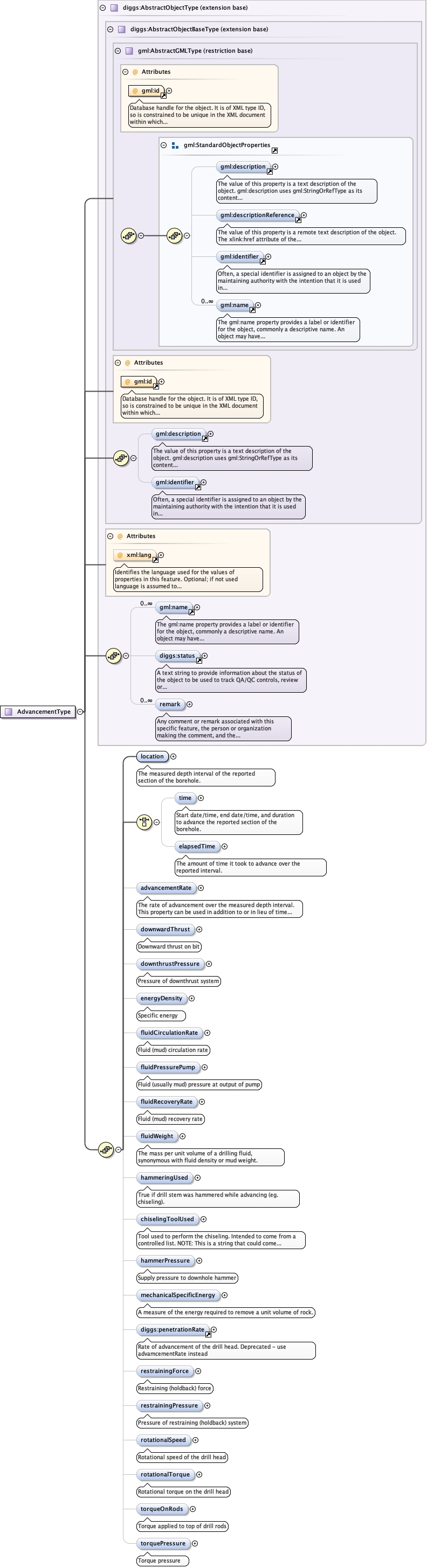

Complex Type diggs:AdvancementType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_locationKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_timeKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_elapsedTimeKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_advancementRateKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_downwardThrustKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_downthrustPressureKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_energyDensityKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidCirculationRateKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidPressurePumpKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidRecoveryRateKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_fluidWeightKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_hammeringUsedKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_chiselingToolUsedKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_hammerPressureKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_mechanicalSpecificEnergyDeprecated_xsd_Element_diggs_penetrationRate.tmp#penetrationRateKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_restrainingForceKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_restrainingPressureKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_rotationalSpeedKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_rotationalTorqueKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_torqueOnRodsKernel_xsd_Complex_Type_diggs_AdvancementType.tmp#AdvancementType_torquePressure
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:advancementRate, diggs:chiselingToolUsed, diggs:downthrustPressure, diggs:downwardThrust, diggs:elapsedTime, diggs:energyDensity, diggs:fluidCirculationRate, diggs:fluidPressurePump, diggs:fluidRecoveryRate, diggs:fluidWeight, diggs:hammerPressure, diggs:hammeringUsed, diggs:location, diggs:mechanicalSpecificEnergy, diggs:penetrationRate, diggs:remark, diggs:restrainingForce, diggs:restrainingPressure, diggs:rotationalSpeed, diggs:rotationalTorque, diggs:status, diggs:time, diggs:torqueOnRods, diggs:torquePressure, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="AdvancementType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="location" type="diggs:LinearExtentPropertyType" minOccurs="1">
          <annotation>
            <documentation>The measured depth interval of the reported section of the borehole.</documentation>
          </annotation>
        </element>
        <choice>
          <element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
            <annotation>
              <documentation>Start date/time, end date/time, and duration to advance the reported section of the borehole.</documentation>
            </annotation>
          </element>
          <element name="elapsedTime" type="eml:TimeMeasure" minOccurs="0">
            <annotation>
              <documentation>The amount of time it took to advance over the reported interval.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="advancementRate" type="diggs:LengthPerTimeMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The rate of advancement over the measured depth interval. This property can be used in addition to or in lieu of time or elapsedTime.</documentation>
          </annotation>
        </element>
        <element name="downwardThrust" minOccurs="0" type="eml:ForceMeasure">
          <annotation>
            <documentation>Downward thrust on bit</documentation>
          </annotation>
        </element>
        <element name="downthrustPressure" minOccurs="0" type="diggs:pressureMeasureType">
          <annotation>
            <documentation>Pressure of downthrust system</documentation>
          </annotation>
        </element>
        <element name="energyDensity" minOccurs="0" type="eml:EnergyPerVolumeMeasure">
          <annotation>
            <documentation>Specific energy</documentation>
          </annotation>
        </element>
        <element name="fluidCirculationRate" minOccurs="0" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Fluid (mud) circulation rate</documentation>
          </annotation>
        </element>
        <element name="fluidPressurePump" minOccurs="0" type="diggs:pressureMeasureType">
          <annotation>
            <documentation>Fluid (usually mud) pressure at output of pump</documentation>
          </annotation>
        </element>
        <element name="fluidRecoveryRate" minOccurs="0" type="eml:VolumePerTimeMeasure">
          <annotation>
            <documentation>Fluid (mud) recovery rate</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fluidWeight" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>The mass per unit volume of a drilling fluid, synonymous with fluid density or mud weight.</documentation>
          </annotation>
        </element>
        <element name="hammeringUsed" minOccurs="0" type="boolean">
          <annotation>
            <documentation>True if drill stem was hammered while advancing (eg. chiseling).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="chiselingToolUsed" type="gml:StringOrRefType">
          <annotation>
            <documentation>Tool used to perform the chiseling. Intended to come from a controlled list. NOTE: This is a string that could come from a controlled list of terms, but could also reference an Equipment metadata object.</documentation>
          </annotation>
        </element>
        <element name="hammerPressure" minOccurs="0" type="diggs:pressureMeasureType">
          <annotation>
            <documentation>Supply pressure to downhole hammer</documentation>
          </annotation>
        </element>
        <element name="mechanicalSpecificEnergy" minOccurs="0" type="eml:EnergyPerVolumeMeasure">
          <annotation>
            <documentation>A measure of the energy required to remove a unit volume of rock.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:penetrationRate">
          <annotation>
            <documentation>Rate of advancement of the drill head. Deprecated - use advamcementRate instead</documentation>
          </annotation>
        </element>
        <element name="restrainingForce" minOccurs="0" type="eml:ForceMeasure">
          <annotation>
            <documentation>Restraining (holdback) force</documentation>
          </annotation>
        </element>
        <element name="restrainingPressure" minOccurs="0" type="diggs:pressureMeasureType">
          <annotation>
            <documentation>Pressure of restraining (holdback) system</documentation>
          </annotation>
        </element>
        <element name="rotationalSpeed" minOccurs="0" type="eml:AngularVelocityMeasure">
          <annotation>
            <documentation>Rotational speed of the drill head</documentation>
          </annotation>
        </element>
        <element name="rotationalTorque" minOccurs="0" type="eml:MomentOfForceMeasure">
          <annotation>
            <documentation>Rotational torque on the drill head</documentation>
          </annotation>
        </element>
        <element name="torqueOnRods" minOccurs="0" type="eml:MomentOfForceMeasure">
          <annotation>
            <documentation>Torque applied to top of drill rods</documentation>
          </annotation>
        </element>
        <element name="torquePressure" minOccurs="0" type="diggs:pressureMeasureType">
          <annotation>
            <documentation>Torque pressure</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
